- Codice Macchina
- BO57
- Manufacturer
- BRUCKNER
- Year
- 1990
- Numero di strati
- 3
- Rinnovo
- several
- Struttura film
- A B C
- Materiali
- BOPP
- Output
- 2500 kG / H
- Larghezza (mm)
- 7400

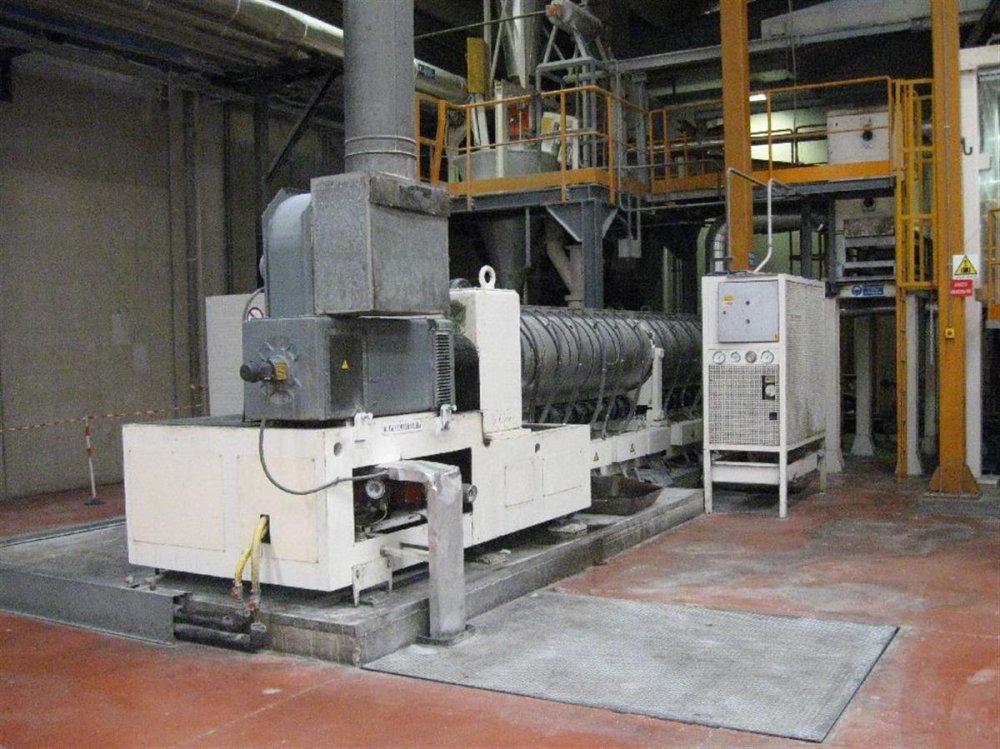

- Extruder 1 Description
- 1 X 200 MM diam L/D 21 + 1 sequence 1 x 250 L/D 20
- Extruder 2 Description
- 1 x90 coex
- Extruder 3 Description
- 1 x 90 coex

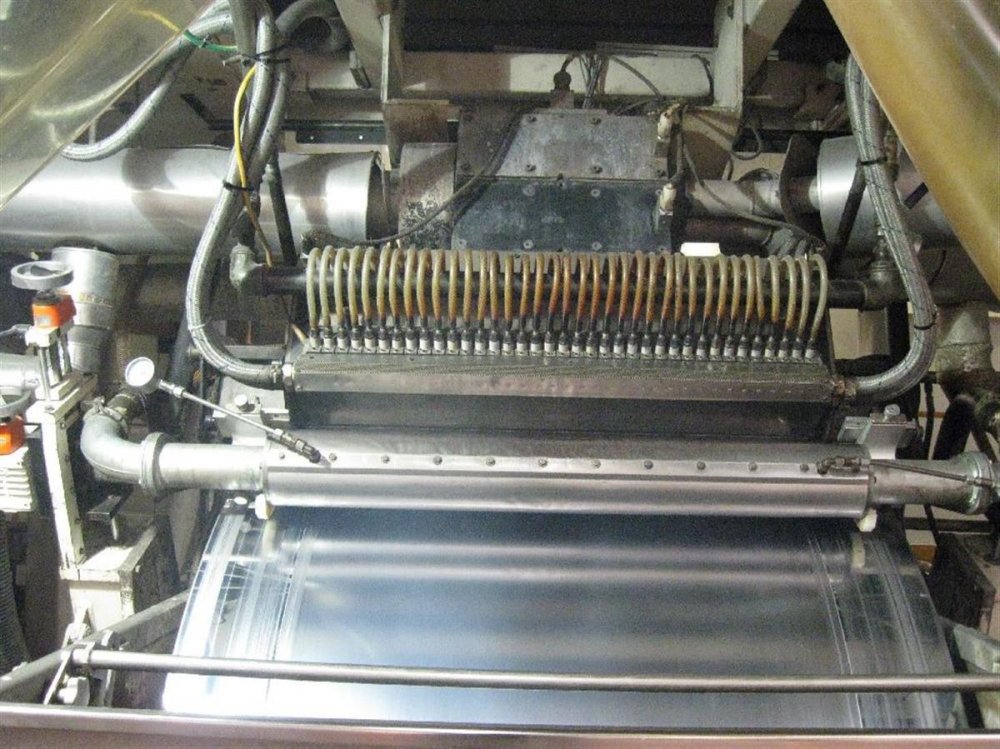

- Descrizione testa
- 7 heating zones - 45 Kw heating power - lips 1,7 - 3,5 mm
- Die width
- 1054 mm
- Controllo di spessore
- automatic SIMPLAST head by 37 heating bolts Two thickness controls new by Electronic system
- Unità chill roll
- width 1400 mm diam 2.400 mm
- Descrizione MDO
- pulling unit thermo heated calenders, rollers width 1200 mm, MDO ratio 1: 1/ 10:1- slow section 2 x 60 m/ min ;high speed section 9 x 250 m/min, Preheating calenders 18 , 6 pulling rollers , 2 stabiizing rollersn

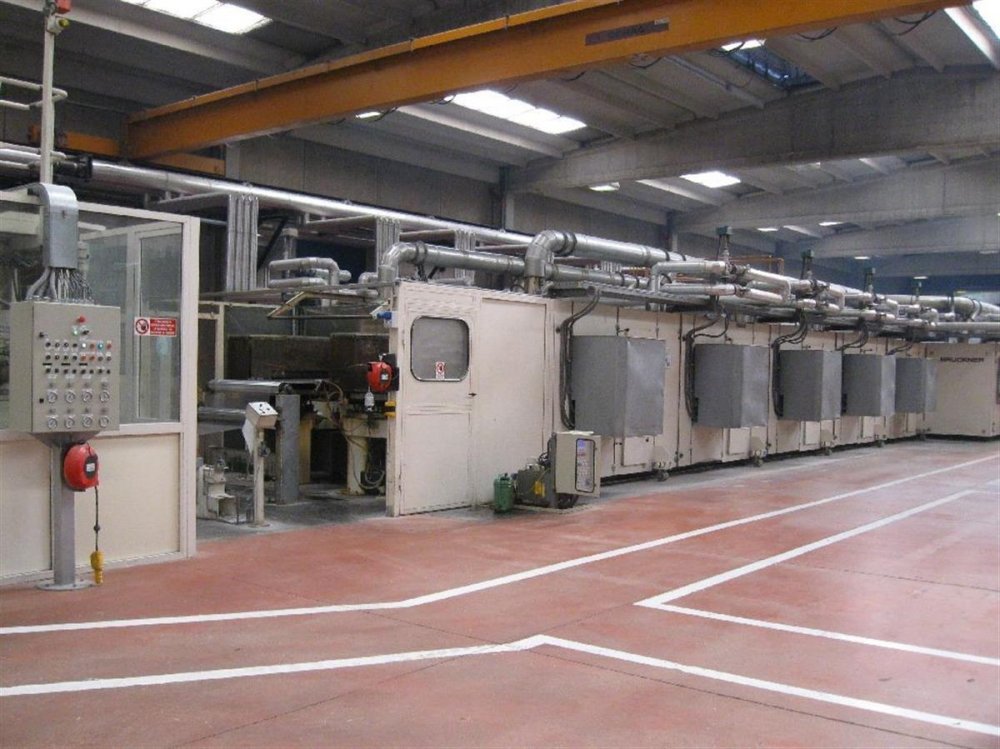

- Descrizione TDO
- Max stretchin width 8500 mm, effective max width capacxity 6700 - 7500 mm, 7 heating zones by air blowers and thermo oil heaters
- Trattamento Corona
- yes two corona treaters
- Trattamento a fiamma
- Yes
- Larghezza avvolgitore
- 7200 mm
- Descrizione avvolgitore
- Diam mandrels 450mm.Lenght mandrels 7800mm. Winding speed 250m/min. Tension film 150/700N. 2 alternating winding stations approx 40 shafts for rewinder
- Taglia cordona
- year 1988, 7200 max width film; Diam unwinder 1000mm - 900 diam rewinder. 200 mm min cut. 2000mm max cut. Speed 800m/min
- Ulteriori informazioni
- Trim exhausting grinding and recirculating unit Upgrade with track and chain fok4.4.7 New Simoreg drives of all motors in 2007 2 corona top treaters Available large set of spare parts as screws Rollers of MDO
| Codice Macchina | BO57 |
| Manufacturer | BRUCKNER |
| Year | 1990 |
| Numero di strati | 3 |
| Rinnovo | several |
| Struttura film | A B C |
| Materiali | BOPP |
| Output | 2500 kG / H |
| Larghezza (mm) | 7400 |
| Extruder 1 Description | 1 X 200 MM diam L/D 21 + 1 sequence 1 x 250 L/D 20 |
| Extruder 2 Description | 1 x90 coex |
| Extruder 3 Description | 1 x 90 coex |
| Descrizione testa | 7 heating zones - 45 Kw heating power - lips 1,7 - 3,5 mm |
| Die width | 1054 mm |
| Controllo di spessore | automatic SIMPLAST head by 37 heating bolts Two thickness controls new by Electronic system |
| Unità chill roll | width 1400 mm diam 2.400 mm |
| Descrizione MDO | pulling unit thermo heated calenders, rollers width 1200 mm, MDO ratio 1: 1/ 10:1- slow section 2 x 60 m/ min ;high speed section 9 x 250 m/min, Preheating calenders 18 , 6 pulling rollers , 2 stabiizing rollersn |
| Descrizione TDO | Max stretchin width 8500 mm, effective max width capacxity 6700 - 7500 mm, 7 heating zones by air blowers and thermo oil heaters |
| Trattamento Corona | yes two corona treaters |
| Trattamento a fiamma | Yes |
| Larghezza avvolgitore | 7200 mm |
| Descrizione avvolgitore | Diam mandrels 450mm.Lenght mandrels 7800mm. Winding speed 250m/min. Tension film 150/700N. 2 alternating winding stations approx 40 shafts for rewinder |

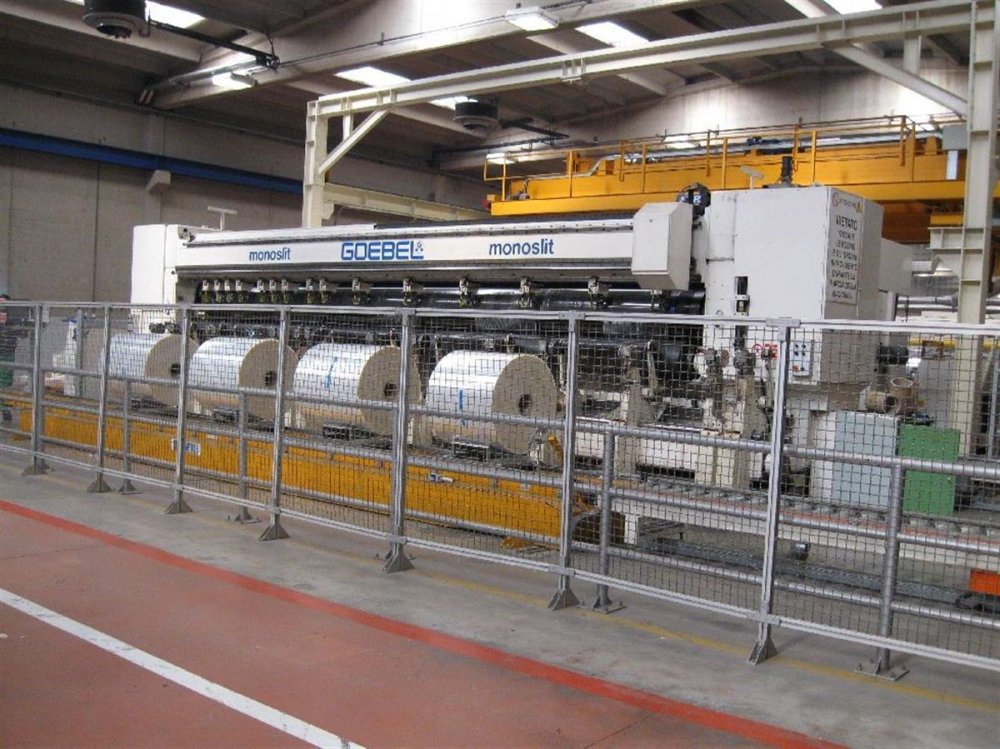

| Taglia cordona | year 1988, 7200 max width film; Diam unwinder 1000mm - 900 diam rewinder. 200 mm min cut. 2000mm max cut. Speed 800m/min |
| Ulteriori informazioni | Trim exhausting grinding and recirculating unit Upgrade with track and chain fok4.4.7 New Simoreg drives of all motors in 2007 2 corona top treaters Available large set of spare parts as screws Rollers of MDO |
