- Codice Macchina
- BO87
- Manufacturer
- BRUCKNER
- Year
- 2007
- Numero di strati
- 3
- Struttura film
- ABC
- Materiali
- BOPP
- Output
- max output 4000 kg/h, mechanical speed 450 m/min, max production speed 425 m/min. Total extrusion capacity: 5080 kg/h
- Larghezza (mm)
- 8200
- Extruder 1 Description
- Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h

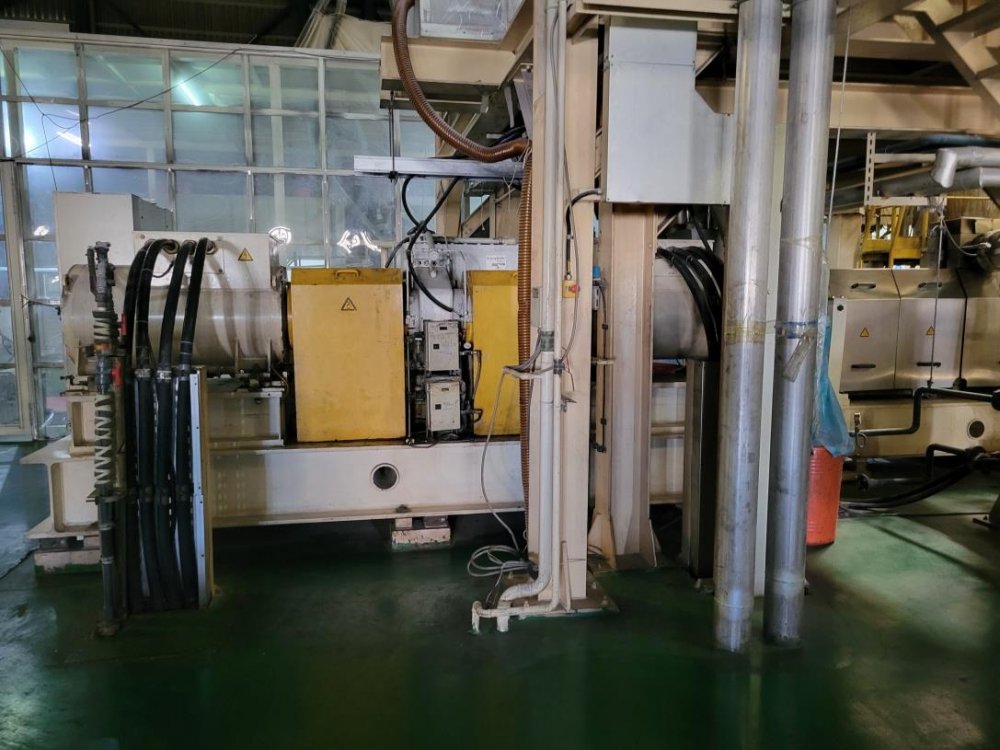

- Extruder 2 Description
- Layer B - Co-rotating twin screw extruder, make Kraus Maffei max through put 4500 kg/h. Vacuum box. Melt pump. Candle type screen
- Extruder 3 Description
- Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h
- Descrizione testa
- Make Simplas. automatic thickness profile control via thermal bolts
- Die width
- 1200
- Controllo di spessore
- Automatic thickness control. 2 thickness gauges make Thermo scientific (after chill roll and on pull roll unit)
- Unità chill roll
- Chill roll in water bath
- Descrizione MDO
- 18 Pre-Heating rollers; 6 stretching rollers, 4 annealing rollers

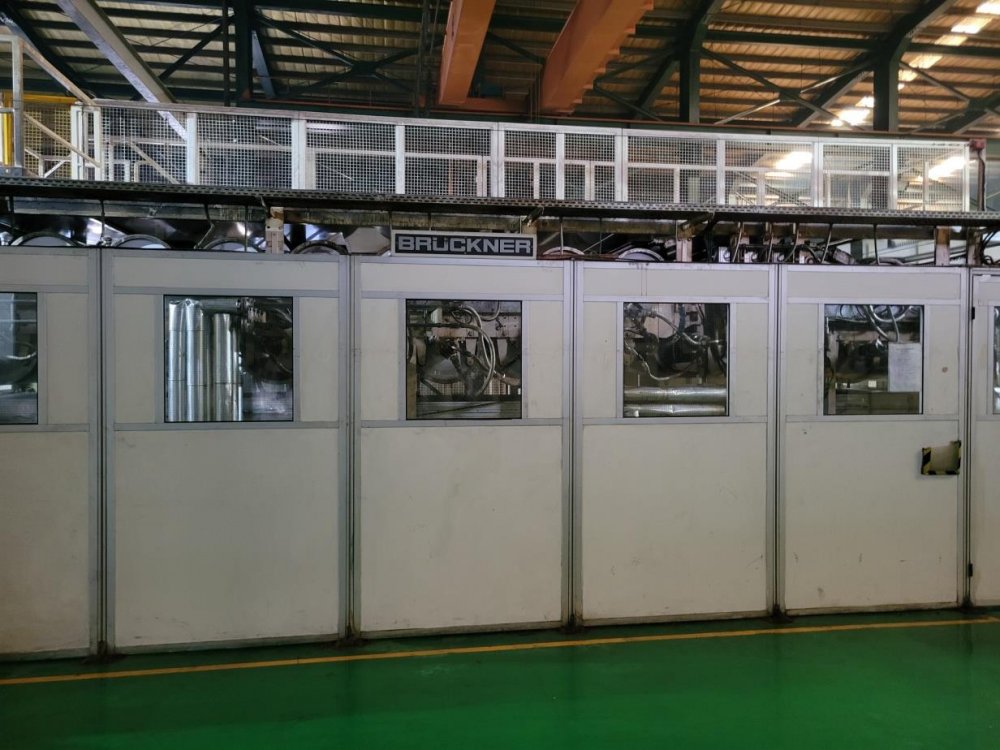

- Descrizione TDO
- Oil heated TDO
- Trattamento Corona
- make: Mero
- Trattamento a fiamma
- make: Esseci
- Larghezza avvolgitore
- 8200mm net film width
- Descrizione avvolgitore
- Turret type, auto splicing. 450m/min mechanical speed
- Taglia cordona
- Primary slitter make Atlas,width 9.000mm, max speed 1000 m/min, rewinder with independent stations with couples of arms, center driven. Each couple of arm with independent drive. motorised position of arms and blades. Tot 18 winding stations. Max reel diameter unwinder 1350mm. max reel diam rewinder 1200mm. Width range on winding stations: 350-2500mm
- Ulteriori informazioni
- - PLC Siemens S7 and IPC automation system - 2x thermal oil boilers - 3x Childers - 3x air compressors - Film winder over head crane 12T - Primary slitter over head crane 12T - Maintenance Hoists and cranes
| Codice Macchina | BO87 |
| Manufacturer | BRUCKNER |
| Year | 2007 |
| Numero di strati | 3 |
| Struttura film | ABC |
| Materiali | BOPP |
| Output | max output 4000 kg/h, mechanical speed 450 m/min, max production speed 425 m/min. Total extrusion capacity: 5080 kg/h |
| Larghezza (mm) | 8200 |
| Extruder 1 Description | Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h |
| Extruder 2 Description | Layer B - Co-rotating twin screw extruder, make Kraus Maffei max through put 4500 kg/h. Vacuum box. Melt pump. Candle type screen |
| Extruder 3 Description | Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h |
| Descrizione testa | Make Simplas. automatic thickness profile control via thermal bolts |
| Die width | 1200 |
| Controllo di spessore | Automatic thickness control. 2 thickness gauges make Thermo scientific (after chill roll and on pull roll unit) |
| Unità chill roll | Chill roll in water bath |
| Descrizione MDO | 18 Pre-Heating rollers; 6 stretching rollers, 4 annealing rollers |
| Descrizione TDO | Oil heated TDO |
| Trattamento Corona | make: Mero |
| Trattamento a fiamma | make: Esseci |
| Larghezza avvolgitore | 8200mm net film width |
| Descrizione avvolgitore | Turret type, auto splicing. 450m/min mechanical speed |
| Taglia cordona | Primary slitter make Atlas,width 9.000mm, max speed 1000 m/min, rewinder with independent stations with couples of arms, center driven. Each couple of arm with independent drive. motorised position of arms and blades. Tot 18 winding stations. Max reel diameter unwinder 1350mm. max reel diam rewinder 1200mm. Width range on winding stations: 350-2500mm |
| Ulteriori informazioni | - PLC Siemens S7 and IPC automation system - 2x thermal oil boilers - 3x Childers - 3x air compressors - Film winder over head crane 12T - Primary slitter over head crane 12T - Maintenance Hoists and cranes |
