3 strati BRUCKNER Line di estrusione per BOPP / BOPET // BOPP BOPET // Film extrusion lines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Photo Gallery

Richiedi maggiori informazioni

Codice Macchina: BO92
Manufacturer: BRUCKNER
Year: 1998
Numero di strati: 3
Struttura film: ABC
Output: Max speed 280m/min, max output 1800kg(h
Larghezza (mm): 6600
Extruder 1 Description: A - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
Extruder 2 Description: B- Main: CASCADE EXTRUDER , melt extruder diam 200mm + metering extruder diam 250mm, 4 components dosing system, output 2000kg/h, DC motor
Extruder 3 Description: C - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
Descrizione testa: Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts
Die width: 1025
Controllo di spessore: Automatic thickness control system. Gauge bet rays
Unità chill roll: Chill roll in water bath. Gloss surface finish.
Descrizione MDO: - 12 x pre-heating rollers (6 chrome plated surface, 6 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts

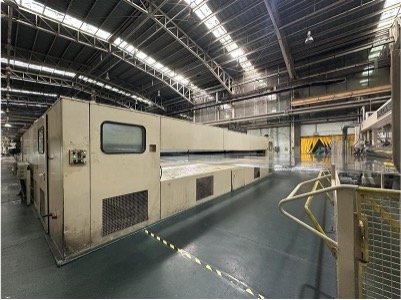

Descrizione TDO: - Pre heating section 15m length - Stretching section 6m length - Annealing +heat set section 18m length Heating via thermal oil
Trattamento Corona: 2 x MERO treaters
Unità pull roll: Thickness gauge, 2 x corona treatments, edge trim, In lince grinder make Hosokawa Alpine
Larghezza avvolgitore: 6600mm net

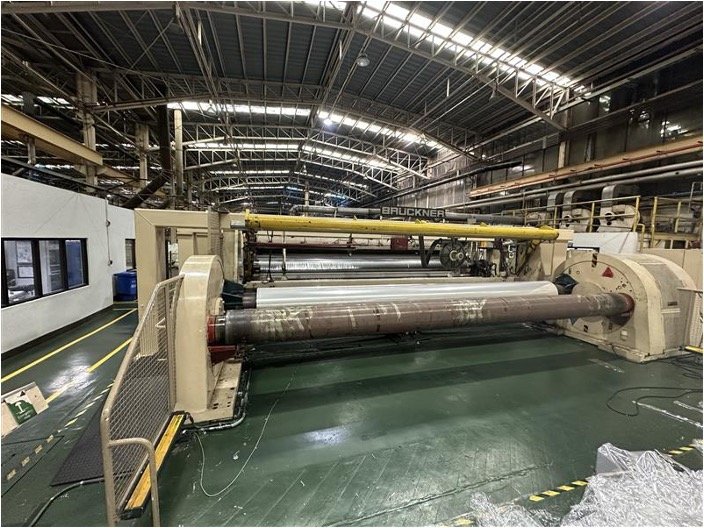

Descrizione avvolgitore: Turret type
Ulteriori informazioni: Water chiller Thermal oil heater Main PLC Siemens S7

Codice Macchina	BO92
Manufacturer	BRUCKNER
Year	1998
Numero di strati	3
Struttura film	ABC
Output	Max speed 280m/min, max output 1800kg(h
Larghezza (mm)	6600
Extruder 1 Description	A - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
Extruder 2 Description	B- Main: CASCADE EXTRUDER , melt extruder diam 200mm + metering extruder diam 250mm, 4 components dosing system, output 2000kg/h, DC motor
Extruder 3 Description	C - Coex: SINGLE SCREW , diam 90mm, 3 components dosing system, output 125kg/h, DC motor
Descrizione testa	Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts
Die width	1025
Controllo di spessore	Automatic thickness control system. Gauge bet rays
Unità chill roll	Chill roll in water bath. Gloss surface finish.
Descrizione MDO	- 12 x pre-heating rollers (6 chrome plated surface, 6 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts
Descrizione TDO	- Pre heating section 15m length - Stretching section 6m length - Annealing +heat set section 18m length Heating via thermal oil
Trattamento Corona	2 x MERO treaters
Unità pull roll	Thickness gauge, 2 x corona treatments, edge trim, In lince grinder make Hosokawa Alpine
Larghezza avvolgitore	6600mm net
Descrizione avvolgitore	Turret type
Ulteriori informazioni	Water chiller Thermal oil heater Main PLC Siemens S7
