- Codice Macchina
- BO89
- Manufacturer
- BRUCKNER
- Year
- 2009
- Numero di strati
- 3
- Struttura film
- ABC
- Materiali
- BOPP
- Output
- max output 4500 Kg/h, mechanical speed 450 m/min, production speed 425 m/min
- Larghezza (mm)
- 8300
- Extruder 1 Description
- Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components
- Extruder 2 Description
- Twin screw co-rotating, Make Krauss Maffei, max output 5400 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motors. Main material hopper 3160 L
- Extruder 3 Description
- Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components

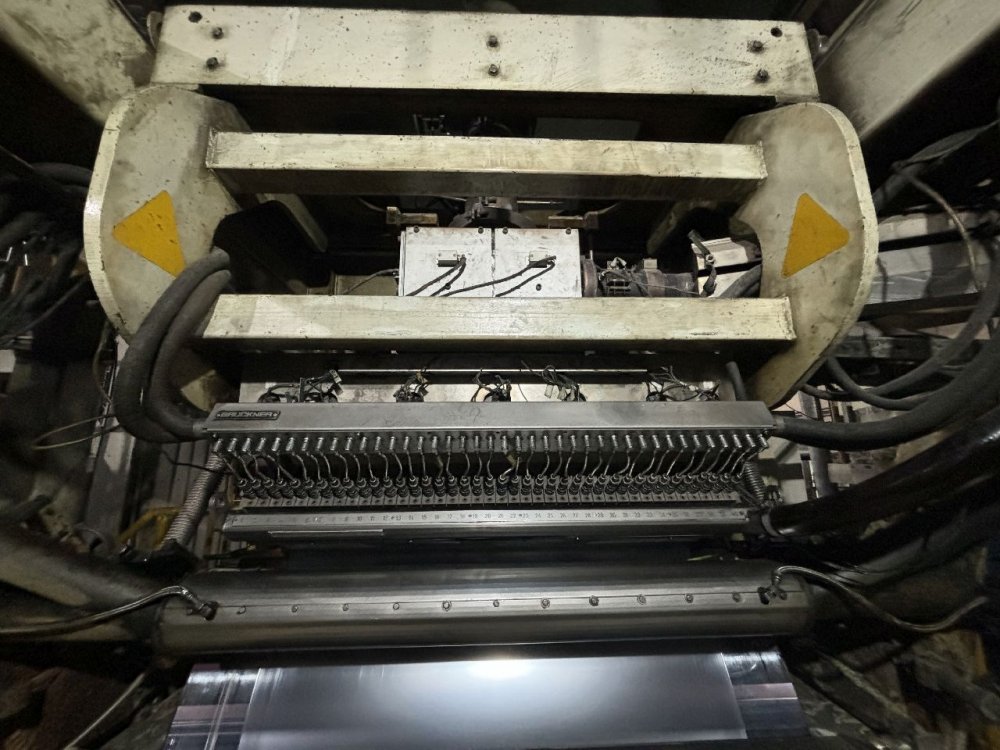

- Descrizione testa
- Make Bruckner/Simplas. Automatic thickness profile control
- Die width
- 1200
- Controllo di spessore
- Automatic thickness profile control
- Unità chill roll
- Chill roll unit in water bath
- Descrizione MDO
- 18x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO
- Descrizione TDO
- Chaintype FOK 4.4.6, Oil heated, 20 sections
- Trattamento Corona
- 2 x Mero MR/B50K-IGBT
- Unità pull roll
- Thicknes gauche NDC with IR gauge
- Larghezza avvolgitore
- 8200

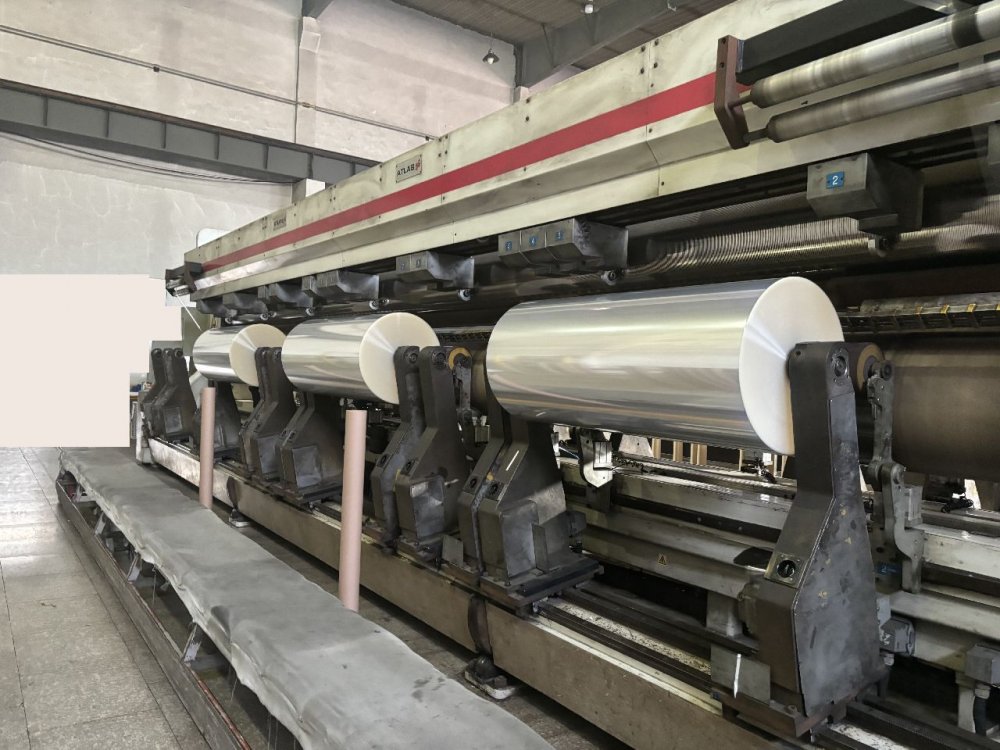

- Descrizione avvolgitore
- Turret automatic winder
- Taglia cordona
- Primary slitter included
- Ulteriori informazioni
- Grinder Alpine 50-80PA and edge re-feediong system Oil Oven
| Codice Macchina | BO89 |
| Manufacturer | BRUCKNER |
| Year | 2009 |
| Numero di strati | 3 |
| Struttura film | ABC |
| Materiali | BOPP |
| Output | max output 4500 Kg/h, mechanical speed 450 m/min, production speed 425 m/min |
| Larghezza (mm) | 8300 |
| Extruder 1 Description | Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components |
| Extruder 2 Description | Twin screw co-rotating, Make Krauss Maffei, max output 5400 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motors. Main material hopper 3160 L |
| Extruder 3 Description | Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components |
| Descrizione testa | Make Bruckner/Simplas. Automatic thickness profile control |
| Die width | 1200 |
| Controllo di spessore | Automatic thickness profile control |
| Unità chill roll | Chill roll unit in water bath |
| Descrizione MDO | 18x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO |
| Descrizione TDO | Chaintype FOK 4.4.6, Oil heated, 20 sections |
| Trattamento Corona | 2 x Mero MR/B50K-IGBT |
| Unità pull roll | Thicknes gauche NDC with IR gauge |
| Larghezza avvolgitore | 8200 |
| Descrizione avvolgitore | Turret automatic winder |
| Taglia cordona | Primary slitter included |
| Ulteriori informazioni | Grinder Alpine 50-80PA and edge re-feediong system Oil Oven |
