- Codice Macchina
- BO58
- Manufacturer
- DMT
- Year
- 2002
- Numero di strati
- 3
- Materiali
- BOPP
- Output
- 2800 kg/h
- Larghezza (mm)
- 6800

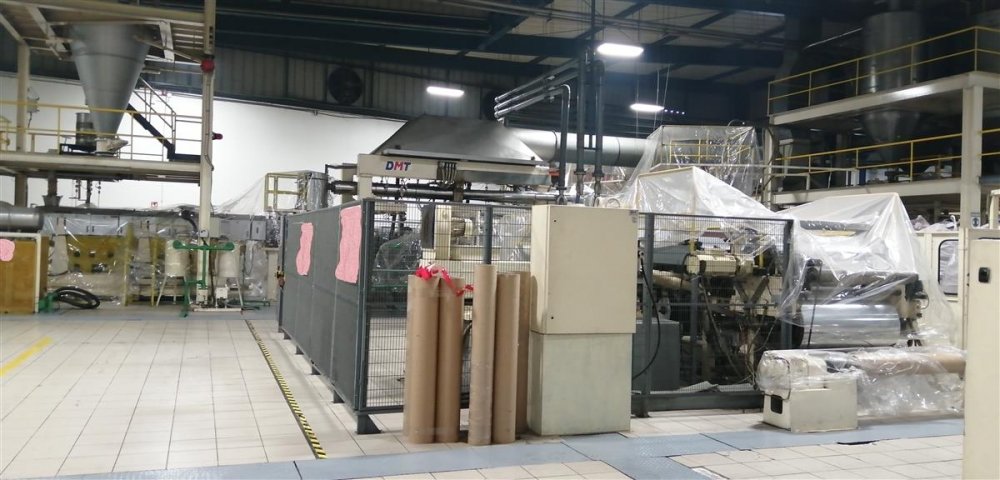

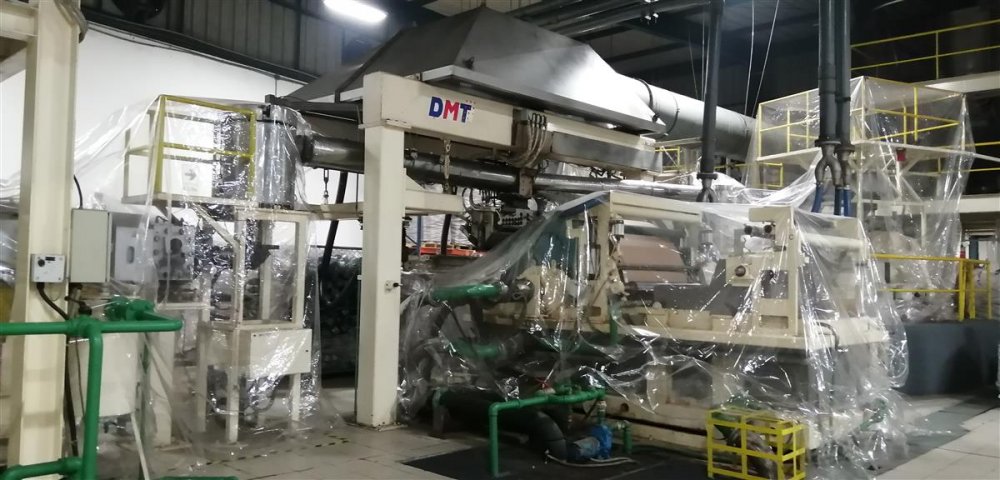

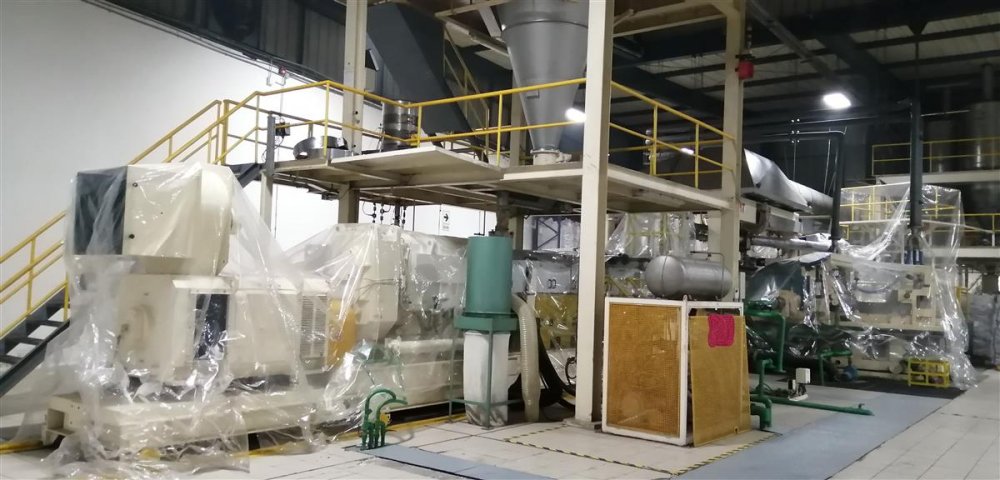

- Extruder 1 Description
- Manufacturer: Davis Standard, co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit
- Extruder 2 Description
- TWIN SCREW EXTRUDER, TM 133 MW, 2800 kg/h, Melt pump Manufacturer: Maag AC drive Main filter: L.666 Surface area: 6.36 m2
- Extruder 3 Description
- Co extruders, Manufacturer: Davis Standard, 2 co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit

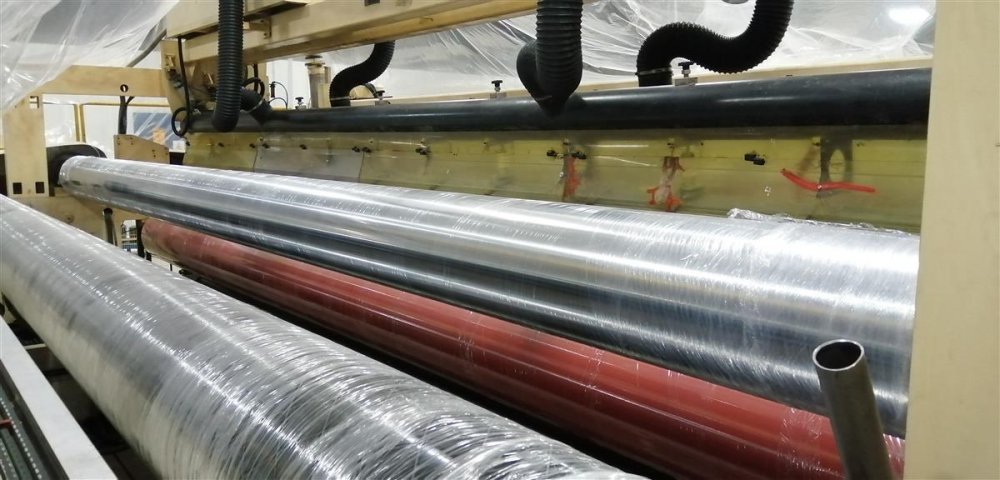

- Descrizione MDO
- 14 pre-heating rolls - Electrical heaters; 4 stretching rolls - Circulating oil; 2 annealing rolls - Electrical heaters; 5 nip rolls; AC drive; Stretching ratio 1:1 - 1:6

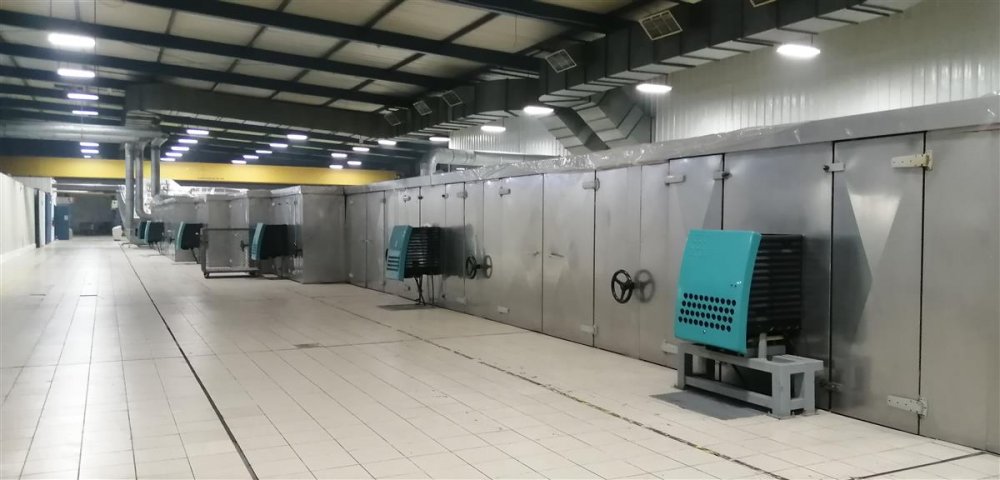

- Descrizione TDO

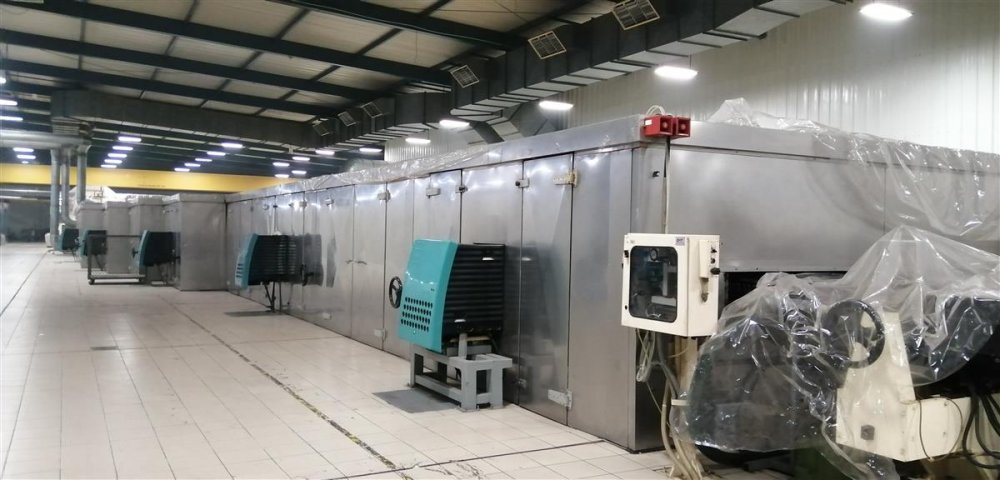

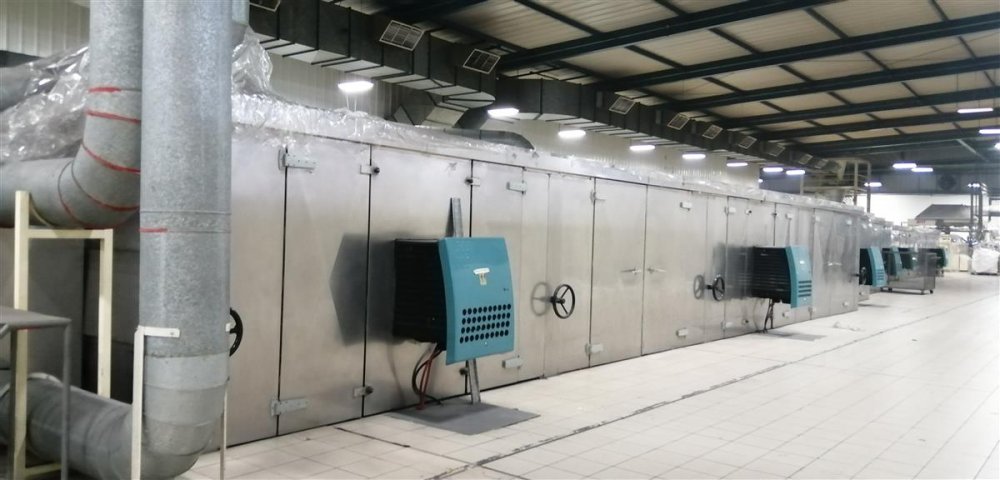

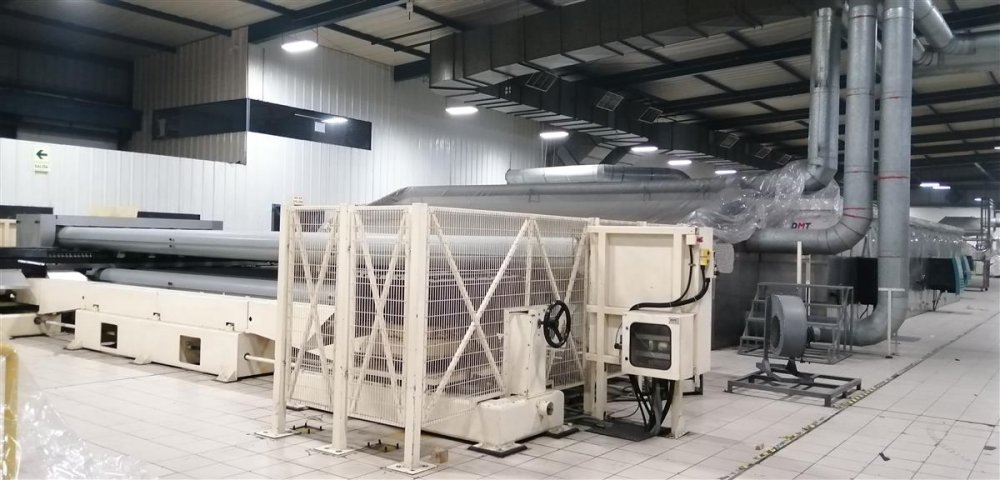

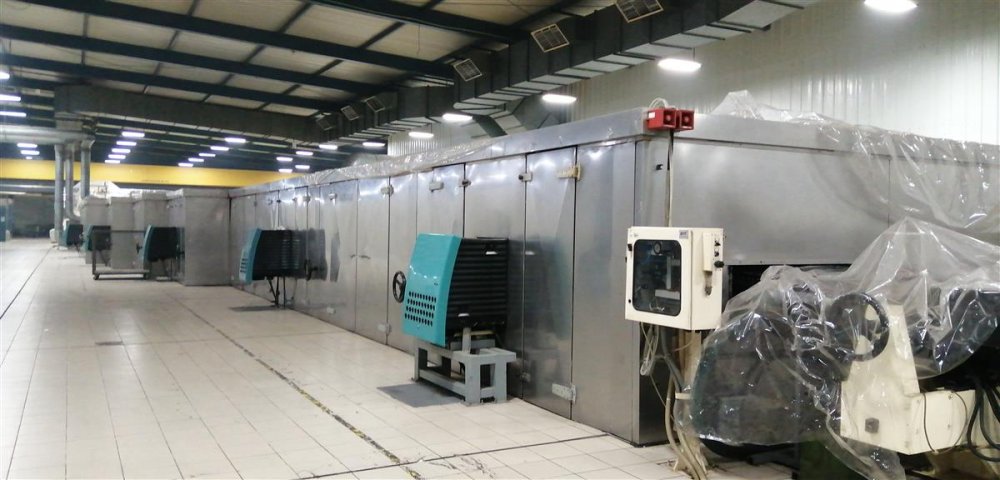

- Chain and chain track System; Heating system: circulating air via individual heating system / zone (Electrical heater, motors, fans, sensor, etc) Edge guide system at inlet ATTENTION CHAIN OF TDO WAS REMOVED
- Unità pull roll
- Cromed Rolls chilled by water; Edge trim on-line recycling unit; 2 corona treatment stations (up and down - Double treated) AC drive Thickness Gauge X-ray: - Measurement range: 5 - 100 micron

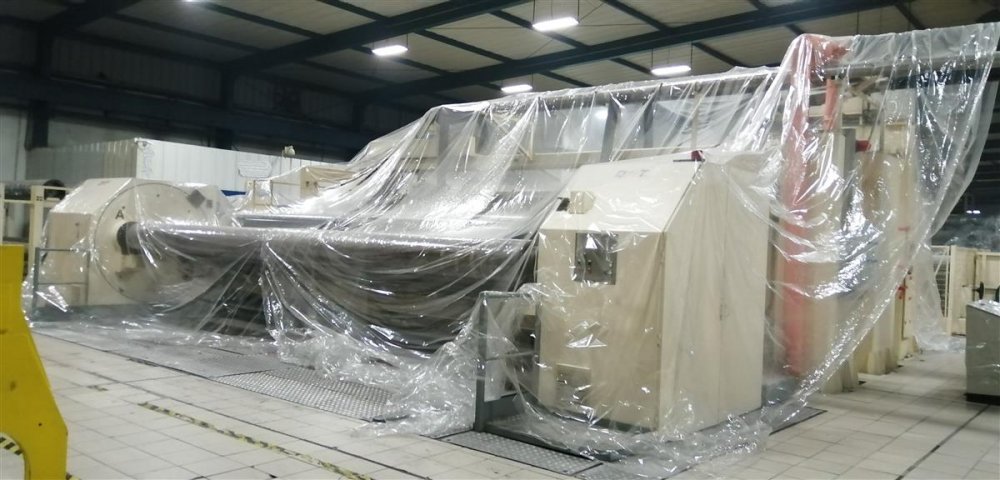

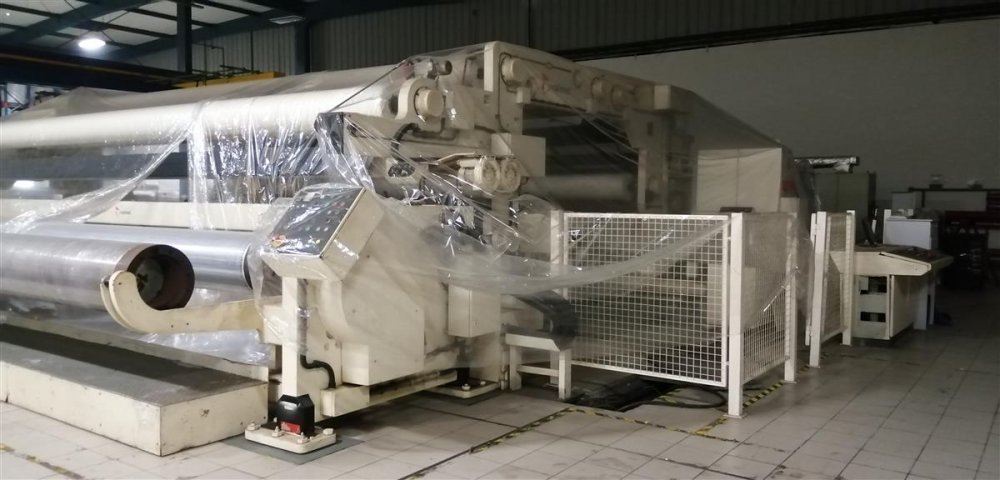

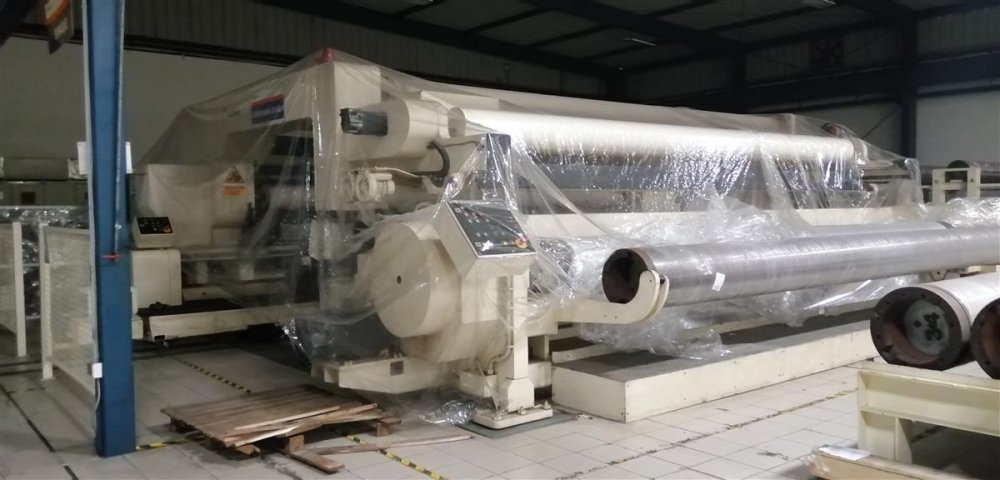

- Descrizione avvolgitore

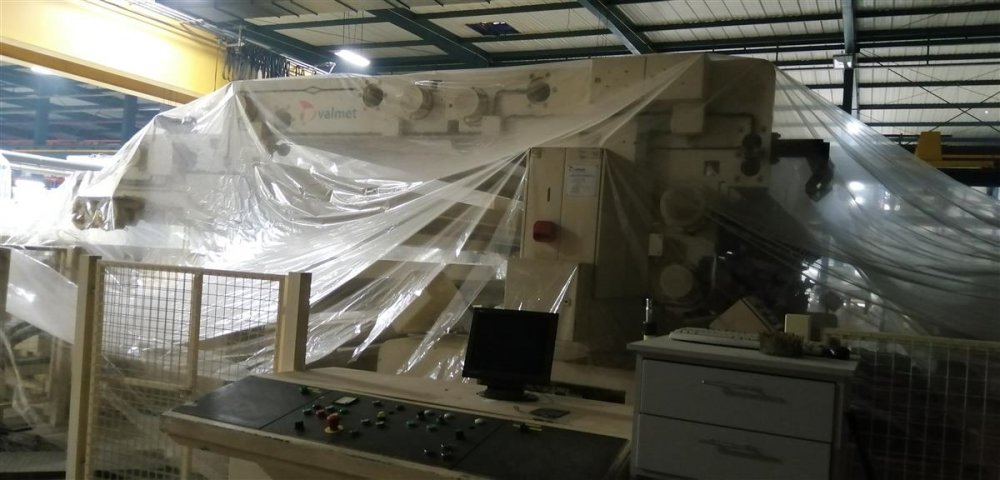

- Turret Automatic change
- Taglia cordona
- Slitter not available
- Ulteriori informazioni

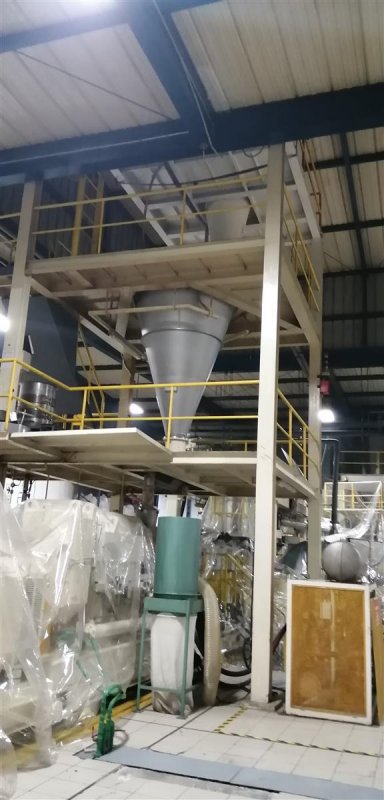

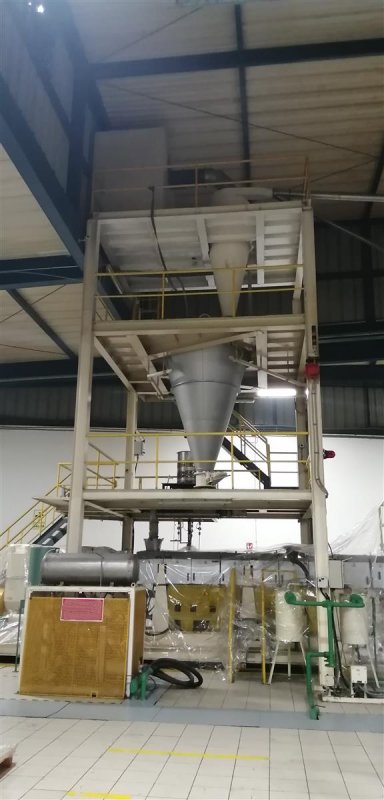

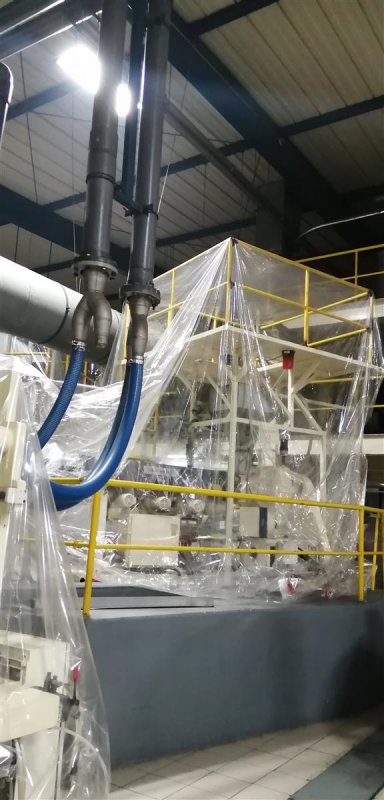

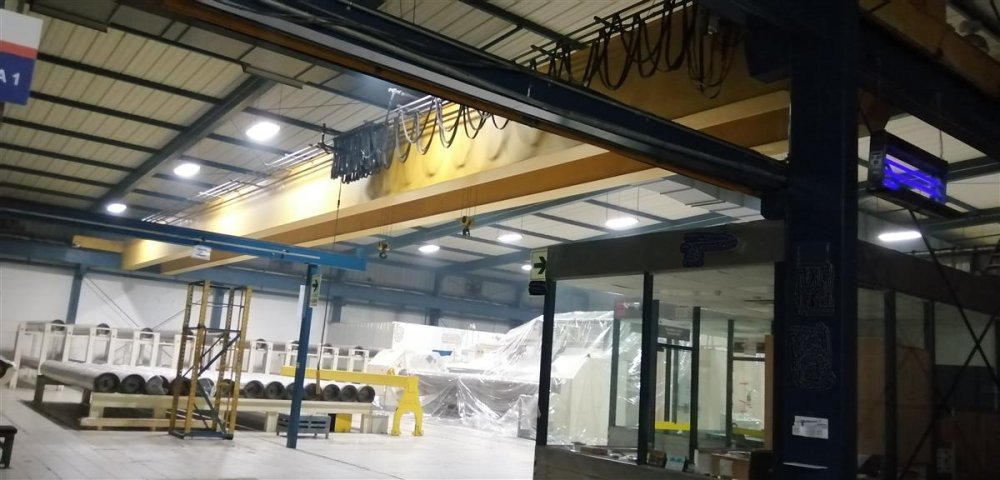

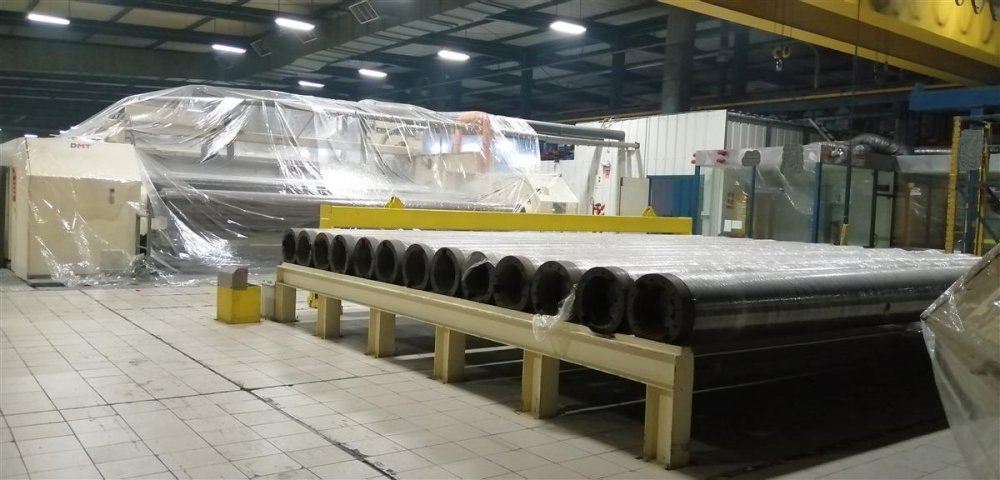

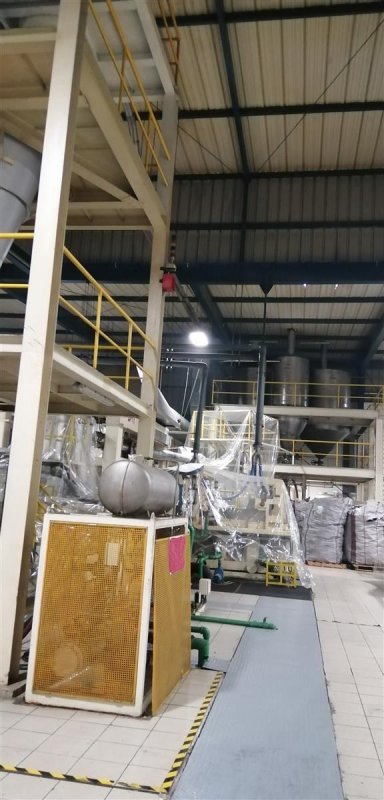

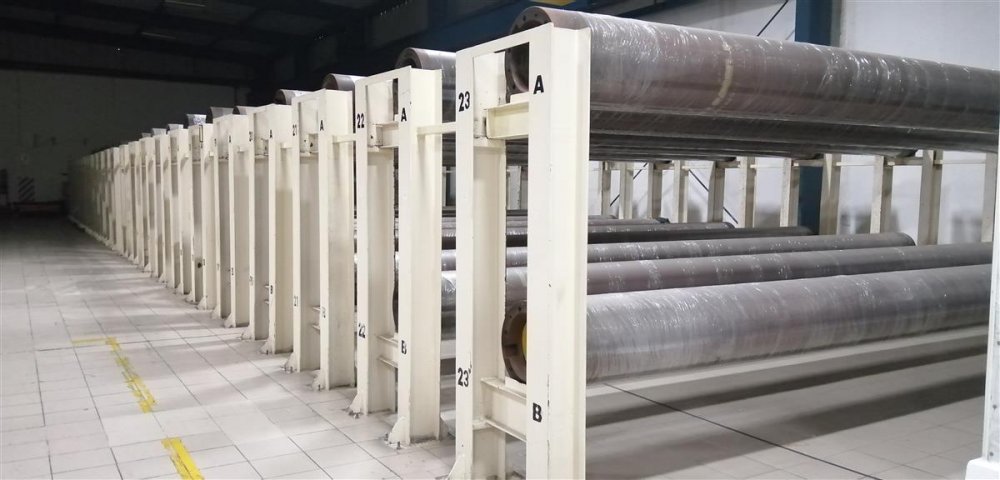

- ATTENTION: PARTS OF MACHINE WERE REMOVED Max mechanical speed: 280 m/min Edge recycling system Pneumatic conveying system Cyclone to separate resin and conveying air Metal separator Mixing hopper Suction conveying for Co-Extruder Edge trim recycling Edge trim grinder Conveying fans Recycling System - Erema 500 kg/h RM 80T Utilities: - Compressor, Boiler, Silos, Mill Rolls, Mill Roll Stands (corona and nip), Nip rolls stands, Over Head Crane (10 TM).
| Codice Macchina | BO58 |
| Manufacturer | DMT |
| Year | 2002 |
| Numero di strati | 3 |
| Materiali | BOPP |
| Output | 2800 kg/h |
| Larghezza (mm) | 6800 |
| Extruder 1 Description | Manufacturer: Davis Standard, co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit |
| Extruder 2 Description | TWIN SCREW EXTRUDER, TM 133 MW, 2800 kg/h, Melt pump Manufacturer: Maag AC drive Main filter: L.666 Surface area: 6.36 m2 |
| Extruder 3 Description | Co extruders, Manufacturer: Davis Standard, 2 co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit |
| Descrizione MDO | 14 pre-heating rolls - Electrical heaters; 4 stretching rolls - Circulating oil; 2 annealing rolls - Electrical heaters; 5 nip rolls; AC drive; Stretching ratio 1:1 - 1:6 |
| Descrizione TDO | Chain and chain track System; Heating system: circulating air via individual heating system / zone (Electrical heater, motors, fans, sensor, etc) Edge guide system at inlet ATTENTION CHAIN OF TDO WAS REMOVED |
| Unità pull roll | Cromed Rolls chilled by water; Edge trim on-line recycling unit; 2 corona treatment stations (up and down - Double treated) AC drive Thickness Gauge X-ray: - Measurement range: 5 - 100 micron |
| Descrizione avvolgitore | Turret Automatic change |
| Taglia cordona | Slitter not available |
| Ulteriori informazioni | ATTENTION: PARTS OF MACHINE WERE REMOVED Max mechanical speed: 280 m/min Edge recycling system Pneumatic conveying system Cyclone to separate resin and conveying air Metal separator Mixing hopper Suction conveying for Co-Extruder Edge trim recycling Edge trim grinder Conveying fans Recycling System - Erema 500 kg/h RM 80T Utilities: - Compressor, Boiler, Silos, Mill Rolls, Mill Roll Stands (corona and nip), Nip rolls stands, Over Head Crane (10 TM). |

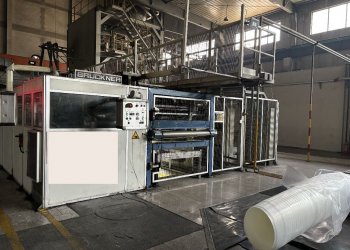

BRUCKNER
-
