Double and triple bubble extrusion lines are used to produce biaxially oriented plastic films.
Ask more informations
- Machine Code
- TB15
- Manufacturer
- KUHNE
- Year
- 2008
- Type

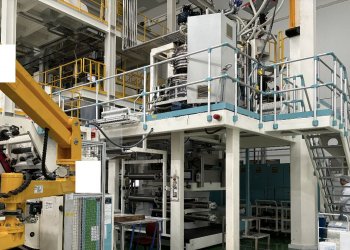

- Waterquench extrusion line
- Number of layers
- 3
- Film structure
- ABC
- Material
- Water quench extruded film for IV bags and medical bags and applications As example : H-PP/T-PP/T-PP, 20%/60%/20%.
- Film width (mm)
- 500
- Extruders

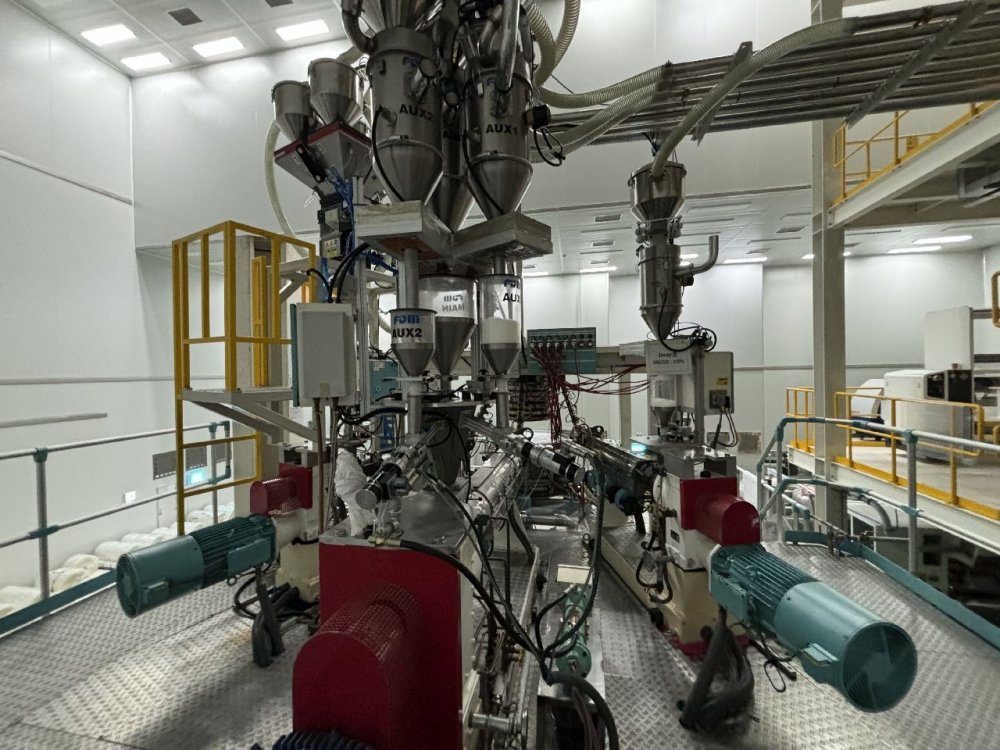

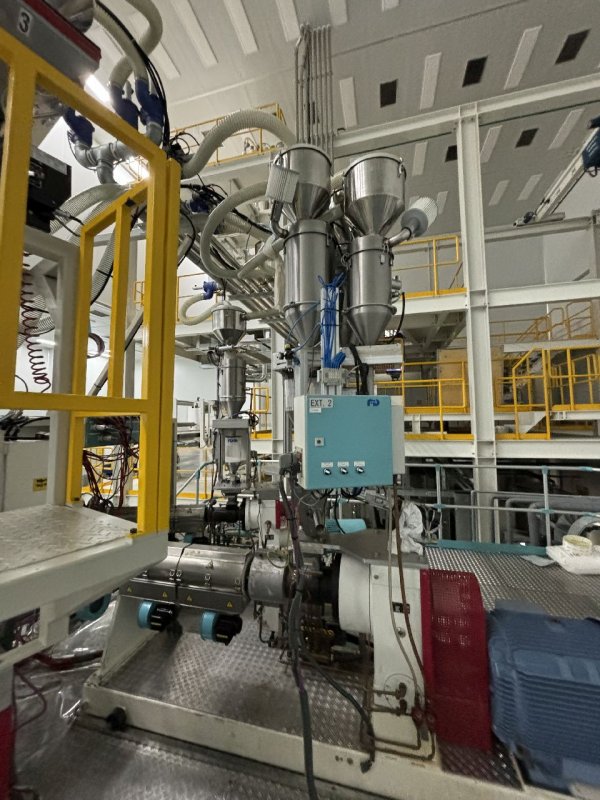

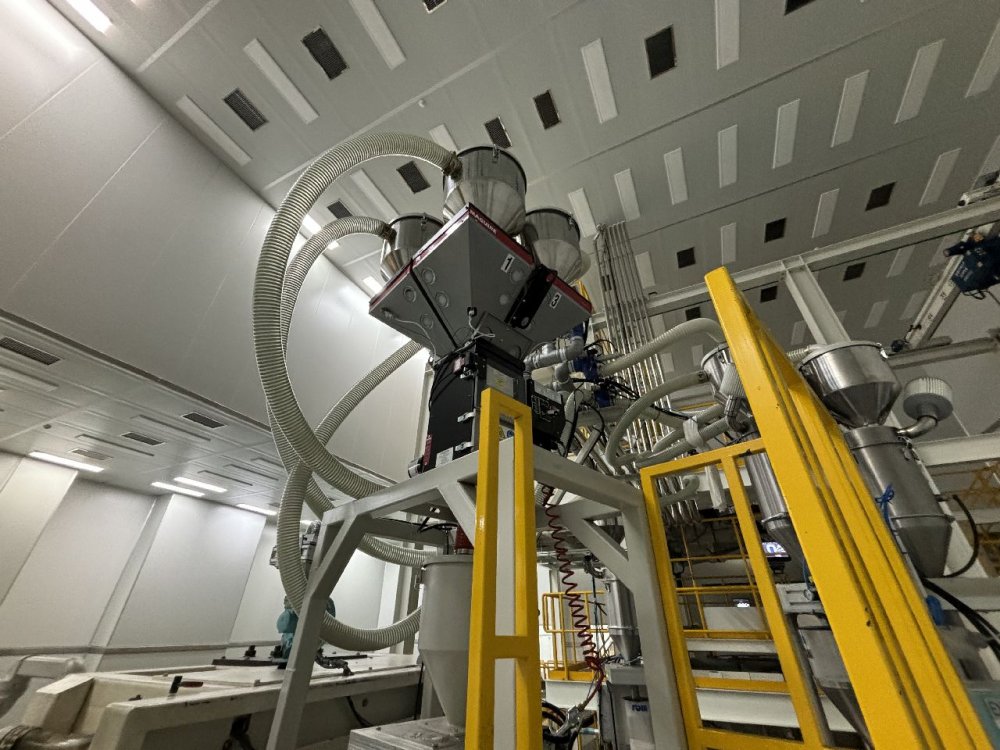

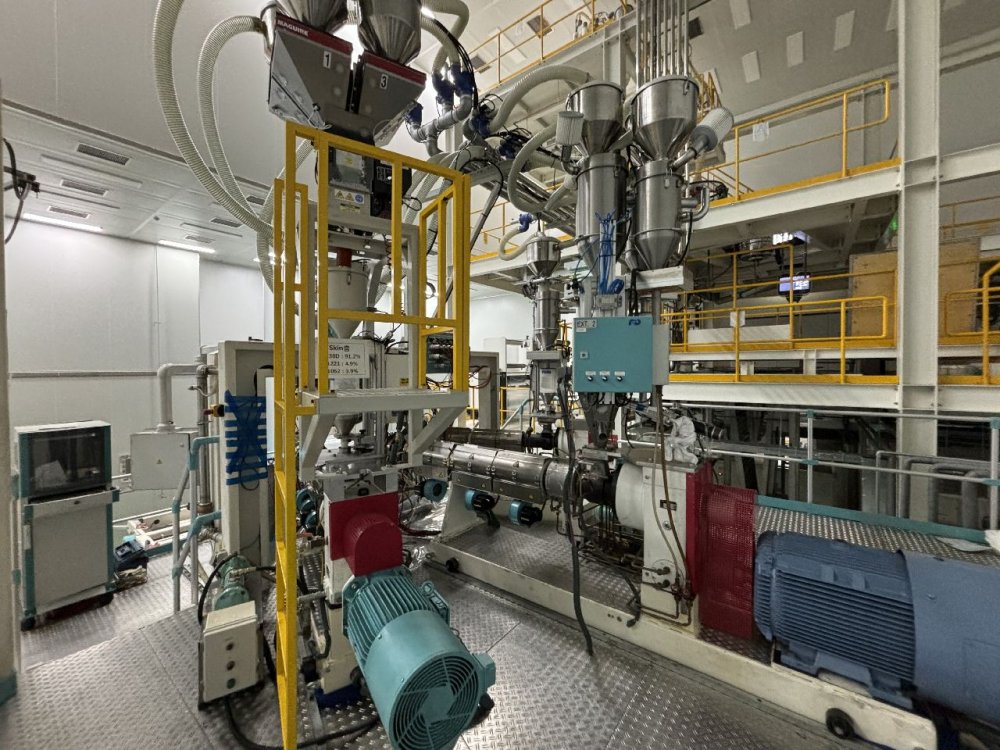

- 3 Extruders. - Extr A: (outer) 45mm screw diam L/D24, output 50kg/h, 3 comp gravimetric dosing system, AC motor, screen changer leverage type - Extr B :70mm screw diam L/D24, output 150kg/h, 3 comp gravimetric dosing system, AC motor, screen changer leverage type - Extr C (inner): 45mm screw diam L/D24, output 50kg/h, 1 comp gravimetric dosing system, AC motor, screen changer leverage type
- Head

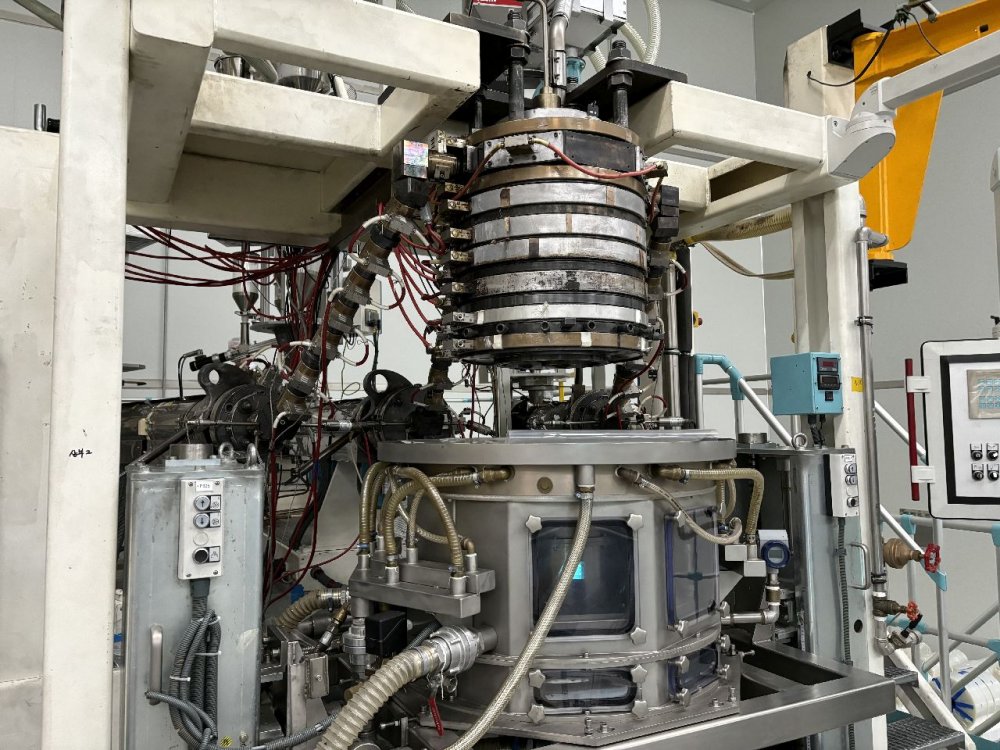

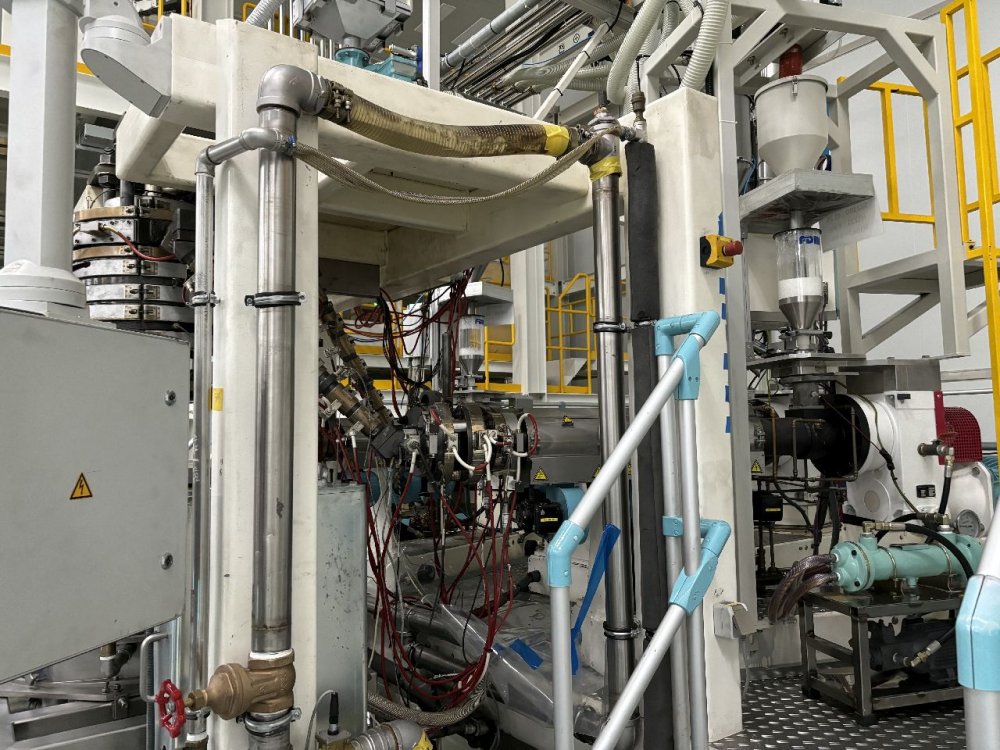

- Water quench extrusion die with calibrator. 3 set of dies. Calibrator's for: 356mm, 380mm, 424mm,, 430mm, 443mm, 480mm. Disk calibrator and water cooling Including water chiller: 65kW, tank Vol 300 l, exit temperature 4C. Circulating volume 15-a6 m3/h.
- Rewinder

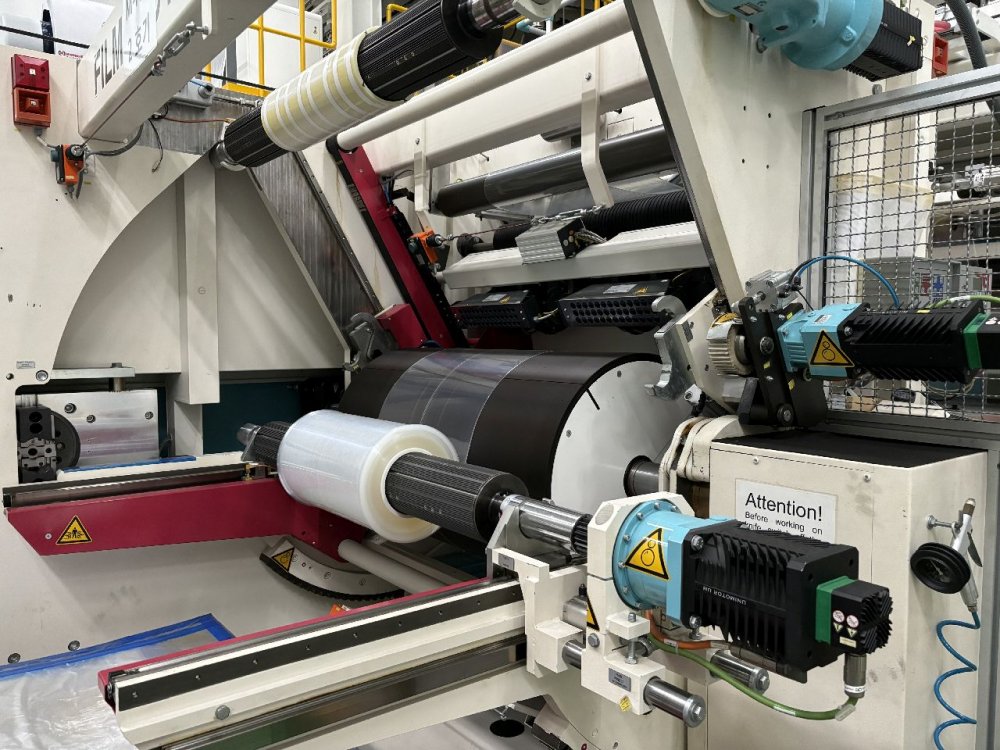

- Center and surface driven. Non stop auto splicing. Automatic release unloading. Max web width 1000mm. Cores 6", max reel diameter 650mm, taper tension facility. Gap winding possible
- Note

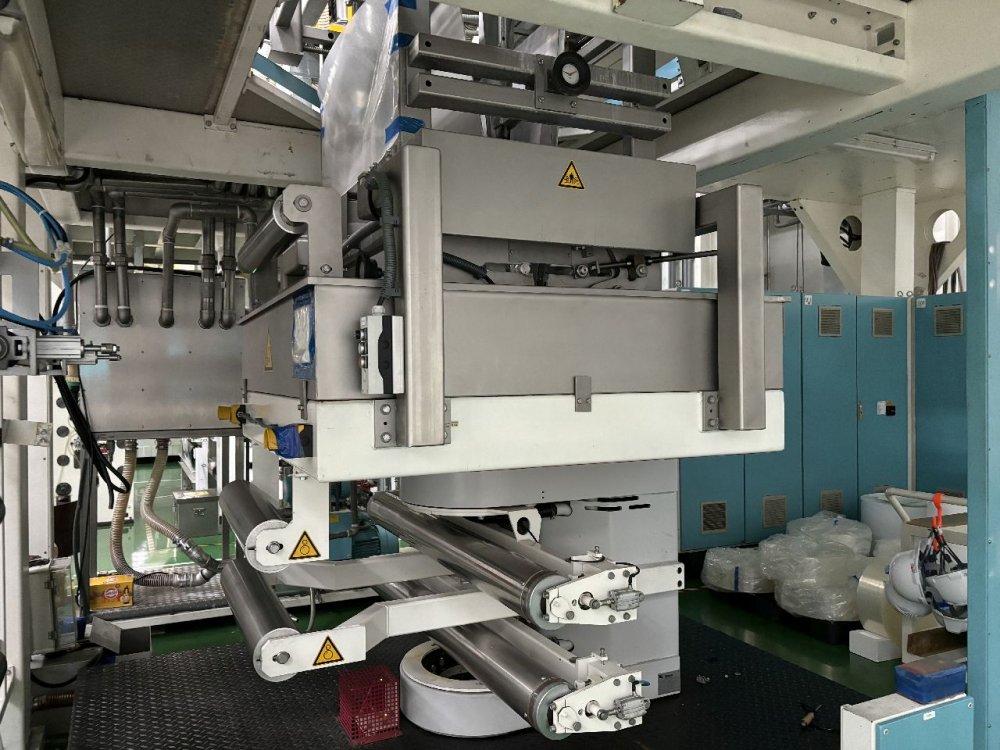

- Haul of unit: Type reversing with turning bars. AC motor driven maintenance crane web guide BST PLC Siemens S7
| Machine Code | TB15 |
| Manufacturer | KUHNE |
| Year | 2008 |
| Type | Waterquench extrusion line |
| Number of layers | 3 |
| Film structure | ABC |
| Material | Water quench extruded film for IV bags and medical bags and applications As example : H-PP/T-PP/T-PP, 20%/60%/20%. |
| Film width (mm) | 500 |
| Extruders | 3 Extruders. - Extr A: (outer) 45mm screw diam L/D24, output 50kg/h, 3 comp gravimetric dosing system, AC motor, screen changer leverage type - Extr B :70mm screw diam L/D24, output 150kg/h, 3 comp gravimetric dosing system, AC motor, screen changer leverage type - Extr C (inner): 45mm screw diam L/D24, output 50kg/h, 1 comp gravimetric dosing system, AC motor, screen changer leverage type |
| Head | Water quench extrusion die with calibrator. 3 set of dies. Calibrator's for: 356mm, 380mm, 424mm,, 430mm, 443mm, 480mm. Disk calibrator and water cooling Including water chiller: 65kW, tank Vol 300 l, exit temperature 4C. Circulating volume 15-a6 m3/h. |
| Rewinder | Center and surface driven. Non stop auto splicing. Automatic release unloading. Max web width 1000mm. Cores 6", max reel diameter 650mm, taper tension facility. Gap winding possible |
| Note | Haul of unit: Type reversing with turning bars. AC motor driven maintenance crane web guide BST PLC Siemens S7 |
