Double and triple bubble extrusion lines are used to produce biaxially oriented plastic films.
Ask more informations
- Machine Code
- TB16
- Manufacturer
- KUHNE
- Year
- 2014
- Type
- WATER QUENCH
- Number of layers
- 3
- Film structure
- ABC
- Material
- Film for IV bags and medical bags and applications As example H-PP/T-PP/H-PP (20-25%/50-60%/20-25%)
- Film width (mm)
- 700
- Extruders

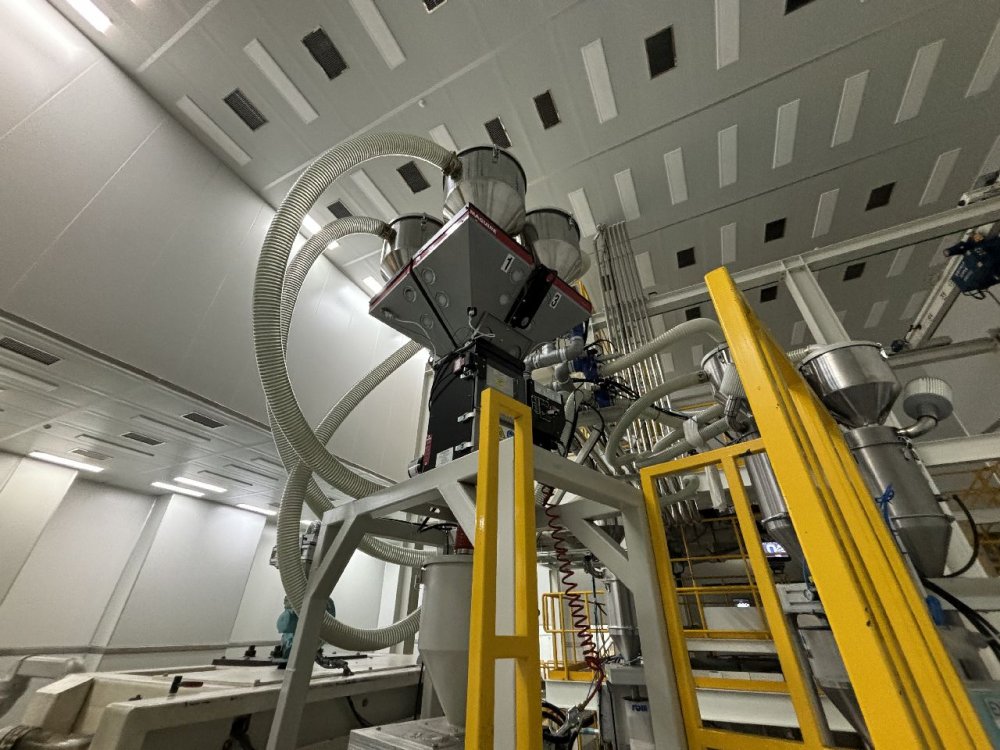

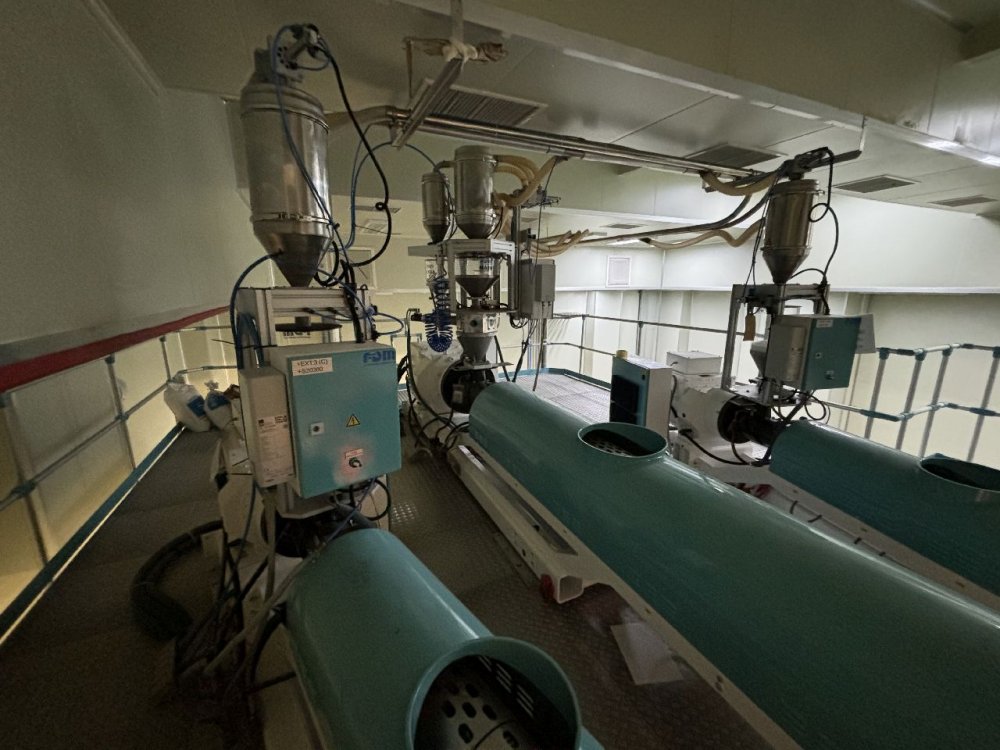

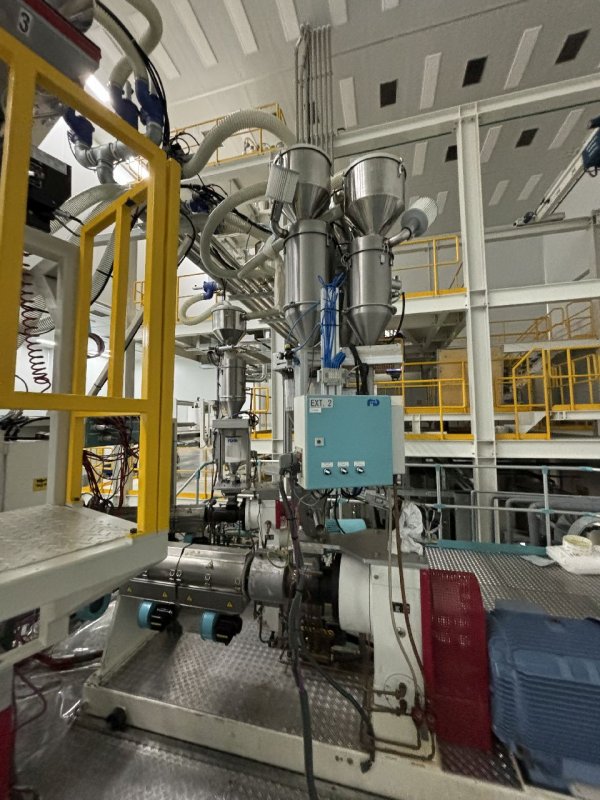

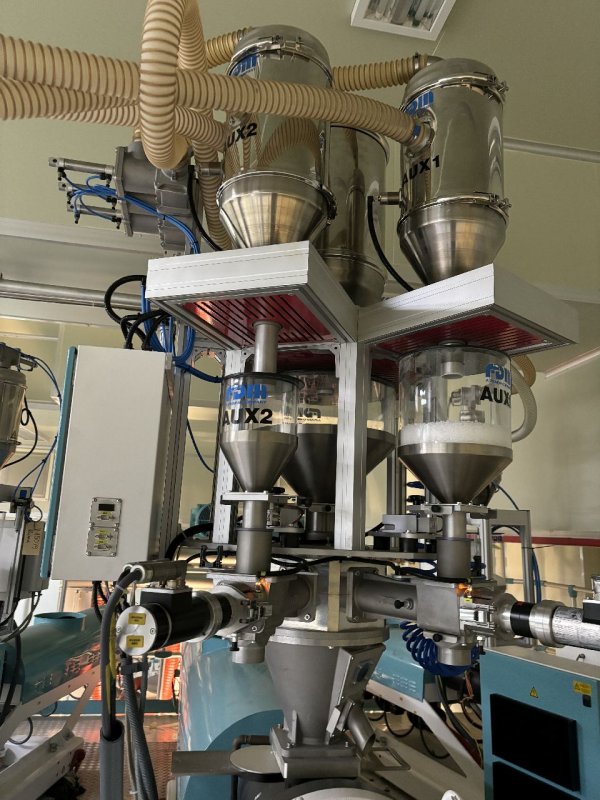

- - Layer A: Extruder diam 60mm, L/D 24, gear type melt pump with AC drive, Gravimetric dosing unit 3 comp , output 100kg/h. AC motor - Layer B:Extruder diam 105mm, L/D 30, gear type melt pump with AC drive, Gravimetric dosing unit 3 comp, output 250kg/h. AC motor - Layer C: Extruder diam 60mm, L/D 24, gear type melt pump with AC drive, Gravimetric dosing unit, output 100kg/h. AC motor
- Head

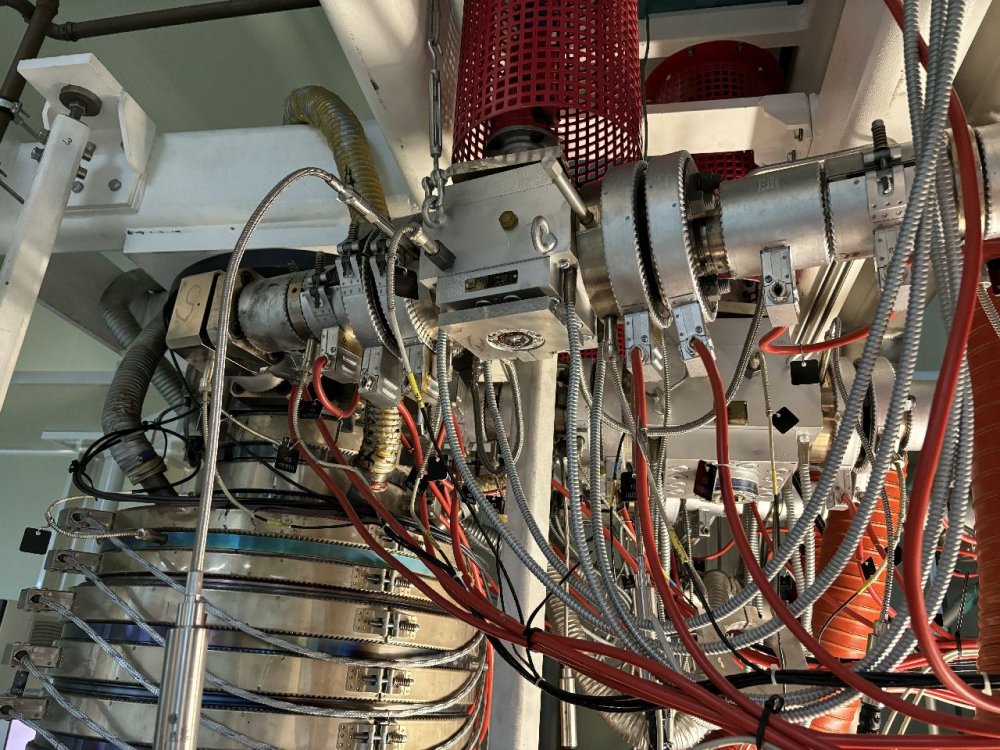

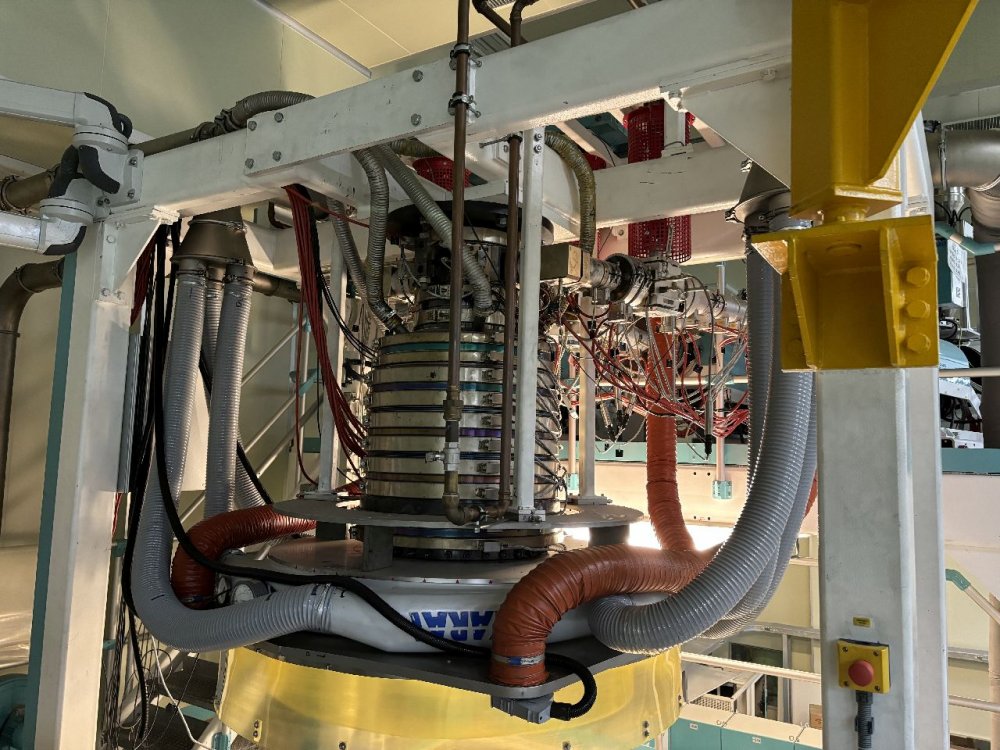

- 3 layer extrusion head; K-Design model Karat air ring with automatic thickness profile control, Disk calibrator and water cooling approx 4 calibrators
- Rewinder

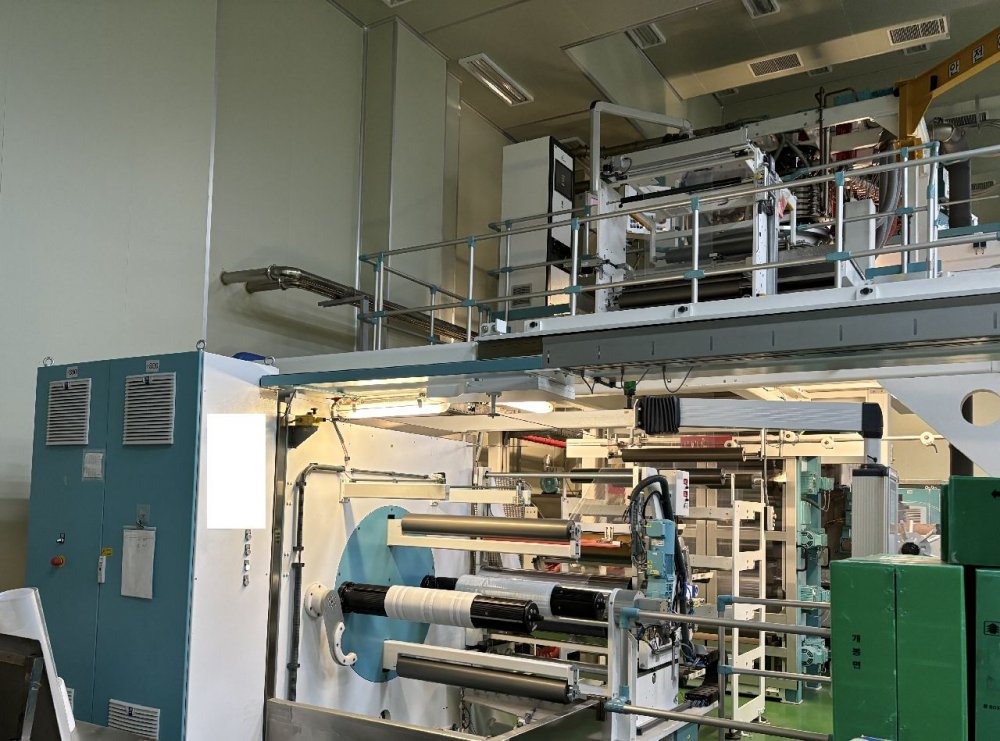

- Turret winder, speed 100m/min, winding shafts 6", max web width 700mm, max reel diameter 800mm
- Note

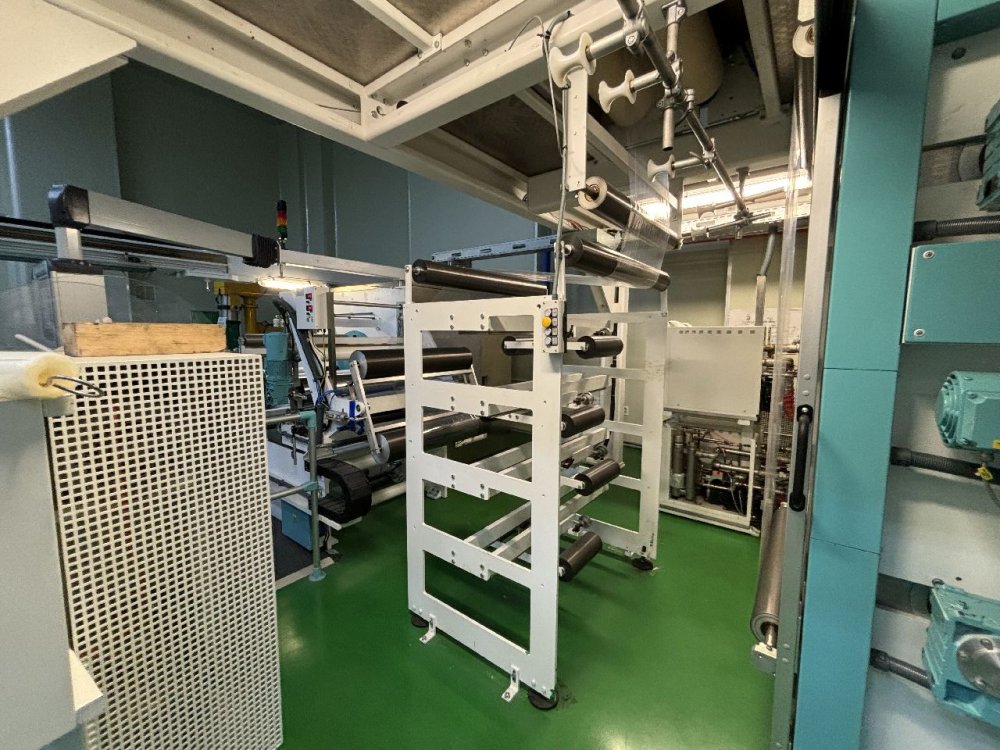

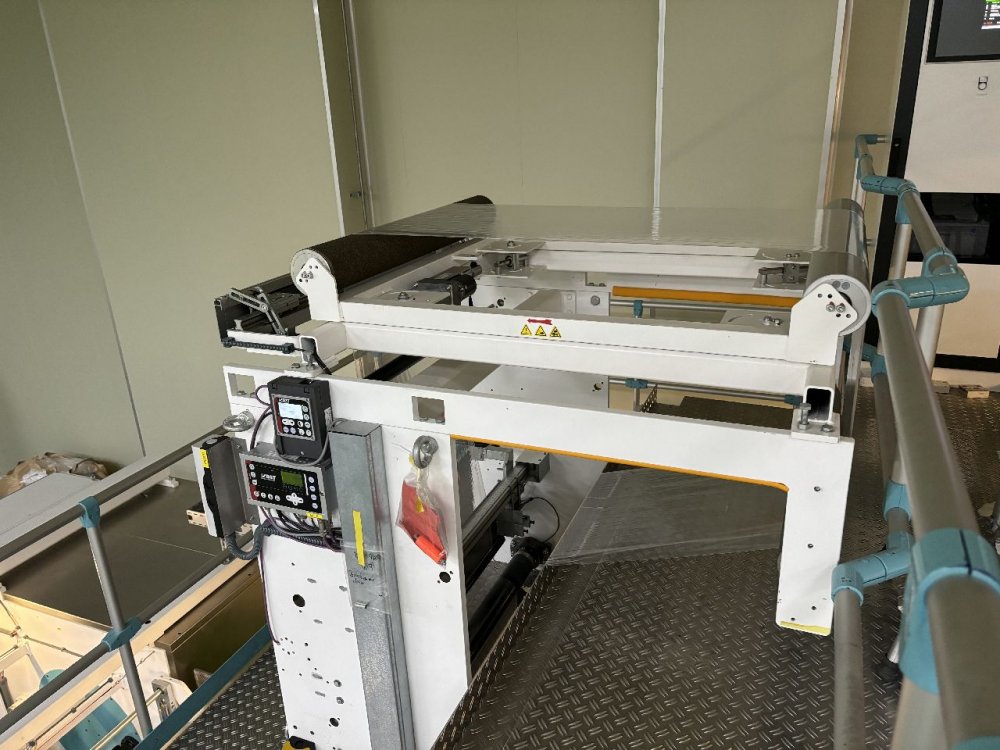

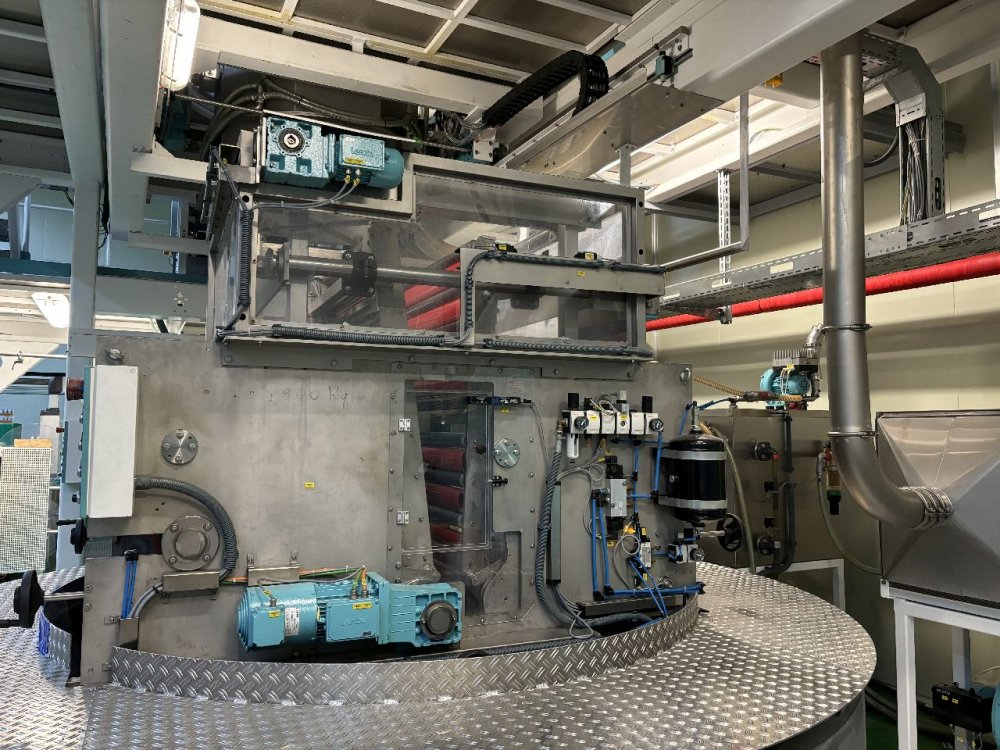

- - Annealing unit for heat set of film. Water heated calendars diam 450 with independent heat set - Take off unit: oscillating 360 deg. AC drive - PLC Siemens S7 - Maintenance hoist/ - BST web guide - In line slitting with 5 knives, 2 edge trim, 2 banana rollers, spreading/ guiding rollers - Chiller: cooling capacity 170 kW, exit temp 6C, Glykol compound 40% Clykol/ 60% water, Connection approx 2x 38 Kw. 300 L tank. 3 x process pumps 4m3/h (6C), 1 x process pumps (18C) 14m3/h, 5 x process pumps 4m3/h (6C) - Capacitive type thickness gauge
| Machine Code | TB16 |
| Manufacturer | KUHNE |
| Year | 2014 |
| Type | WATER QUENCH |
| Number of layers | 3 |
| Film structure | ABC |
| Material | Film for IV bags and medical bags and applications As example H-PP/T-PP/H-PP (20-25%/50-60%/20-25%) |
| Film width (mm) | 700 |
| Extruders | - Layer A: Extruder diam 60mm, L/D 24, gear type melt pump with AC drive, Gravimetric dosing unit 3 comp , output 100kg/h. AC motor - Layer B:Extruder diam 105mm, L/D 30, gear type melt pump with AC drive, Gravimetric dosing unit 3 comp, output 250kg/h. AC motor - Layer C: Extruder diam 60mm, L/D 24, gear type melt pump with AC drive, Gravimetric dosing unit, output 100kg/h. AC motor |
| Head | 3 layer extrusion head; K-Design model Karat air ring with automatic thickness profile control, Disk calibrator and water cooling approx 4 calibrators |

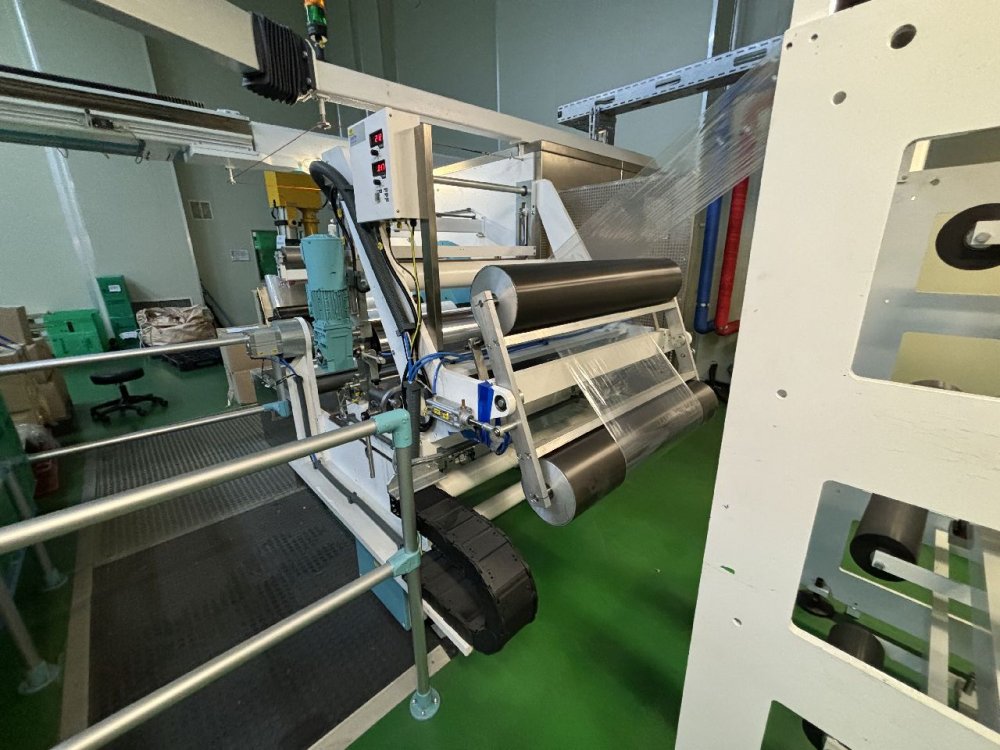

| Rewinder | Turret winder, speed 100m/min, winding shafts 6", max web width 700mm, max reel diameter 800mm |
| Note | - Annealing unit for heat set of film. Water heated calendars diam 450 with independent heat set - Take off unit: oscillating 360 deg. AC drive - PLC Siemens S7 - Maintenance hoist/ - BST web guide - In line slitting with 5 knives, 2 edge trim, 2 banana rollers, spreading/ guiding rollers - Chiller: cooling capacity 170 kW, exit temp 6C, Glykol compound 40% Clykol/ 60% water, Connection approx 2x 38 Kw. 300 L tank. 3 x process pumps 4m3/h (6C), 1 x process pumps (18C) 14m3/h, 5 x process pumps 4m3/h (6C) - Capacitive type thickness gauge |
