Material is stretched in machine in a transversal direction simultaneously. This processe delivers a molecule orientation in both axes, and this enhances many of their properties.
Ask more informations
- Machine Code
- TB17
- Manufacturer
- TECHNO COATING ENGINEERING
- Year
- 2000
- Type
- Double Bubble
- Number of layers
- 5
- Film structure
- A/B/C/B/D five layers 15%-10%-50%-10%-15%
- Material
- POF, Thickness range: 15 to 30 microns
- Film width (mm)
- 2500
- Extruders

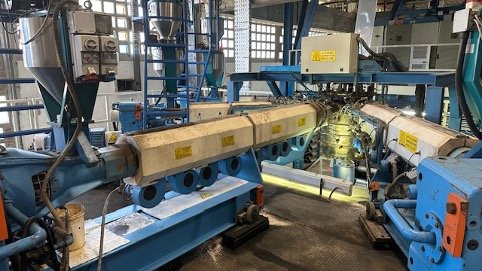

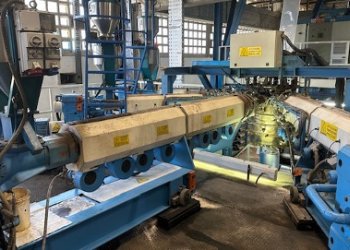

- Extruder A - Screw diameter 65mm, Gravimetric dosing unit Extruder B - Screw diameter 50mm, Gravimetric dosing unit Extruder C - Screw diameter 100mm, Gravimetric dosing unit Extruder D- Screw diameter 65mm, Gravimetric dosing unit
- Head

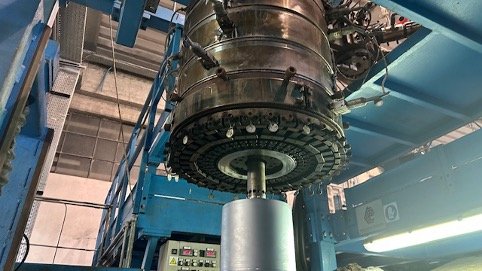

- 5 layer extrusion die
- Stretching
- nip roll on a rotating platform
- Rewinder
- two simetrical winder with GAP control
- Note

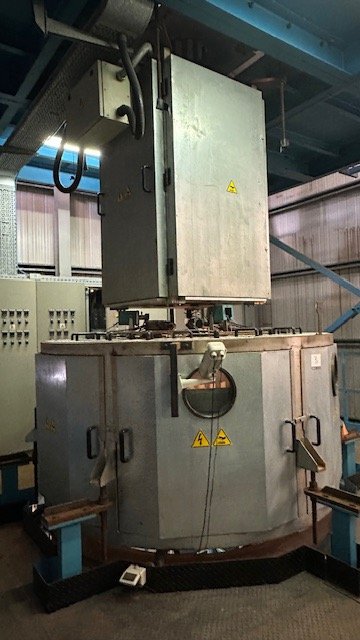

- Max line speed : 120 m/min 1 water tank for primary tube cooling One complete orientation tower including : tower Nip roll , Primary tube Pre-heating IR oven , Orientation oven by IR , set of cooling ring , collapsing board Complete with thickness control system Complete with water tank for thermoregulation
| Machine Code | TB17 |
| Manufacturer | TECHNO COATING ENGINEERING |
| Year | 2000 |
| Type | Double Bubble |
| Number of layers | 5 |
| Film structure | A/B/C/B/D five layers 15%-10%-50%-10%-15% |
| Material | POF, Thickness range: 15 to 30 microns |
| Film width (mm) | 2500 |
| Extruders | Extruder A - Screw diameter 65mm, Gravimetric dosing unit Extruder B - Screw diameter 50mm, Gravimetric dosing unit Extruder C - Screw diameter 100mm, Gravimetric dosing unit Extruder D- Screw diameter 65mm, Gravimetric dosing unit |
| Head | 5 layer extrusion die |
| Stretching | nip roll on a rotating platform |
| Rewinder | two simetrical winder with GAP control |
| Note | Max line speed : 120 m/min 1 water tank for primary tube cooling One complete orientation tower including : tower Nip roll , Primary tube Pre-heating IR oven , Orientation oven by IR , set of cooling ring , collapsing board Complete with thickness control system Complete with water tank for thermoregulation |

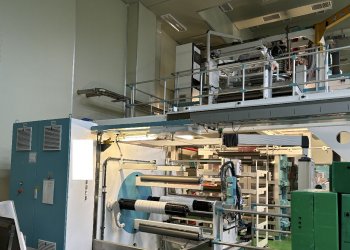

KUHNE
-
Machine Code: TB16
-
Year: 2014
-
Film width (mm): 700

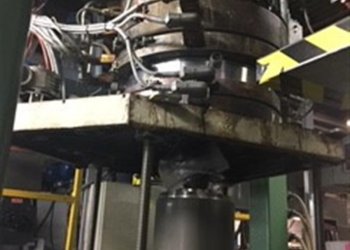

TECNOVA
-
Machine Code: TB5
-
Year: 2006
-
Film width (mm): 1780

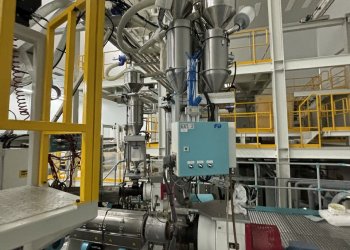

KUHNE
-
