- Maschinencode
- BO89
- Hersteller
- BRUCKNER
- Baujahr
- 2009
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- max output 4500 Kg/h, mechanical speed 450 m/min, production speed 425 m/min
- Width (mm)
- 8300
- Extruder 1 Description
- Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components
- Extruder 2 Description
- Twin screw co-rotating, Make Krauss Maffei, max output 5400 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motors. Main material hopper 3160 L
- Extruder 3 Description
- Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components

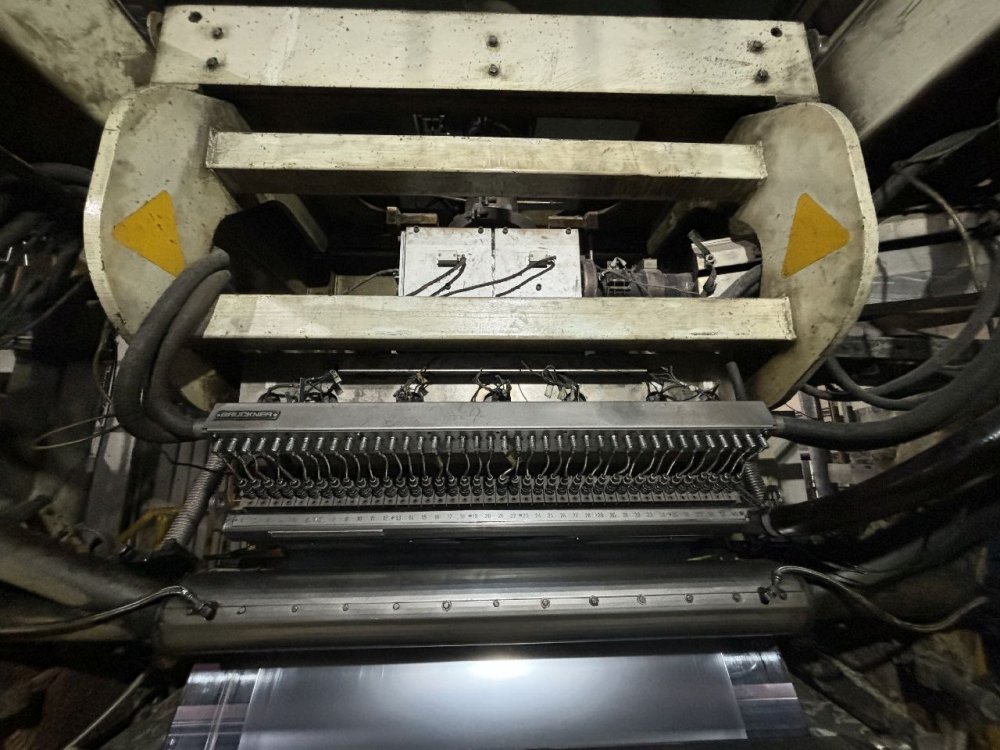

- Head description
- Make Bruckner/Simplas. Automatic thickness profile control
- Die width
- 1200
- Thickness controll system
- Automatic thickness profile control
- Chill roll unit
- Chill roll unit in water bath
- MDO description
- 18x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO

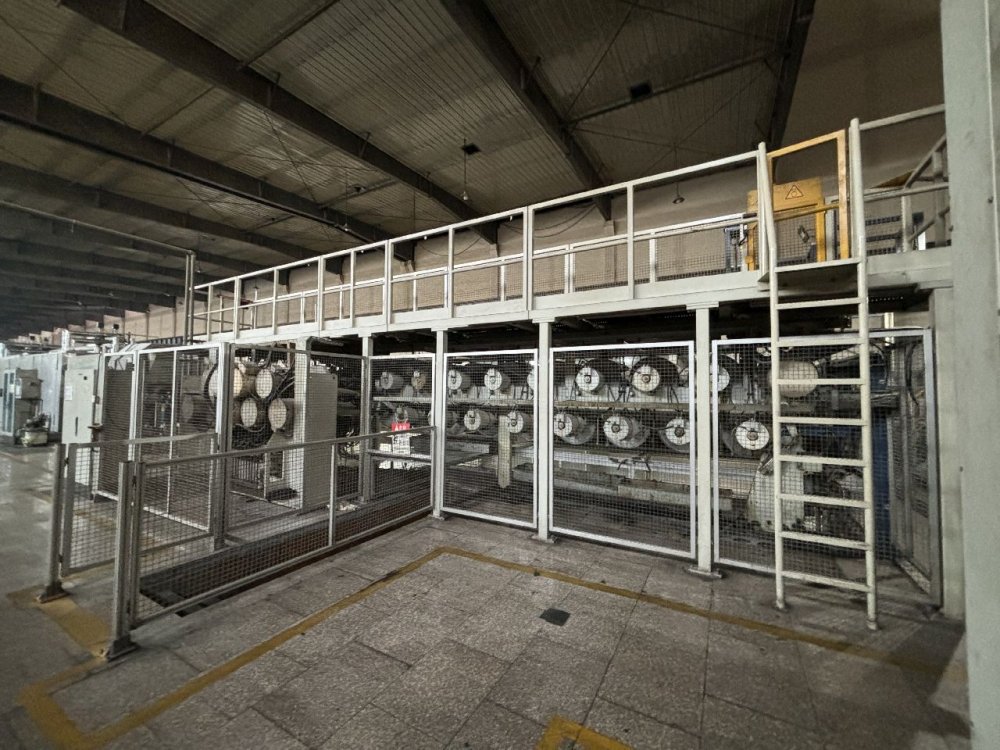

- TDO description
- Chaintype FOK 4.4.6, Oil heated, 20 sections
- Corona treatment
- 2 x Mero MR/B50K-IGBT
- Pull roll unit
- Thicknes gauche NDC with IR gauge
- Rewinder width
- 8200

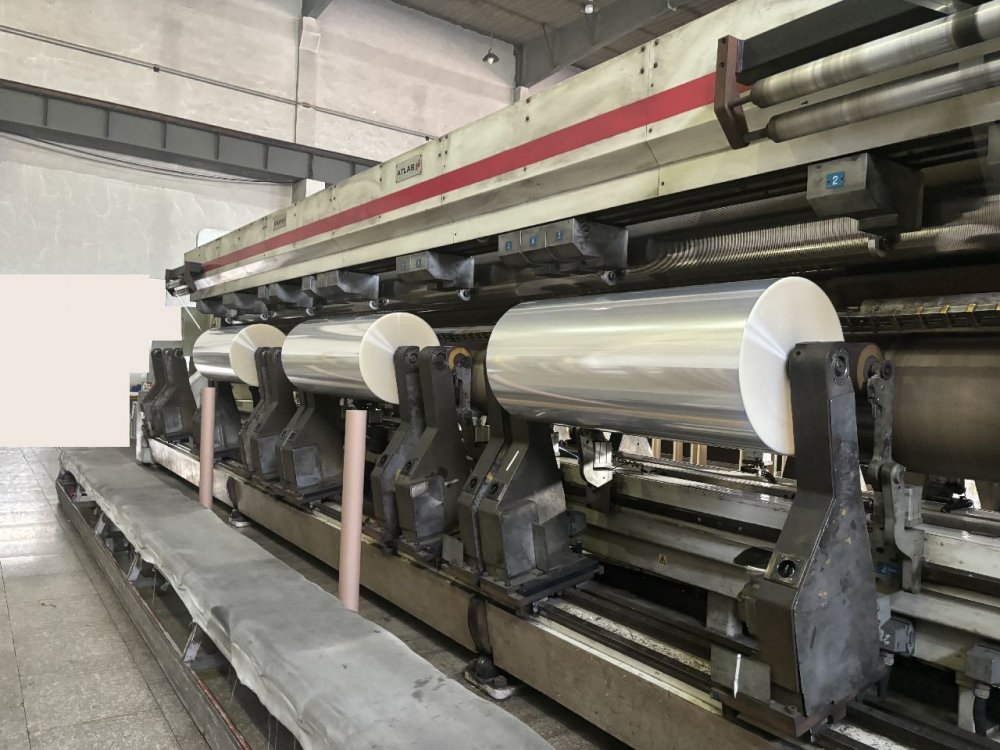

- Rewinder description
- Turret automatic winder
- Slitter
- Primary slitter included
- Note
- Grinder Alpine 50-80PA and edge re-feediong system Oil Oven
| Maschinencode | BO89 |
| Hersteller | BRUCKNER |
| Baujahr | 2009 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | max output 4500 Kg/h, mechanical speed 450 m/min, production speed 425 m/min |
| Width (mm) | 8300 |
| Extruder 1 Description | Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components |
| Extruder 2 Description | Twin screw co-rotating, Make Krauss Maffei, max output 5400 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motors. Main material hopper 3160 L |
| Extruder 3 Description | Single screw, make Kiefel, model Kirion, screw diameter 105mm, AC motor 165 KW. Gravimetric doses, make Sonner 3 components |
| Head description | Make Bruckner/Simplas. Automatic thickness profile control |
| Die width | 1200 |
| Thickness controll system | Automatic thickness profile control |
| Chill roll unit | Chill roll unit in water bath |
| MDO description | 18x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO |
| TDO description | Chaintype FOK 4.4.6, Oil heated, 20 sections |
| Corona treatment | 2 x Mero MR/B50K-IGBT |
| Pull roll unit | Thicknes gauche NDC with IR gauge |
| Rewinder width | 8200 |
| Rewinder description | Turret automatic winder |
| Slitter | Primary slitter included |
| Note | Grinder Alpine 50-80PA and edge re-feediong system Oil Oven |
