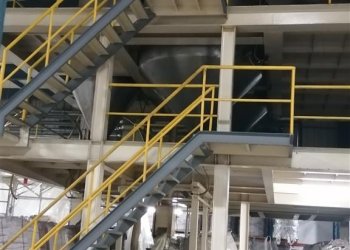

- Maschinencode
- BO58
- Hersteller
- DMT
- Baujahr
- 2002
- Number of layers
- 3
- Material
- BOPP
- Output
- 2800 kg/h
- Width (mm)
- 6800
- Extruder 1 Description
- Manufacturer: Davis Standard, co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit
- Extruder 2 Description
- TWIN SCREW EXTRUDER, TM 133 MW, 2800 kg/h, Melt pump Manufacturer: Maag AC drive Main filter: L.666 Surface area: 6.36 m2
- Extruder 3 Description
- Co extruders, Manufacturer: Davis Standard, 2 co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit
- MDO description
- 14 pre-heating rolls - Electrical heaters; 4 stretching rolls - Circulating oil; 2 annealing rolls - Electrical heaters; 5 nip rolls; AC drive; Stretching ratio 1:1 - 1:6
- TDO description
- Chain and chain track System; Heating system: circulating air via individual heating system / zone (Electrical heater, motors, fans, sensor, etc) Edge guide system at inlet ATTENTION CHAIN OF TDO WAS REMOVED
- Pull roll unit
- Cromed Rolls chilled by water; Edge trim on-line recycling unit; 2 corona treatment stations (up and down - Double treated) AC drive Thickness Gauge X-ray: - Measurement range: 5 - 100 micron
- Rewinder description
- Turret Automatic change
- Slitter
- Slitter not available
- Note
- ATTENTION: PARTS OF MACHINE WERE REMOVED Max mechanical speed: 280 m/min Edge recycling system Pneumatic conveying system Cyclone to separate resin and conveying air Metal separator Mixing hopper Suction conveying for Co-Extruder Edge trim recycling Edge trim grinder Conveying fans Recycling System - Erema 500 kg/h RM 80T Utilities: - Compressor, Boiler, Silos, Mill Rolls, Mill Roll Stands (corona and nip), Nip rolls stands, Over Head Crane (10 TM).
| Maschinencode | BO58 |
| Hersteller | DMT |
| Baujahr | 2002 |
| Number of layers | 3 |
| Material | BOPP |
| Output | 2800 kg/h |
| Width (mm) | 6800 |
| Extruder 1 Description | Manufacturer: Davis Standard, co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit |
| Extruder 2 Description | TWIN SCREW EXTRUDER, TM 133 MW, 2800 kg/h, Melt pump Manufacturer: Maag AC drive Main filter: L.666 Surface area: 6.36 m2 |
| Extruder 3 Description | Co extruders, Manufacturer: Davis Standard, 2 co-extruders with max output 150 kg/hr and 200 kg/h DC drive - 02 Co extruder motors Stand by L/D 30:1 Included with double filters with surface area: 0.81m2/unit |
| MDO description | 14 pre-heating rolls - Electrical heaters; 4 stretching rolls - Circulating oil; 2 annealing rolls - Electrical heaters; 5 nip rolls; AC drive; Stretching ratio 1:1 - 1:6 |
| TDO description | Chain and chain track System; Heating system: circulating air via individual heating system / zone (Electrical heater, motors, fans, sensor, etc) Edge guide system at inlet ATTENTION CHAIN OF TDO WAS REMOVED |
| Pull roll unit | Cromed Rolls chilled by water; Edge trim on-line recycling unit; 2 corona treatment stations (up and down - Double treated) AC drive Thickness Gauge X-ray: - Measurement range: 5 - 100 micron |
| Rewinder description | Turret Automatic change |
| Slitter | Slitter not available |
| Note | ATTENTION: PARTS OF MACHINE WERE REMOVED Max mechanical speed: 280 m/min Edge recycling system Pneumatic conveying system Cyclone to separate resin and conveying air Metal separator Mixing hopper Suction conveying for Co-Extruder Edge trim recycling Edge trim grinder Conveying fans Recycling System - Erema 500 kg/h RM 80T Utilities: - Compressor, Boiler, Silos, Mill Rolls, Mill Roll Stands (corona and nip), Nip rolls stands, Over Head Crane (10 TM). |
DMT BOPP
-
Maschinencode: BO67
-
Baujahr: 1997
-
Width (mm): 6500

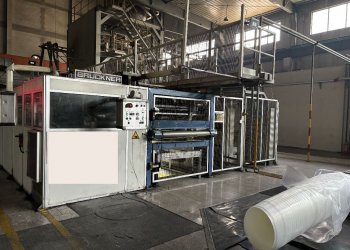

BRUCKNER
-
