- Maschinencode
- BO90
- Hersteller
- BRUCKNER
- Baujahr
- 2014
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- max output of extruders 6800 Kg/h, max production speed 460 m/min
- Width (mm)
- 8300

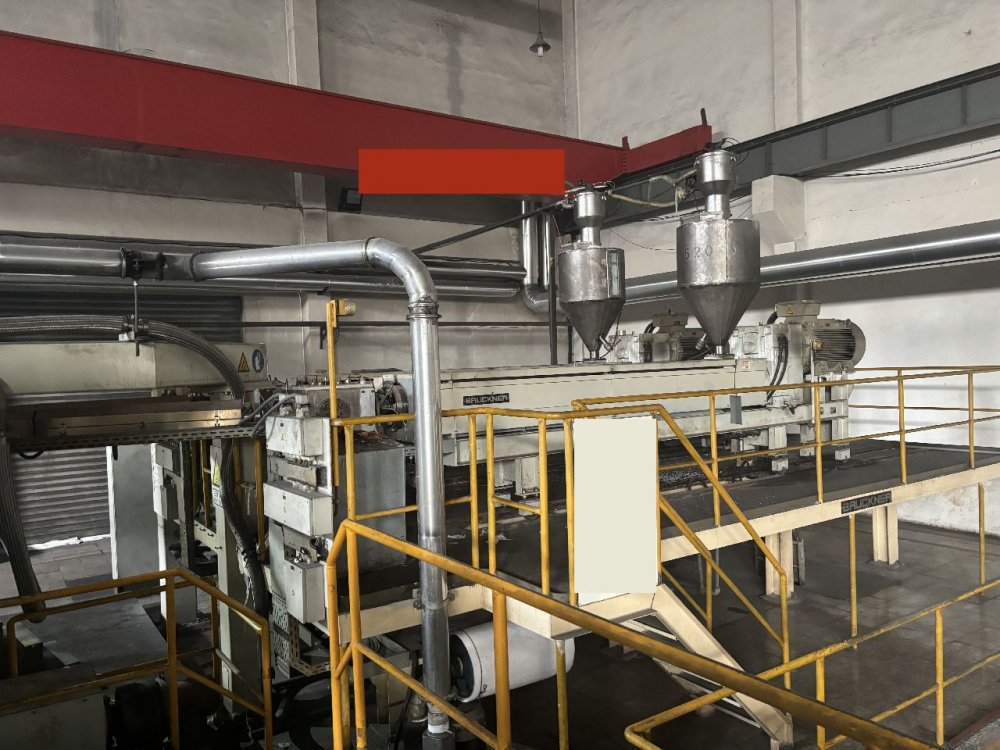

- Extruder 1 Description
- Single screw, make Bruckner, screw diameter 105mm / L/D33, AC motor 137 KW. Gravimetric doses 3 components

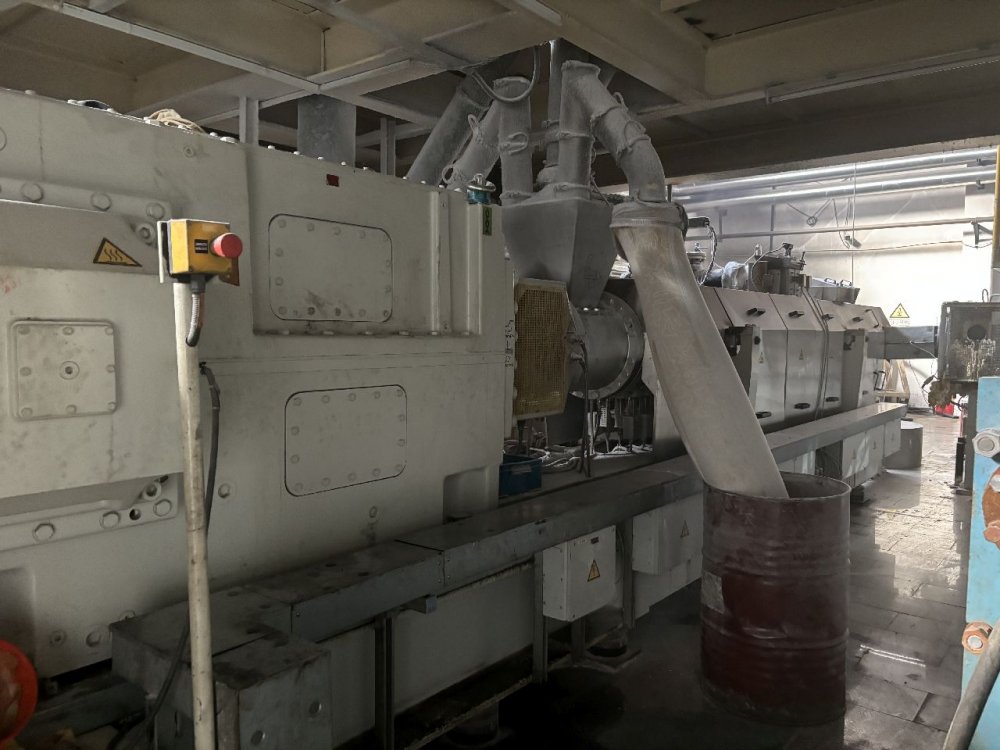

- Extruder 2 Description
- Twin screw co-rotating, Make Krauss Maffe mod ZE 155AX320i, max output 6200 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motor. Main material hopper 3160 L
- Extruder 3 Description
- Single screw, make Bruckner, screw diameter 105mm / L/D33, AC motor 137 KW. Gravimetric doses 3 components
- Head description
- Make Bruckner/Simplas. Automatic thickness profile control via thermo bolts
- Die width
- 1200
- Thickness controll system
- Automatic thickness profile control, Thicknes gauche NDC with IR gauge
- Chill roll unit
- Chill roll unit in water bath

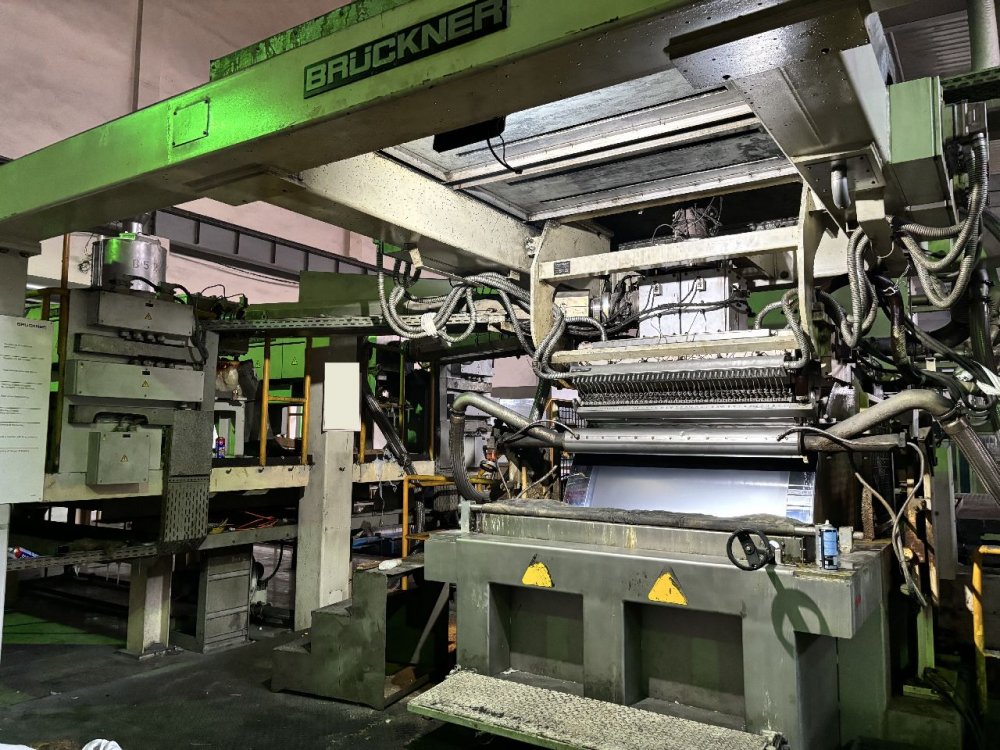

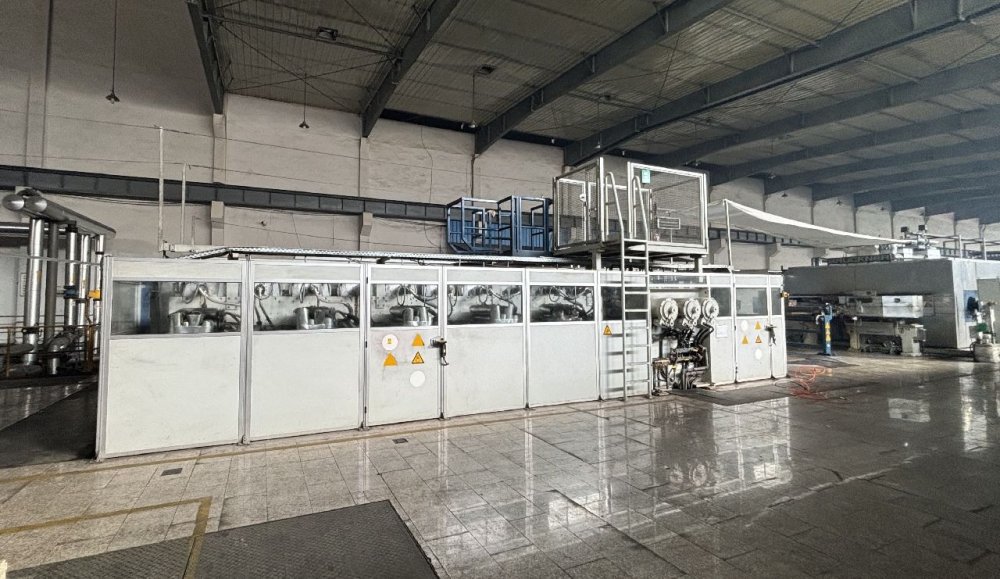

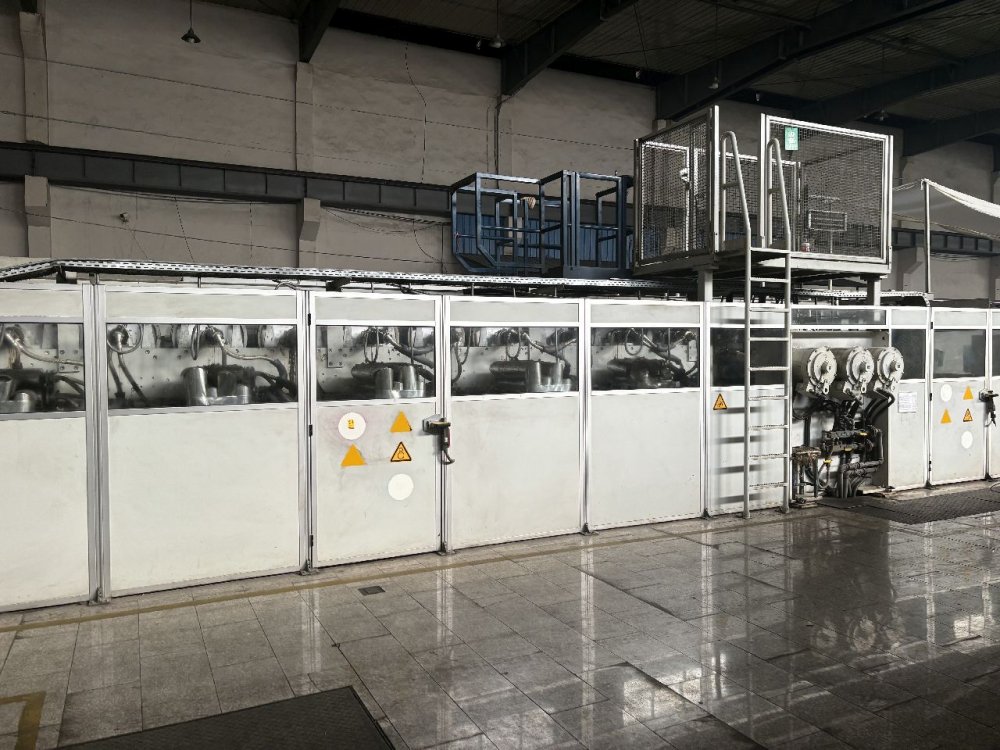

- MDO description
- 20x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO

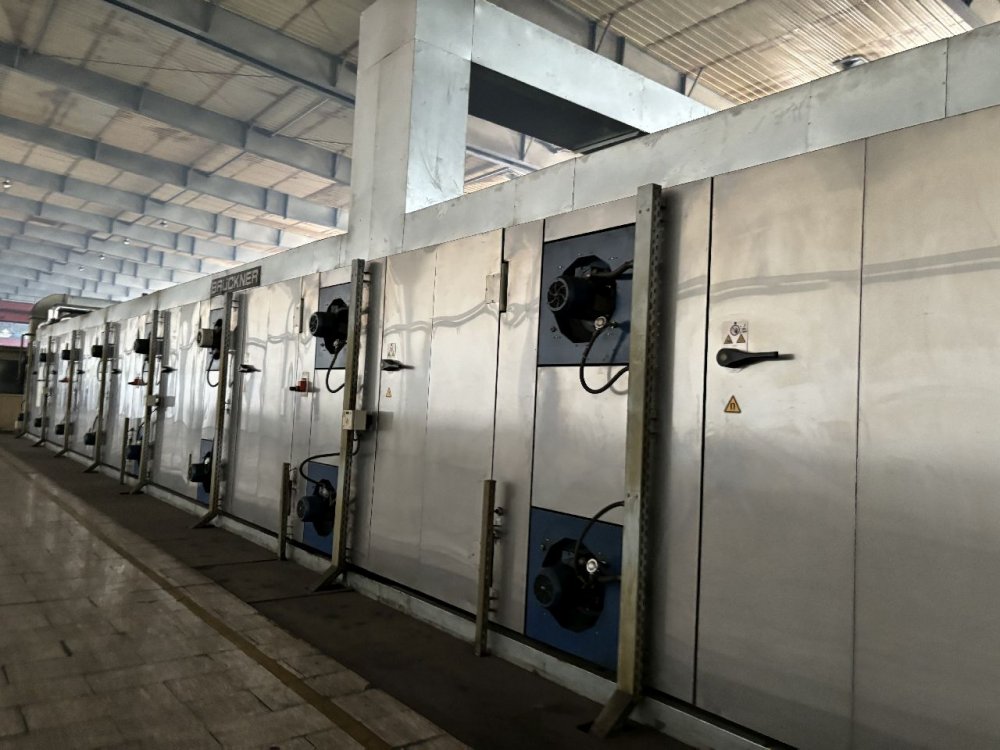

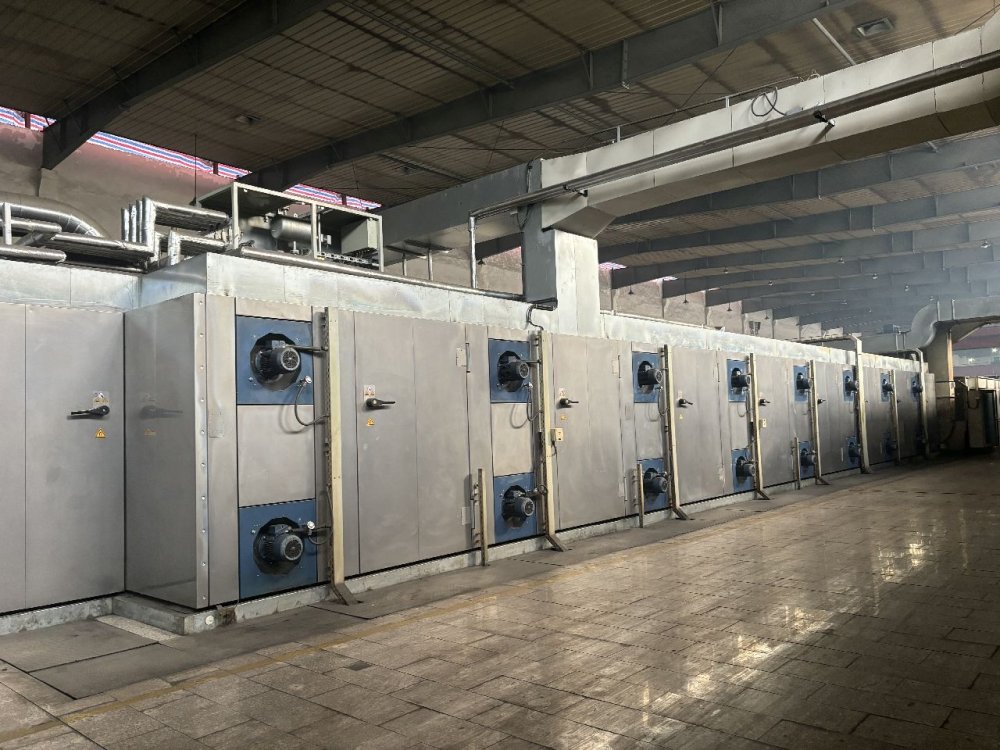

- TDO description
- Chaintype FOK 4.4.6, Oil heated, 20 sections
- Corona treatment
- 2 x Mero MR/B50K-IGBT
- Rewinder width
- 8300

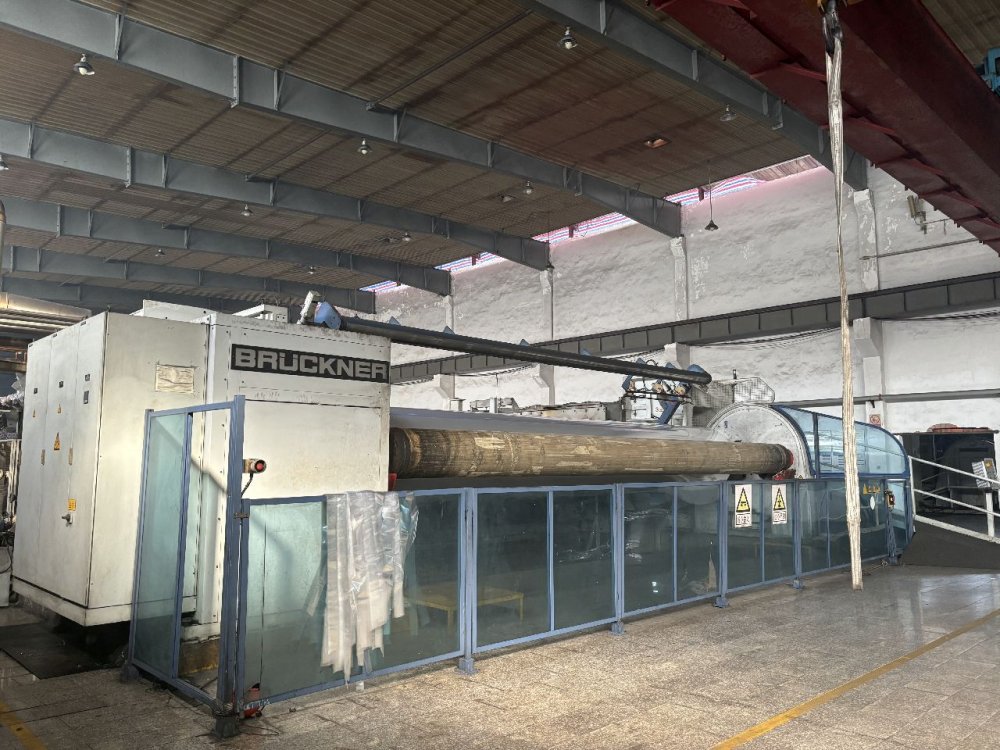

- Rewinder description
- Turret automatic winder
- Slitter
- Atlas primary slitter included, 14 couple of arms, 15 knives. Driven position of knives and arms
- Note
- Grinder and edge re-feeding system Oil boiler
| Maschinencode | BO90 |
| Hersteller | BRUCKNER |
| Baujahr | 2014 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | max output of extruders 6800 Kg/h, max production speed 460 m/min |
| Width (mm) | 8300 |
| Extruder 1 Description | Single screw, make Bruckner, screw diameter 105mm / L/D33, AC motor 137 KW. Gravimetric doses 3 components |
| Extruder 2 Description | Twin screw co-rotating, Make Krauss Maffe mod ZE 155AX320i, max output 6200 Kg/h, vacuum chamber Bartti, melt pump MAAG, Cartridge type screen, AC motor. Main material hopper 3160 L |
| Extruder 3 Description | Single screw, make Bruckner, screw diameter 105mm / L/D33, AC motor 137 KW. Gravimetric doses 3 components |
| Head description | Make Bruckner/Simplas. Automatic thickness profile control via thermo bolts |
| Die width | 1200 |
| Thickness controll system | Automatic thickness profile control, Thicknes gauche NDC with IR gauge |
| Chill roll unit | Chill roll unit in water bath |
| MDO description | 20x pre-heating rollers; 6 stretching rollers, 4 annealing rollers Each MDO motor driven with independent torque motor in direct drive. Oil heated MDO |
| TDO description | Chaintype FOK 4.4.6, Oil heated, 20 sections |
| Corona treatment | 2 x Mero MR/B50K-IGBT |
| Rewinder width | 8300 |
| Rewinder description | Turret automatic winder |
| Slitter | Atlas primary slitter included, 14 couple of arms, 15 knives. Driven position of knives and arms |
| Note | Grinder and edge re-feeding system Oil boiler |
