Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO87
- Manufacturer
- BRUCKNER
- Year
- 2007
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP
- Output
- max output 4000 kg/h, mechanical speed 450 m/min, max production speed 425 m/min. Total extrusion capacity: 5080 kg/h
- Width (mm)
- 8200

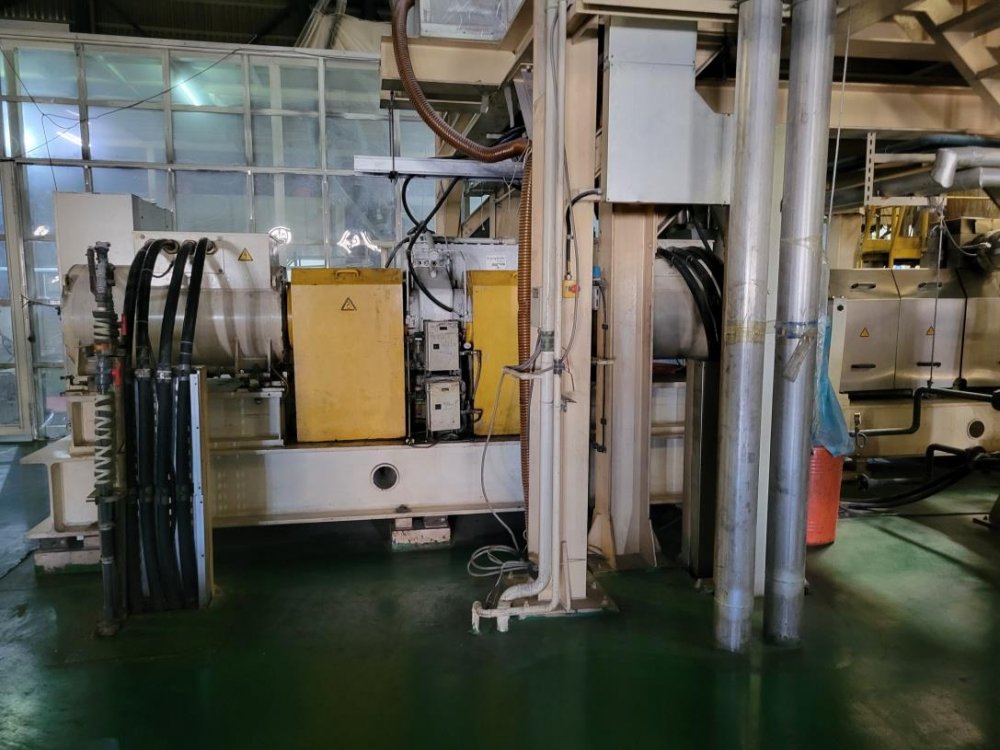

- Extruder 1 Description
- Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h
- Extruder 2 Description
- Layer B - Co-rotating twin screw extruder, make Kraus Maffei max through put 4500 kg/h. Vacuum box. Melt pump. Candle type screen
- Extruder 3 Description
- Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h

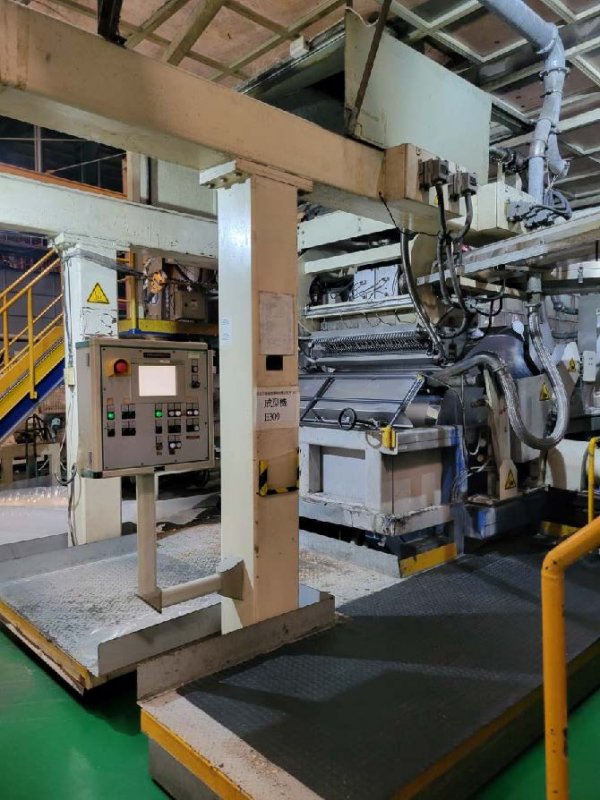

- Head description
- Make Simplas. automatic thickness profile control via thermal bolts
- Die width
- 1200
- Thickness controll system
- Automatic thickness control. 2 thickness gauges make Thermo scientific (after chill roll and on pull roll unit)
- Chill roll unit
- Chill roll in water bath

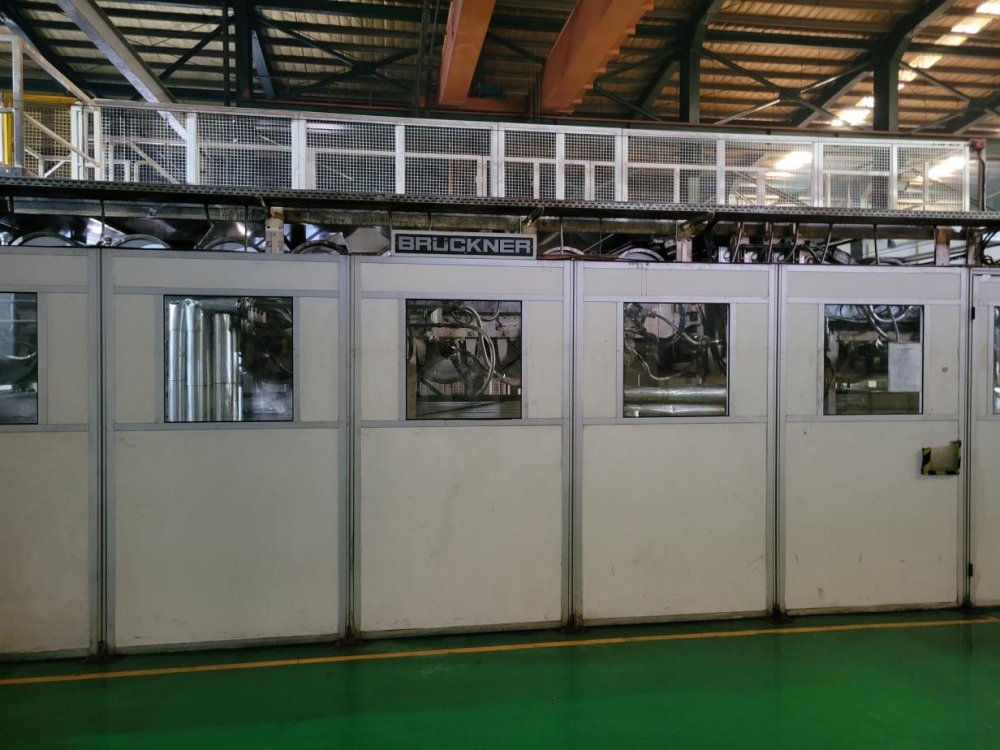

- MDO description
- 18 Pre-Heating rollers; 6 stretching rollers, 4 annealing rollers

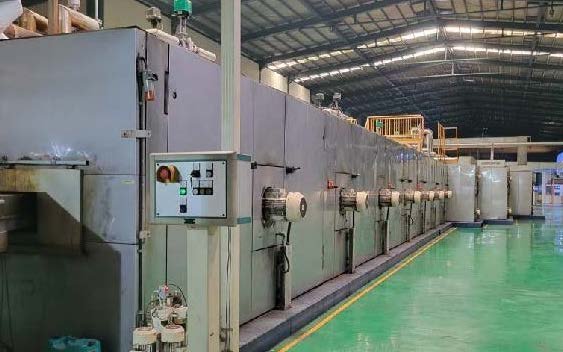

- TDO description
- Oil heated TDO
- Corona treatment
- make: Mero
- Flame treatment
- make: Esseci
- Rewinder width
- 8200mm net film width
- Rewinder description
- Turret type, auto splicing. 450m/min mechanical speed

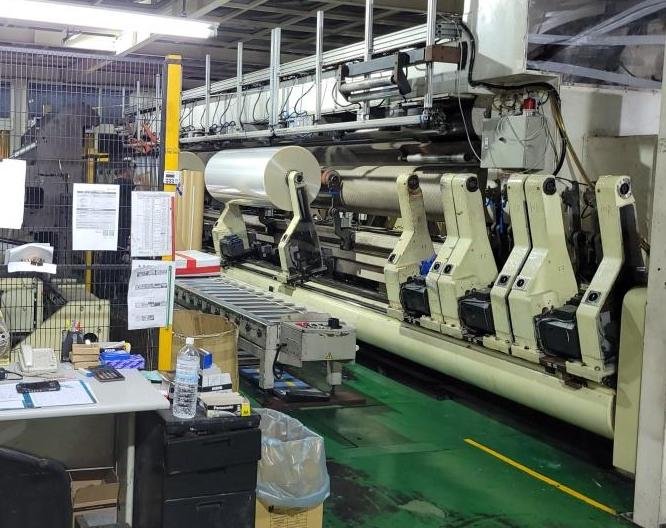

- Slitter
- Primary slitter make Atlas,width 9.000mm, max speed 1000 m/min, rewinder with independent stations with couples of arms, center driven. Each couple of arm with independent drive. motorised position of arms and blades. Tot 18 winding stations. Max reel diameter unwinder 1350mm. max reel diam rewinder 1200mm. Width range on winding stations: 350-2500mm
- Note
- - PLC Siemens S7 and IPC automation system - 2x thermal oil boilers - 3x Childers - 3x air compressors - Film winder over head crane 12T - Primary slitter over head crane 12T - Maintenance Hoists and cranes
| Machine Code | BO87 |
| Manufacturer | BRUCKNER |
| Year | 2007 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP |
| Output | max output 4000 kg/h, mechanical speed 450 m/min, max production speed 425 m/min. Total extrusion capacity: 5080 kg/h |
| Width (mm) | 8200 |
| Extruder 1 Description | Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h |
| Extruder 2 Description | Layer B - Co-rotating twin screw extruder, make Kraus Maffei max through put 4500 kg/h. Vacuum box. Melt pump. Candle type screen |
| Extruder 3 Description | Layer A - Single screw extruder, screw diam mm, max through put 290 kg/h |
| Head description | Make Simplas. automatic thickness profile control via thermal bolts |
| Die width | 1200 |
| Thickness controll system | Automatic thickness control. 2 thickness gauges make Thermo scientific (after chill roll and on pull roll unit) |
| Chill roll unit | Chill roll in water bath |
| MDO description | 18 Pre-Heating rollers; 6 stretching rollers, 4 annealing rollers |
| TDO description | Oil heated TDO |
| Corona treatment | make: Mero |
| Flame treatment | make: Esseci |
| Rewinder width | 8200mm net film width |
| Rewinder description | Turret type, auto splicing. 450m/min mechanical speed |
| Slitter | Primary slitter make Atlas,width 9.000mm, max speed 1000 m/min, rewinder with independent stations with couples of arms, center driven. Each couple of arm with independent drive. motorised position of arms and blades. Tot 18 winding stations. Max reel diameter unwinder 1350mm. max reel diam rewinder 1200mm. Width range on winding stations: 350-2500mm |
| Note | - PLC Siemens S7 and IPC automation system - 2x thermal oil boilers - 3x Childers - 3x air compressors - Film winder over head crane 12T - Primary slitter over head crane 12T - Maintenance Hoists and cranes |
