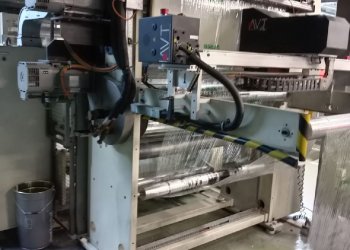

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL0873
- Manufacturer
- COMEXI
- Modello
- FP 1808
- Year
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 870
- Print width (mm)
- 820
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 700
- Unwinder type
- Double
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret non stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans , thermo oil heaters
- Videocamera
- yes BST
- Web guides
- Yes in and out
- Vyscosity control
- Yes by INELME
- Inking system
- Closed chaber doctor blades totally 12 ( 8 in machine and 4 spares)
- Anilox
- 12 ceramic sleeves
- Print Sleeves
- totally 300 sleeves of following repeats : 330/340/350/360/370/380/400/420/440/450/460/470/480/500/520/540/560/580/600/620/640/650 Totally 33 set of gears ( 8 each )
- Note
- Automatic preregister set up with auto gear meshing
| Machine Code | FL0873 |
| Manufacturer | COMEXI |
| Modello | FP 1808 |
| Year | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 870 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 700 |
| Unwinder type | Double |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret non stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 4 fans , thermo oil heaters |
| Videocamera | yes BST |
| Web guides | Yes in and out |
| Vyscosity control | Yes by INELME |
| Inking system | Closed chaber doctor blades totally 12 ( 8 in machine and 4 spares) |
| Anilox | 12 ceramic sleeves |
| Print Sleeves | totally 300 sleeves of following repeats : 330/340/350/360/370/380/400/420/440/450/460/470/480/500/520/540/560/580/600/620/640/650 Totally 33 set of gears ( 8 each ) |
| Note | Automatic preregister set up with auto gear meshing |
