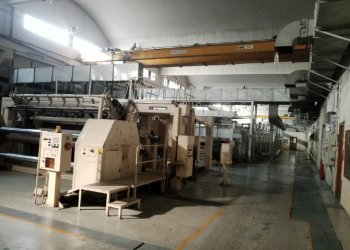

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO74
- Manufacturer

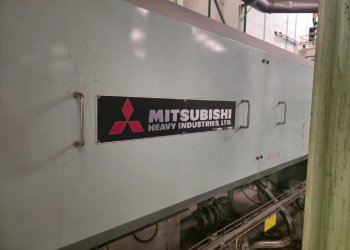

- MITSUBISHI
- Year
- 1980
- Number of layers
- 3
- Material
- BOPP 12-50 micron
- Output
- 1350 Kg/h , max speed 220m/min
- Width (mm)
- 5500
- Extruder 1 Description
- Layer B with Cascade extruder
- Thickness controll system
- Measurex year 2001. Beta ray source replaced in 2016
- Corona treatment
- yes for bottom side treatment
- Flame treatment
- yes for top treatment
- Rewinder description
- max reel diam 1070mm
- Note
- AVAILABLE WITH SPARE DIE AND CHILL ROLL 63 cores Optical defect contrl befor MDO Recycling machine ISHINAKA output 450Kg/h
| Machine Code | BO74 |
| Manufacturer | MITSUBISHI |
| Year | 1980 |
| Number of layers | 3 |
| Material | BOPP 12-50 micron |
| Output | 1350 Kg/h , max speed 220m/min |
| Width (mm) | 5500 |
| Extruder 1 Description | Layer B with Cascade extruder |
| Thickness controll system | Measurex year 2001. Beta ray source replaced in 2016 |
| Corona treatment | yes for bottom side treatment |
| Flame treatment | yes for top treatment |
| Rewinder description | max reel diam 1070mm |
| Note | AVAILABLE WITH SPARE DIE AND CHILL ROLL 63 cores Optical defect contrl befor MDO Recycling machine ISHINAKA output 450Kg/h |

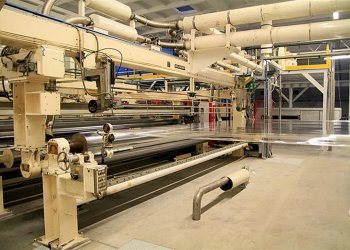

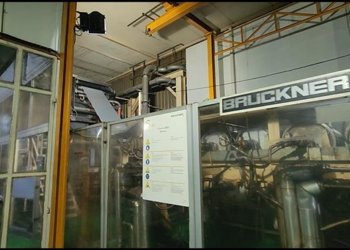

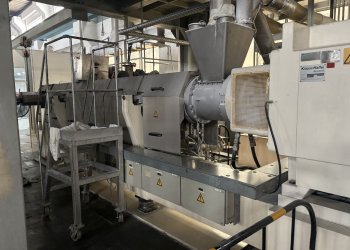

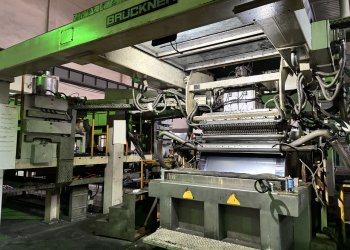

BRUCKNER - DORNIER
-
Machine Code: BO80
-
Year: 1994
-
Width (mm): 8400
