- Codice Macchina
- CB-PS 14
- Manufacturer
- CELMACCH
- Modello
- 1600 SILENT PRINT
- Year
- 2006
- Massima larghezza foglio (mm)
- 1600
- Gearless
- No
- Numero colori di stampa
- 4
- Taglierina rotativa
- No
- Ulteriori informazioni

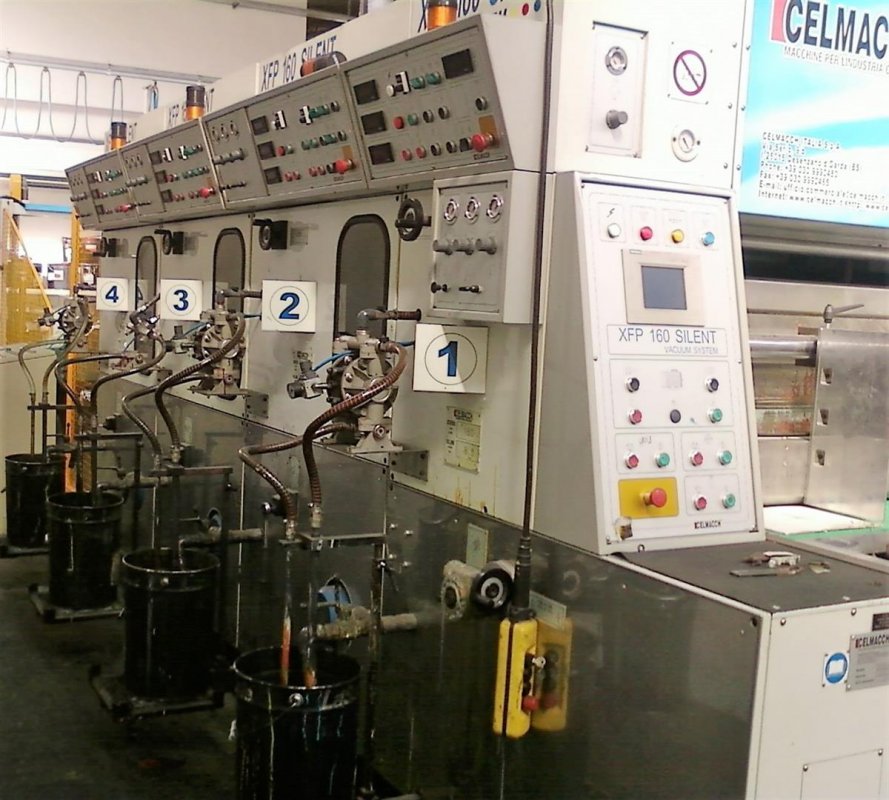

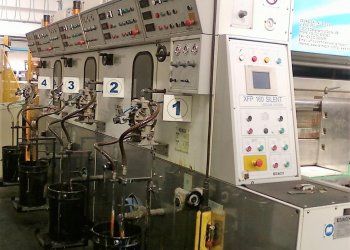

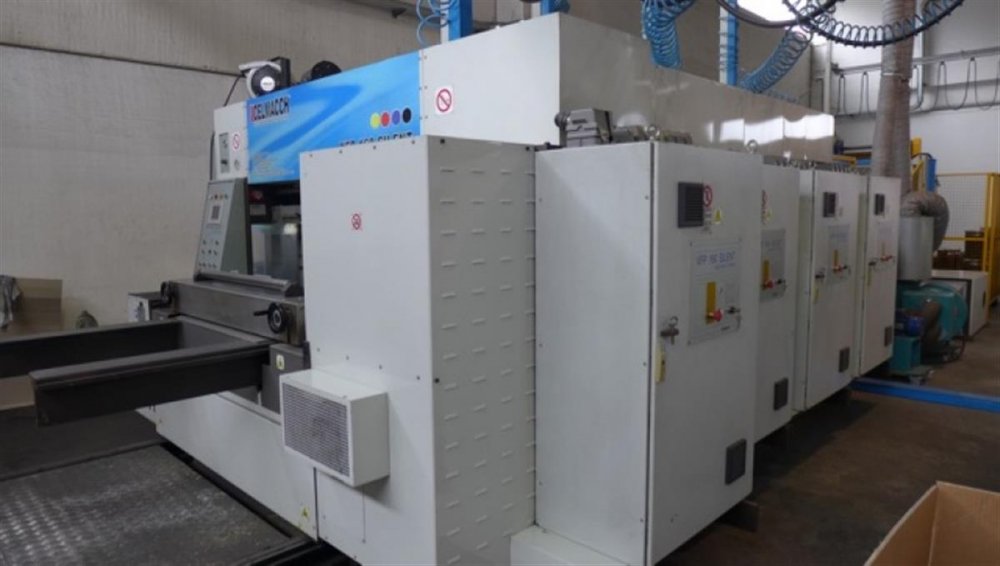

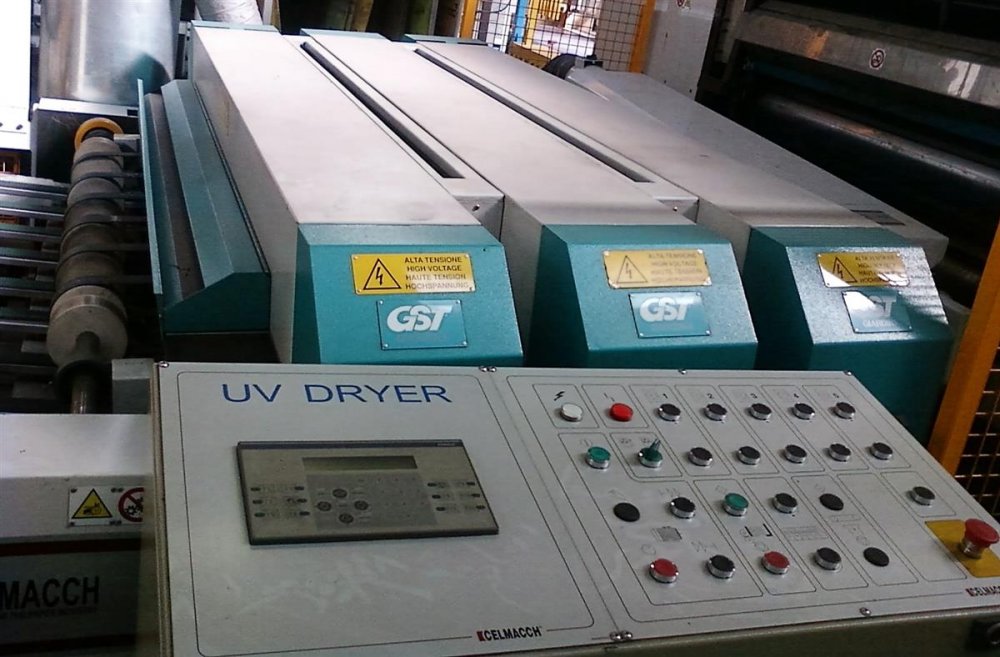

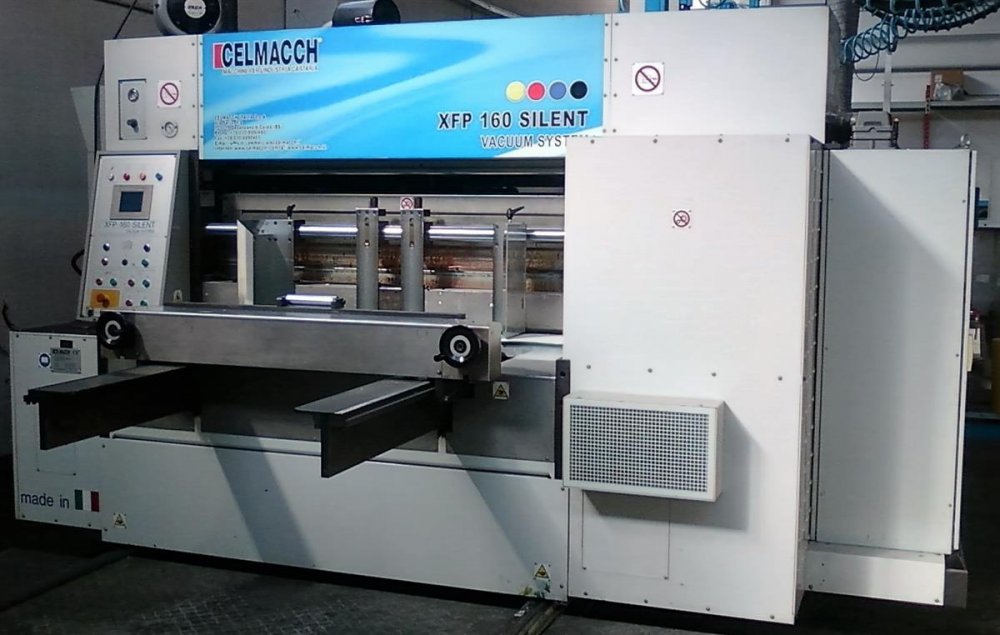

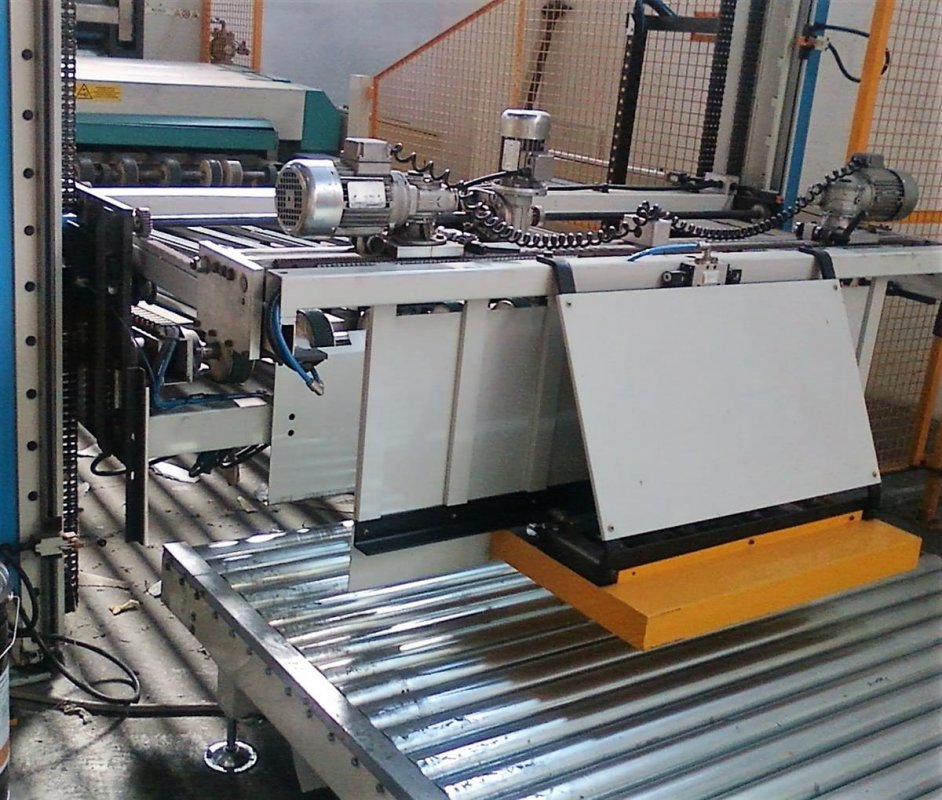

- Available December 2016. Not in production,possible vision. 4-color printing machine with drying ovens to air on every color and on the stacker UV oven for painting, 4 doctor Blade and anilox rools. Overall Dimension: width 4.30 meters - length introduction, printing units and lamps 8.30 meters - 4.20 meters length stacker. Total length of the complete line 12.50 meters. 1st electric panel width 60 cm x 3.50 meters length 2nd Electric panel width 50 cm x 1.20 meters length working thickness 1 \8 mm minimum sheet length 400 mm maximum sheet length 1600 mm minimum sheet width 350 mm maximum sheet width 950 mm Maximum print surface 1650 x 950 mm diameter cylinder with clichè 334 mm cliche thickness 4,5 mm Speed 7800 sheets\hour
| Codice Macchina | CB-PS 14 |
| Manufacturer | CELMACCH |
| Modello | 1600 SILENT PRINT |
| Year | 2006 |
| Massima larghezza foglio (mm) | 1600 |
| Gearless | No |
| Numero colori di stampa | 4 |
| Taglierina rotativa | No |
| Ulteriori informazioni | Available December 2016. Not in production,possible vision. 4-color printing machine with drying ovens to air on every color and on the stacker UV oven for painting, 4 doctor Blade and anilox rools. Overall Dimension: width 4.30 meters - length introduction, printing units and lamps 8.30 meters - 4.20 meters length stacker. Total length of the complete line 12.50 meters. 1st electric panel width 60 cm x 3.50 meters length 2nd Electric panel width 50 cm x 1.20 meters length working thickness 1 \8 mm minimum sheet length 400 mm maximum sheet length 1600 mm minimum sheet width 350 mm maximum sheet width 950 mm Maximum print surface 1650 x 950 mm diameter cylinder with clichè 334 mm cliche thickness 4,5 mm Speed 7800 sheets\hour |
