CELMACCH 1600 SILENT PRINT

Código Máquina
CB-PS 14
Constructor
CELMACCH
Modello
1600 SILENT PRINT
Año
2006
Max sheet width (mm)
1600
Gearless
No
Num of colours
4
Rotary die cutter
No
Note

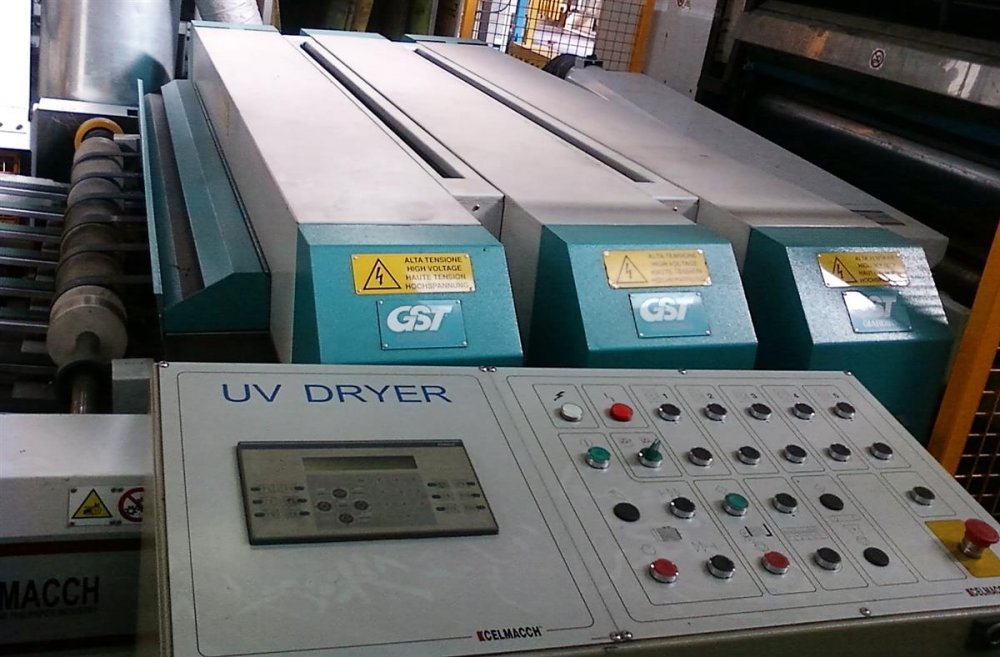

Available December 2016. Not in production,possible vision. 4-color printing machine with drying ovens to air on every color and on the stacker UV oven for painting, 4 doctor Blade and anilox rools. Overall Dimension: width 4.30 meters - length introduction, printing units and lamps 8.30 meters - 4.20 meters length stacker. Total length of the complete line 12.50 meters. 1st electric panel width 60 cm x 3.50 meters length 2nd Electric panel width 50 cm x 1.20 meters length working thickness 1 \8 mm minimum sheet length 400 mm maximum sheet length 1600 mm minimum sheet width 350 mm maximum sheet width 950 mm Maximum print surface 1650 x 950 mm diameter cylinder with clichè 334 mm cliche thickness 4,5 mm Speed 7800 sheets\hour
Código Máquina CB-PS 14
Constructor CELMACCH
Modello 1600 SILENT PRINT
Año 2006
Max sheet width (mm) 1600
Gearless No
Num of colours 4
Rotary die cutter No
Note Available December 2016. Not in production,possible vision. 4-color printing machine with drying ovens to air on every color and on the stacker UV oven for painting, 4 doctor Blade and anilox rools. Overall Dimension: width 4.30 meters - length introduction, printing units and lamps 8.30 meters - 4.20 meters length stacker. Total length of the complete line 12.50 meters. 1st electric panel width 60 cm x 3.50 meters length 2nd Electric panel width 50 cm x 1.20 meters length working thickness 1 \8 mm minimum sheet length 400 mm maximum sheet length 1600 mm minimum sheet width 350 mm maximum sheet width 950 mm Maximum print surface 1650 x 950 mm diameter cylinder with clichè 334 mm cliche thickness 4,5 mm Speed 7800 sheets\hour
** SOLD **
