- Codice Macchina
- ME72
- Manufacturer

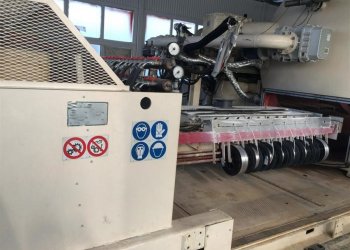

- GALILEO
- Modello
- 1610 HR-V2
- Year
- 1998
- Larghezza lavoro (mm)
- 1620
- Materiali
- Polyester film: 10 mic to 60 mic; BOPP film: 15 mic to 100 mic; CPP film: 25 mic to 80 mic; HDPE film: 20 mic to 120 mic
- Velocità
- 720 m/min
- Diametro massimo bobina svolgitore
- 1000 mm
- Diametro massimo bobina avvolgitore
- 1000 mm
- Navicelle di evaporazione
- Number 19; size 120 x 35 x 10 mm
- Sistema di pompaggio
- Metallization chamber: 2 x diffusion pumps 30.000 1/s, 1 x mechanical booster pump with variable speed motor 2.400 m3/h, 1 x cryogenic panel 150.000 1/s polycold PFC 1100-HC, 1 x pump with rotating piston 505 m3/h. Winding chamber: 1 x mechanical booster pump 13.000 m3/h, 1 x mechanical booster pump 5500 m3/h, 1 x mechanical booster pump 2000 m3/h, 1 x cryogenic panel 150.000 1/s polycold PFC 1100-HC, 2 x pumps with rotating piston 505 m3/h. Guard chamber: 1 x mechanical booster pump 2.00 m3/h, 1 x mechanical booster pump 1000 m3/h
- Polycold
- Cryogenic refrigeration unit model PFC - 1100 - HC; Design pressures: LOW (suction) side: 300 PSI (2070 KPA); HIGH (discharge) side: 400 PSI (2760 KPA); ELECTRICAL: Power supply: 400 - 3 - 50.
- Ulteriori informazioni
- Shaft 152mm Accesories: evaporative boats, aluminium wires, graphite film, drive belts, protective screens,
Codice Macchina | ME72 |
Manufacturer | GALILEO |
Modello | 1610 HR-V2 |
Year | 1998 |
Larghezza lavoro (mm) | 1620 |
Materiali | Polyester film: 10 mic to 60 mic; BOPP film: 15 mic to 100 mic; CPP film: 25 mic to 80 mic; HDPE film: 20 mic to 120 mic |
Velocità | 720 m/min |
Diametro massimo bobina svolgitore | 1000 mm |
Diametro massimo bobina avvolgitore | 1000 mm |
Navicelle di evaporazione | Number 19; size 120 x 35 x 10 mm |
Sistema di pompaggio | Metallization chamber: 2 x diffusion pumps 30.000 1/s, 1 x mechanical booster pump with variable speed motor 2.400 m3/h, 1 x cryogenic panel 150.000 1/s polycold PFC 1100-HC, 1 x pump with rotating piston 505 m3/h. Winding chamber: 1 x mechanical booster pump 13.000 m3/h, 1 x mechanical booster pump 5500 m3/h, 1 x mechanical booster pump 2000 m3/h, 1 x cryogenic panel 150.000 1/s polycold PFC 1100-HC, 2 x pumps with rotating piston 505 m3/h. Guard chamber: 1 x mechanical booster pump 2.00 m3/h, 1 x mechanical booster pump 1000 m3/h |
Polycold | Cryogenic refrigeration unit model PFC - 1100 - HC; Design pressures: LOW (suction) side: 300 PSI (2070 KPA); HIGH (discharge) side: 400 PSI (2760 KPA); ELECTRICAL: Power supply: 400 - 3 - 50. |
Ulteriori informazioni | Shaft 152mm Accesories: evaporative boats, aluminium wires, graphite film, drive belts, protective screens, |
