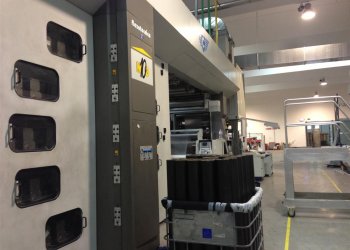

- Code Machine
- FL546
- Fabricant
- FLEXOTECNICA
- Modello
- 10 NG (GEARLESS)
- Année
- 2009
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- No
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 900
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 drying zones - extended tnnel 6 mt, 4 fans ,2 gas burners , automatic recirculation system with LEL
- Videocamera
- AVT Jupiter with defekt control
- Corona treatment
- Ferrarini Benelli
- Web guides
- yes in and out
- Vyscosity control
- 10 by Gama
- Washing system
- fully automatic
- Inking system
- close chamber doctor blades
- Anilox
- 18 ceramic anilox sleeves
- Print Sleeves
- 60 print sleeves OPTION ADDITIONAL 140
- Note
- Machine in excellent conditions as new .Fully equipped
| Code Machine | FL546 |
| Fabricant | FLEXOTECNICA |
| Modello | 10 NG (GEARLESS) |
| Année | 2009 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 900 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 drying zones - extended tnnel 6 mt, 4 fans ,2 gas burners , automatic recirculation system with LEL |
| Videocamera | AVT Jupiter with defekt control |
| Corona treatment | Ferrarini Benelli |
| Web guides | yes in and out |
| Vyscosity control | 10 by Gama |
| Washing system | fully automatic |
| Inking system | close chamber doctor blades |
| Anilox | 18 ceramic anilox sleeves |
| Print Sleeves | 60 print sleeves OPTION ADDITIONAL 140 |
| Note | Machine in excellent conditions as new .Fully equipped |
