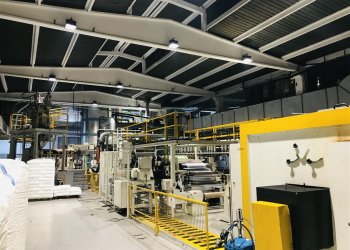

- Código Máquina
- BO67
- Constructor
- DMT
- Modello
- BOPP
- Año
- 1997
- Number of layers
- 3
- Film structure
- ABA, ABB, BBB, ABCD
- Output
- 12.000 tons/year, 1400 Kg/h
- Width (mm)
- 6500

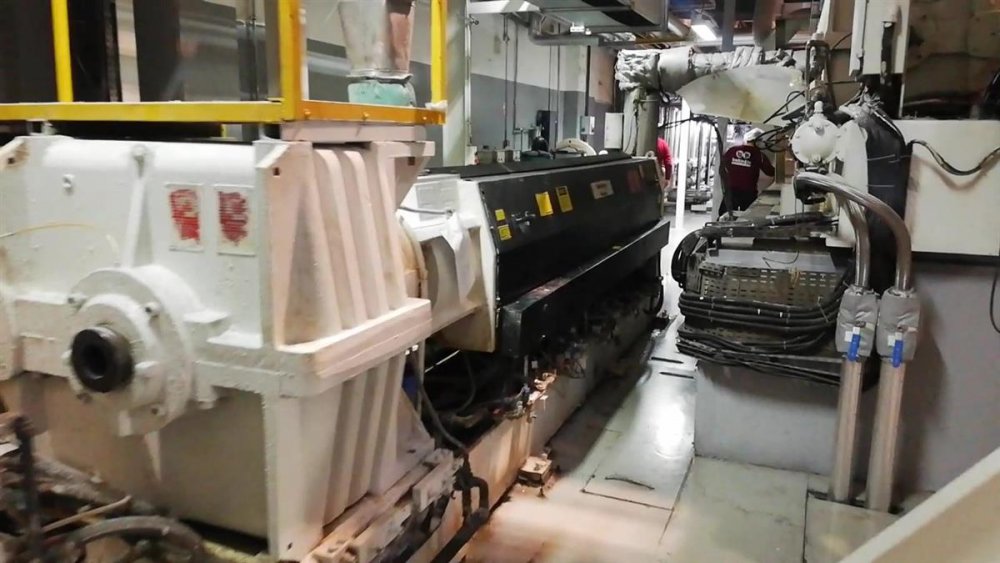

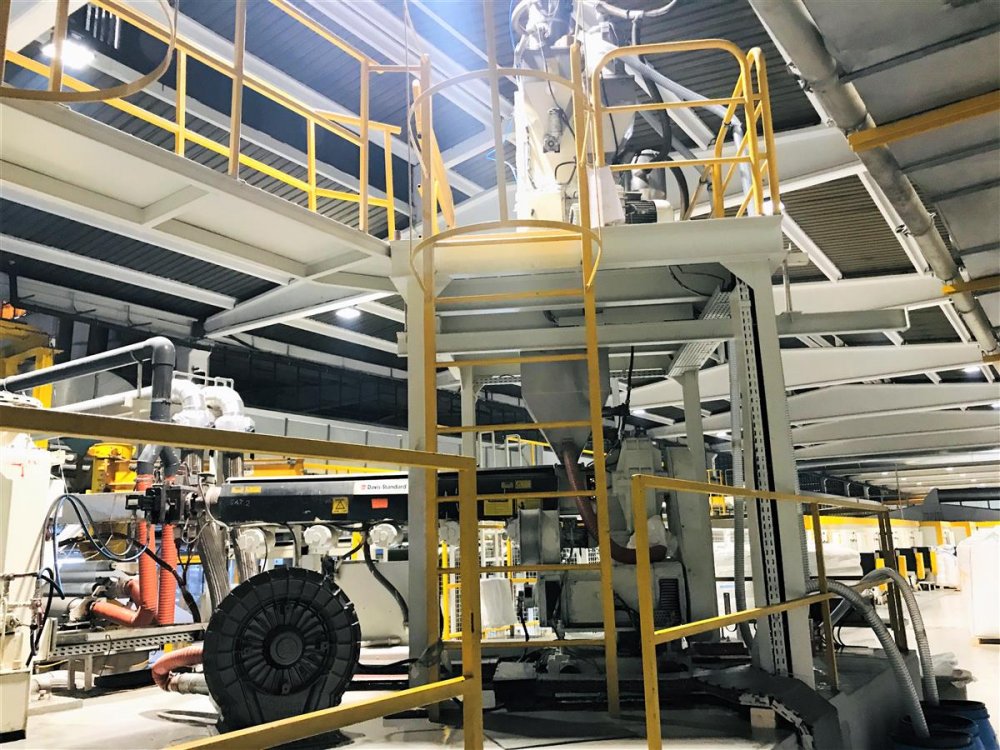

- Extruder 1 Description
- 310mm screw diameter with 5 comp grav.system
- Extruder 2 Description
- Satellyte 175mm diam screw, with 3 comp gravimetric system
- Extruder 3 Description
- Satelliyte 200mm diam. screw, with 3 comp gravimetric system
- Die width
- 920mm film
- Thickness controll system
- Beta rays
- Chill roll unit
- Diameter 1800mm Width: 1200mm 150mm chrome plated
- Corona treatment
- Yes

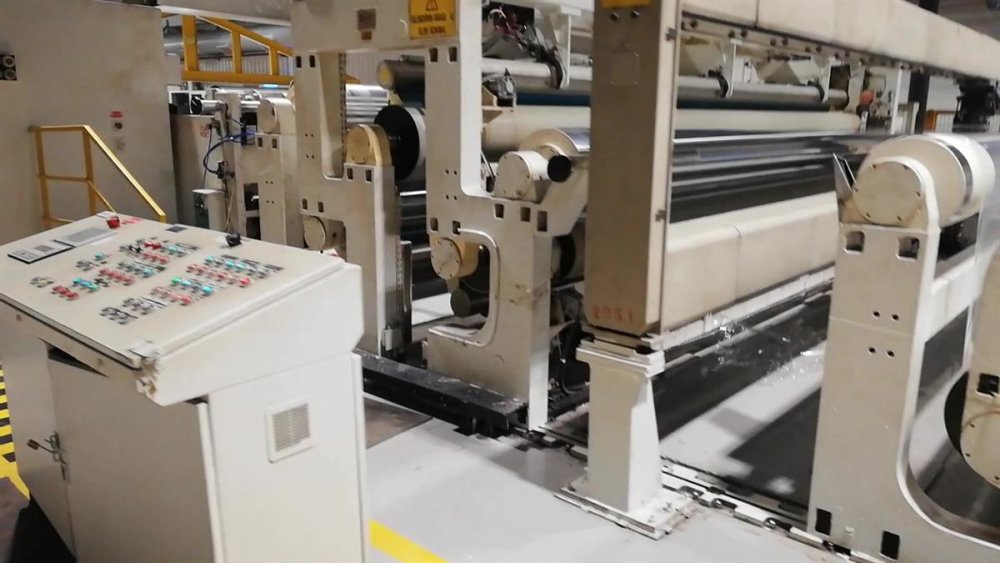

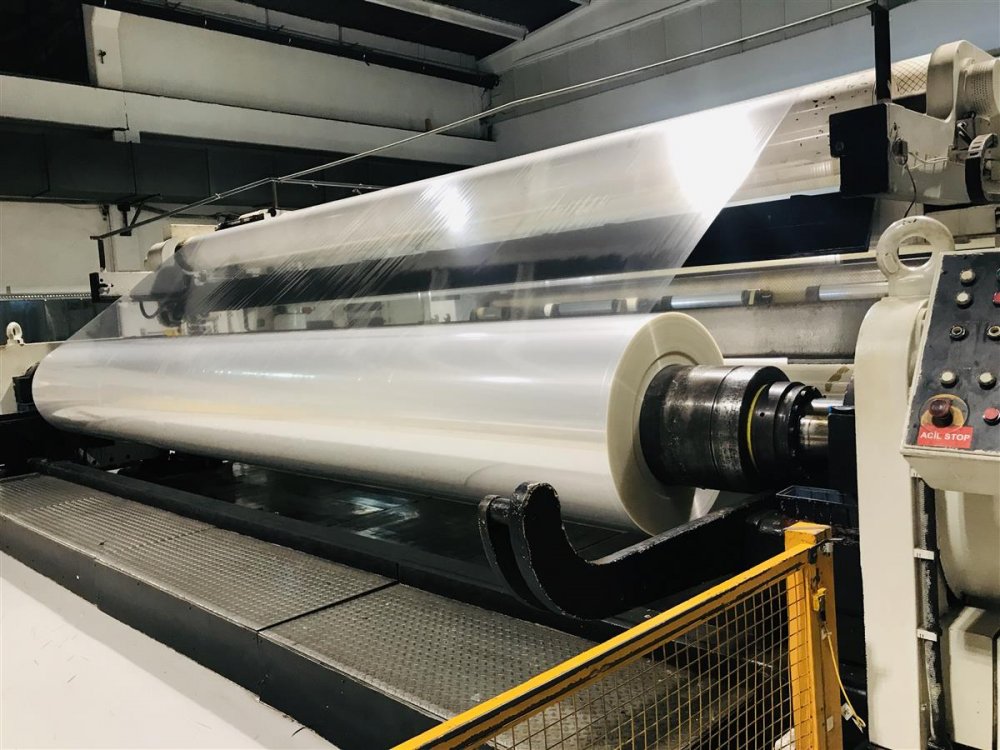

- Rewinder width
- 6500
- Slitter
- ATLAS
- Note
- Primary slitter Atlas included Thickness range: 12-50 my Air knife Chilling and oil heating stations are excluded from supply.
| Código Máquina | BO67 |
| Constructor | DMT |
| Modello | BOPP |
| Año | 1997 |
| Number of layers | 3 |
| Film structure | ABA, ABB, BBB, ABCD |
| Output | 12.000 tons/year, 1400 Kg/h |
| Width (mm) | 6500 |
| Extruder 1 Description | 310mm screw diameter with 5 comp grav.system |
| Extruder 2 Description | Satellyte 175mm diam screw, with 3 comp gravimetric system |
| Extruder 3 Description | Satelliyte 200mm diam. screw, with 3 comp gravimetric system |
| Die width | 920mm film |
| Thickness controll system | Beta rays |
| Chill roll unit | Diameter 1800mm Width: 1200mm 150mm chrome plated |
| Corona treatment | Yes |
| Rewinder width | 6500 |
| Slitter | ATLAS |
| Note | Primary slitter Atlas included Thickness range: 12-50 my Air knife Chilling and oil heating stations are excluded from supply. |

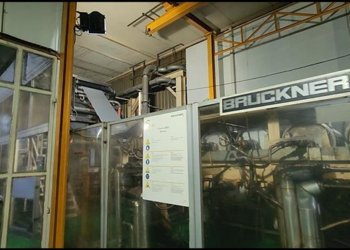

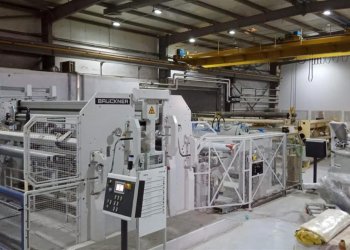

WINDMÖLLER & HÖLSCHER W&H + Brückner CAST COEX TD3000
-
