3 capas BRUCKNER Linea de extrusion para bi-orientado

Código Máquina
BO88
Constructor
BRUCKNER
Año
2007
Number of layers
3
Film structure
ABC
Material
BOPP and BOPA
Output
Max output on BOPP 1200 kg/h
Width (mm)
4200
Extruder 1 Description
Layer A: Output 120 kg/h
Extruder 2 Description
Layer B: 1300 kg/h
Extruder 3 Description
Layer C: 120kg/h
Head description
2 extrusion dies, 1 for PP and 1 for PA
Thickness controll system
Automatic thickness profile control . Thickness gauges
MDO description
stretching ratios on BOPP: min 1:1 - 1:7 on BOPA 1:1 - 1:5

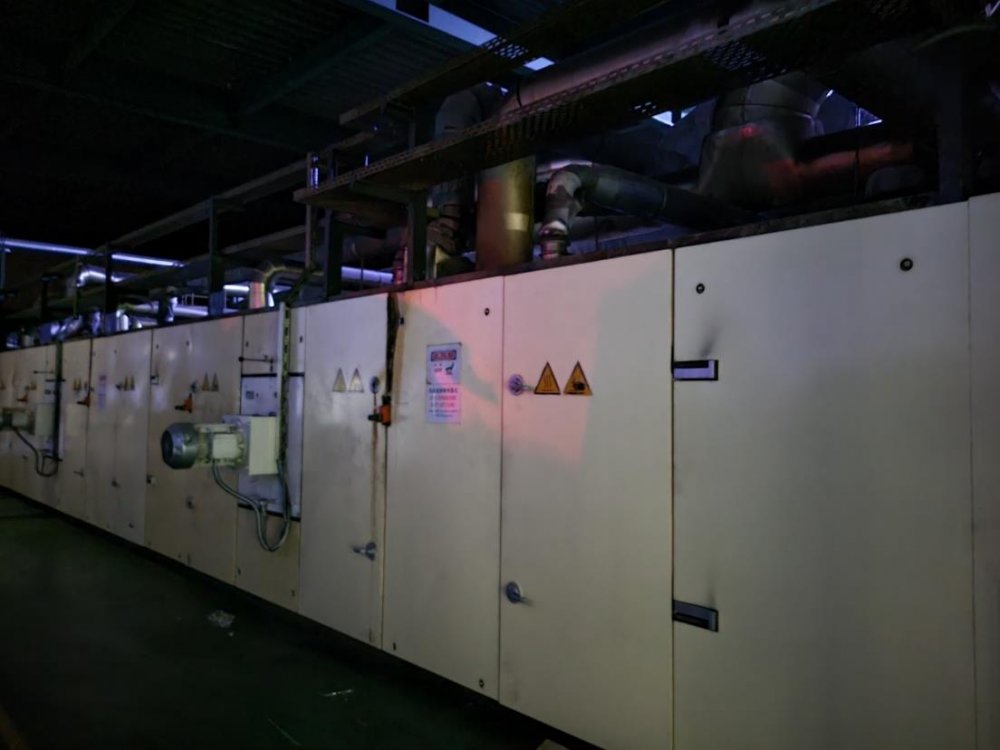

TDO description
stretching ratios on BOPP: min 1:8 - 1:9 on BOPA 1:2,8 - 1:4
Rewinder width
4200
Rewinder description
Turret automatic winder, reel diam 1000mm

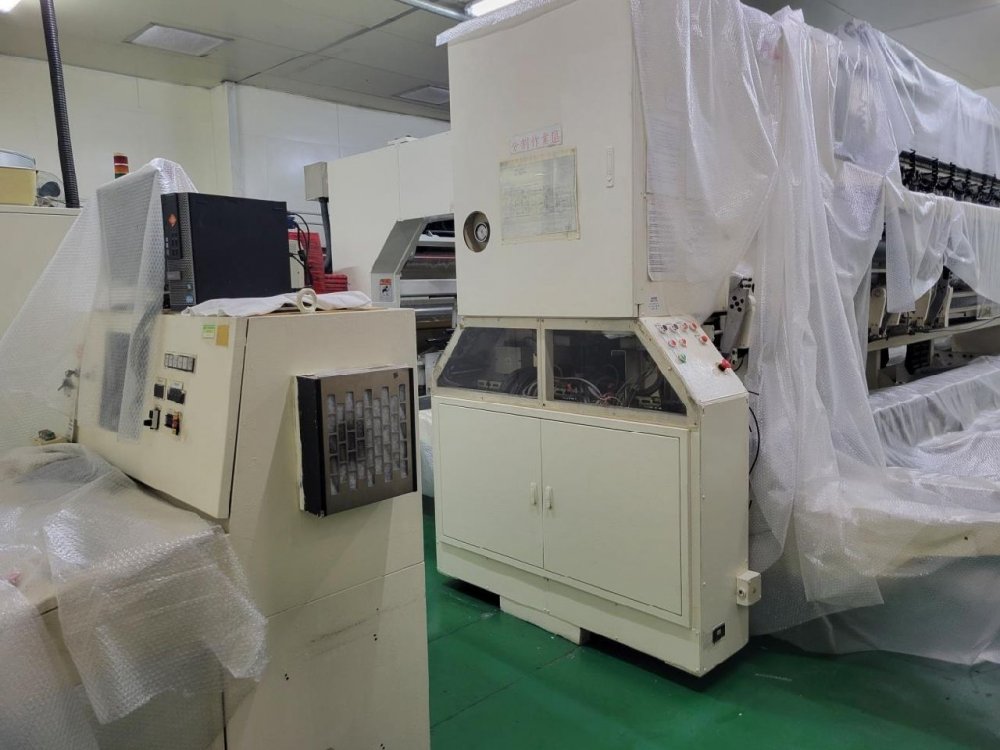

Slitter
Make Fujitekko, width 4200mm, rewinder with independent winding stations, each with couple of arms., with independent drive. Center driven. Width range on winder: 325-2000mm. max reel diameter on rewind 1000mm. speed 600 m/min
Código Máquina BO88
Constructor BRUCKNER
Año 2007
Number of layers 3
Film structure ABC
Material BOPP and BOPA
Output Max output on BOPP 1200 kg/h
Width (mm) 4200
Extruder 1 Description Layer A: Output 120 kg/h
Extruder 2 Description Layer B: 1300 kg/h
Extruder 3 Description Layer C: 120kg/h
Head description 2 extrusion dies, 1 for PP and 1 for PA
Thickness controll system Automatic thickness profile control . Thickness gauges
MDO description stretching ratios on BOPP: min 1:1 - 1:7 on BOPA 1:1 - 1:5
TDO description stretching ratios on BOPP: min 1:8 - 1:9 on BOPA 1:2,8 - 1:4
Rewinder width 4200
Rewinder description Turret automatic winder, reel diam 1000mm
Slitter Make Fujitekko, width 4200mm, rewinder with independent winding stations, each with couple of arms., with independent drive. Center driven. Width range on winder: 325-2000mm. max reel diameter on rewind 1000mm. speed 600 m/min
