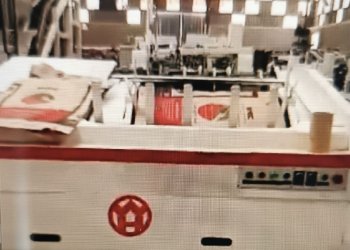

Paper sack making machines are made up from a tuber and a bottomer and are used to produce multilayer paper for industrial sacks. These are used for several applications from cement bags, to chemicals, food and seed packagings.
Ask more informations
- Machine Code
- SA20
- Manufacturer
- Kochsiek
- Modello
- K66
- Year
- 1998
- Type
- Complete line
- Note
- - sack width: 27 - 65 - sack lenght: 32- 127 - tube length: 36 - 138 - bottom width: 7 – 21,5 cm - bottom centre distance: 24-120 - valve units: 1.+2., tubular, tubular with PE, cement and gusset valve - bottom patch: 2 with overlapping over the edge of the bottom, and bottom rotators on both sides - bottom printing system: 2 x 2 ( printing cylinders ) 4 FIFA sistem on valve station a and bottom patch units. Digital glue sistem on bottom overlapping and bottom pasting patches - PLC control unit Siemens S5 and S7 - Mecanical/production speed: up to 200 pcs/min depending on the size of the bags, paper, experience of operators etc. etc.. - vacuum pump : 2 pcs - S Press belt with counting and bundle station Icoma packtechik Palletiser Icoma - 15 bundle/min - Including TUBER Rognini SA15.
| Machine Code | SA20 |
| Manufacturer | Kochsiek |
| Modello | K66 |
| Year | 1998 |
| Type | Complete line |
| Note | - sack width: 27 - 65 - sack lenght: 32- 127 - tube length: 36 - 138 - bottom width: 7 – 21,5 cm - bottom centre distance: 24-120 - valve units: 1.+2., tubular, tubular with PE, cement and gusset valve - bottom patch: 2 with overlapping over the edge of the bottom, and bottom rotators on both sides - bottom printing system: 2 x 2 ( printing cylinders ) 4 FIFA sistem on valve station a and bottom patch units. Digital glue sistem on bottom overlapping and bottom pasting patches - PLC control unit Siemens S5 and S7 - Mecanical/production speed: up to 200 pcs/min depending on the size of the bags, paper, experience of operators etc. etc.. - vacuum pump : 2 pcs - S Press belt with counting and bundle station Icoma packtechik Palletiser Icoma - 15 bundle/min - Including TUBER Rognini SA15. |
