Paper sack making machines are made up from a tuber and a bottomer and are used to produce multilayer paper for industrial sacks. These are used for several applications from cement bags, to chemicals, food and seed packagings.
Ask more informations
- Machine Code
- SA32
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- AM 2145 AD 2377
- Year
- 1985
- Overhaul/renovation
- 2022 Bottomed & Tuber by GARANT
- Type
- Complete line
- Note

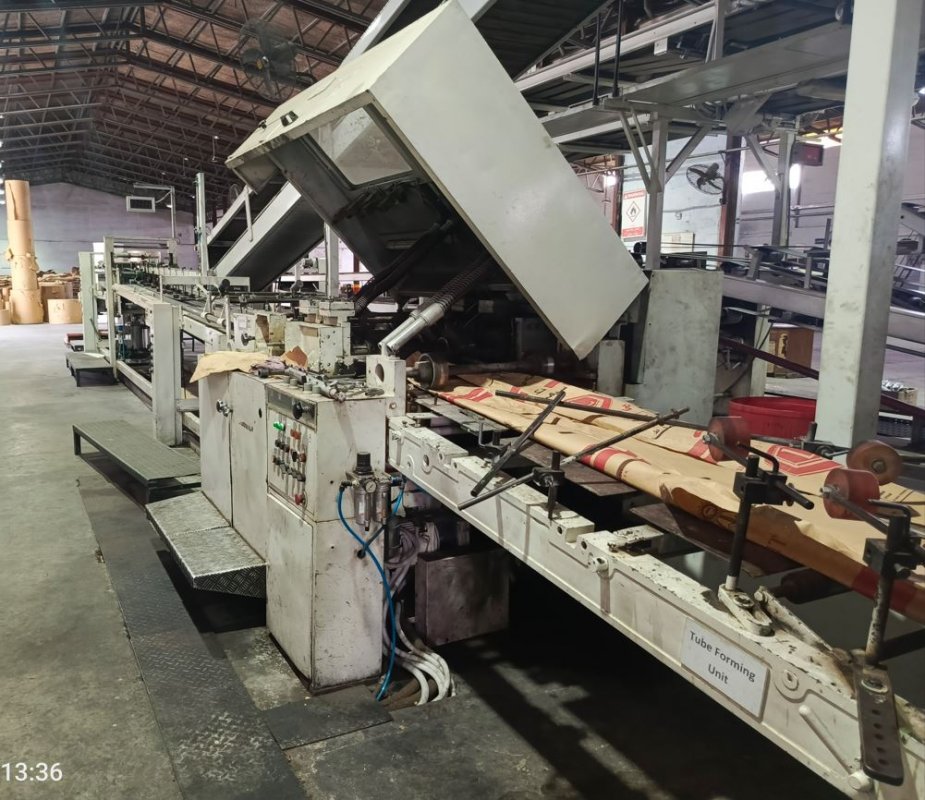

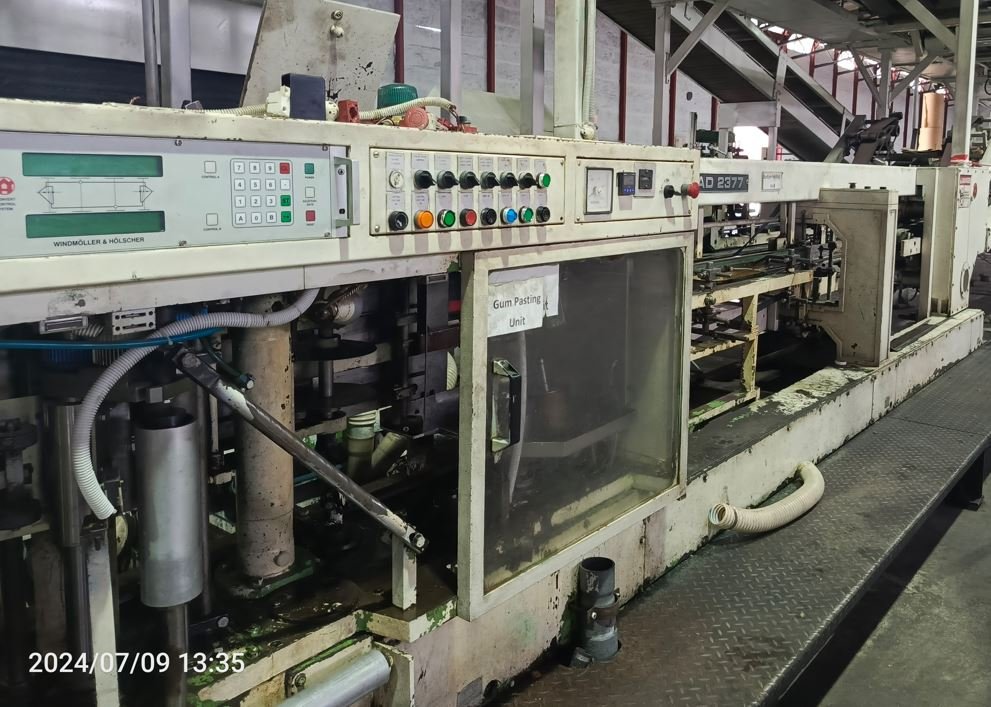

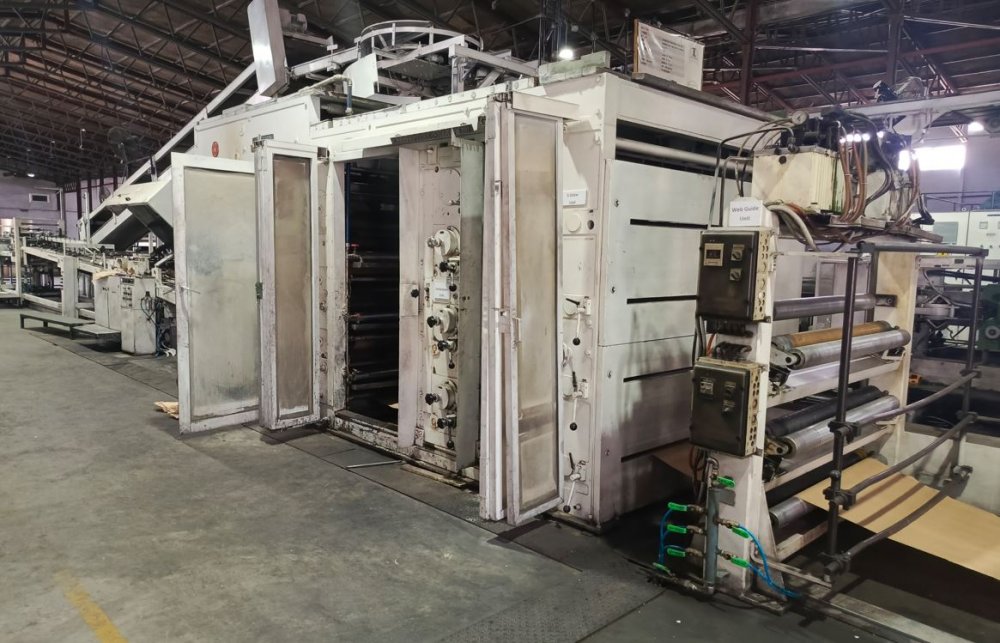

- W&H sack line composed of: W&H Tuber AM2145: Tube Width: 35 cm - 60 cm Cut-off length - Stepped End: 50 cm - 93 cm Reel width: 103 cm Reel diameter: 130 cm Speed: 200 tubes/min No. of plies: 4 Remote Access: No Tear-off unit: Rubber rollers Pre-printed reels option: Yes W&H Bottomer AD2377 year : Sack Width: 40 cm - 55 cm Sack Length Stepped end: 43.5 cm - 78.5 cm Sack Length Flush Cut: 43.5 cm - 78.5 cm Bottom Width - Stepped End: 8.5 - 12 cm Bottom Width - Flush Cut: 8.5 cm - 12 cm Tube Length: 55 cm - 93 cm Valve - Cut-off Length: 14 cm - 19 cm Valve Ply: 1 ply OPTION : A W&H Flexa 820 / 4 colors printer, year of construction 2016, Price 0.8 Mio
| Machine Code | SA32 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | AM 2145 AD 2377 |
| Year | 1985 |
| Overhaul/renovation | 2022 Bottomed & Tuber by GARANT |
| Type | Complete line |
| Note | W&H sack line composed of: W&H Tuber AM2145: Tube Width: 35 cm - 60 cm Cut-off length - Stepped End: 50 cm - 93 cm Reel width: 103 cm Reel diameter: 130 cm Speed: 200 tubes/min No. of plies: 4 Remote Access: No Tear-off unit: Rubber rollers Pre-printed reels option: Yes W&H Bottomer AD2377 year : Sack Width: 40 cm - 55 cm Sack Length Stepped end: 43.5 cm - 78.5 cm Sack Length Flush Cut: 43.5 cm - 78.5 cm Bottom Width - Stepped End: 8.5 - 12 cm Bottom Width - Flush Cut: 8.5 cm - 12 cm Tube Length: 55 cm - 93 cm Valve - Cut-off Length: 14 cm - 19 cm Valve Ply: 1 ply OPTION : A W&H Flexa 820 / 4 colors printer, year of construction 2016, Price 0.8 Mio |
Gartemann & Hollmann 517 / AD 2377
-
Machine Code: SA34
-
Year: 1980
ROGNINI Tuber and printing section
-
Machine Code: SA30
-
Year: 1965
WINDMÖLLER & HÖLSCHER AM 8115 + AD8320 CL
-
Machine Code: SA31
-
Year: 2021

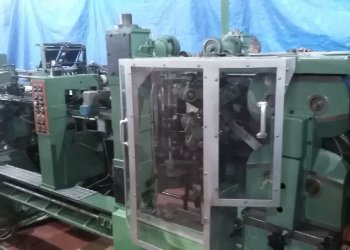

WINDMÖLLER & HÖLSCHER AD2360/16
-
