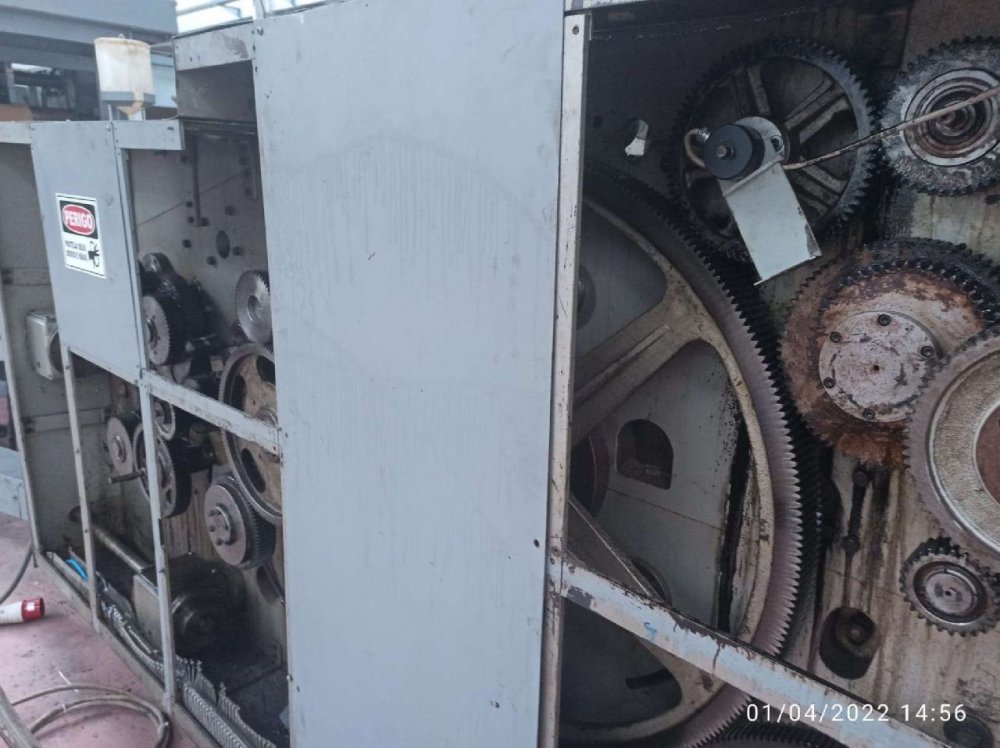

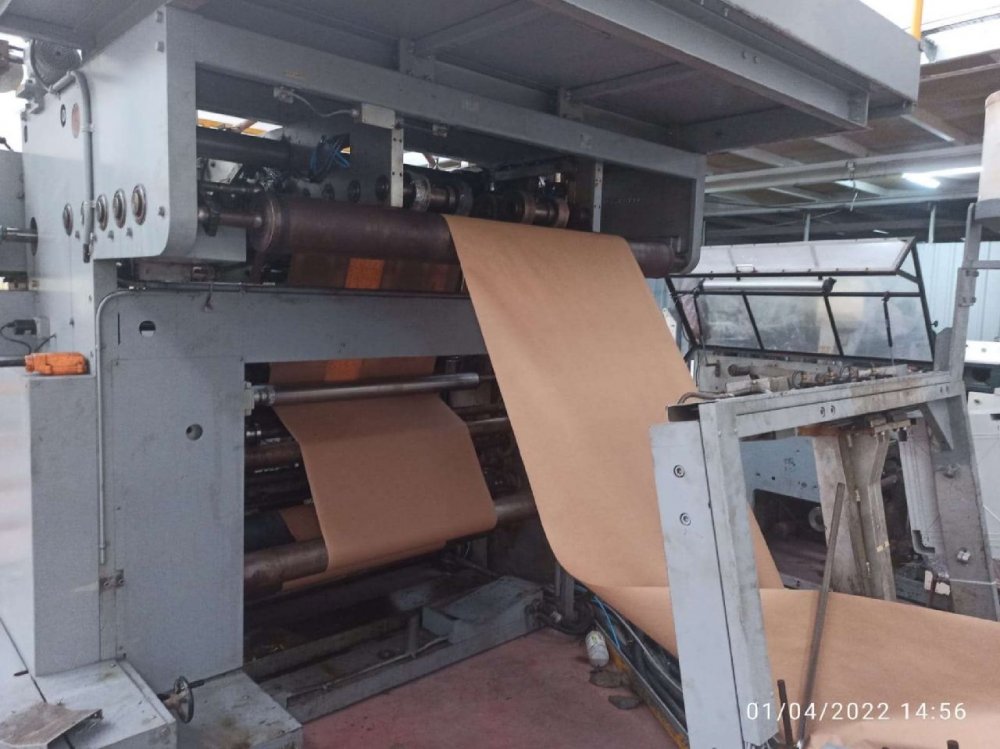

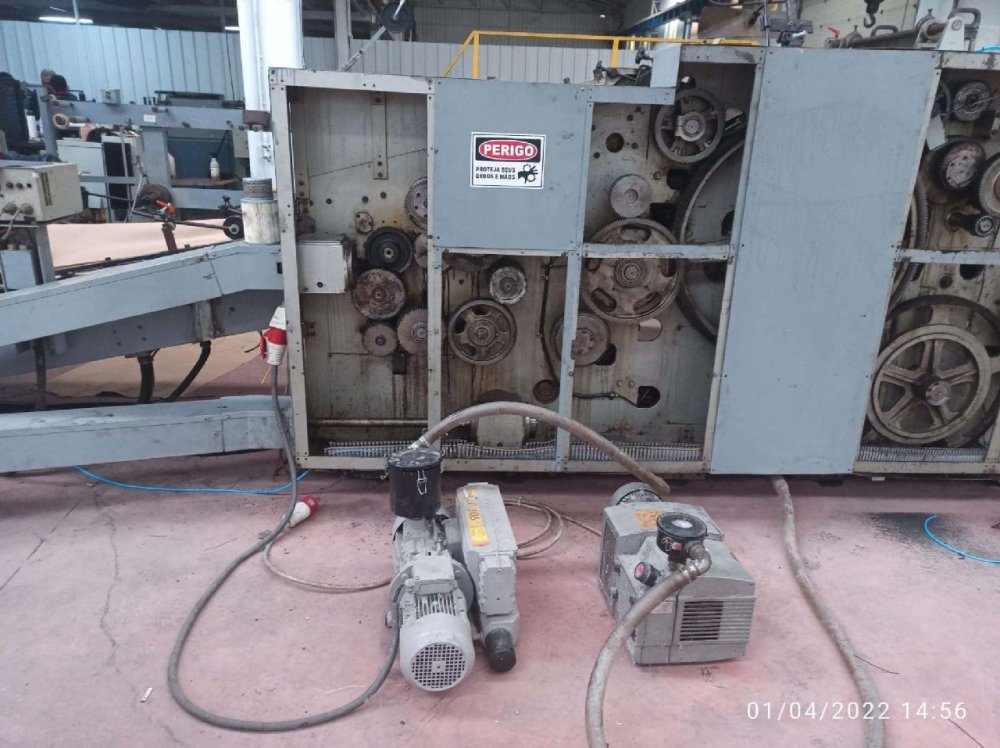

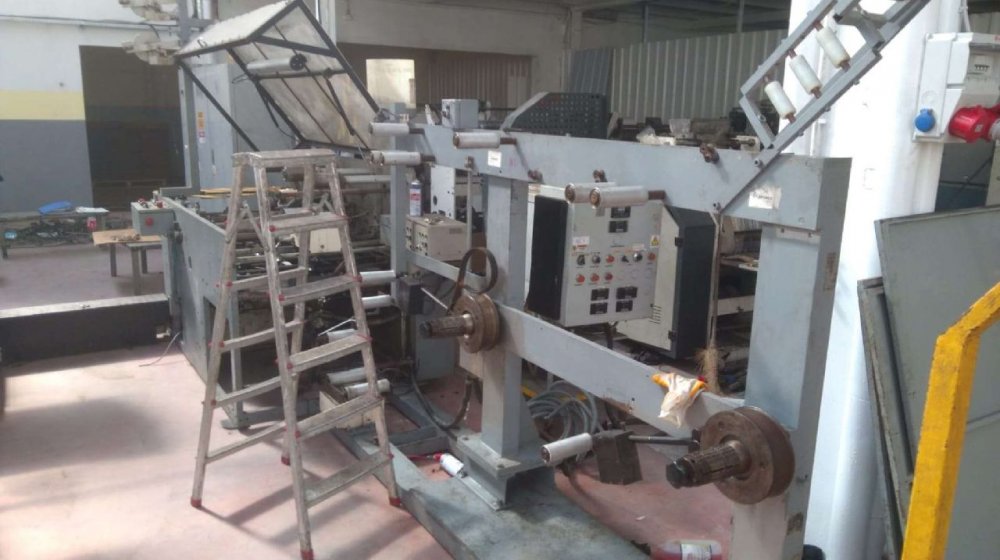

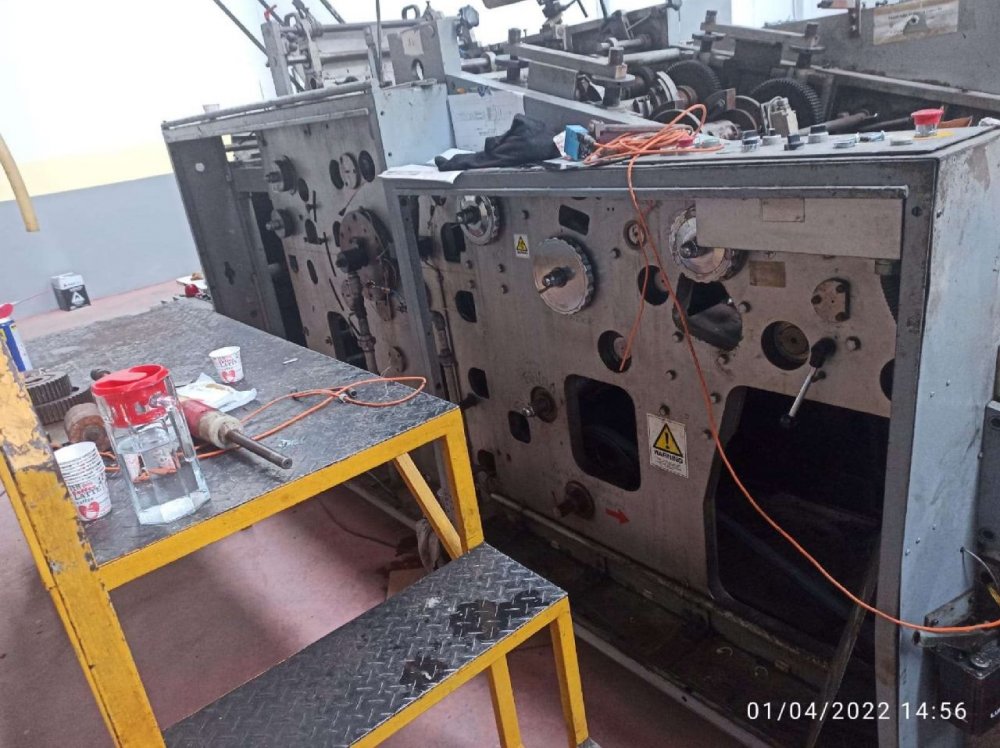

Paper bag making machines fold a paper web into a square bottom SOS paper bag. These bags with block bottom may be produced in 1 or more layers of paper depending on machine's equipment and specifications. Some of these paper bag making machines are equipped to attach a handle on the bag, which may be: twisted handle or a flat handle.
Ask more informations
- Machine Code
- SO341
- Manufacturer
- NEW LONG
- Modello
- 148T+504TH
- Year
- 1995
- Overhaul/renovation
- Renewed in 2022
- Width (mm)
- 1510
- Materials
- Paper, weight t of paper: 80 – 140 g/m2
- Feed:
- Reel fed
- Handel unit
- Twisted
- Bag length max (mm)
- 700
- Bag length min (mm)
- 290
- Bag width max (mm)
- 540
- Bag width min (mm)
- 220
- Bottom width max (mm)
- 200
- Bottom width (mm)
- 80
- Cycle / min
- 150 bags/min
- Unwinder
- Butler unwinder with automatic change, max roll diameter 1200mm
- Note
- Twisted handle unit Handle diameter: 4,6mm Innder diameter: 100mm Outer diameter: 800mm
| Machine Code | SO341 |
| Manufacturer | NEW LONG |
| Modello | 148T+504TH |
| Year | 1995 |
| Overhaul/renovation | Renewed in 2022 |
| Width (mm) | 1510 |
| Materials | Paper, weight t of paper: 80 – 140 g/m2 |
| Feed: | Reel fed |
| Handel unit | Twisted |
| Bag length max (mm) | 700 |
| Bag length min (mm) | 290 |
| Bag width max (mm) | 540 |
| Bag width min (mm) | 220 |
| Bottom width max (mm) | 200 |
| Bottom width (mm) | 80 |
| Cycle / min | 150 bags/min |
| Unwinder | Butler unwinder with automatic change, max roll diameter 1200mm |
| Note | Twisted handle unit Handle diameter: 4,6mm Innder diameter: 100mm Outer diameter: 800mm |
