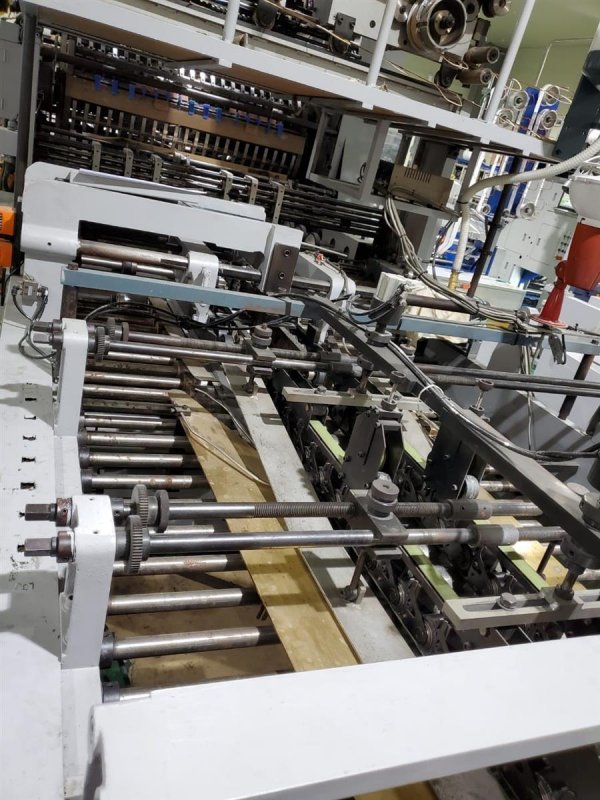

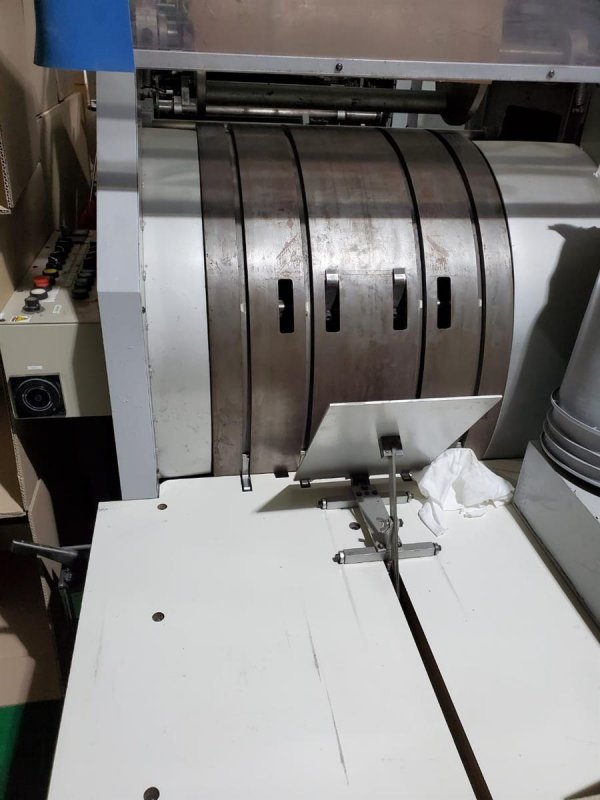

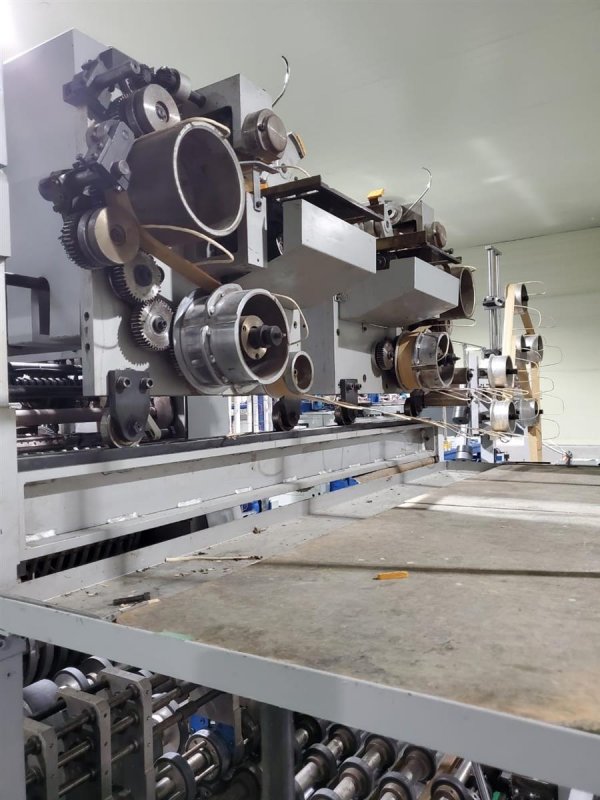

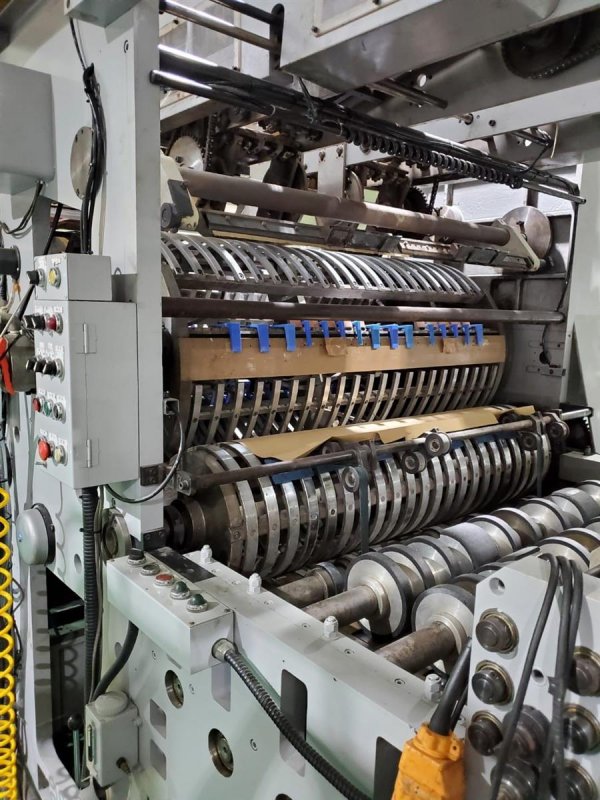

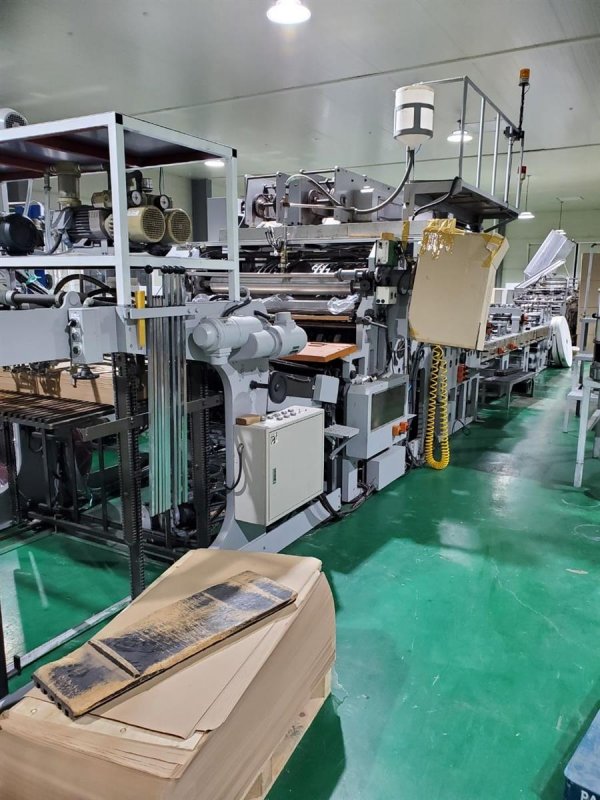

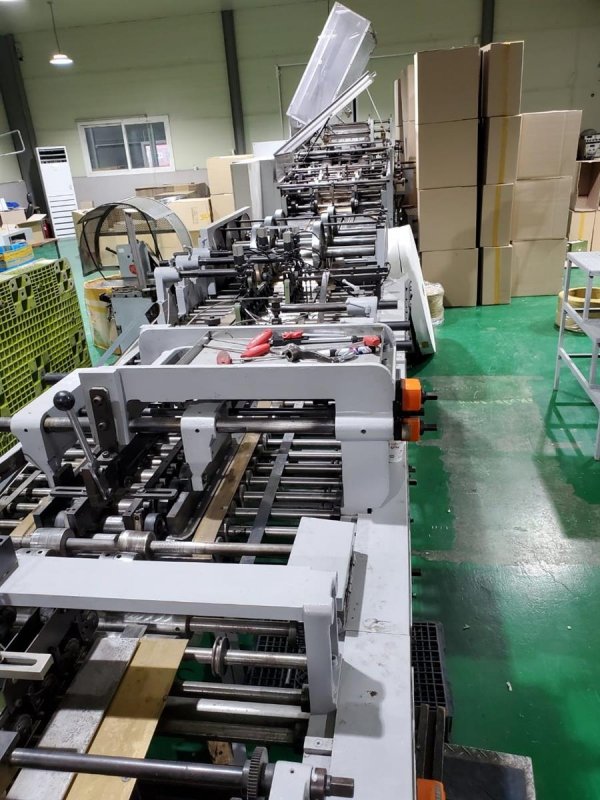

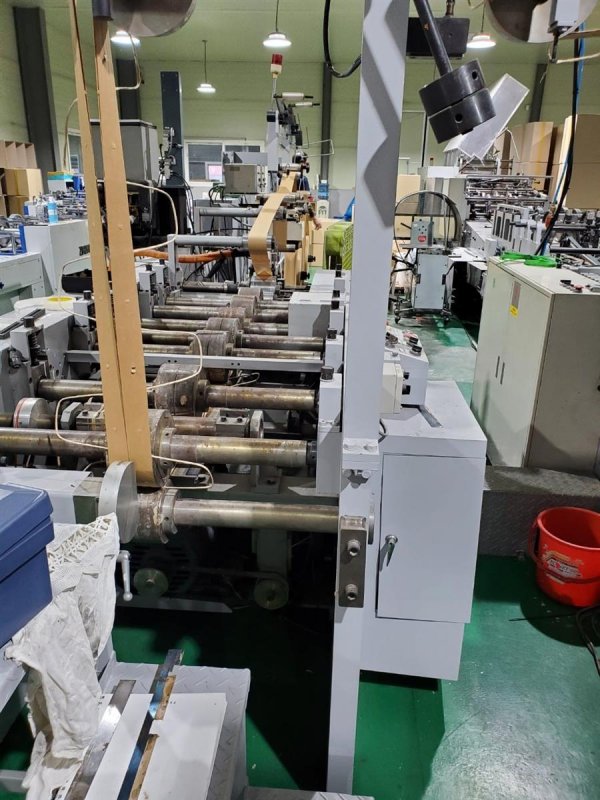

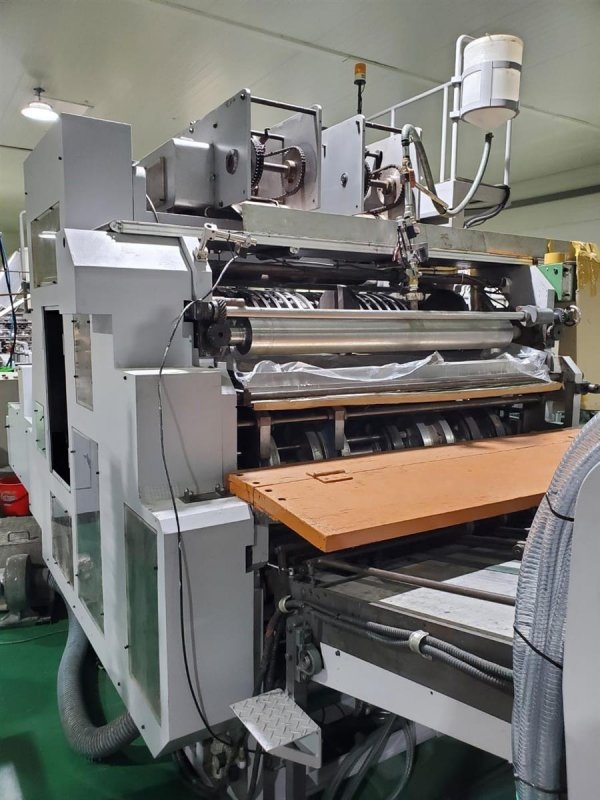

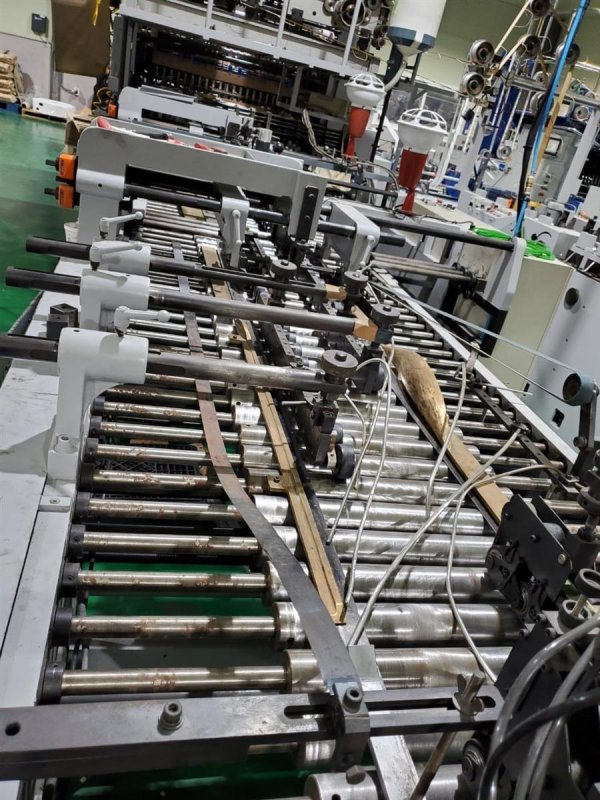

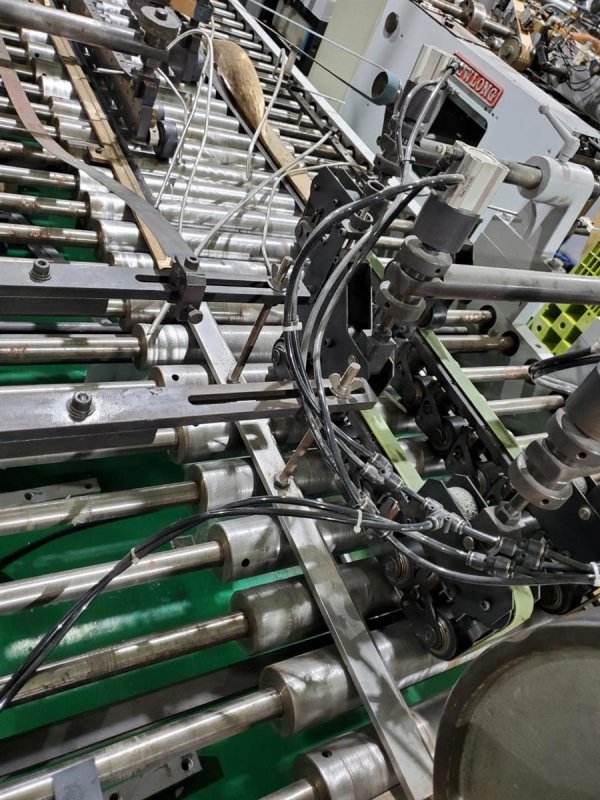

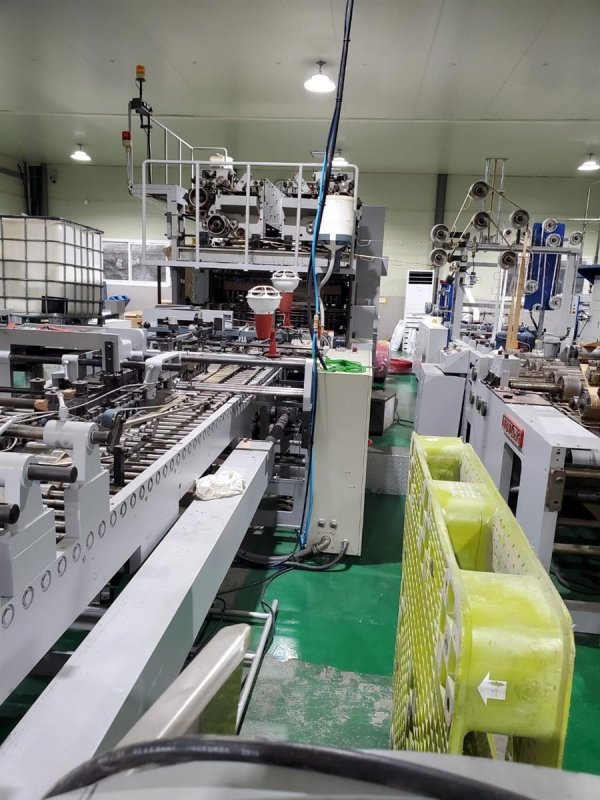

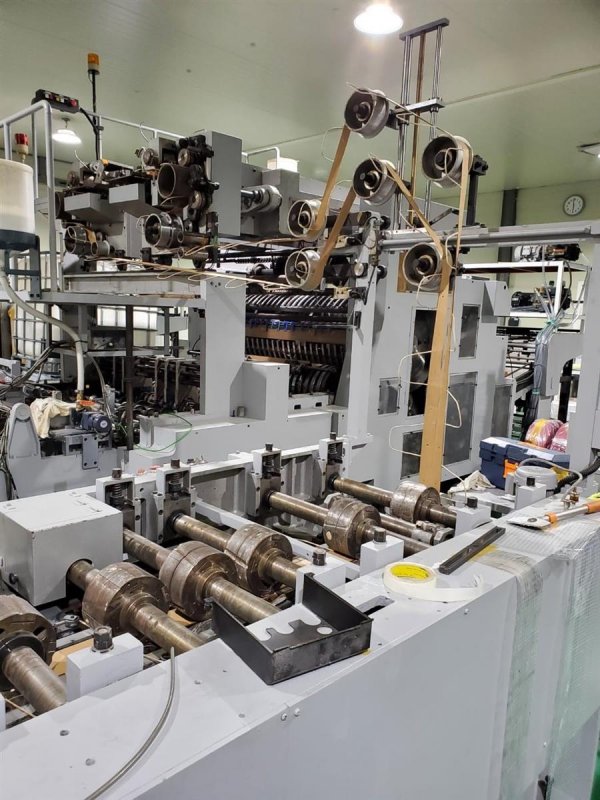

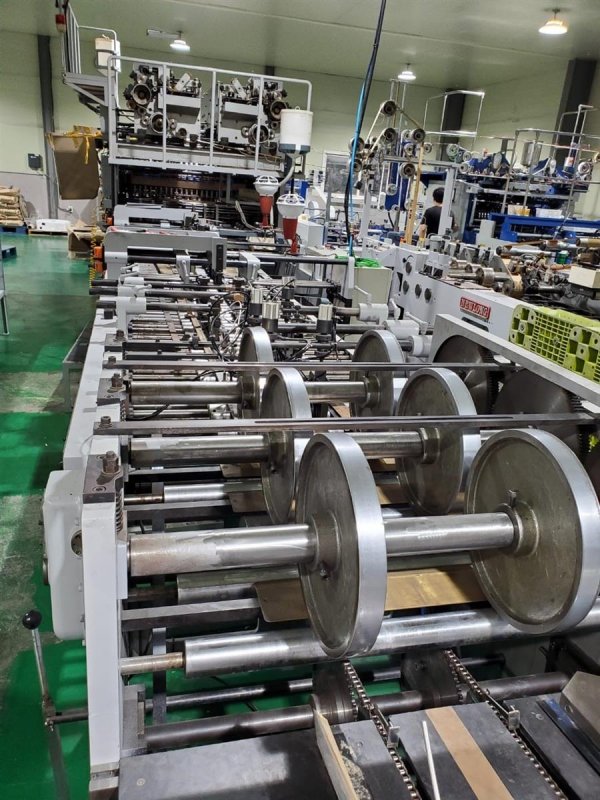

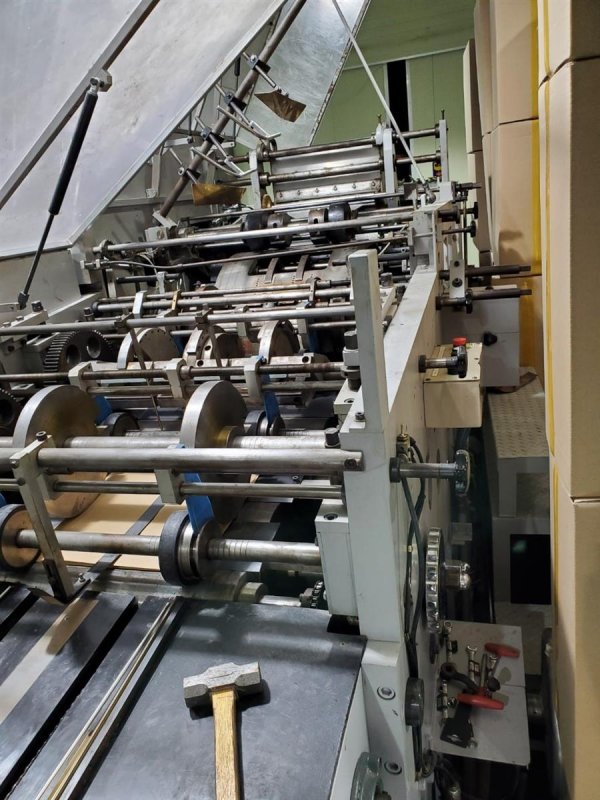

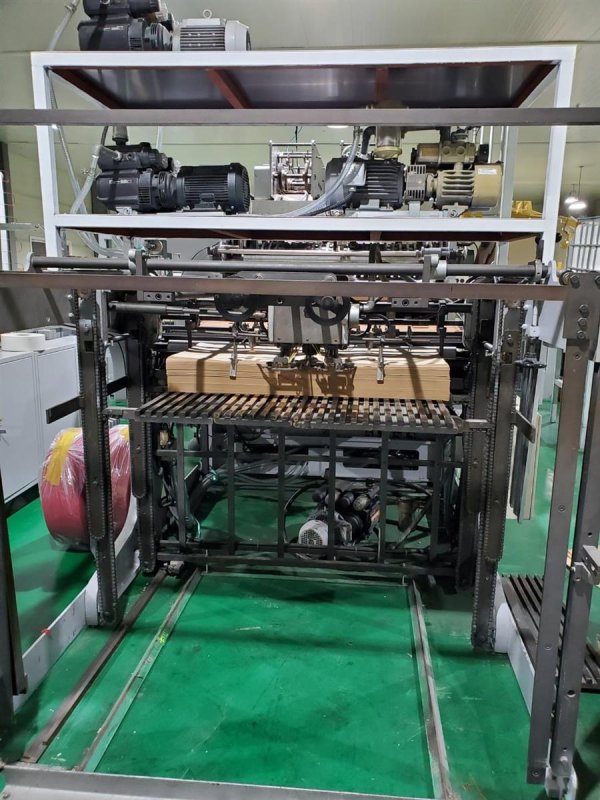

Paper bag making machines fold a paper web into a square bottom SOS paper bag. These bags with block bottom may be produced in 1 or more layers of paper depending on machine's equipment and specifications. Some of these paper bag making machines are equipped to attach a handle on the bag, which may be: twisted handle or a flat handle.
Ask more informations

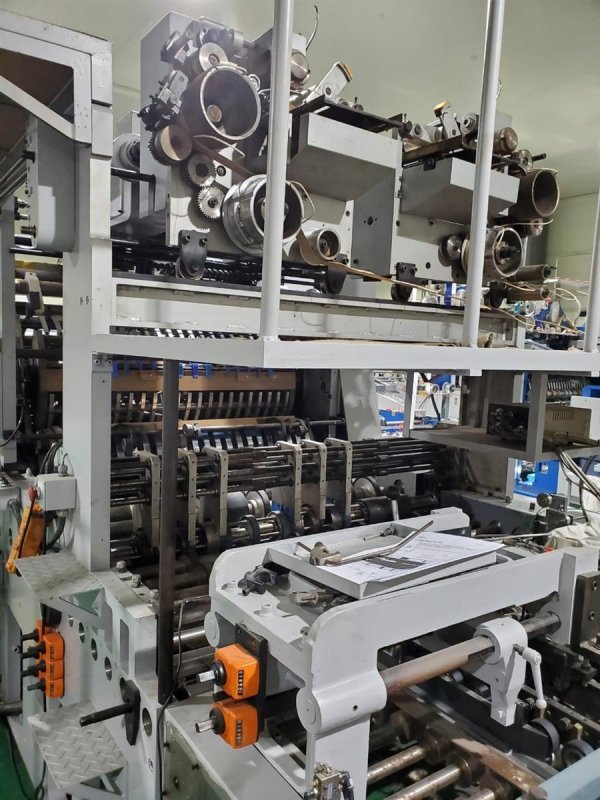

- Machine Code
- SO313
- Manufacturer
- NEW LONG
- Modello
- 345T+505TH
- Year
- 2005
- Feed:
- Sheet fed

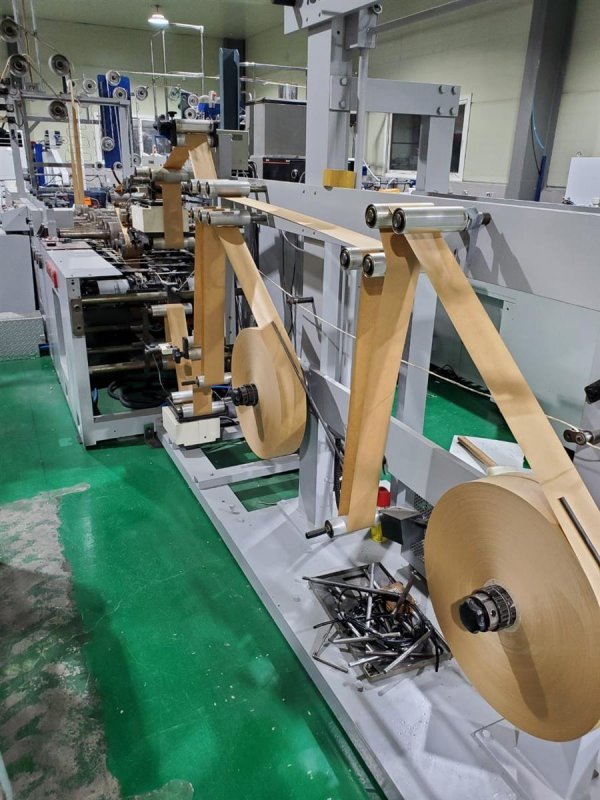

- Handel unit
- Twisted
- Bag length max (mm)
- 595
- Bag length min (mm)
- 290
- Bag width max (mm)
- 450
- Bag width min (mm)
- 310
- Bottom width max (mm)
- 220
- Bottom width (mm)
- 100
- Cycle / min
- 60 pcs/min
- Note
- Sheet Fed type with twist handle unit Tube length: 400-740mm Sheet length: 440~800mm Sheet width: 830~1200mm Sheet base weight(g/m2): 100~140mm Inlet being collapse: 40~60mm Bottom flap: bottom÷2+30~35
| Machine Code | SO313 |
| Manufacturer | NEW LONG |
| Modello | 345T+505TH |
| Year | 2005 |
| Feed: | Sheet fed |
| Handel unit | Twisted |
| Bag length max (mm) | 595 |
| Bag length min (mm) | 290 |
| Bag width max (mm) | 450 |
| Bag width min (mm) | 310 |
| Bottom width max (mm) | 220 |
| Bottom width (mm) | 100 |
| Cycle / min | 60 pcs/min |
| Note | Sheet Fed type with twist handle unit Tube length: 400-740mm Sheet length: 440~800mm Sheet width: 830~1200mm Sheet base weight(g/m2): 100~140mm Inlet being collapse: 40~60mm Bottom flap: bottom÷2+30~35 |
