** SOLD **

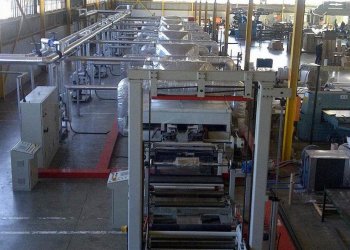

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
about a similar one
- Machine Code
- BO42
- Manufacturer
- LEADER MACHINERY
- Year
- 2006
- Number of layers
- 2
- Film structure
- ABA
- Material
- BOPET , PETG, Shrink film (has also conducted succesful shrink OPS film trials) The thickness parameter range is 35my to 60my.
- Output
- 300Kg/h
- Width (mm)
- 2400
- Extruder 1 Description
- Auto screen changer
- Extruder 2 Description
- Auto screen changer
- Head description
- Manual T-die
- MDO description
- max 30% vertical.
- TDO description
- variable width max 600%. Thermal oil heated, 6 zones. Can run separate to extrusion.
- Rewinder description
- Turet system with auto splice
- Note
- Drying : automatic drying (3 dehumidifiers, 3 silos) with auto feed Option of offline strething of alternative products such as PVC and OPP Scanning isotopic gauge scanner with display Electronics: all lates version Siemens including 7 touch screen HMI's encoders, inverters, PLC's and motors. Power requires 450 A for start up, 360V 3 phase. Consumes 220A while running Labour can be operated by 2 skilled and 2 semi-skilled operators Including boiler (fuel burning), chillers, water cooler, piping 1 x accumulator
| Machine Code | BO42 |
| Manufacturer | LEADER MACHINERY |
| Year | 2006 |
| Number of layers | 2 |
| Film structure | ABA |
| Material | BOPET , PETG, Shrink film (has also conducted succesful shrink OPS film trials) The thickness parameter range is 35my to 60my. |
| Output | 300Kg/h |
| Width (mm) | 2400 |
| Extruder 1 Description | Auto screen changer |
| Extruder 2 Description | Auto screen changer |
| Head description | Manual T-die |
| MDO description | max 30% vertical. |
| TDO description | variable width max 600%. Thermal oil heated, 6 zones. Can run separate to extrusion. |
| Rewinder description | Turet system with auto splice |
| Note | Drying : automatic drying (3 dehumidifiers, 3 silos) with auto feed Option of offline strething of alternative products such as PVC and OPP Scanning isotopic gauge scanner with display Electronics: all lates version Siemens including 7 touch screen HMI's encoders, inverters, PLC's and motors. Power requires 450 A for start up, 360V 3 phase. Consumes 220A while running Labour can be operated by 2 skilled and 2 semi-skilled operators Including boiler (fuel burning), chillers, water cooler, piping 1 x accumulator |
