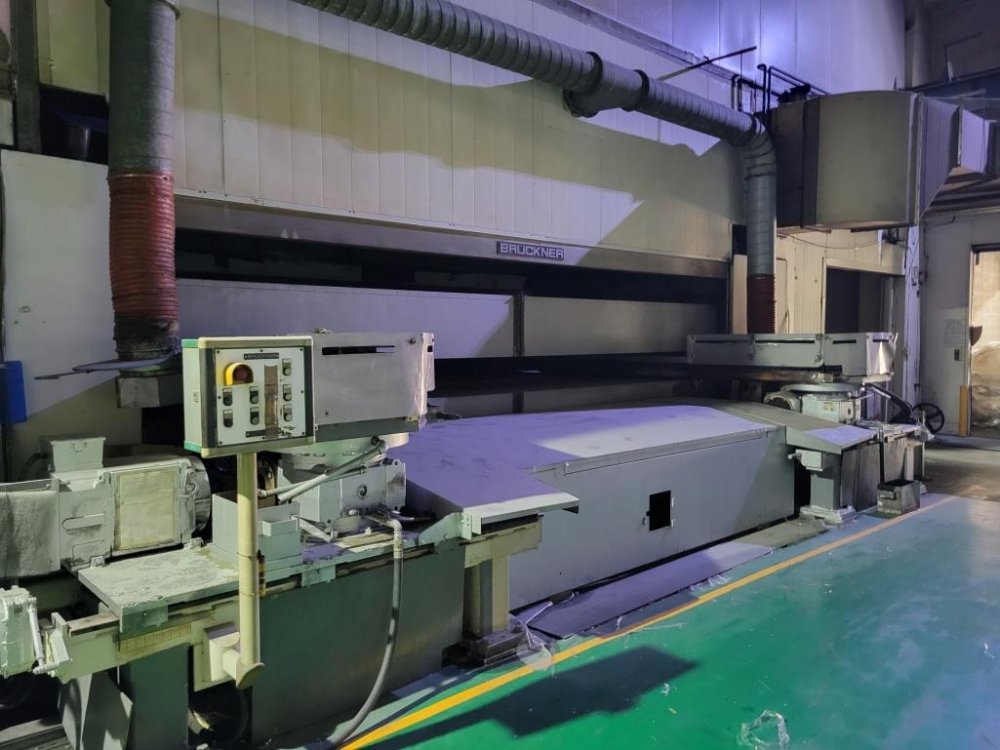

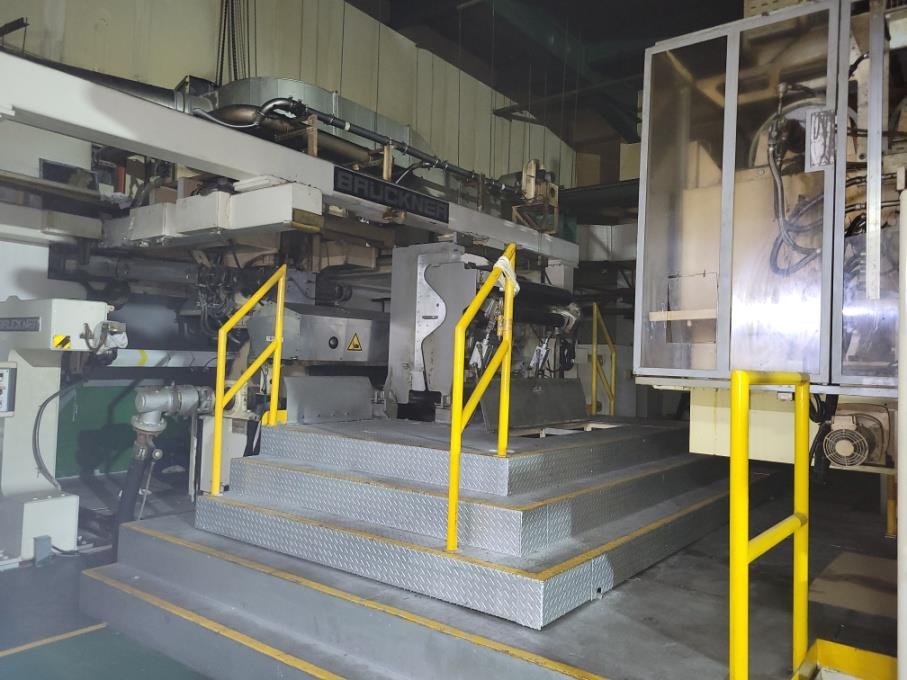

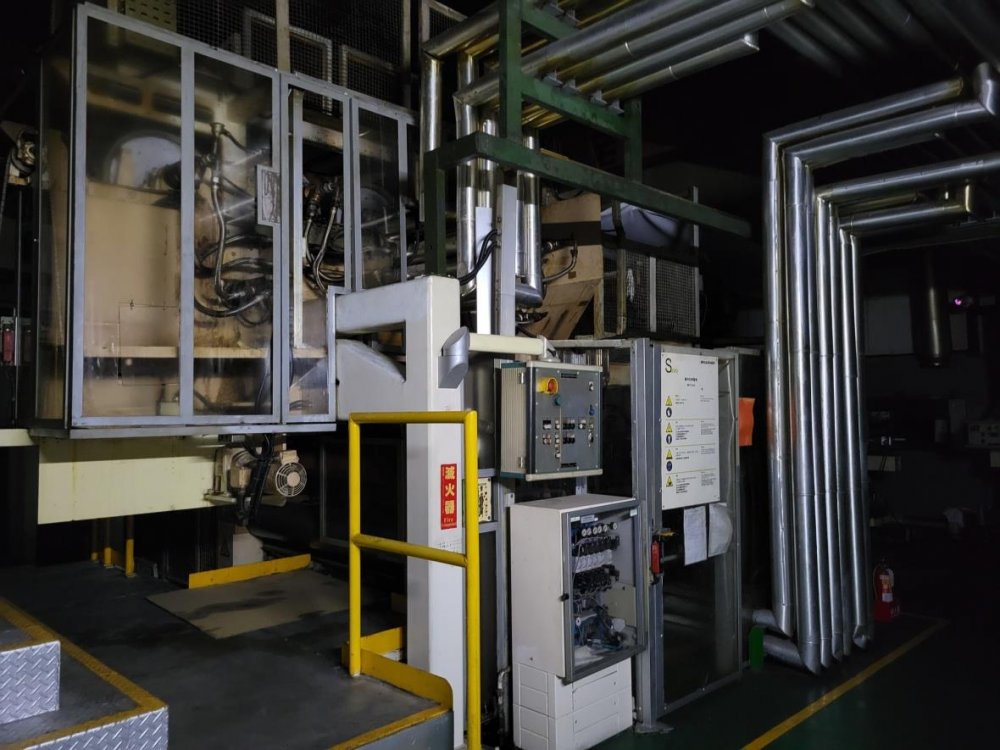

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.
Ask more informations
- Machine Code
- BO88
- Manufacturer
- BRUCKNER
- Year
- 2007
- Number of layers
- 3
- Film structure
- ABC
- Material
- BOPP and BOPA
- Output
- Max output on BOPP 1200 kg/h
- Width (mm)
- 4200

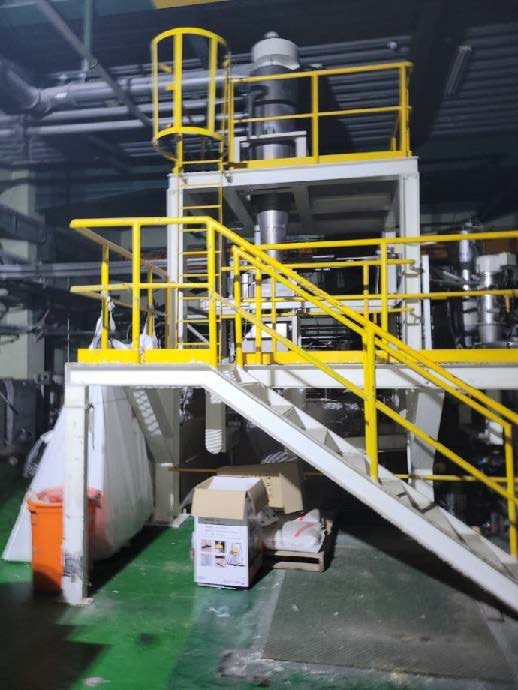

- Extruder 1 Description
- Layer A: Output 120 kg/h
- Extruder 2 Description
- Layer B: 1300 kg/h
- Extruder 3 Description
- Layer C: 120kg/h
- Head description
- 2 extrusion dies, 1 for PP and 1 for PA
- Thickness controll system
- Automatic thickness profile control . Thickness gauges
- MDO description
- stretching ratios on BOPP: min 1:1 - 1:7 on BOPA 1:1 - 1:5

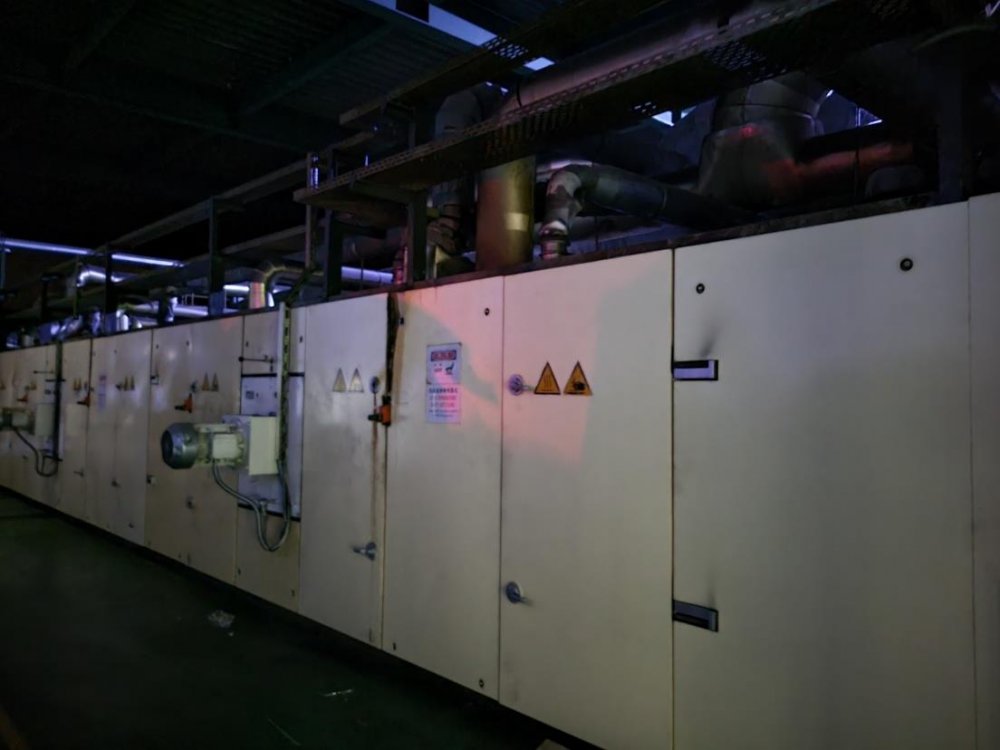

- TDO description
- stretching ratios on BOPP: min 1:8 - 1:9 on BOPA 1:2,8 - 1:4
- Rewinder width
- 4200
- Rewinder description
- Turret automatic winder, reel diam 1000mm

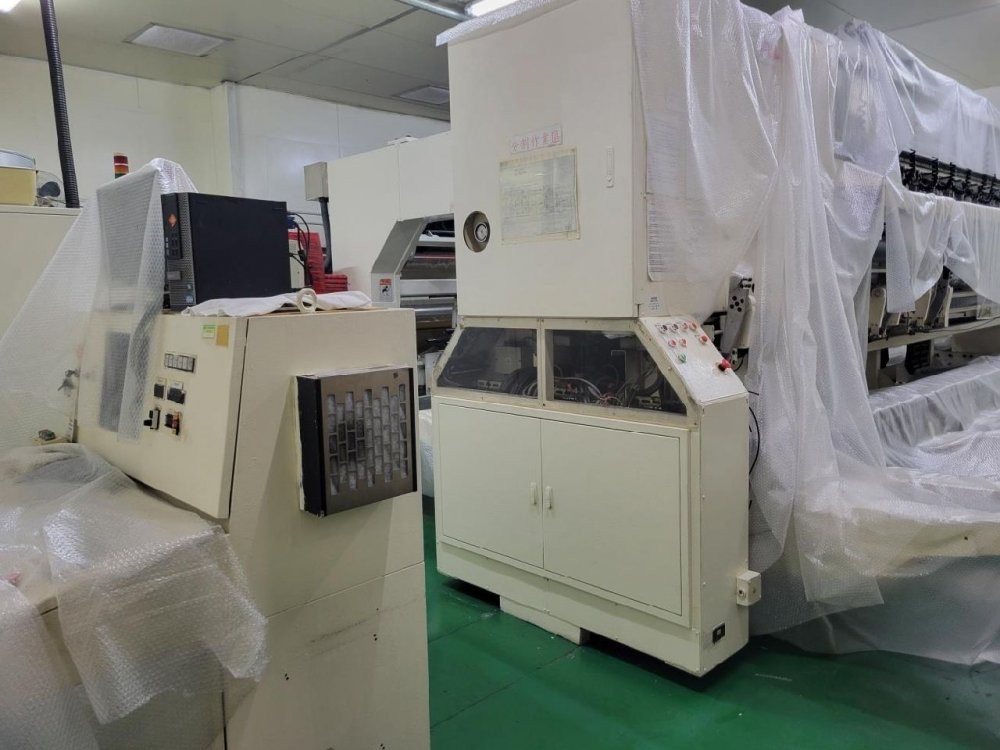

- Slitter
- Make Fujitekko, width 4200mm, rewinder with independent winding stations, each with couple of arms., with independent drive. Center driven. Width range on winder: 325-2000mm. max reel diameter on rewind 1000mm. speed 600 m/min
| Machine Code | BO88 |
| Manufacturer | BRUCKNER |
| Year | 2007 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | BOPP and BOPA |
| Output | Max output on BOPP 1200 kg/h |
| Width (mm) | 4200 |
| Extruder 1 Description | Layer A: Output 120 kg/h |
| Extruder 2 Description | Layer B: 1300 kg/h |
| Extruder 3 Description | Layer C: 120kg/h |
| Head description | 2 extrusion dies, 1 for PP and 1 for PA |
| Thickness controll system | Automatic thickness profile control . Thickness gauges |
| MDO description | stretching ratios on BOPP: min 1:1 - 1:7 on BOPA 1:1 - 1:5 |
| TDO description | stretching ratios on BOPP: min 1:8 - 1:9 on BOPA 1:2,8 - 1:4 |
| Rewinder width | 4200 |
| Rewinder description | Turret automatic winder, reel diam 1000mm |
| Slitter | Make Fujitekko, width 4200mm, rewinder with independent winding stations, each with couple of arms., with independent drive. Center driven. Width range on winder: 325-2000mm. max reel diameter on rewind 1000mm. speed 600 m/min |
