** SOLD **

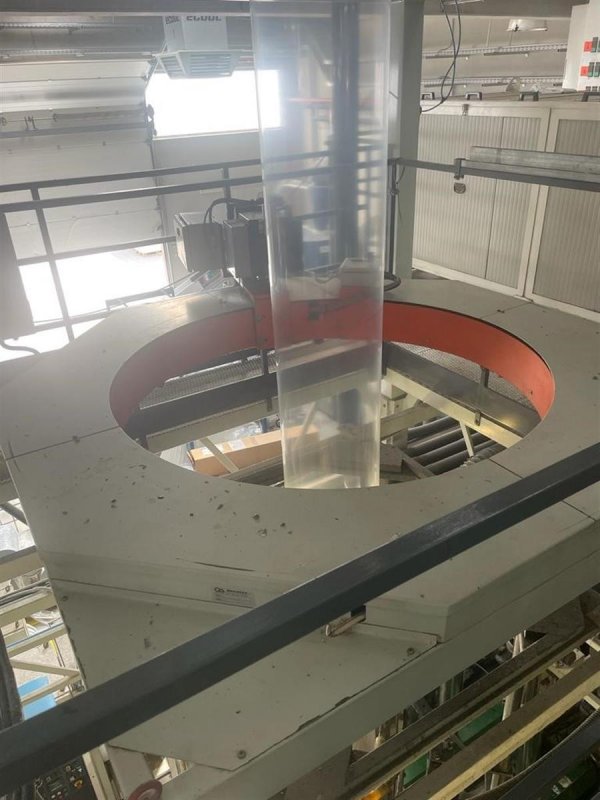

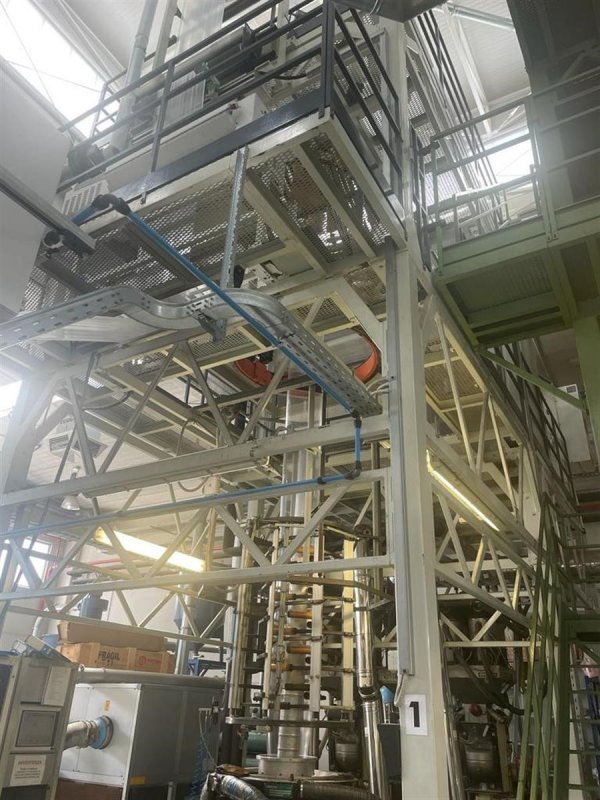

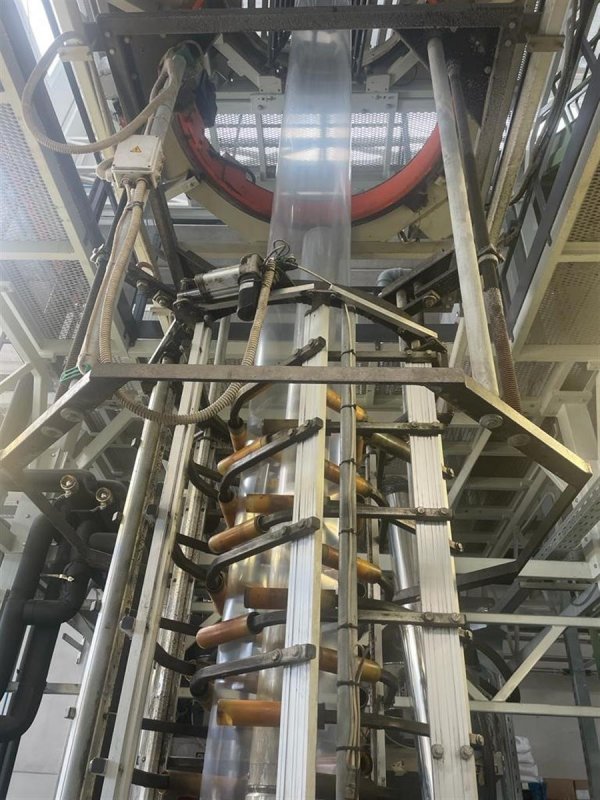

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.
Ask more informations
about a similar one
- Machine Code
- EX750
- Manufacturer
- MACCHI
- Modello
- Coex 3
- Year
- 2005
- Number of layers
- 3
- Overhaul/renovation

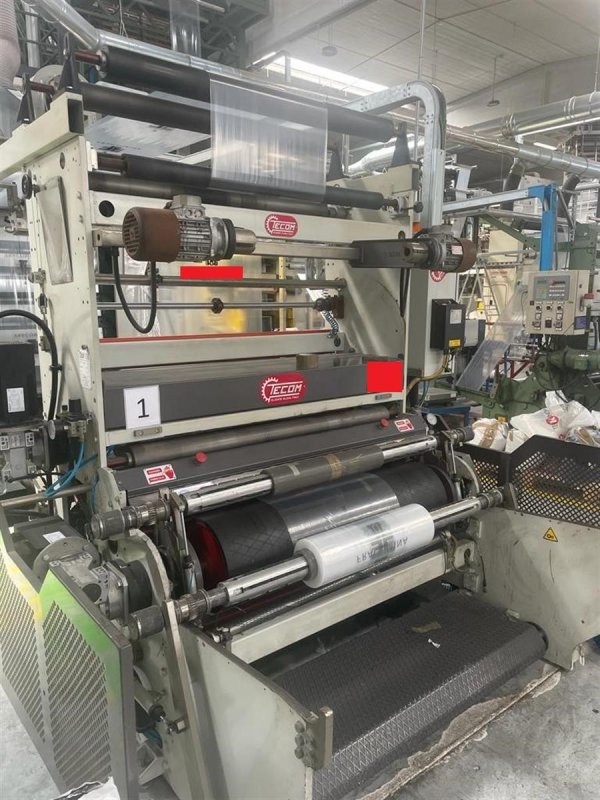

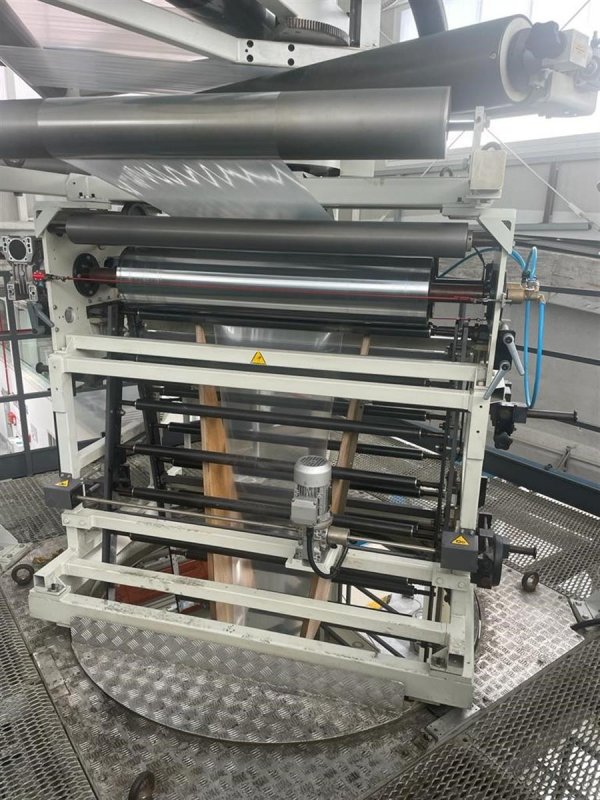

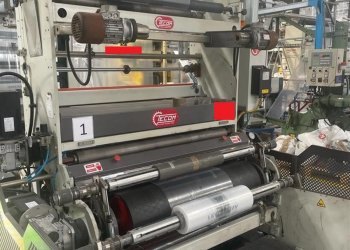

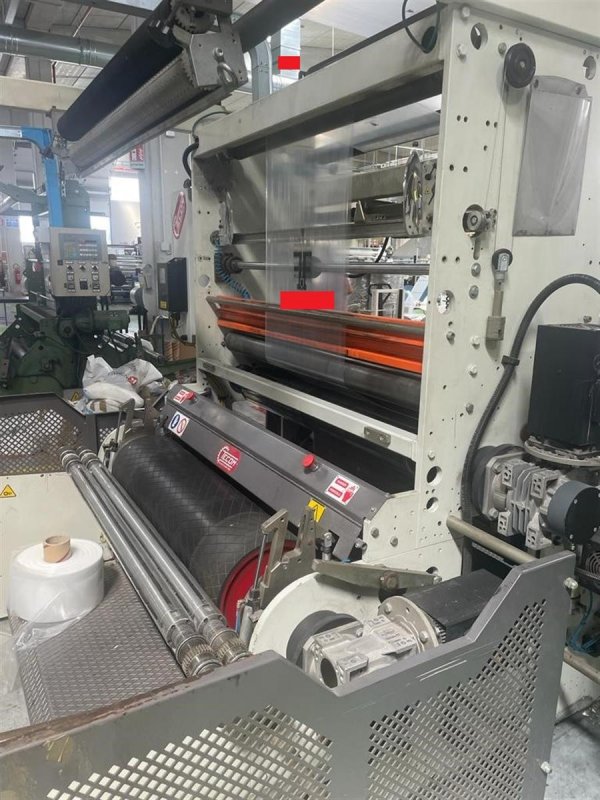

- 2015 new winder and take off
- Film structure
- ABC
- Material
- LDPE ; LDPE-MDPE-MLL-PP
- Film Width
- 1100
- Output (Kg/h)
- 220kg/h LDPE

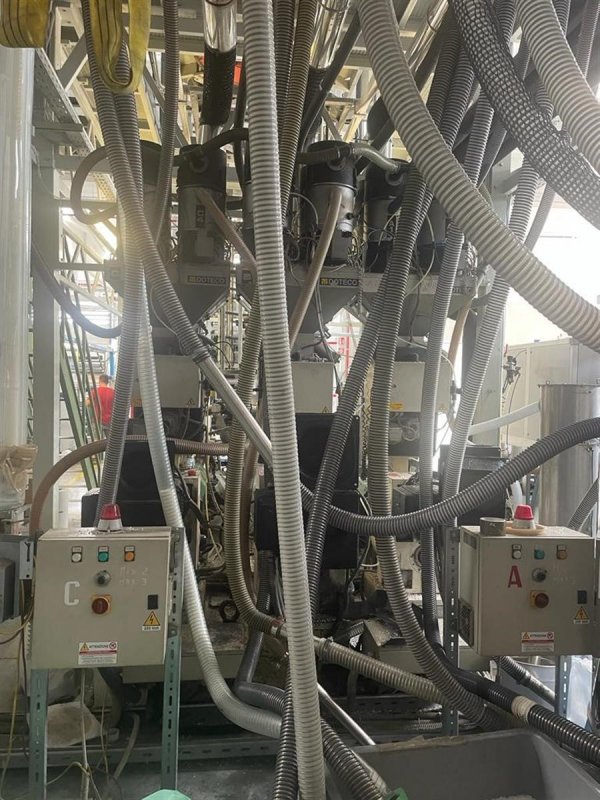

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 55mm/30D
- Description 1
- Plastex extruder , motor AC Kw 51 ; 3 dosing unit Doteco 4 components
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 65mm/30D
- Description 2
- Plastex extruder , motor AC Kw 74 ;
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 55mm/30D
- Description 3
- Plastex extruder , motor AC Kw 51 ;
- Head description
- Automatic . Macro air ring IBC . diam 180mm, min 450mm-max1000mm, gap 1,8mm
- Die diam (mm)
- 180mm
- Note
- Thickness film min 20my-max 200my ; Cold parts Tecom 2015 Hot parts Macchi year 2005 Optional : automatic thickness control
| Machine Code | EX750 |
| Manufacturer | MACCHI |
| Modello | Coex 3 |
| Year | 2005 |
| Number of layers | 3 |
| Overhaul/renovation | 2015 new winder and take off |
| Film structure | ABC |
| Material | LDPE ; LDPE-MDPE-MLL-PP |
| Film Width | 1100 |
| Output (Kg/h) | 220kg/h LDPE |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 55mm/30D |
| Description 1 | Plastex extruder , motor AC Kw 51 ; 3 dosing unit Doteco 4 components |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 65mm/30D |
| Description 2 | Plastex extruder , motor AC Kw 74 ; |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 55mm/30D |
| Description 3 | Plastex extruder , motor AC Kw 51 ; |
| Head description | Automatic . Macro air ring IBC . diam 180mm, min 450mm-max1000mm, gap 1,8mm |
| Die diam (mm) | 180mm |
| Note | Thickness film min 20my-max 200my ; Cold parts Tecom 2015 Hot parts Macchi year 2005 Optional : automatic thickness control |
