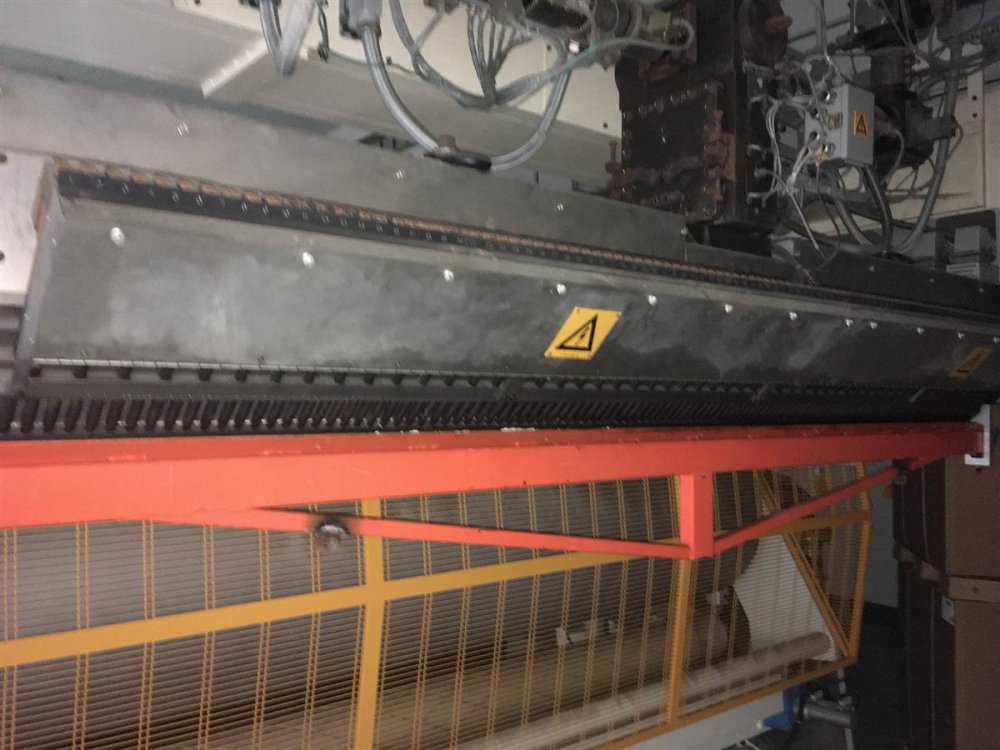

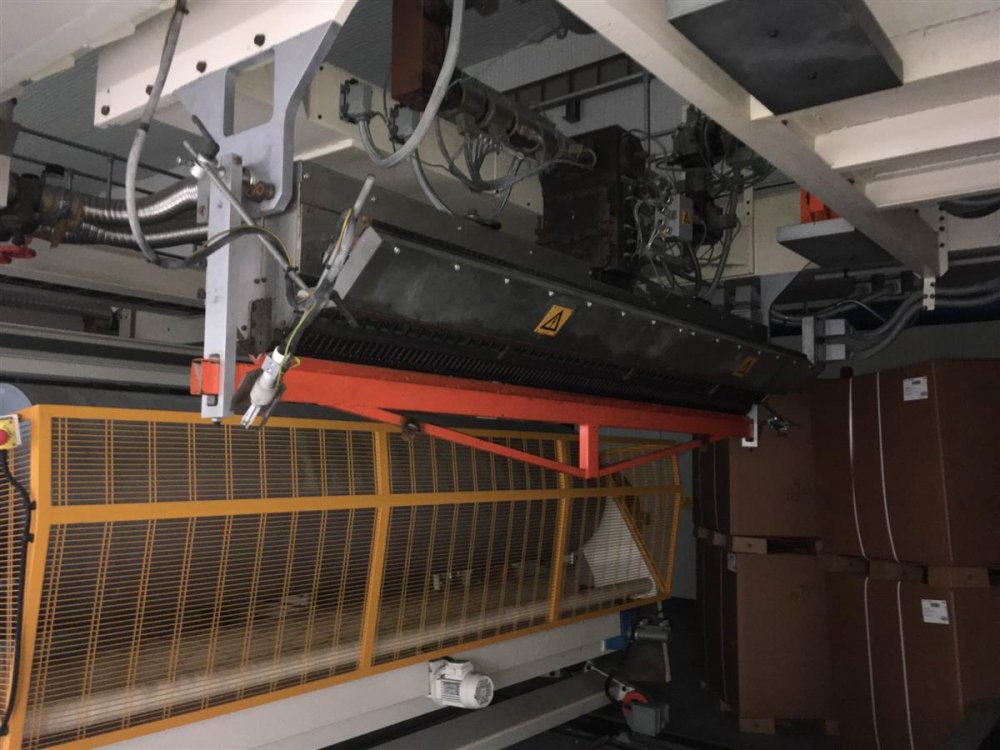

Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
Ask more informations
- Machine Code
- CA192
- Manufacturer
- COLINES
- Modello
- Breathable film
- Year
- 2009
- Number of layers
- 3
- Film structure
- A-B-C
- Material
- Diapers backsheet LDPE
- Film width (mm)
- 2850
- Speed (m/min)
- 300 m/min

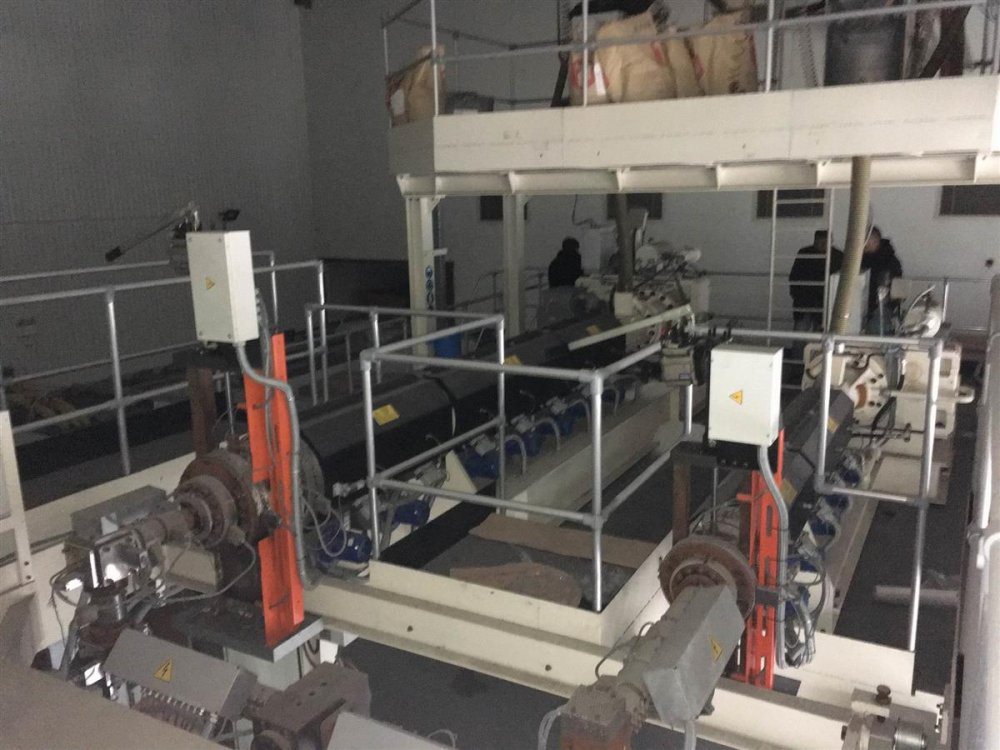

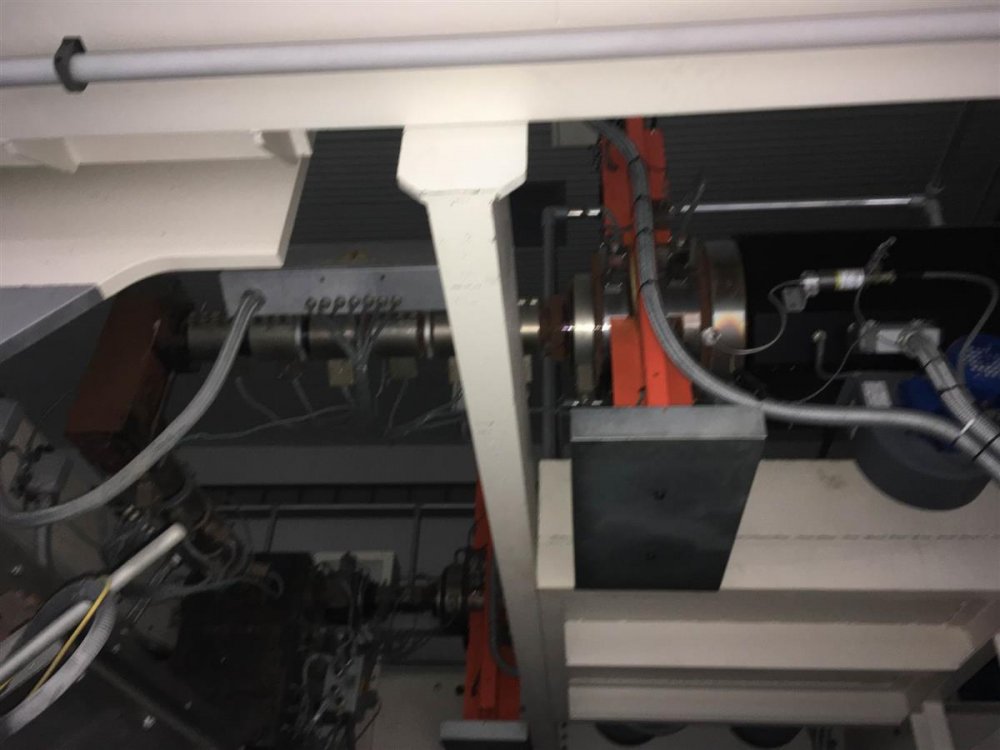

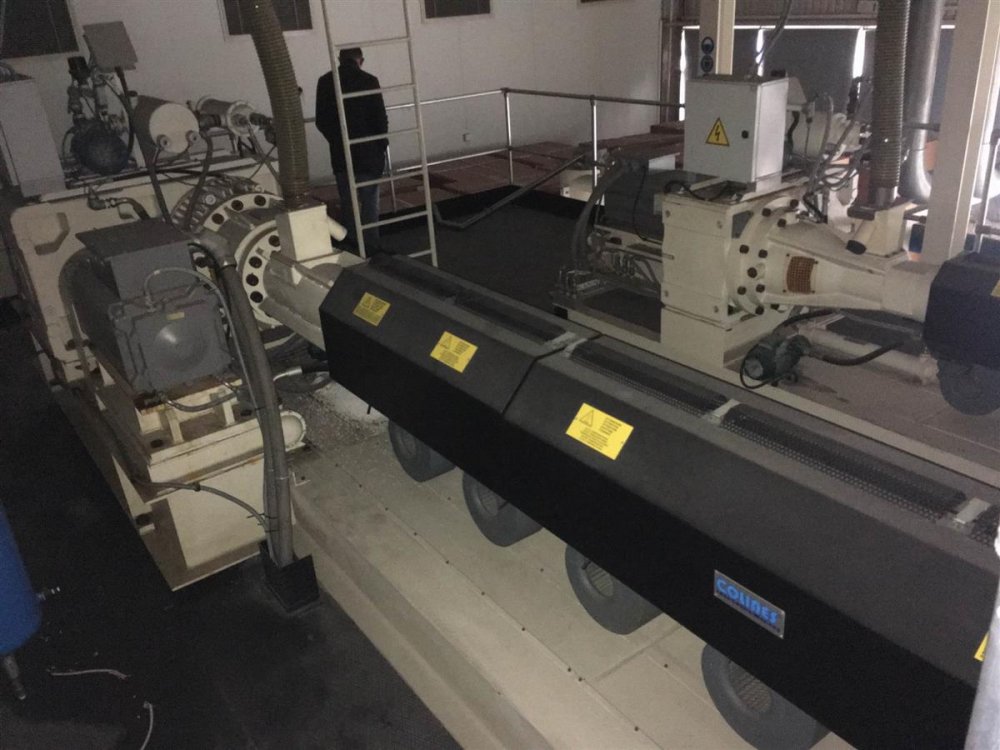

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 90
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 150
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90

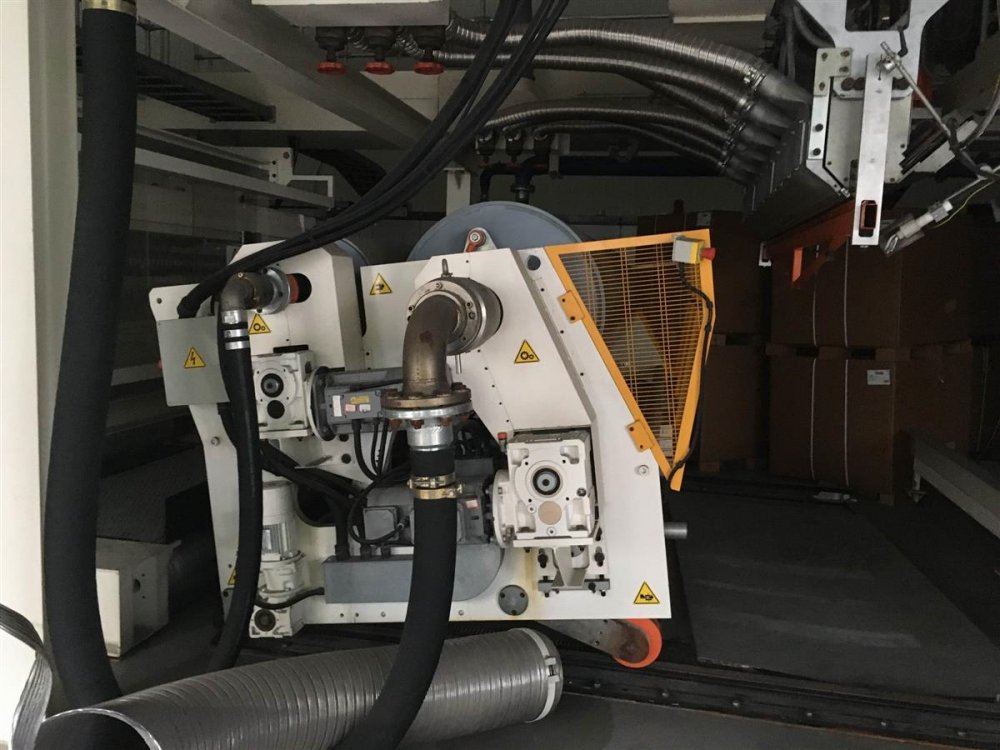

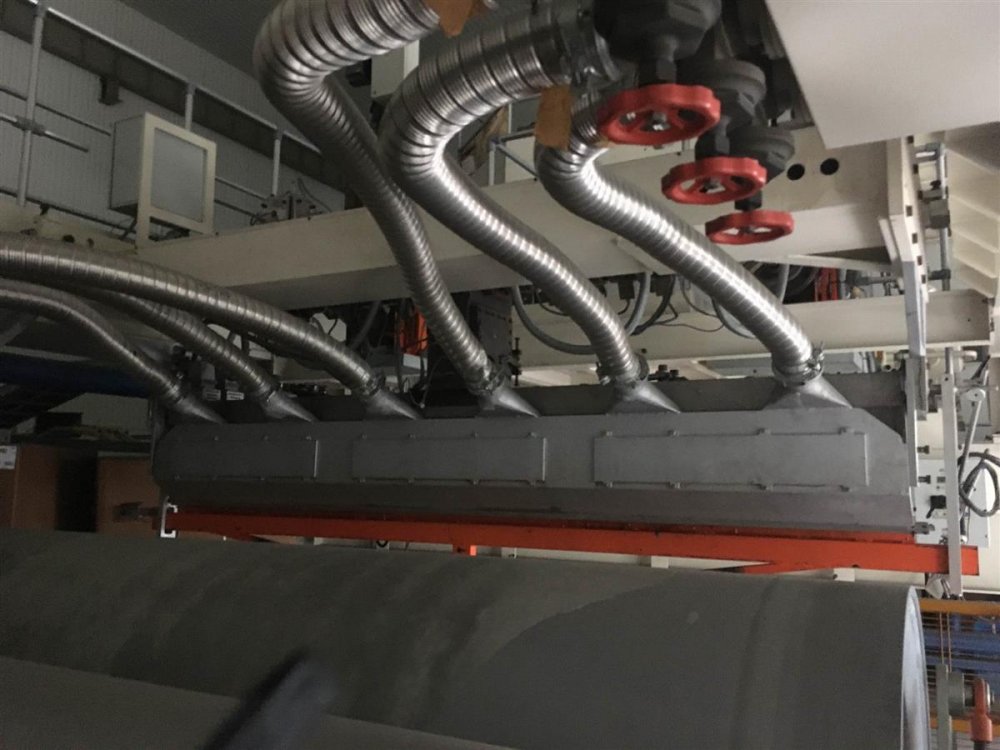

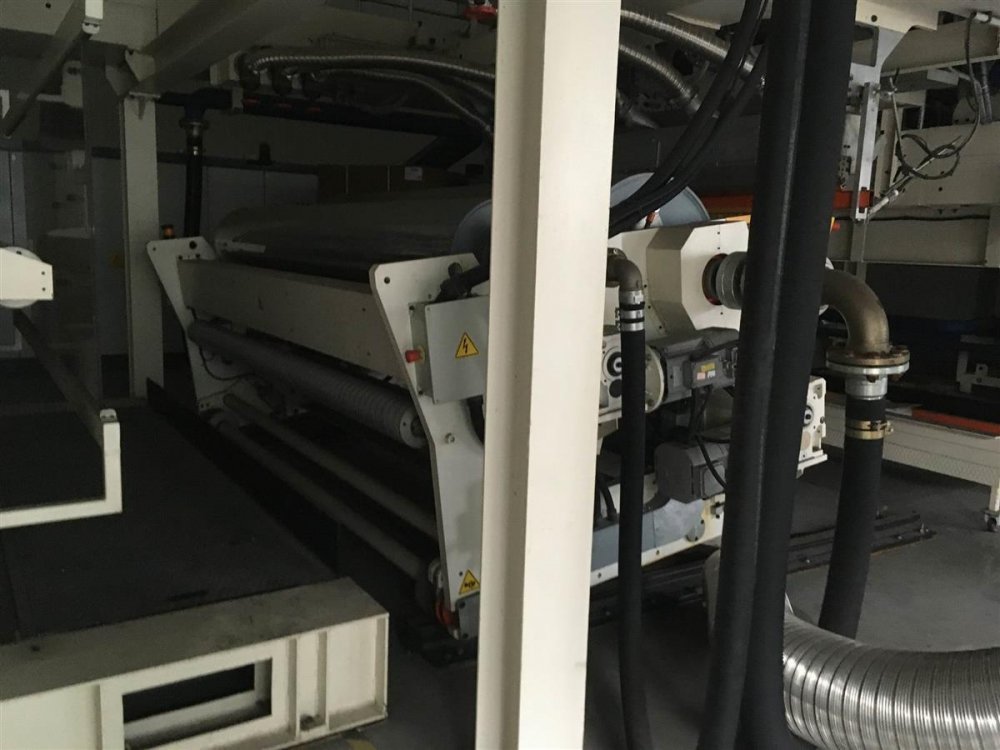

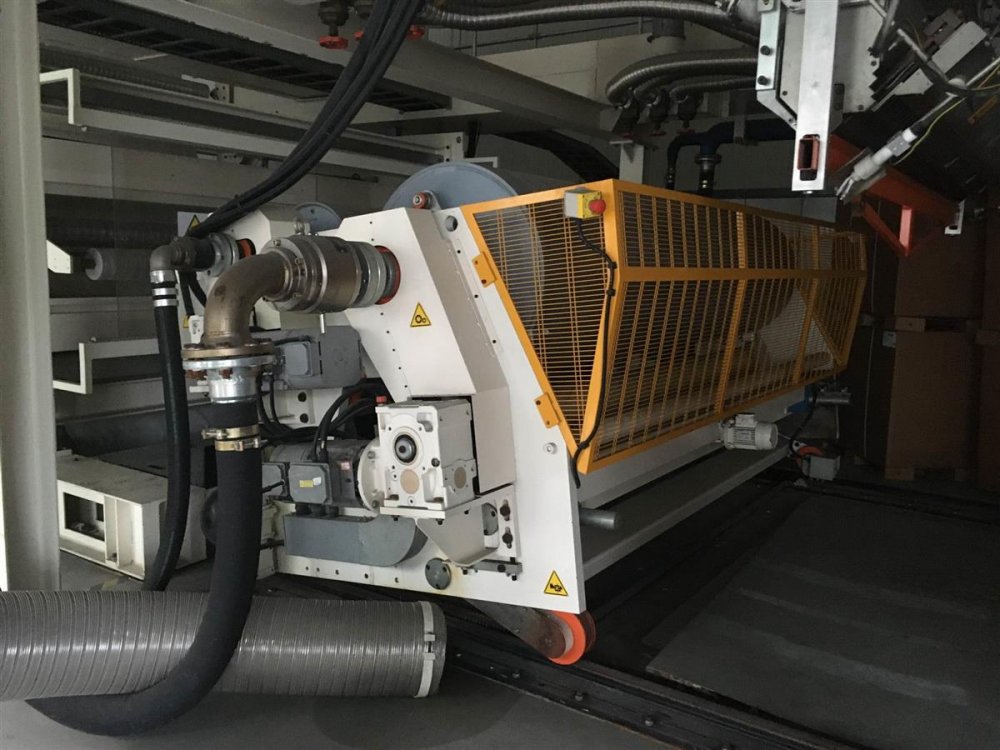

- Chill roll unit
- with 2 cylinders diam 800 and 450 mm, 3100 mm wide
- Corona treatment
- Two-face corona treatment
- Note
- - breathable film for diaper and hygienic materials -mixer,doesing etc.deckle system available.
Machine Code | CA192 |
Manufacturer | COLINES |
Modello | Breathable film |
Year | 2009 |
Number of layers | 3 |
Film structure | A-B-C |
Material | Diapers backsheet LDPE |
Film width (mm) | 2850 |
Speed (m/min) | 300 m/min |
Extruder 1 Layer ref: | A |
Screw diam 1 | 90 |
Extruder 2 Layer ref: | B |
Screw diam 2 | 150 |
Extruder 3 Layer ref: | C |
Screw diam 3 | 90 |
Chill roll unit | with 2 cylinders diam 800 and 450 mm, 3100 mm wide |
Corona treatment | Two-face corona treatment |
Note | - breathable film for diaper and hygienic materials -mixer,doesing etc.deckle system available. |
