** SOLD **

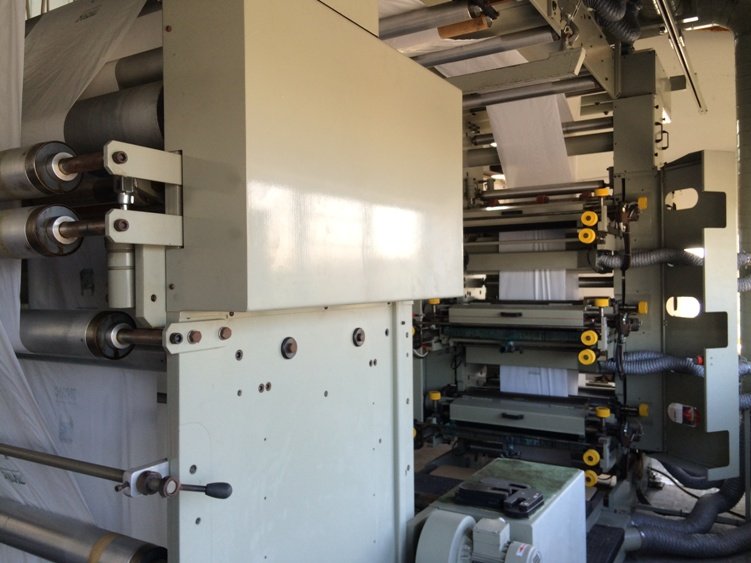

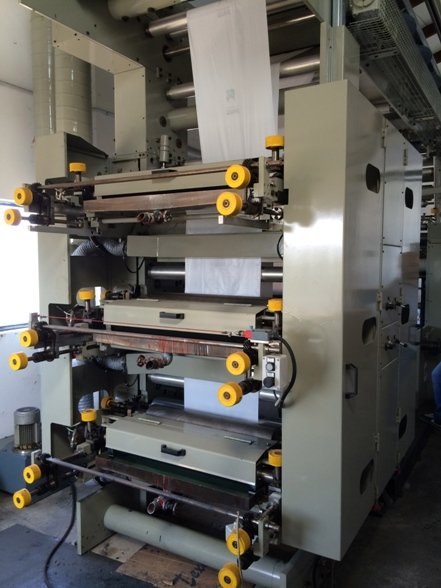

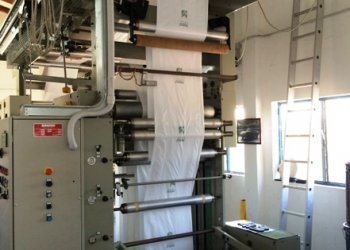

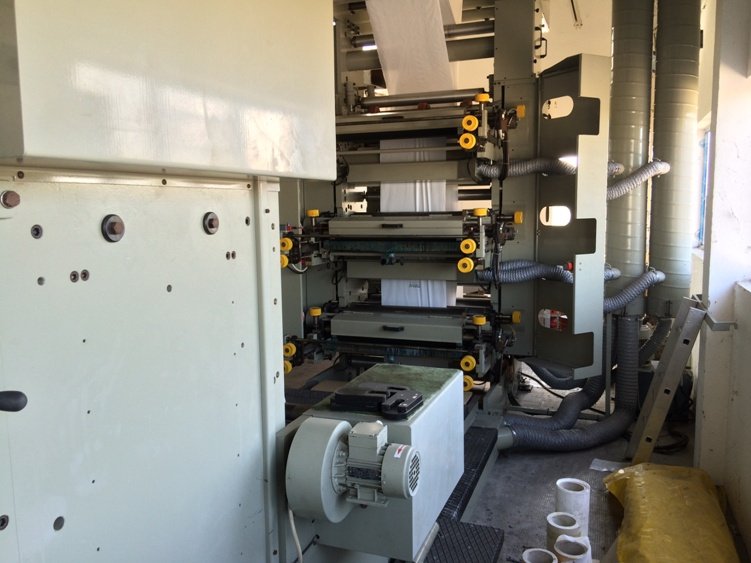

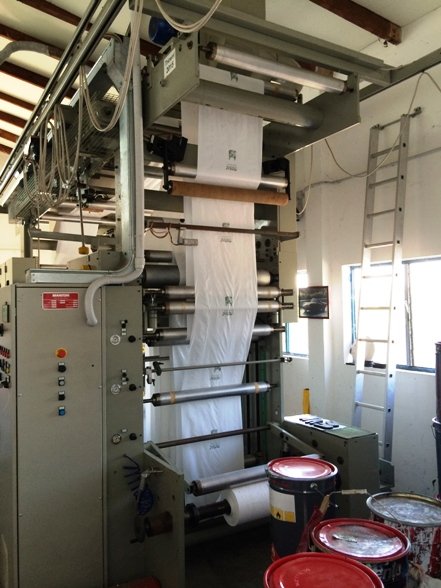

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- ST165
- Manufacturer
- MANZONI
- Year
- 2006
- Number of colors
- 6
- Print possibilityes
- 6+0, 5+1, 4+2, 3+3
- Type
- Reel to reel
- Web width (mm)
- 950
- Print width (mm)
- 800
- Print repeat (mm)
- 300-1000mm
- unwinder type
- Single
- Max diameter reel unwinder (mm)
- 800
- Rewinder type
- Single
- Max diameter reel rewinder (mm)
- 800
- Drying
- Electric heaters. 2x drying tunnels and intercolor cassettes
- Videocamera
- No
- Inking sysytem
- inking with fountain roller
- Print cylinders
- 2 x850mm; 2 x700mm; 6 x600mm; 2 x550mm; 6x 500mm; 2x 450mm; 2 x400mm; 2 x350mm; 2 x300mm
- Note
- Webguides in and out. Gear pitch 10mm; Thickness clichè 3 mm. Register longitudinal/trasveral 20mm. Electric hoists. 26 cylinders clichè 2x30;2x35;2x40;2x45;6x50;2x55;6x60;2x70;2x85
| Machine Code | ST165 |
| Manufacturer | MANZONI |
| Year | 2006 |
| Number of colors | 6 |
| Print possibilityes | 6+0, 5+1, 4+2, 3+3 |
| Type | Reel to reel |
| Web width (mm) | 950 |
| Print width (mm) | 800 |
| Print repeat (mm) | 300-1000mm |
| unwinder type | Single |
| Max diameter reel unwinder (mm) | 800 |
| Rewinder type | Single |
| Max diameter reel rewinder (mm) | 800 |
| Drying | Electric heaters. 2x drying tunnels and intercolor cassettes |
| Videocamera | No |
| Inking sysytem | inking with fountain roller |
| Print cylinders | 2 x850mm; 2 x700mm; 6 x600mm; 2 x550mm; 6x 500mm; 2x 450mm; 2 x400mm; 2 x350mm; 2 x300mm |
| Note | Webguides in and out. Gear pitch 10mm; Thickness clichè 3 mm. Register longitudinal/trasveral 20mm. Electric hoists. 26 cylinders clichè 2x30;2x35;2x40;2x45;6x50;2x55;6x60;2x70;2x85 |
