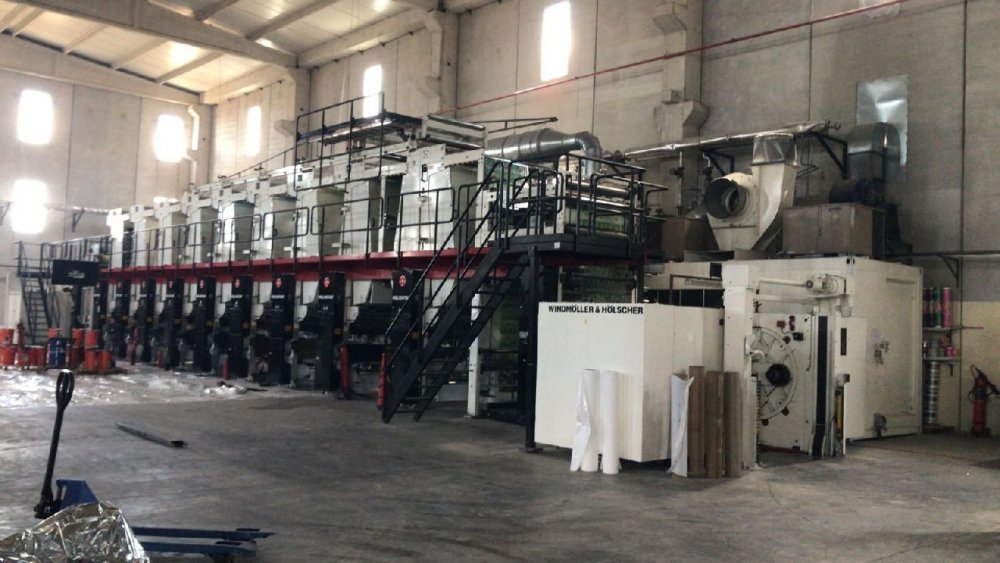

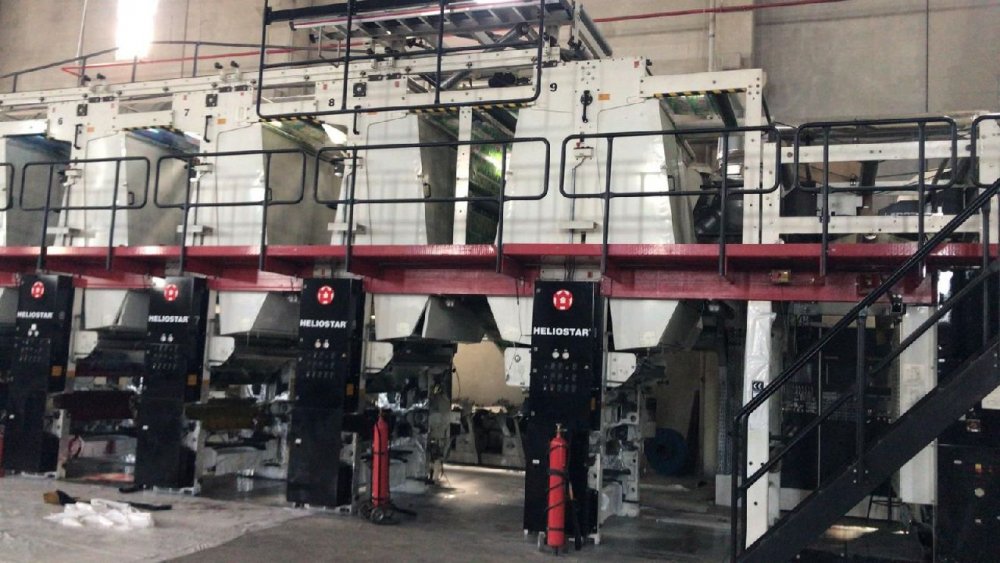

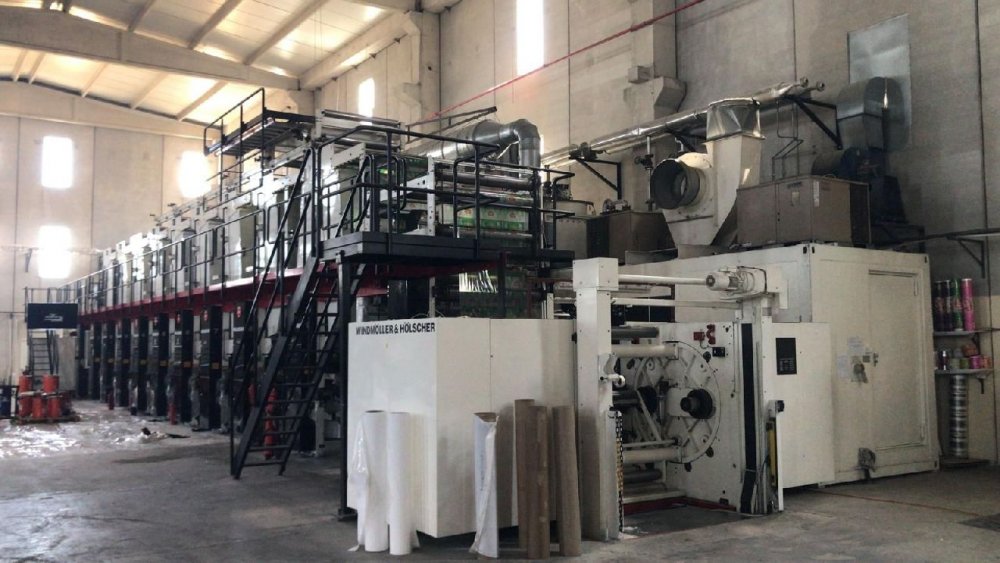

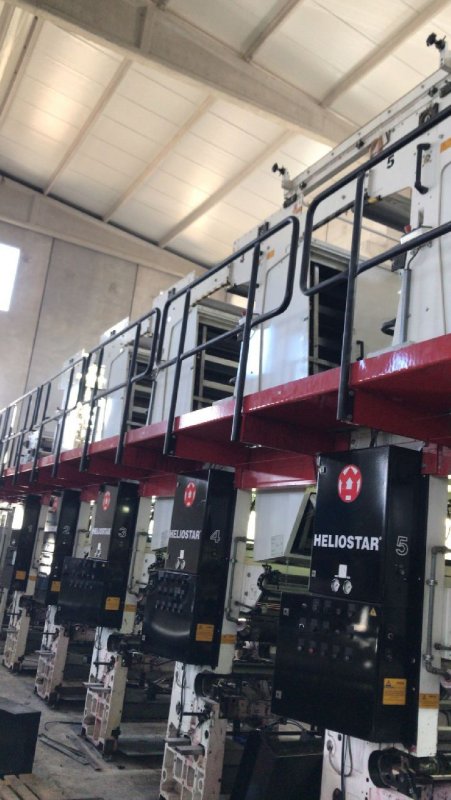

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO258
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- HELIOSTAR 2000
- Year
- 2002
- Number of colors
- 9
- Print possibilities
- 9+0
- Web width (mm)
- 1220
- Print width (mm)
- 1200
- Print repeat range (mm)
- 450-1050
- Drying heat surce
- Oil
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1100
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1100
- Register controll
- Yes
- Print cylinders
- 290 approximately with diameters ranging from 500-850 mm
- Note
- Cylinder width: 1280 mm Mechanical speed: 300 m/min Production speed: 250 m/min
| Machine Code | RO258 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | HELIOSTAR 2000 |
| Year | 2002 |
| Number of colors | 9 |
| Print possibilities | 9+0 |
| Web width (mm) | 1220 |
| Print width (mm) | 1200 |
| Print repeat range (mm) | 450-1050 |
| Drying heat surce | Oil |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1100 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1100 |
| Register controll | Yes |
| Print cylinders | 290 approximately with diameters ranging from 500-850 mm |
| Note | Cylinder width: 1280 mm Mechanical speed: 300 m/min Production speed: 250 m/min |
