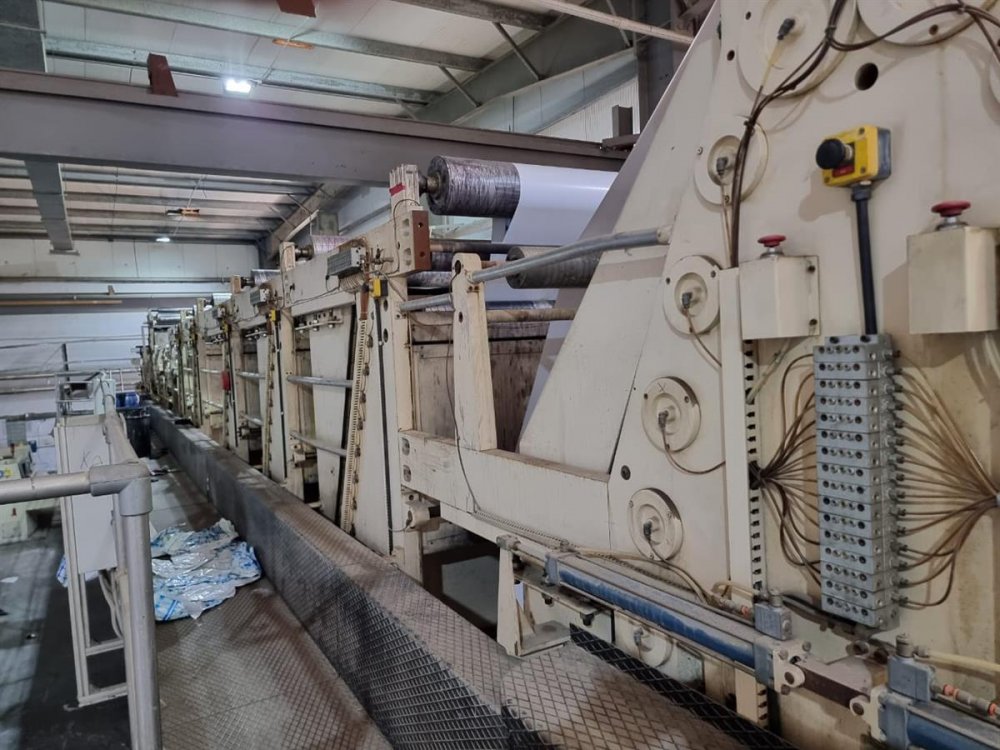

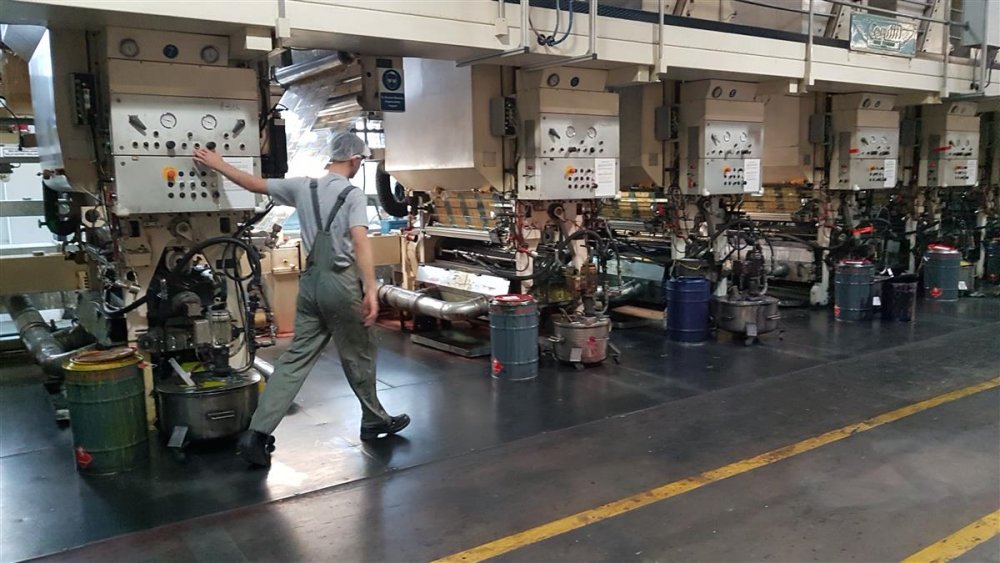

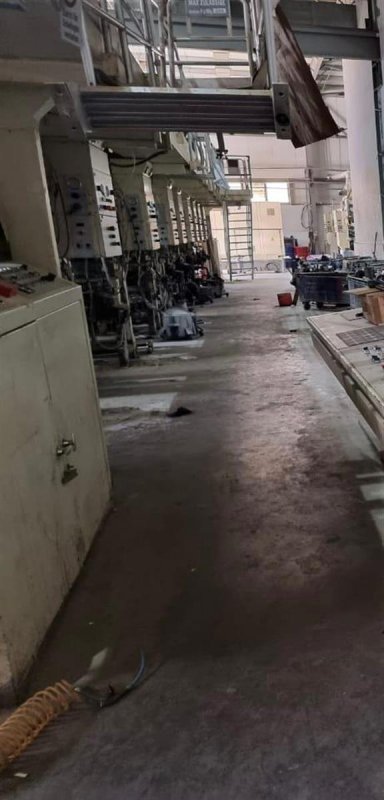

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO175
- Manufacturer
- CERUTTI
- Modello
- R 940
- Year
- 1997
- Number of colors
- 8
- Overhaul/renovation
- Eltromat year 2011, AVT print vision/9000-C year 2017, Softal 6090 (2 devices) Year 2017
- Drive
- Cardan
- Drive
- Cardan
- Trolley system
- No
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Print repeat range (mm)
- 450-920 mm
- Drying specifications
- Unit 1 and 8 jumbo dryer .Unit 7 double dryer
- Drying heat surce
- Thermo oil drying

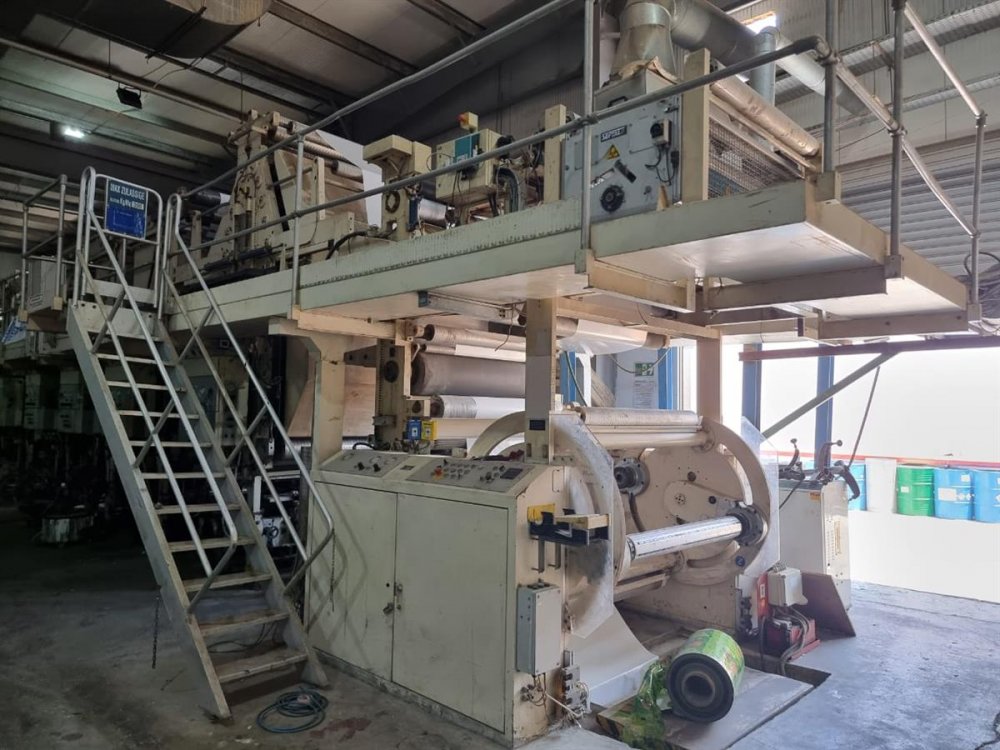

- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 1000

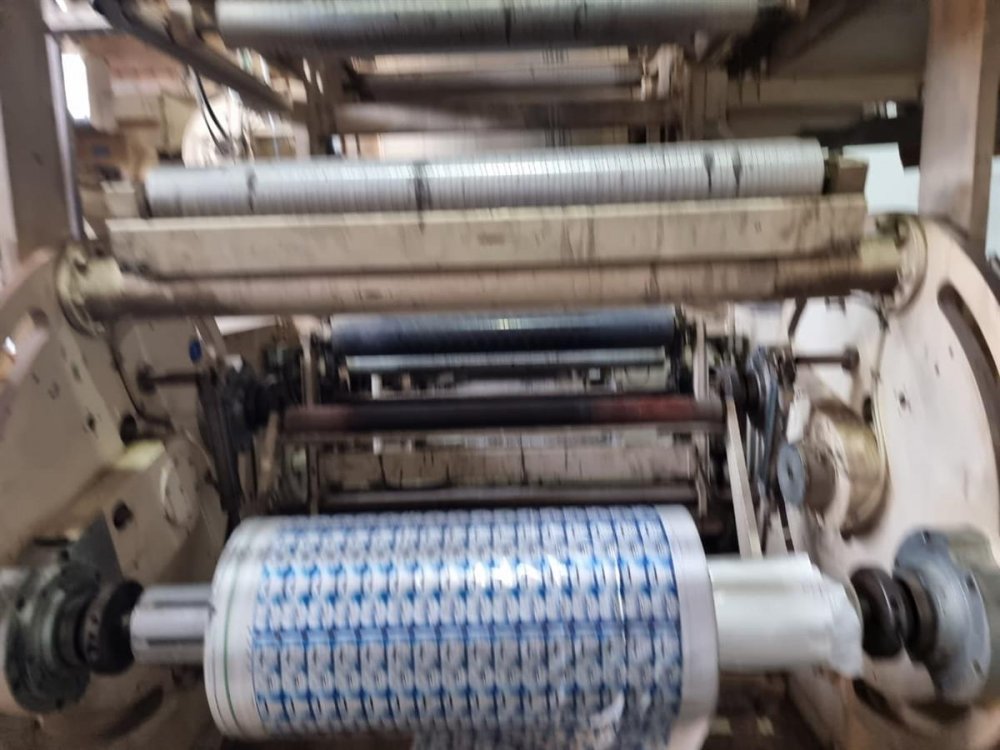

- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- AVT videocamera print vision/9000-C
- Register controll
- Eltromat register control
- Vyscosity control
- Viscosity control
- Corona treatment
- Softal
- Print cylinders
- 16
- Note
- 16 trolleys Pretreatment unit Mec. Speed 350 m/min Webguides Cylinder preparation machine ATLAS compressor 20 bar 16 printing cylinders Turningbars before unit 8
| Machine Code | RO175 |
| Manufacturer | CERUTTI |
| Modello | R 940 |
| Year | 1997 |
| Number of colors | 8 |
| Overhaul/renovation | Eltromat year 2011, AVT print vision/9000-C year 2017, Softal 6090 (2 devices) Year 2017 |
| Drive | Cardan |
| Drive | Cardan |
| Trolley system | No |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Print repeat range (mm) | 450-920 mm |
| Drying specifications | Unit 1 and 8 jumbo dryer .Unit 7 double dryer |
| Drying heat surce | Thermo oil drying |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | AVT videocamera print vision/9000-C |
| Register controll | Eltromat register control |
| Vyscosity control | Viscosity control |
| Corona treatment | Softal |
| Print cylinders | 16 |
| Note | 16 trolleys Pretreatment unit Mec. Speed 350 m/min Webguides Cylinder preparation machine ATLAS compressor 20 bar 16 printing cylinders Turningbars before unit 8 |
CERUTTI R 960
-
Machine Code: RO149
-
Year: 2001
-
Web width (mm): 1300
KROENERT GRAVURE
-
Machine Code: RO236
-
Year: 1996
-
Web width (mm): 1020

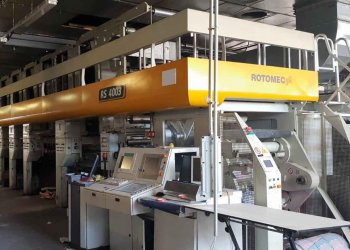

BOBST ROTOMEC ROTOPACK 4004 ES
-
