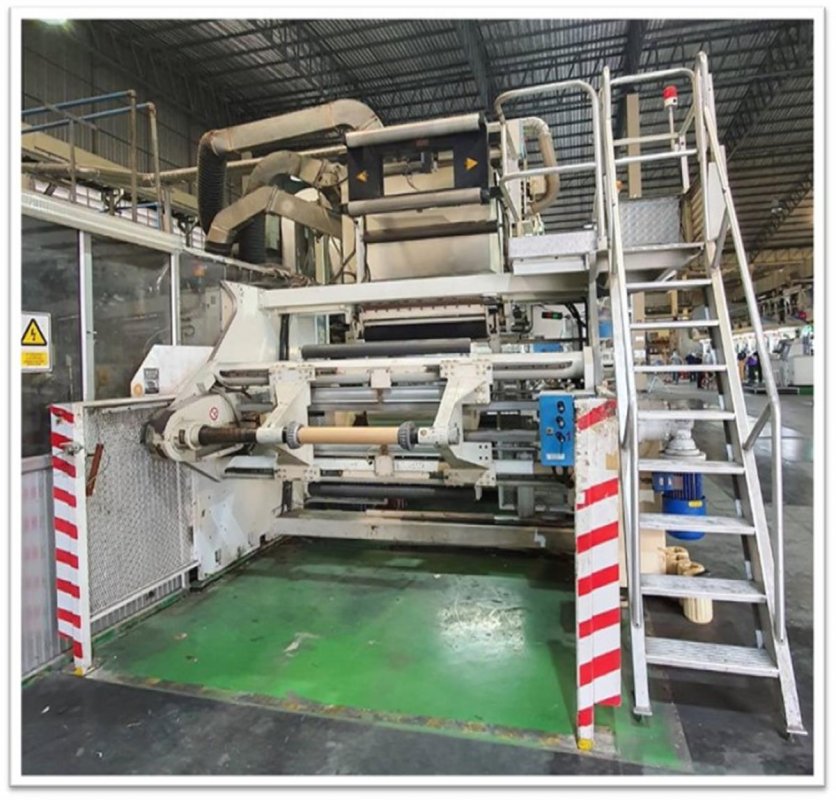

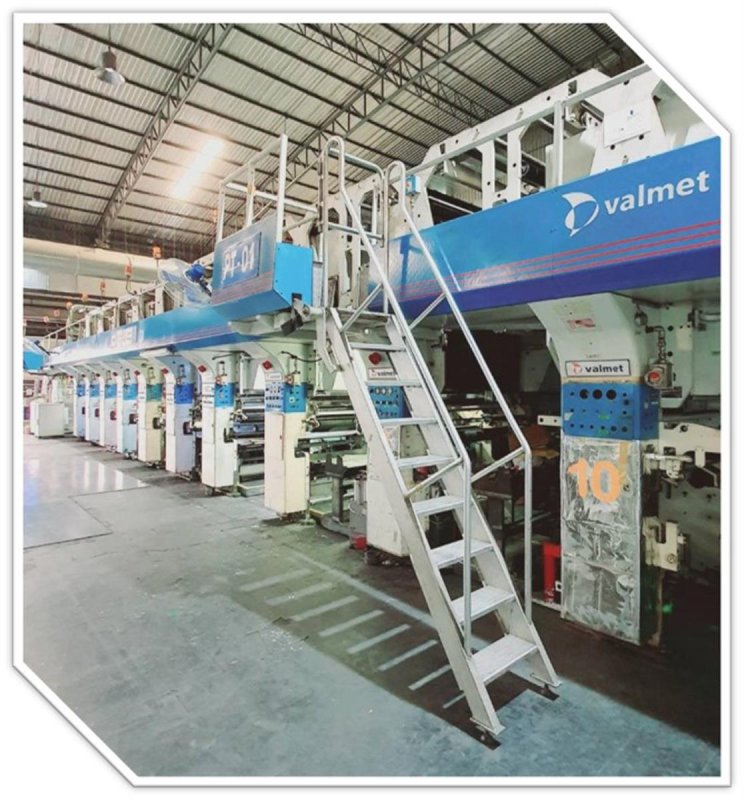

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO234
- Manufacturer
- ROTOMEC
- Modello
- 3003-R-ES
- Year
- 2000
- Number of colors
- 9
- Print possibilities
- 9+0 , 8+1
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1030
- Print width (mm)
- 1000
- Print repeat range (mm)
- 450-860mm
- Drying specifications
- UNITS 1-8 Single drier one blowing fan each unit one general exhaust fan, Units 9-10 double hood two bloaing fans , one exhaust each unit
- Drying heat surce
- One main gas burner 1.500.000 kcal- totally 13 dying zones and temperature controls
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- YES ELTROMAT
- Register controll
- Automatic Color Registor (Eltromat DGC650)
- Vyscosity control
- Yes Fasnacht
- Corona treatment
- yes
- Note
- totally 20 trolleys
| Machine Code | RO234 |
| Manufacturer | ROTOMEC |
| Modello | 3003-R-ES |
| Year | 2000 |
| Number of colors | 9 |
| Print possibilities | 9+0 , 8+1 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1030 |
| Print width (mm) | 1000 |
| Print repeat range (mm) | 450-860mm |
| Drying specifications | UNITS 1-8 Single drier one blowing fan each unit one general exhaust fan, Units 9-10 double hood two bloaing fans , one exhaust each unit |
| Drying heat surce | One main gas burner 1.500.000 kcal- totally 13 dying zones and temperature controls |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | YES ELTROMAT |
| Register controll | Automatic Color Registor (Eltromat DGC650) |
| Vyscosity control | Yes Fasnacht |
| Corona treatment | yes |
| Note | totally 20 trolleys |
