** SOLD **

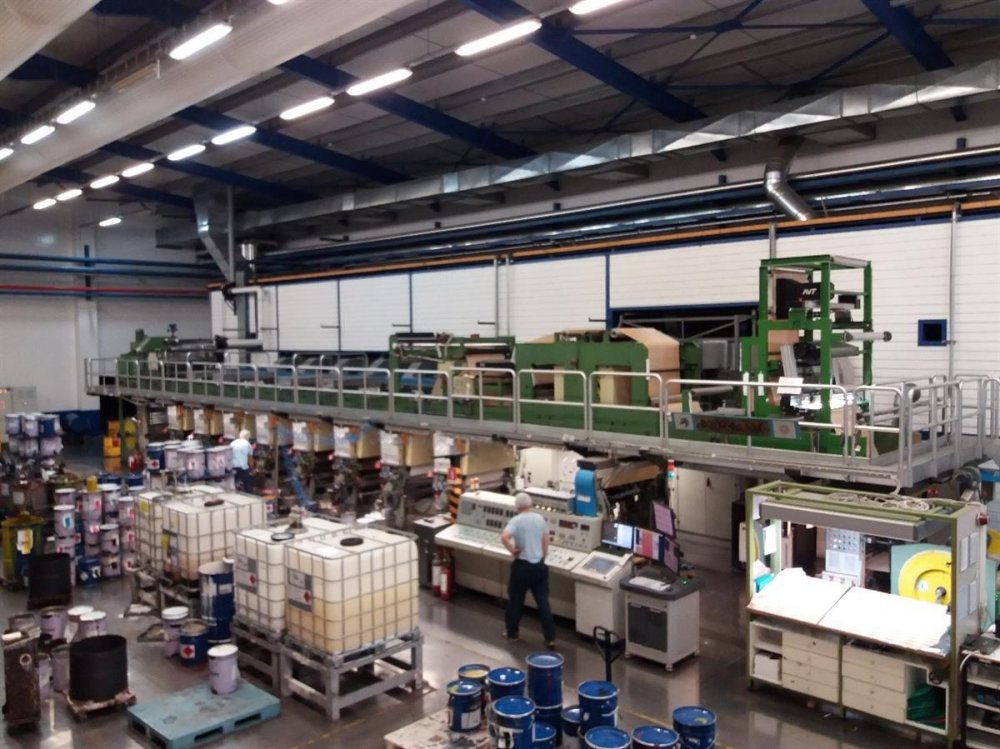

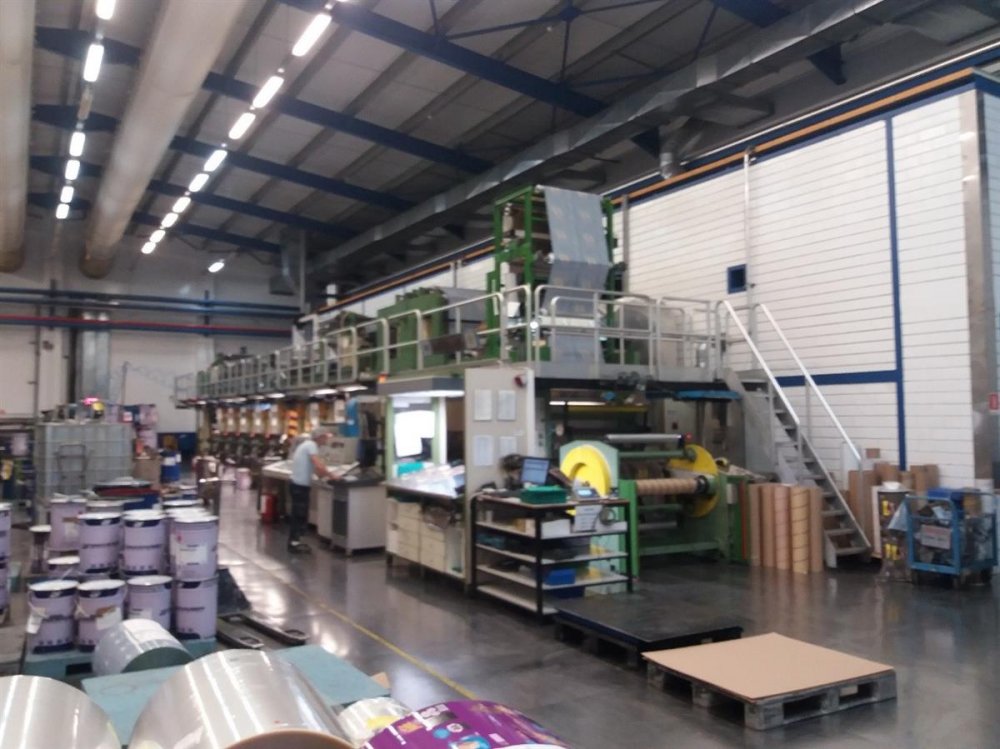

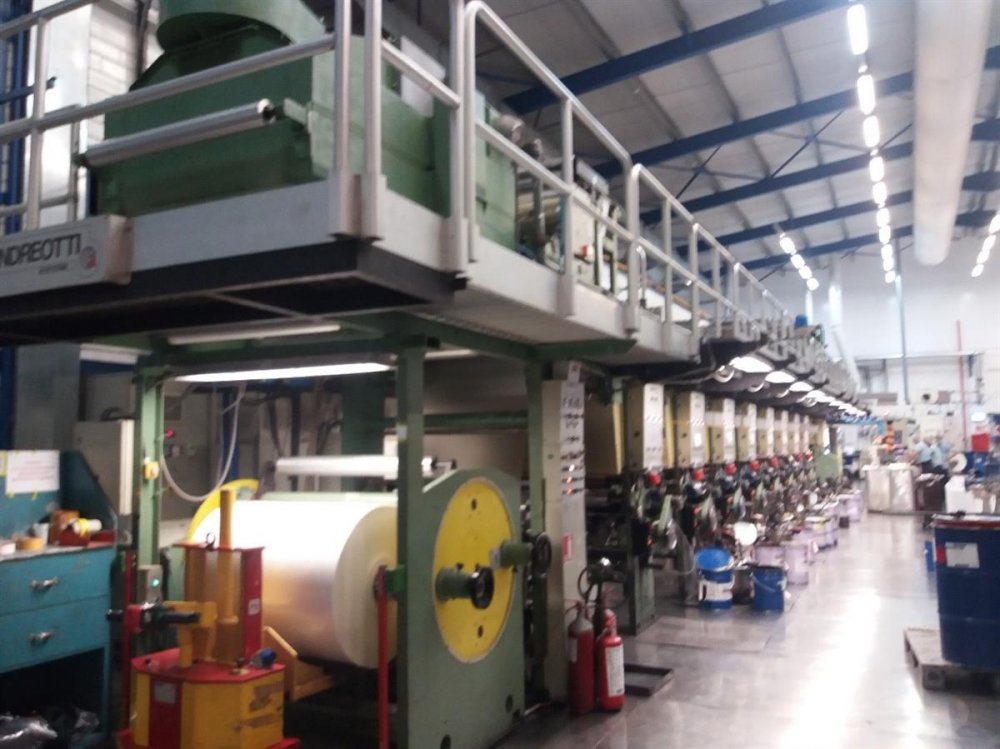

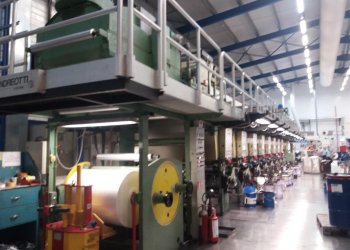

Gravure presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
about a similar one
- Machine Code
- RO180
- Manufacturer
- ANDREOTTI
- Modello
- ROTOPAK 15/35
- Year
- 1993
- Number of colors
- 9
- Overhaul/renovation
- fully refurbished in 2010 – drying and ventilation, all idle rollers, all water-cooled cylinders, PLC upgrade, register control new
- Web width (mm)
- 1020
- Print width (mm)
- 1000
- Print repeat range (mm)
- 350-860 mm
- Drying specifications
- Preconditioning tunnel 73.100 Kcal/h .Max temperature 120 0 C . Units 1-3 double hood 23.700+87.750 kcal/h. Max. temperature 110 0 C . Units 4-8 double hood 2 X 48.750 kcal/h . Max. temperature 70 0 C Unit 8 extension 78.400 kcal/h . Max. temperature 20 0 C Unit 9 Double hood 110.400+216.450 kcal/h . Max. temperature 150 0 C Total heath requirement for the thermal oil 1.300.000 kcal/h, 100.000 l/h, 250 0 C
- Drying heat surce
- Drying with thermal oil (year 2010)
- Unwinder type
- VEA year 2005 shafted, turret type flying splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- VEA year 2005 shafted, turret type flying splice
- Max reel diameter rewinder (mm)
- 800
- Videocamera
- Drello print inspection camera V5000 (year 2011)
- Register controll
- Register control Registron 5100 (year 2012)
- Vyscosity control
- Viscosity control Eltromat (year 1996) 7 pcs.
- Note
- 250 m/min printing speed Min diam for automatic flying splice :450 mm Web tension range : 3 to 30 kg Shafts for F 70/76 mm and F 152 mm Materials to print BOPP 20-60µm, PET 10-60 µm, BOPA 15-60 µm, paper and laminates 30-100 gsm ESA Spengler Heliofurn H 84/89 (year 1996) 6 units Pressure rollers for ESA 15 pcs. LEL control Honeywell ( year2009 ) Antistatic bars Spengler Cylinder insertion trolleys13 PCS Doctor blade holders 18PCS Ink pumps 15PCS Ink tanks 18PCS Ink trays for units 1 to 7 : 19 pcs Ink trays small for units 1 to 7 : 14 PCS Ink trays for unit 8 :2PCS Ink pans for unit 9 :3PCS Transmission gears 16PCS Bushings :40PCS Cylinder shafts (two widths cylinders 1100 and 880 mm)) 30+23 Pressure rollers (shafted) :46PCS Turning-bars after print unit 8 Machine is fully operational and may be inspected in production.
| Machine Code | RO180 |
| Manufacturer | ANDREOTTI |
| Modello | ROTOPAK 15/35 |
| Year | 1993 |
| Number of colors | 9 |
| Overhaul/renovation | fully refurbished in 2010 – drying and ventilation, all idle rollers, all water-cooled cylinders, PLC upgrade, register control new |
| Web width (mm) | 1020 |
| Print width (mm) | 1000 |
| Print repeat range (mm) | 350-860 mm |
| Drying specifications | Preconditioning tunnel 73.100 Kcal/h .Max temperature 120 0 C . Units 1-3 double hood 23.700+87.750 kcal/h. Max. temperature 110 0 C . Units 4-8 double hood 2 X 48.750 kcal/h . Max. temperature 70 0 C Unit 8 extension 78.400 kcal/h . Max. temperature 20 0 C Unit 9 Double hood 110.400+216.450 kcal/h . Max. temperature 150 0 C Total heath requirement for the thermal oil 1.300.000 kcal/h, 100.000 l/h, 250 0 C |
| Drying heat surce | Drying with thermal oil (year 2010) |
| Unwinder type | VEA year 2005 shafted, turret type flying splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | VEA year 2005 shafted, turret type flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | Drello print inspection camera V5000 (year 2011) |
| Register controll | Register control Registron 5100 (year 2012) |
| Vyscosity control | Viscosity control Eltromat (year 1996) 7 pcs. |
| Note | 250 m/min printing speed Min diam for automatic flying splice :450 mm Web tension range : 3 to 30 kg Shafts for F 70/76 mm and F 152 mm Materials to print BOPP 20-60µm, PET 10-60 µm, BOPA 15-60 µm, paper and laminates 30-100 gsm ESA Spengler Heliofurn H 84/89 (year 1996) 6 units Pressure rollers for ESA 15 pcs. LEL control Honeywell ( year2009 ) Antistatic bars Spengler Cylinder insertion trolleys13 PCS Doctor blade holders 18PCS Ink pumps 15PCS Ink tanks 18PCS Ink trays for units 1 to 7 : 19 pcs Ink trays small for units 1 to 7 : 14 PCS Ink trays for unit 8 :2PCS Ink pans for unit 9 :3PCS Transmission gears 16PCS Bushings :40PCS Cylinder shafts (two widths cylinders 1100 and 880 mm)) 30+23 Pressure rollers (shafted) :46PCS Turning-bars after print unit 8 Machine is fully operational and may be inspected in production. |
