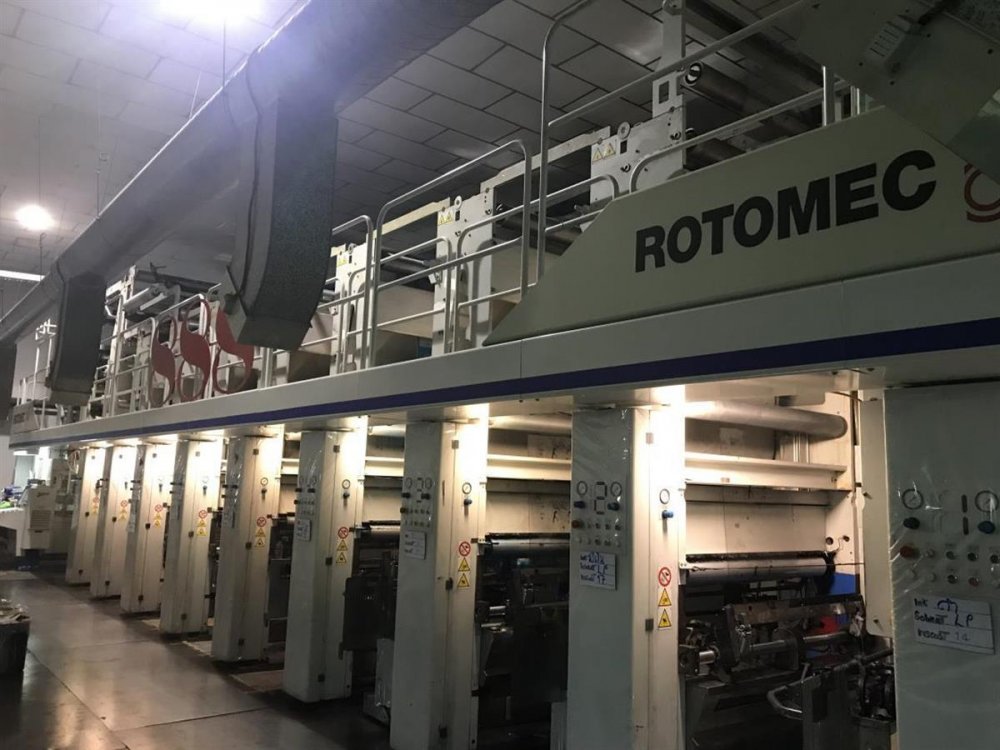

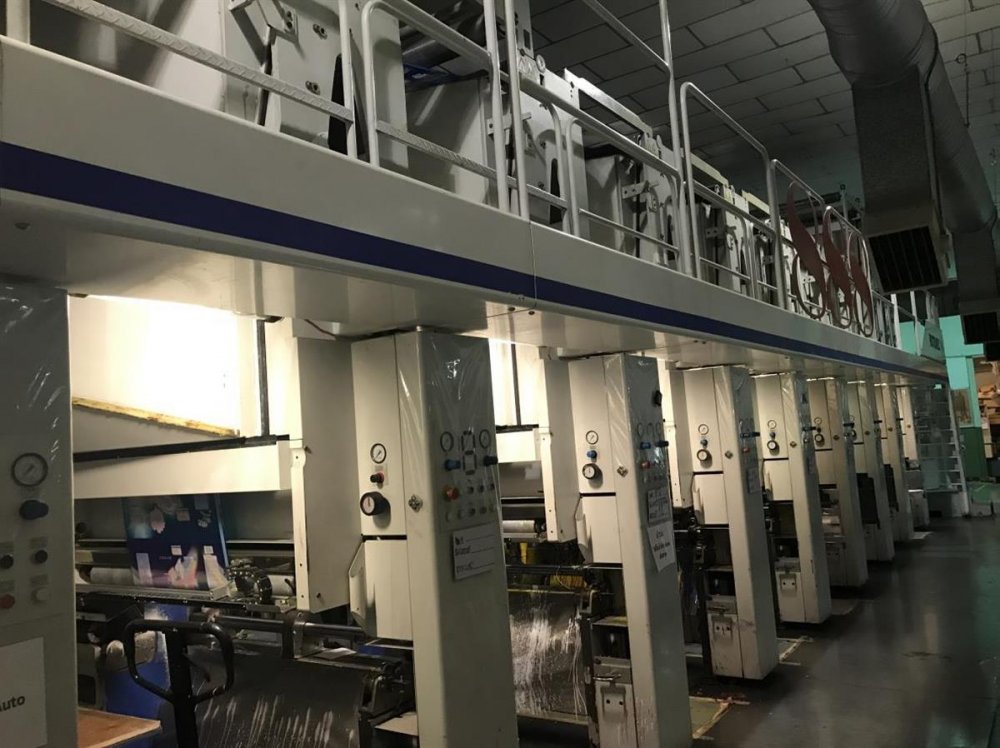

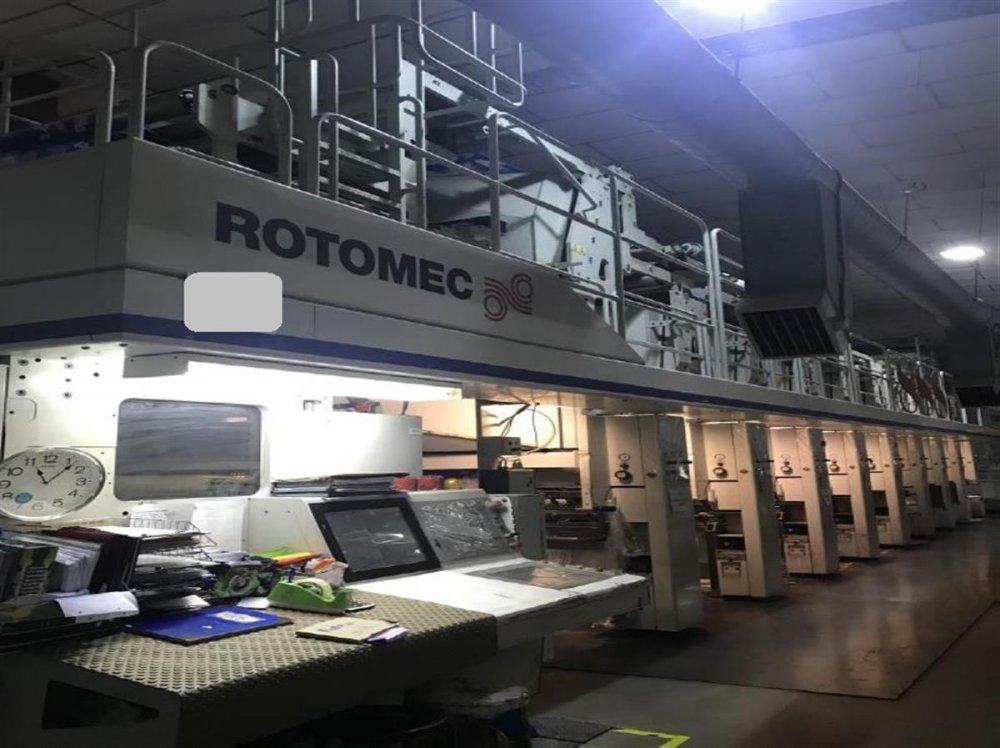

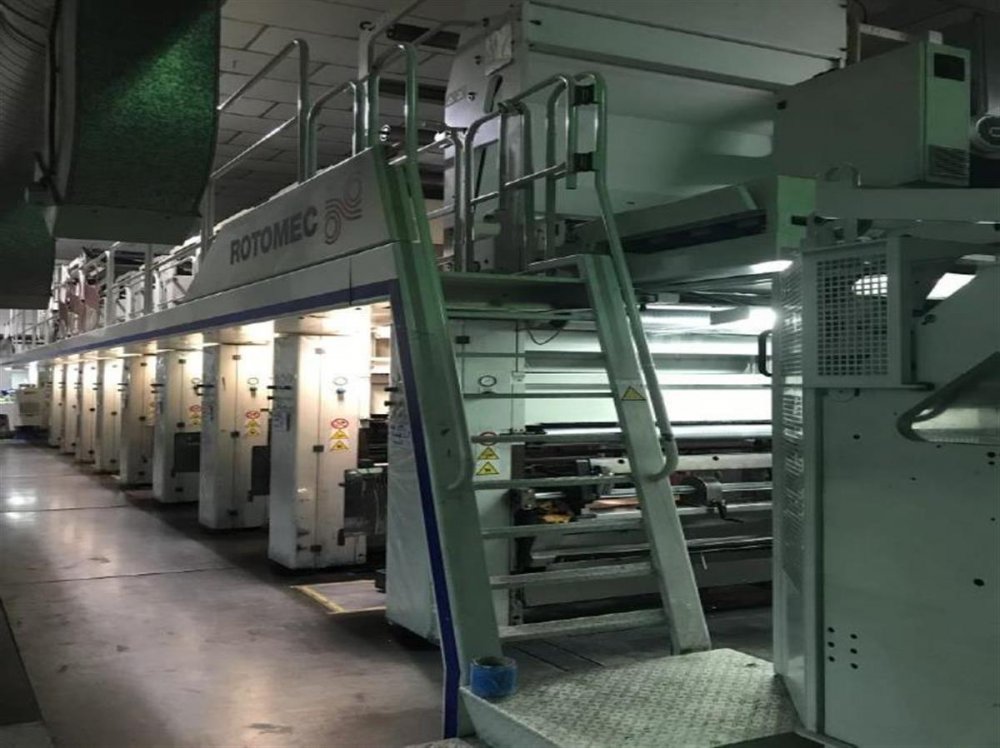

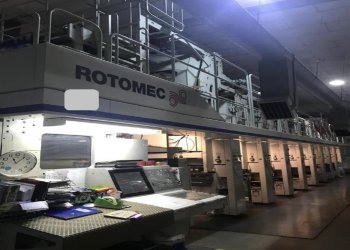

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
- Machine Code
- RO187
- Manufacturer
- BOBST ROTOMEC
- Modello
- RS888
- Year
- 2008
- Number of colors
- 9
- Print possibilities
- Reversible unit: 8 and 9
- Overhaul/renovation
- Year of machine mechanical and electrical overhaul: 2016
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Print repeat range (mm)
- 450-920 mm
- Drying specifications
- V1750 standard dryer: Printing unit 2 to Printing unit 8 . V3000 extended dryer: Printing unit 1 and Printing unit 9
- Drying heat surce
- 9 blowing fans . electric drier s
- Unwinder type
- Turret Automatic non stop
- Max reel diameter unwinder (mm)
- 1000

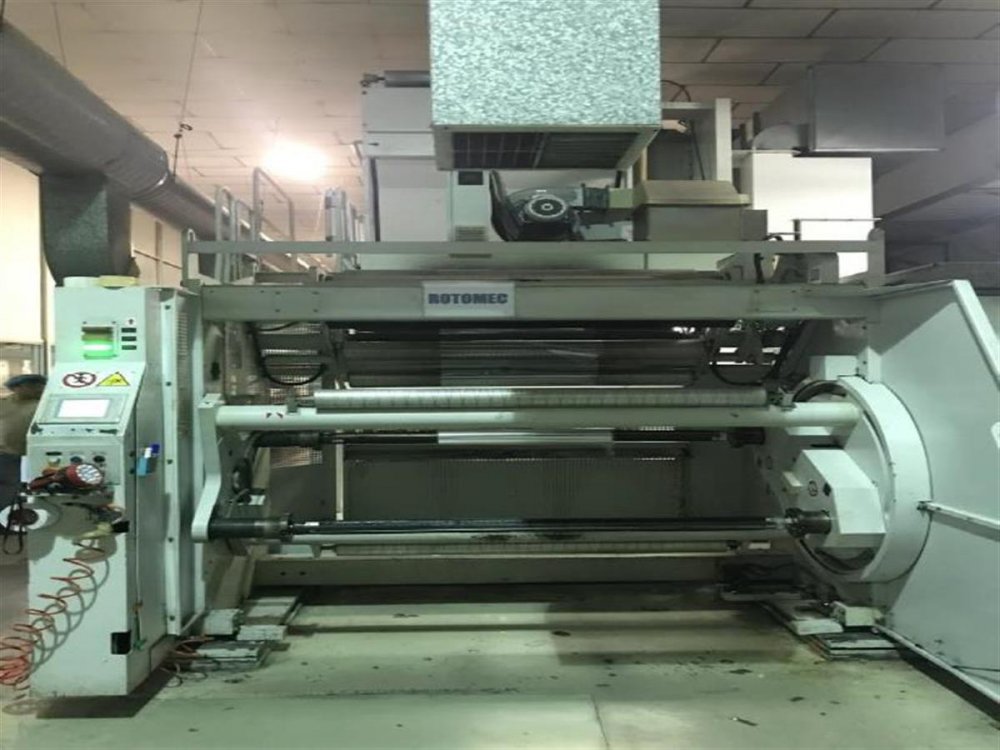

- Rewinder type
- Turret Automatic non stop
- Max reel diameter rewinder (mm)
- 1000

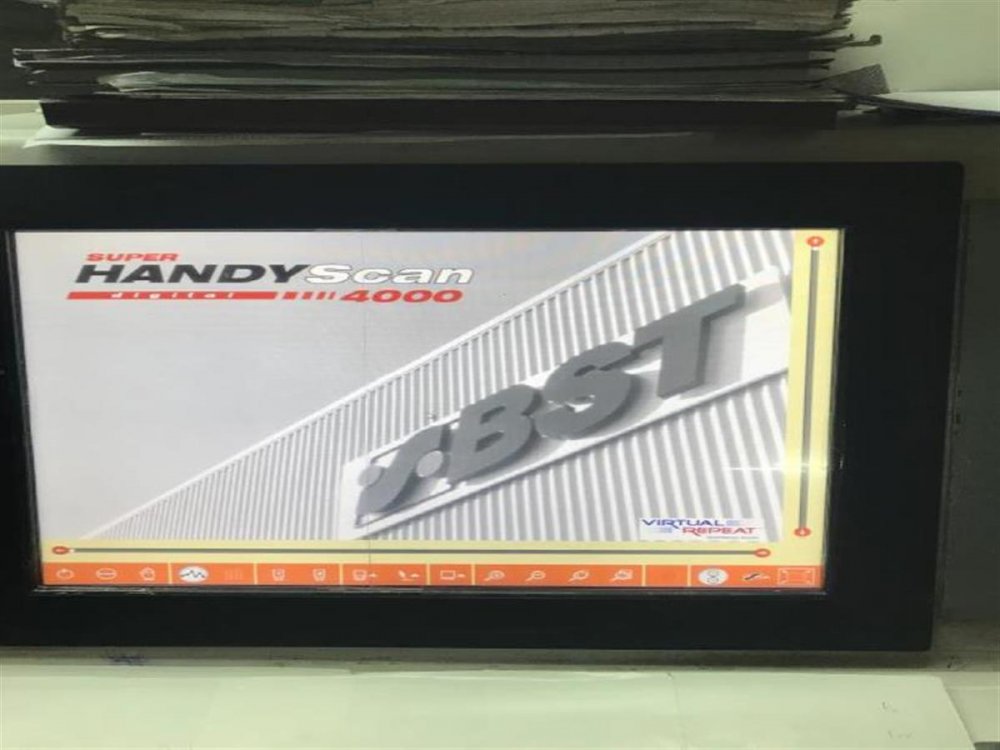

- Videocamera
- BST Super Handy Scan
- Register controll
- Bobst Registron
- Vyscosity control
- Original ISO Flow
- Note
- Min web width: 400 mm Mechanical speed: 250 m/min Material to print:PE, PP, OPP, PET, Paper, Foil cylinder chucking system.
| Machine Code | RO187 |
| Manufacturer | BOBST ROTOMEC |
| Modello | RS888 |
| Year | 2008 |
| Number of colors | 9 |
| Print possibilities | Reversible unit: 8 and 9 |
| Overhaul/renovation | Year of machine mechanical and electrical overhaul: 2016 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Print repeat range (mm) | 450-920 mm |
| Drying specifications | V1750 standard dryer: Printing unit 2 to Printing unit 8 . V3000 extended dryer: Printing unit 1 and Printing unit 9 |
| Drying heat surce | 9 blowing fans . electric drier s |
| Unwinder type | Turret Automatic non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | BST Super Handy Scan |
| Register controll | Bobst Registron |
| Vyscosity control | Original ISO Flow |
| Note | Min web width: 400 mm Mechanical speed: 250 m/min Material to print:PE, PP, OPP, PET, Paper, Foil cylinder chucking system. |
