Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
- Machine Code
- FL1151
- Manufacturer
- UTECO
- Modello
- ONYX 808 GL
- Year
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans- final drying tunnel 4 mt - 2 gas burners
- Videocamera
- BST with defect control camera
- Web guides
- yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 64
- Note

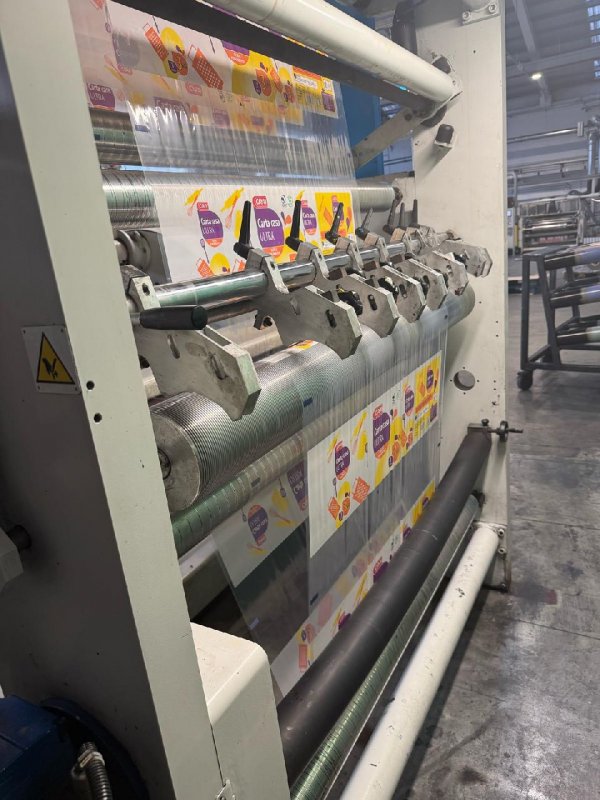

- Inline slitting
| Machine Code | FL1151 |
| Manufacturer | UTECO |
| Modello | ONYX 808 GL |
| Year | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones 4 fans- final drying tunnel 4 mt - 2 gas burners |
| Videocamera | BST with defect control camera |
| Web guides | yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 64 |
| Note | Inline slitting |
