Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1095
- Manufacturer
- COMEXI
- Modello
- FW2110
- Year
- 2008
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 920
- Print width (mm)
- 870
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Single Shaftless,core size : 76.2mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Single Shaftless, core size : 76.2mm
- Max reel diameter rewinder (mm)
- 1000
- Drying

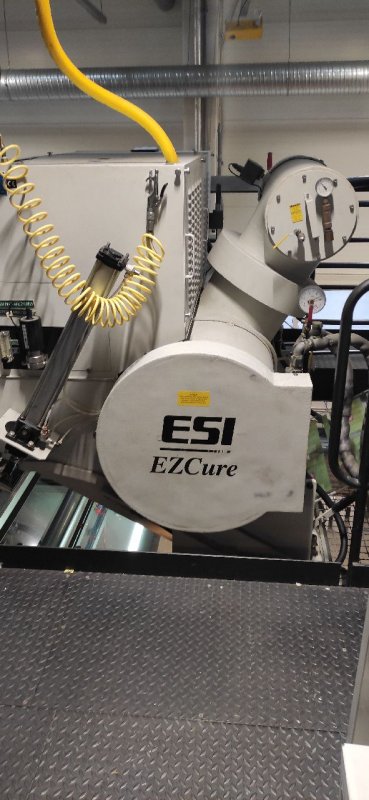

- ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm
- Videocamera
- AVT PRINT VISION JUPITER
- Corona treatment
- SOFTAL corona treating one 5 Kw generator
- Web guides
- Yes, before printing and before rewinding
- Note
- Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator
| Machine Code | FL1095 |
| Manufacturer | COMEXI |
| Modello | FW2110 |
| Year | 2008 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 920 |
| Print width (mm) | 870 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single Shaftless,core size : 76.2mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Single Shaftless, core size : 76.2mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | ESI ELECTRON-BEAM GENERATOR EZ 110/135/1000 side firing EZCure I System , 920mm wide system -Operating voltage range 100-110kV -Beam width 870mm max -Input Power 400V 3 phase 50Hz - Product Thickness <1mm -External Radiation Level <0.1mrem@10cm |
| Videocamera | AVT PRINT VISION JUPITER |
| Corona treatment | SOFTAL corona treating one 5 Kw generator |
| Web guides | Yes, before printing and before rewinding |
| Note | Mechanical speed: 350m/min Maximum reel weight : 750kg Tension range: -Minimum :20N -Maximum :350N ANTISTATIC BAR BEFORE PRINTING- SIMCO. ANTISTATIC BAR BEFORE REWINDING- SIMCO. GEW LED LAMP IN FIRST PRINTING SECTION. KELVA for top cleaning, including vacuum system and static eliminator |
