Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL1069
- Manufacturer
- SCHIAVI BOBST
- Modello
- RIGEL
- Year
- 2001
- Number of colors
- 8
- Print possibilityes
- 4+4
- Overhaul/renovation
- Checked up: 2022 by BOBST technicians both mechanic and electric parts
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 430
- Max print repeat (mm)
- 1200
- Unwinder type
- Double Turret Automatic Flying Splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double Turret Automatic Flying Splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- Thermal Oil
- Videocamera
- Fife
- Corona treatment
- Yes (Cason) for conductive and non-conductive materials
- Web guides
- In and out (BST)
- Vyscosity control
- Gama (not in use, has to be repaired)
- Inking system
- Inking System: Ceramic Anilox + Chambered Doctor Blades
- Anilox
- 23 pieces (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm )
- Print Sleeves
- 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 )
- Print cylinders
- 8 mandrels for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat
- Note
- Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO Max Speed: 300m/min Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator, Turning Cross Bar in order to print in both sides of the film (4+4) Spare Parts: Drives, Cards and Gears
| Machine Code | FL1069 |
| Manufacturer | SCHIAVI BOBST |
| Modello | RIGEL |
| Year | 2001 |
| Number of colors | 8 |
| Print possibilityes | 4+4 |
| Overhaul/renovation | Checked up: 2022 by BOBST technicians both mechanic and electric parts |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 430 |
| Max print repeat (mm) | 1200 |
| Unwinder type | Double Turret Automatic Flying Splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double Turret Automatic Flying Splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Thermal Oil |
| Videocamera | Fife |
| Corona treatment | Yes (Cason) for conductive and non-conductive materials |
| Web guides | In and out (BST) |
| Vyscosity control | Gama (not in use, has to be repaired) |
| Inking system | Inking System: Ceramic Anilox + Chambered Doctor Blades |
| Anilox | 23 pieces (2x80ln/cm, 2x100ln/cm, 2x120ln/cm, 2x140ln/cm, 1x160ln/cm, 1x180ln/cm, 1x200ln/cm, 2x220ln/cm, 1x270ln/cm, 5x360ln/cm, 4x380ln/cm ) |
| Print Sleeves | 40 pieces ( 8x850, 8x1000, 8x1020, 8x1050, 8x1150 ) |
| Print cylinders | 8 mandrels for sleeves more than 700mm repeat and 8 adaptors for sleeves more than 900mm repeat |
| Note | Materials: LDPE, HDPE, BOPP, CPP, PET, ALU, PAPER, BIO Max Speed: 300m/min Note: Motorized print station positioning- Motorized remote controlled longitudinal and side registers, Chiller thermoregulator, Turning Cross Bar in order to print in both sides of the film (4+4) Spare Parts: Drives, Cards and Gears |
FISCHER & KRECKE F16 S
-
Machine Code: FL1086
-
Year: 2002
-
Web width (mm): 1150
COMEXI FW2110
-
Machine Code: FL1095
-
Year: 2008
-
Web width (mm): 920
FLEXOTECNICA TACHYS
-
Machine Code: FL1127
-
Year: 1998
-
Web width (mm): 850
FLEXOTECNICA CHRONOS
-
Machine Code: FL1141
-
Year: 2006
-
Web width (mm): 1250

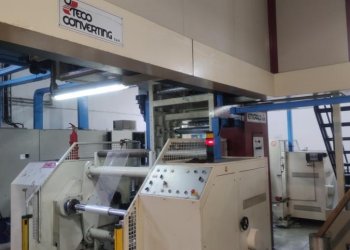

UTECO EMERALD 825 MOD 120
-
