Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL0981
- Manufacturer
- OFEM
- Modello
- COLUMBUS 10
- Year
- 1999
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 1000
- Unwinder type
- Double bracket
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Electric
- Web guides
- 2
- Inking system
- 4 station closed chamber 2 station fountain roller
- Note
- - 6 pumps - 5 rubber rollers 800mm(2 ),970(2), 1010 wide - Main motor drive ( spare) - Machine overall dimensions: Height 4,60 m length 10,50 m Width 4,00 m
| Machine Code | FL0981 |
| Manufacturer | OFEM |
| Modello | COLUMBUS 10 |
| Year | 1999 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 1000 |
| Unwinder type | Double bracket |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Electric |
| Web guides | 2 |
| Inking system | 4 station closed chamber 2 station fountain roller |
| Note | - 6 pumps - 5 rubber rollers 800mm(2 ),970(2), 1010 wide - Main motor drive ( spare) - Machine overall dimensions: Height 4,60 m length 10,50 m Width 4,00 m |
SCHIAVI SIGMA
-
Machine Code: FL1105
-
Year: 2002
-
Web width (mm): 1270
FISCHER & KRECKE F16 S
-
Machine Code: FL1130
-
Year: 2001
-
Web width (mm): 1270

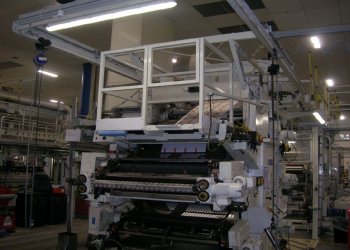

WINDMÖLLER & HÖLSCHER Olympia
-
