** SOLD **

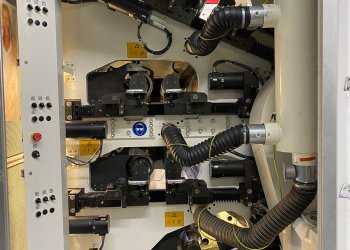

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL979
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX CS
- Year
- 2004
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 835
- Min print repeat (mm)
- 255
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic Nonstop with roll lifting platform . Web tension 25-270 N
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic Nonstop with roll unloading platform . Web tension 25- 300 N . Razor cut slitting unit adjustable every 5 mm with driven banana .
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones 4 fans electric heaters . Automatic air recirculation system with ENPRO solvent concentration control
- Videocamera
- AVT Jupiter
- Corona treatment
- Driven Softal corona treater with antistatic bar
- Web guides
- 1 BST EKR 1500, webguide with motorized positioning of the edge sensor after unwinder and 1 BST EKR 1500 at rewinder
- Vyscosity control
- yes
- Inking system
- Closed chamber doctor blades
- Anilox
- 21 ceramic anilox sleeves as follows; 4x 460 L/cm-volume 5; 3x 340 L/cm-vol 5 ;1x 255 L/cm-vol. 8,1; 3x 200 L/cm-vol. 8 ;
- Print Sleeves
- compressible sleeves with repeat length: 290, 300, 320, 340, 350, 360, 380, 400, 420, 430, 440, 450, 465, 490, 500, 520 and 560 (each repeat 8 sleeves)
- Print cylinders
- Adapters for flag thin and classic: 300, 320, 350, 360, 380, 400, 440 and 500 (variable numbers for each repeat length).
- Note
- SPARE ADDITIONAL PARTS 2 doctor chamber printing station 1-4 and 2 doctor chambers printing station 5-8 2 diaphragm pumps
Machine Code | FL979 |
Manufacturer | WINDMÖLLER & HÖLSCHER |
Modello | PRIMAFLEX CS |
Year | 2004 |
Number of colors | 8 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 850 |
Print width (mm) | 835 |
Min print repeat (mm) | 255 |
Max print repeat (mm) | 800 |
Unwinder type | Turret Automatic Nonstop with roll lifting platform . Web tension 25-270 N |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Turret Automatic Nonstop with roll unloading platform . Web tension 25- 300 N . Razor cut slitting unit adjustable every 5 mm with driven banana . |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones 4 fans electric heaters . Automatic air recirculation system with ENPRO solvent concentration control |
Videocamera | AVT Jupiter |
Corona treatment | Driven Softal corona treater with antistatic bar |
Web guides | 1 BST EKR 1500, webguide with motorized positioning of the edge sensor after unwinder and 1 BST EKR 1500 at rewinder |
Vyscosity control | yes |
Inking system | Closed chamber doctor blades |
Anilox | 21 ceramic anilox sleeves as follows; 4x 460 L/cm-volume 5; 3x 340 L/cm-vol 5 ;1x 255 L/cm-vol. 8,1; 3x 200 L/cm-vol. 8 ; |
Print Sleeves | compressible sleeves with repeat length: 290, 300, 320, 340, 350, 360, 380, 400, 420, 430, 440, 450, 465, 490, 500, 520 and 560 (each repeat 8 sleeves) |
Print cylinders | Adapters for flag thin and classic: 300, 320, 350, 360, 380, 400, 440 and 500 (variable numbers for each repeat length). |
Note | SPARE ADDITIONAL PARTS 2 doctor chamber printing station 1-4 and 2 doctor chambers printing station 5-8 2 diaphragm pumps |
