Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL1006
- Manufacturer
- UTECO
- Modello

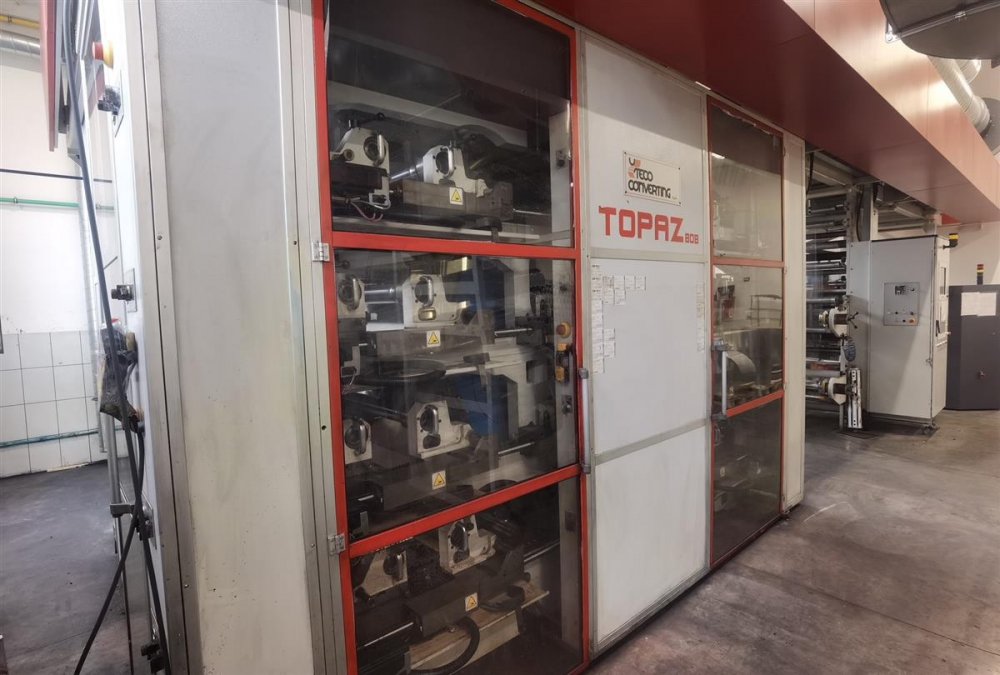

- TOPAZ 808 GL
- Year
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes

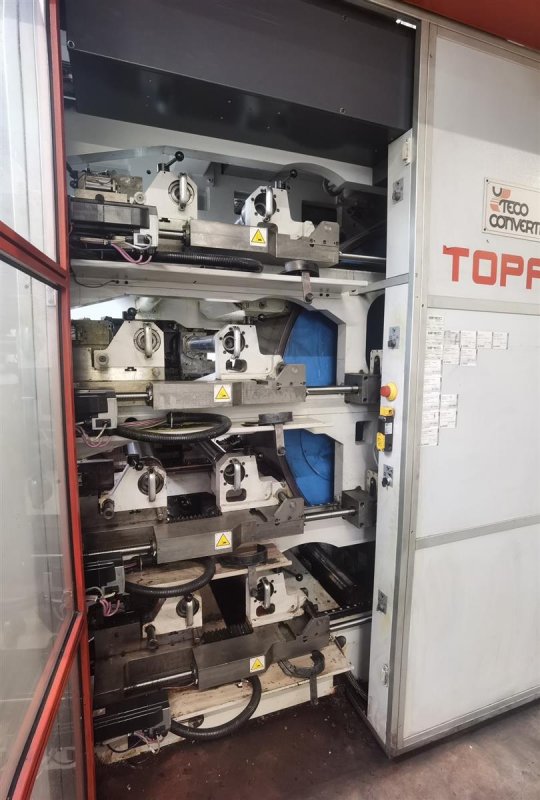

- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 650
- Print width (mm)
- 600
- Min print repeat (mm)
- 290
- Max print repeat (mm)
- 800

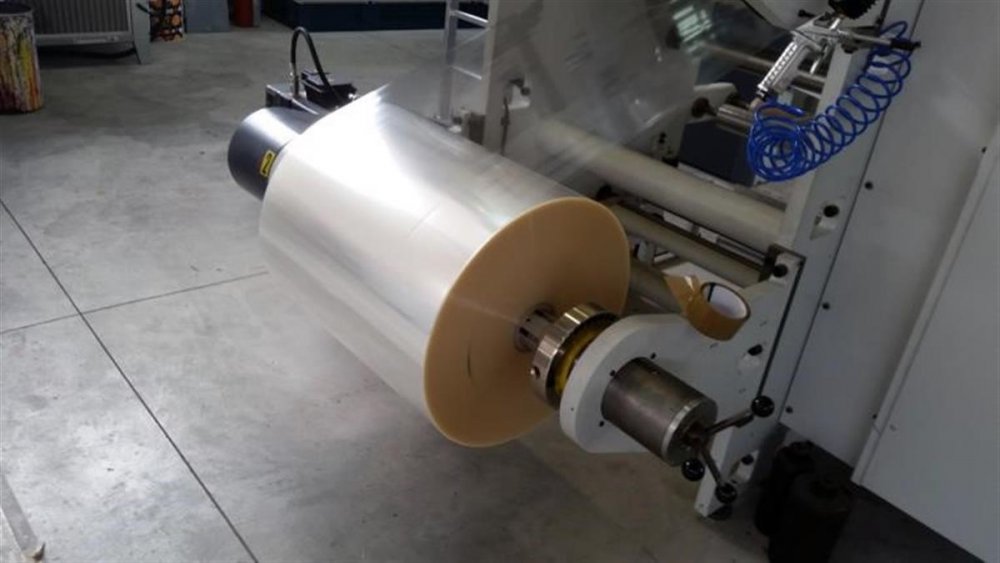

- Unwinder type
- Two position bracket type with marriage roll for drop splice
- Max reel diameter unwinder (mm)
- 800

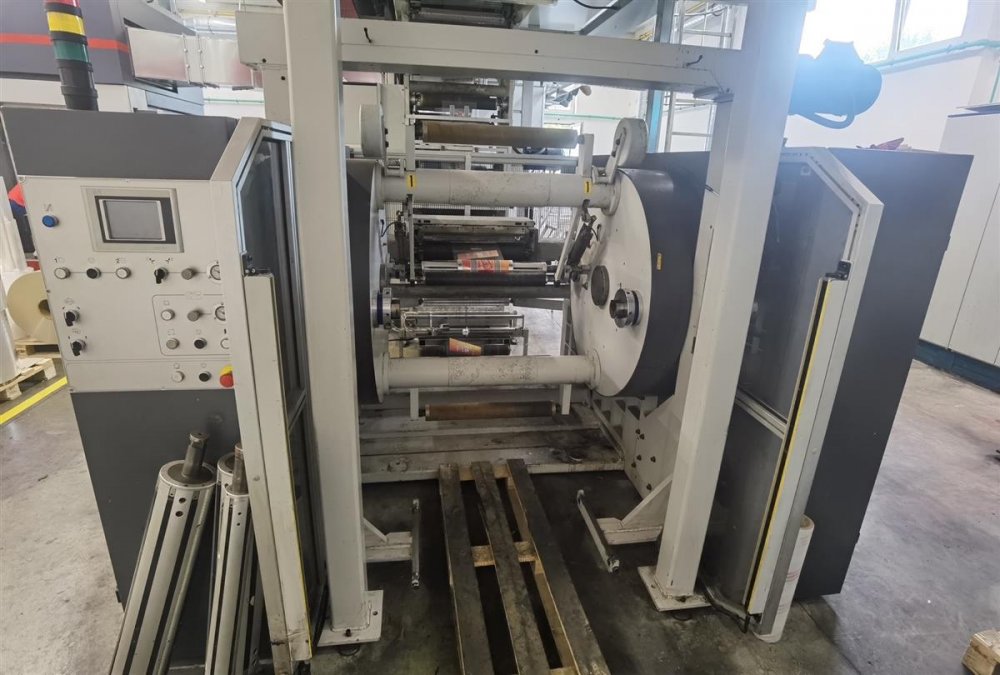

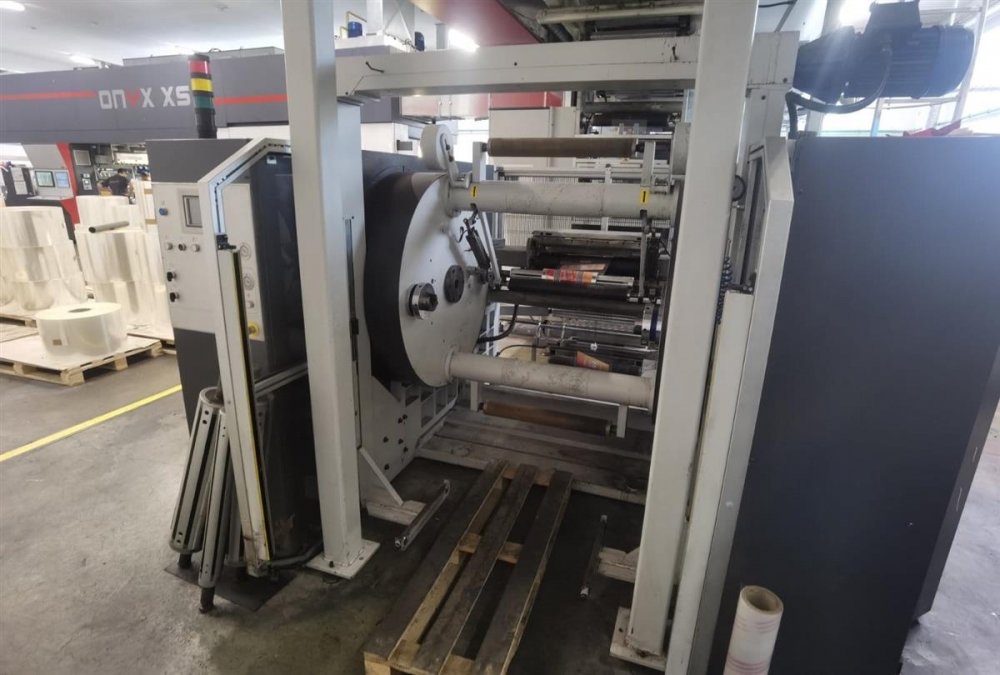

- Rewinder type
- Turret automatic non stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans 5 mt tunnel , 2 gas burner sGas
- Videocamera

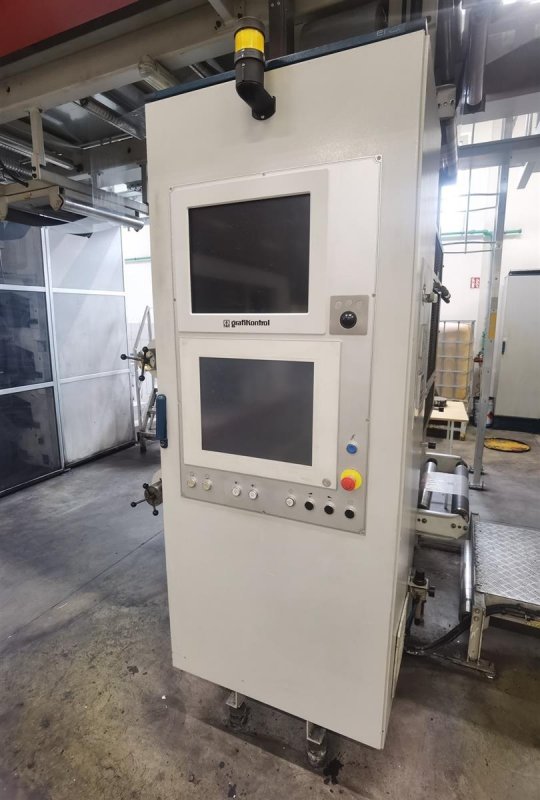

- Grafikontrol - Grafikscan 2100
- Web guides
- BTS
- Washing system
- yes

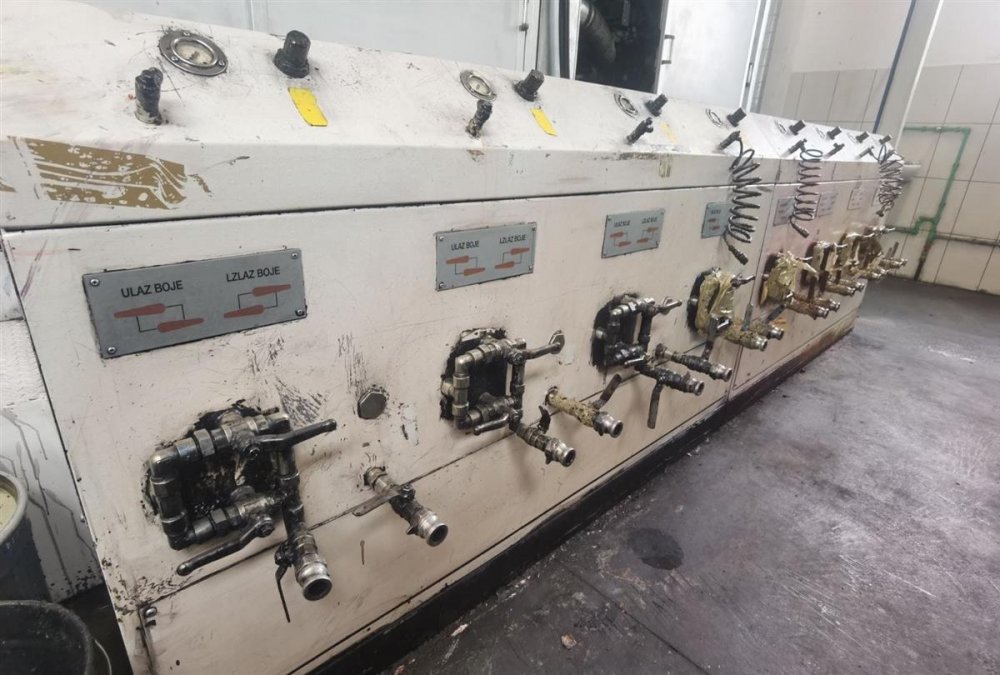

- Inking system
- 16 mechanic ink pumps SMC type
- Anilox
- 4 x 400 L/cm, 1 x 100 L/cm, 3 x 160 L/cm, 1 x 180 L/cm, 1 x - 200 L/cm, 1 x 340 L/cm.

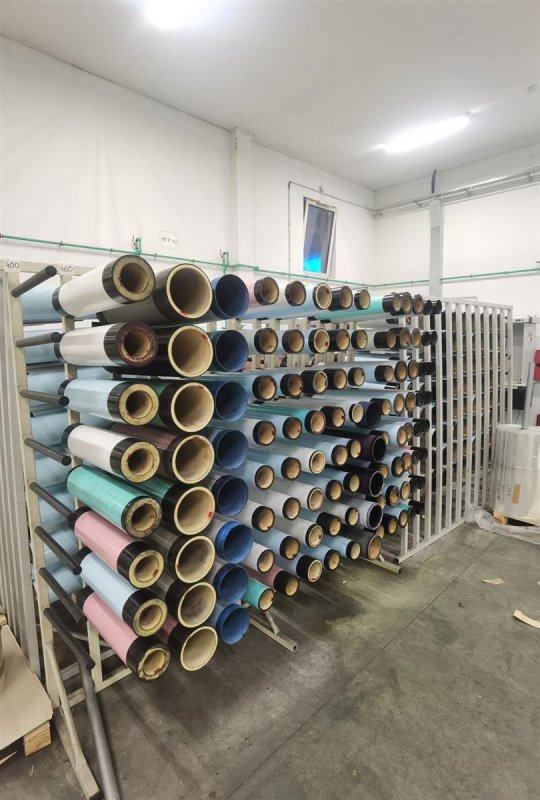

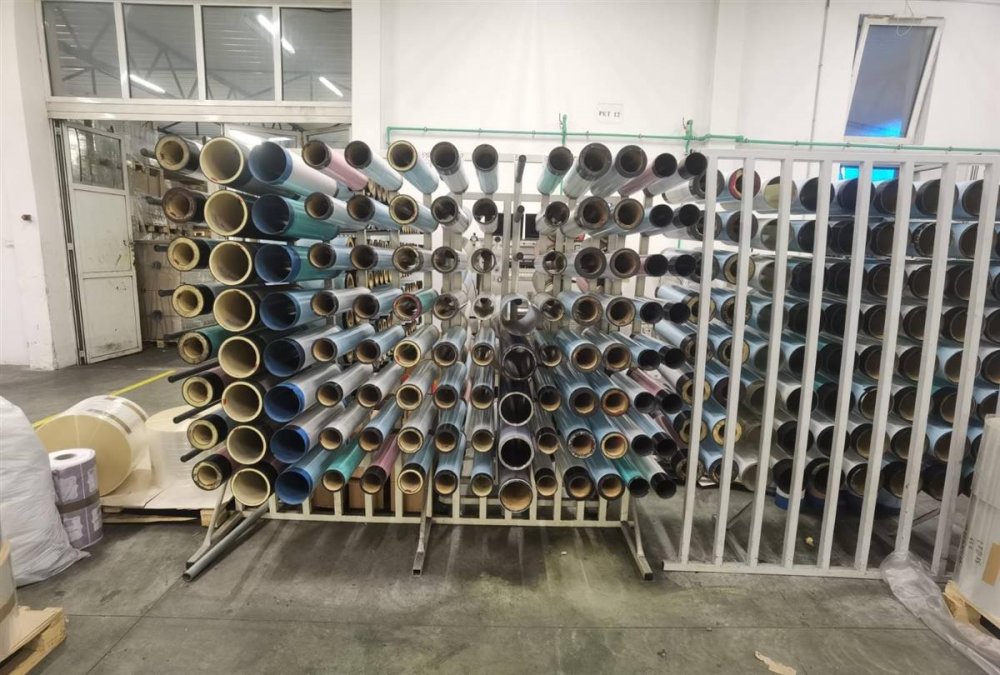

- Print Sleeves
- 8 x 300mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 350mm, 8 x 360mm, 8 x 380mm, 8 x 400mm, 8 x 420mm, 8 x 460mm, 8 x 500mm, 8 x 510mm, 8 x 530mm, 8 x 560mm, 8 x 570mm, 8 x 590mm, 8 x 660mm, 8 x 780mm.
- Note

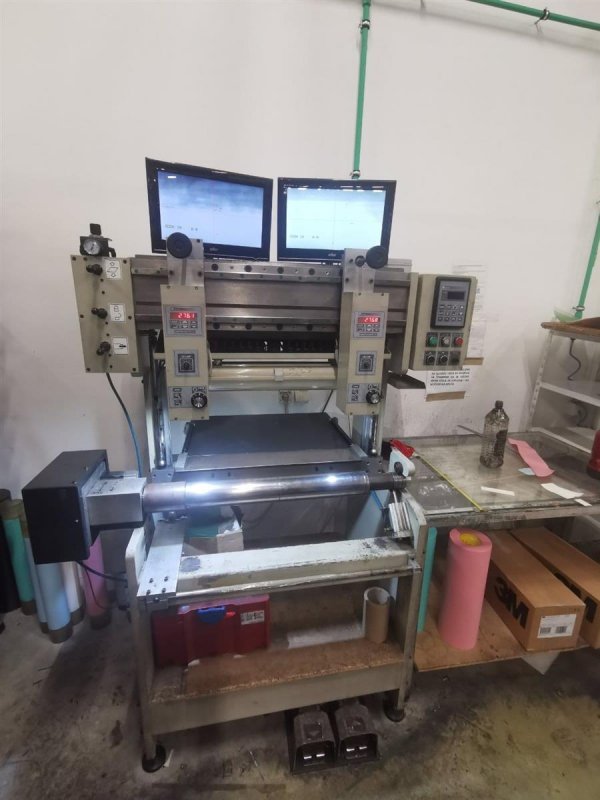

- Mechanical speed: 300 m/min Plate mounter included
| Machine Code | FL1006 |
| Manufacturer | UTECO |
| Modello | TOPAZ 808 GL |
| Year | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 650 |
| Print width (mm) | 600 |
| Min print repeat (mm) | 290 |
| Max print repeat (mm) | 800 |
| Unwinder type | Two position bracket type with marriage roll for drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic non stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans 5 mt tunnel , 2 gas burner sGas |
| Videocamera | Grafikontrol - Grafikscan 2100 |
| Web guides | BTS |
| Washing system | yes |
| Inking system | 16 mechanic ink pumps SMC type |
| Anilox | 4 x 400 L/cm, 1 x 100 L/cm, 3 x 160 L/cm, 1 x 180 L/cm, 1 x - 200 L/cm, 1 x 340 L/cm. |
| Print Sleeves | 8 x 300mm, 8 x 320mm, 8 x 330mm, 8 x 340mm, 8 x 350mm, 8 x 360mm, 8 x 380mm, 8 x 400mm, 8 x 420mm, 8 x 460mm, 8 x 500mm, 8 x 510mm, 8 x 530mm, 8 x 560mm, 8 x 570mm, 8 x 590mm, 8 x 660mm, 8 x 780mm. |
| Note | Mechanical speed: 300 m/min Plate mounter included |
