Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
- Machine Code
- FL0806
- Manufacturer
- COMEXI
- Modello
- FB 2108 CNC GL
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- Washing system in 2012, and upgrated in 2013
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- TURRET automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans 4 mt tunnel ,2 gas burners
- Videocamera
- Yes
- Corona treatment
- Yes, Softal
- Web guides
- BST in and out
- Vyscosity control
- Yes, Inelme
- Washing system
- Yes Enviroxi
- Inking system
- Closed chamber doctor blades , 8 ink pumps with tanks
- Anilox
- 24
- Print Sleeves
- 200
- Note
- Included in price Plate mounter Solvent distillation and recovery system Plate washing Slitter COMEXI KSC YEAR 1987; INKMAKER from 1997; ENVIROXI EV/50/VAC from 2004 ; RENZMANN M200 from 1999
| Machine Code | FL0806 |
| Manufacturer | COMEXI |
| Modello | FB 2108 CNC GL |
| Year | 2003 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | Washing system in 2012, and upgrated in 2013 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | TURRET automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans 4 mt tunnel ,2 gas burners |
| Videocamera | Yes |
| Corona treatment | Yes, Softal |
| Web guides | BST in and out |
| Vyscosity control | Yes, Inelme |
| Washing system | Yes Enviroxi |
| Inking system | Closed chamber doctor blades , 8 ink pumps with tanks |
| Anilox | 24 |
| Print Sleeves | 200 |
| Note | Included in price Plate mounter Solvent distillation and recovery system Plate washing Slitter COMEXI KSC YEAR 1987; INKMAKER from 1997; ENVIROXI EV/50/VAC from 2004 ; RENZMANN M200 from 1999 |
BIELLONI THEOREMA
-
Machine Code: FL0993
-
Year: 2002
-
Web width (mm): 1300

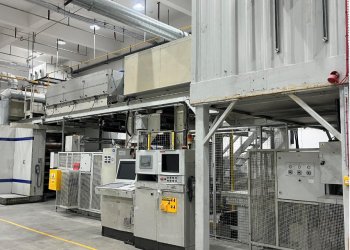

FISCHER & KRECKE F26S 8 +26S2
-
