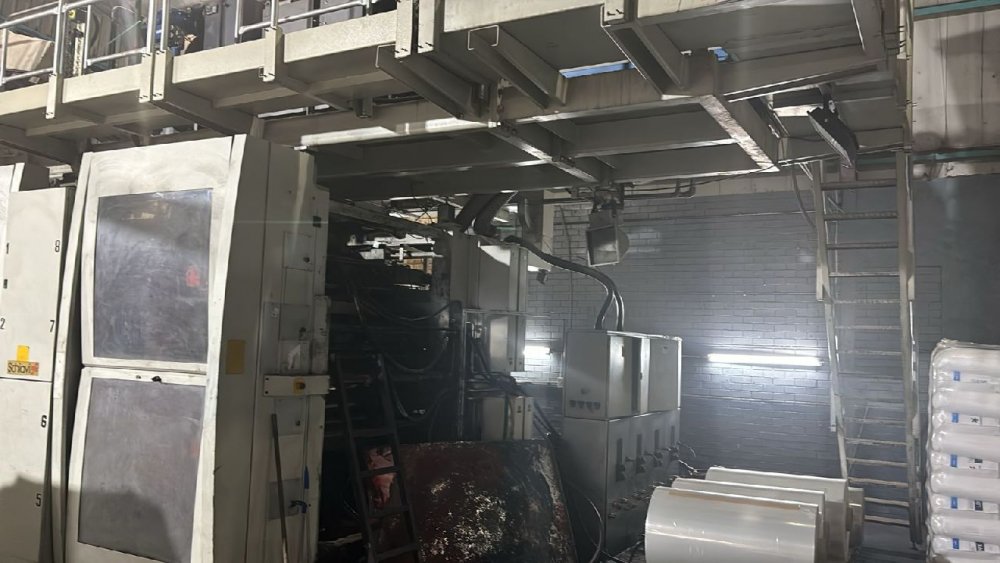

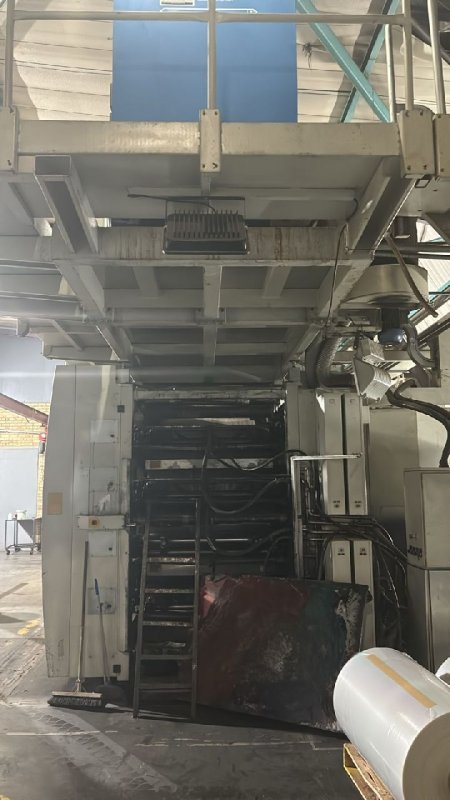

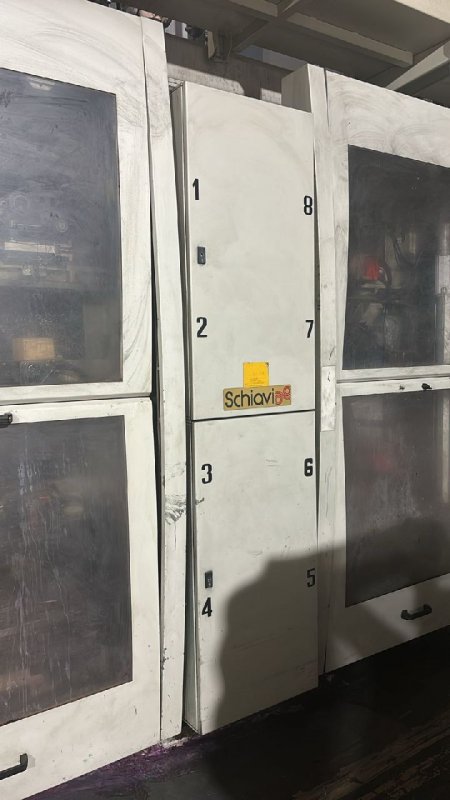

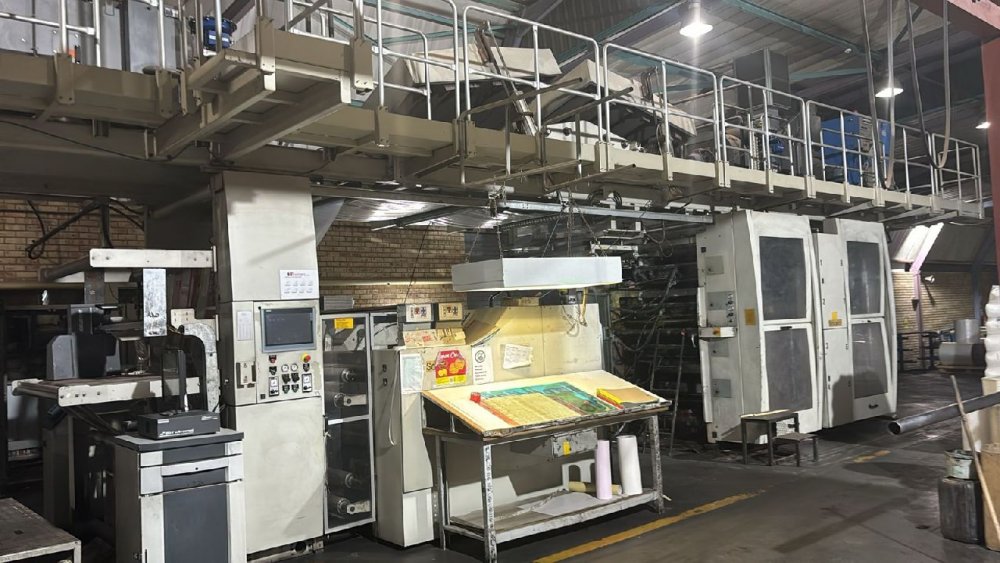

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL0503
- Manufacturer
- SCHIAVI
- Modello
- EF4020
- Year
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- 2014 and 2021
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 760
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil heaters. 2 zones. 4 fans. 5 mt tunnel.Automatic air recirculation system with LEL control by Zellweger
- Videocamera
- Deco System
- Corona treatment
- Yes
- Web guides
- 2 BST
- Vyscosity control
- Yes
- Washing system
- Yes
- Inking system
- Closed chamber doctor blades
- Anilox
- 23 ceramic anilox sleevs 4 x 400 L/cm , 4x 320 L/cm, 3x 280 L/cm, 3x 160 L/cm, 3x 140 L/cm , 2x 120 L/cm , 3x 100 L/cm, 1x 90 L/cm
- Print Sleeves
- totally 184 as follow s 8 for each repeat 390 mm, 400 , 410 , 420 , 430 , 440 ,450 , 470 , 480 , 490 , 510 , 520 , 530 , 540 , 550 , 570 , 590 , 610 , 630 , 650 , 680 , 690 , 720.
- Note
- Slitting device and Rewinder with rotary knives.
| Machine Code | FL0503 |
| Manufacturer | SCHIAVI |
| Modello | EF4020 |
| Year | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | 2014 and 2021 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 760 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil heaters. 2 zones. 4 fans. 5 mt tunnel.Automatic air recirculation system with LEL control by Zellweger |
| Videocamera | Deco System |
| Corona treatment | Yes |
| Web guides | 2 BST |
| Vyscosity control | Yes |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades |
| Anilox | 23 ceramic anilox sleevs 4 x 400 L/cm , 4x 320 L/cm, 3x 280 L/cm, 3x 160 L/cm, 3x 140 L/cm , 2x 120 L/cm , 3x 100 L/cm, 1x 90 L/cm |
| Print Sleeves | totally 184 as follow s 8 for each repeat 390 mm, 400 , 410 , 420 , 430 , 440 ,450 , 470 , 480 , 490 , 510 , 520 , 530 , 540 , 550 , 570 , 590 , 610 , 630 , 650 , 680 , 690 , 720. |
| Note | Slitting device and Rewinder with rotary knives. |
