** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL799
- Manufacturer

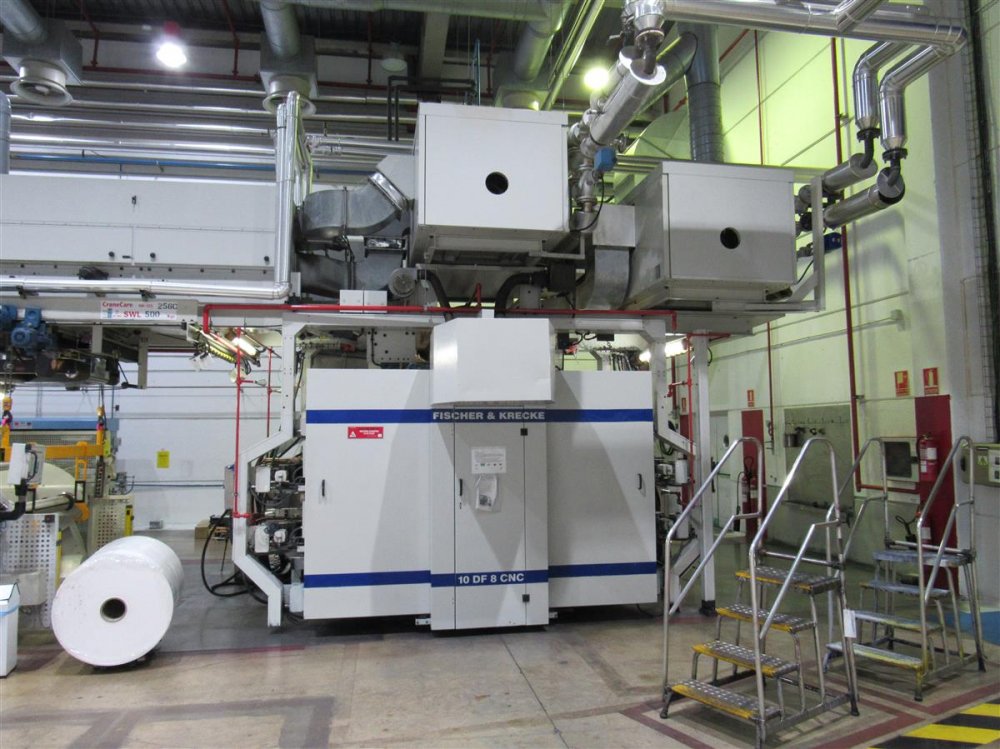

- FISCHER & KRECKE
- Modello
- 10DF/ 8 CNC
- Year
- 1998
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 940
- Print width (mm)
- 900
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650

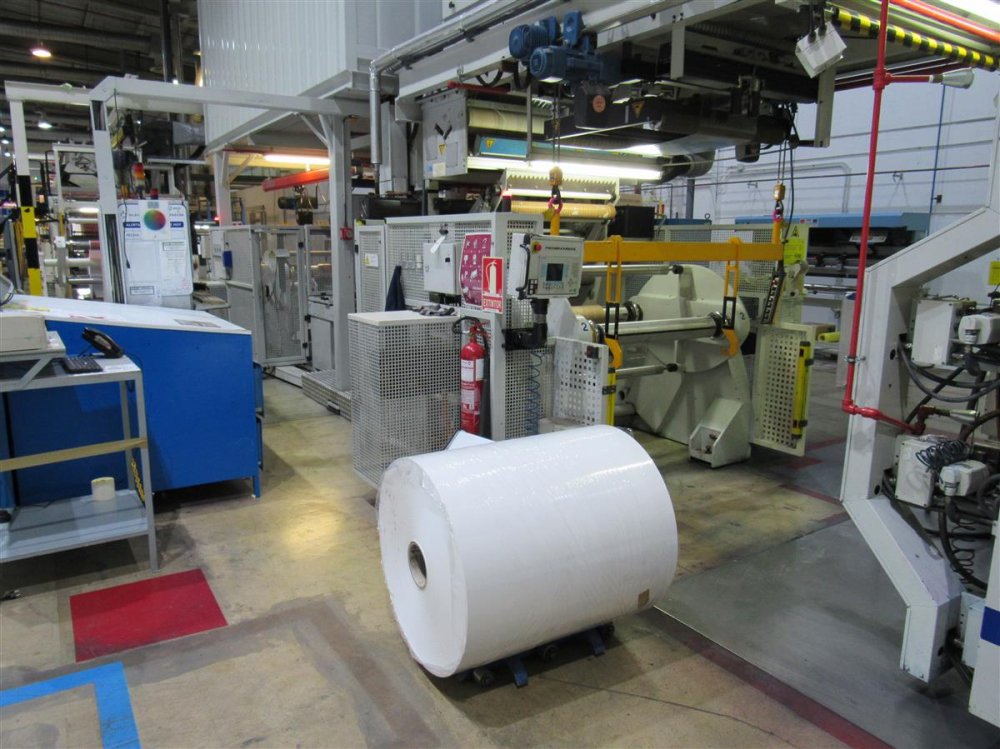

- Unwinder type
- Non stop flying splice
- Max reel diameter unwinder (mm)
- 1000

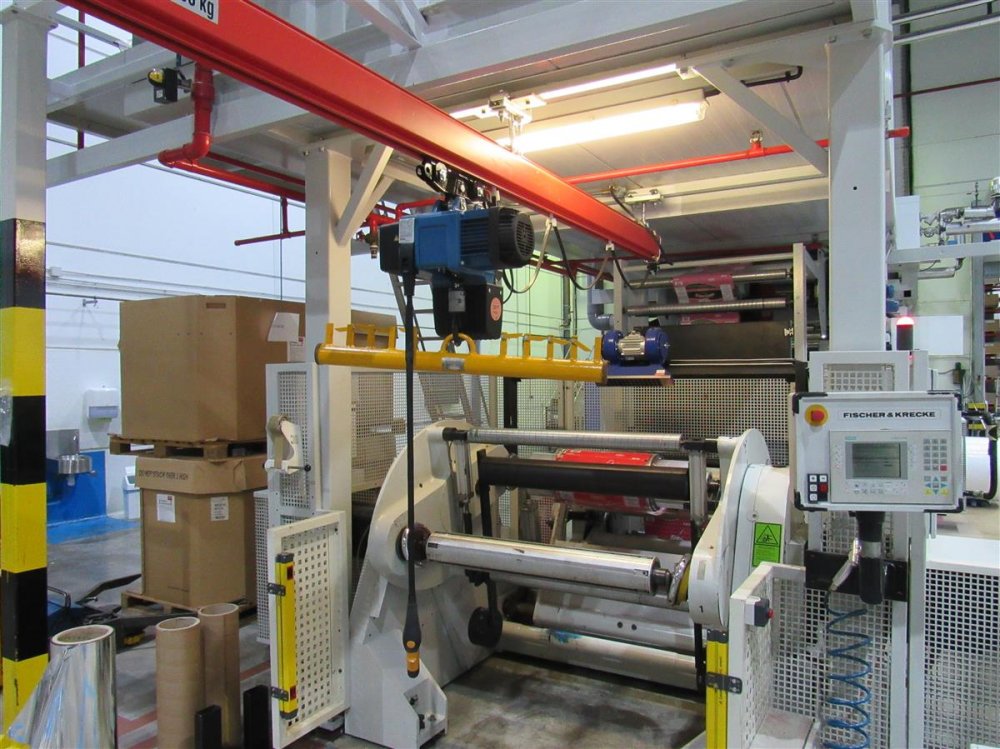

- Rewinder type
- Non stop flying splice
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght
- Web guides
- Fife
- Inking system
- Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps
- Anilox
- 22

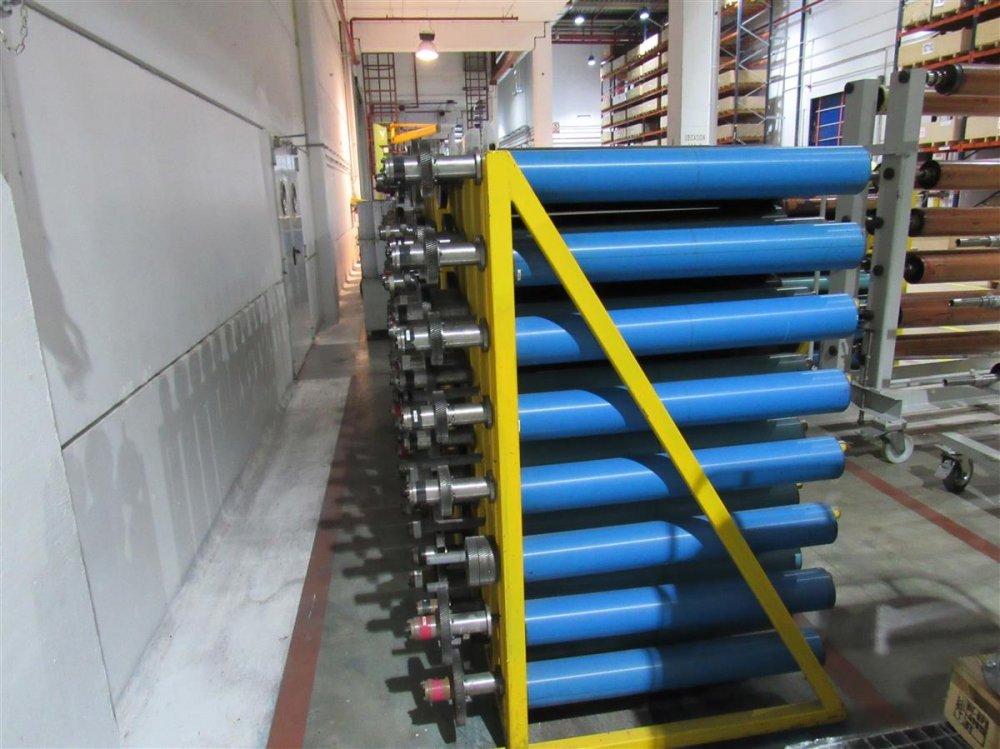

- Print Sleeves
- 460
- Note
- gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min
| Machine Code | FL799 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 10DF/ 8 CNC |
| Year | 1998 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 940 |
| Print width (mm) | 900 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Non stop flying splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Non stop flying splice |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght |
| Web guides | Fife |
| Inking system | Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps |
| Anilox | 22 |
| Print Sleeves | 460 |
| Note | gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min |
SOMA FLEX MIDI-127-8-EG
-
Machine Code: FL1118
-
Year: 2007
-
Web width (mm): 1320

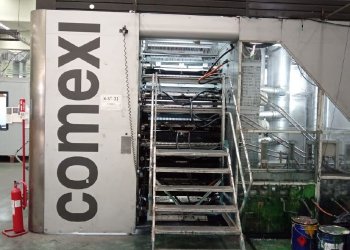

COMEXI FW2110
-
Machine Code: FL1148
-
Year: 2009
-
Web width (mm): 1220
Schiavi Alpha 8C
-
Machine Code: FL1070
-
Year: 2000
-
Web width (mm):

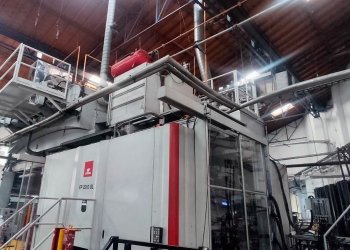

COMEXI FP 2210 GL
-
