** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL866
- Manufacturer
- OFEM
- Modello
- APPIA GL803
- Year
- 2006
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes

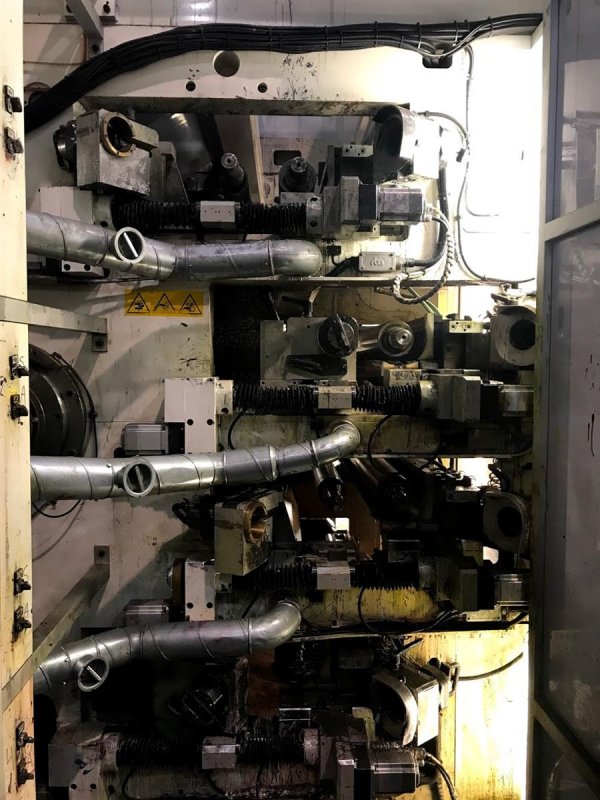

- 4 motor per deck CNC position system
- Yes

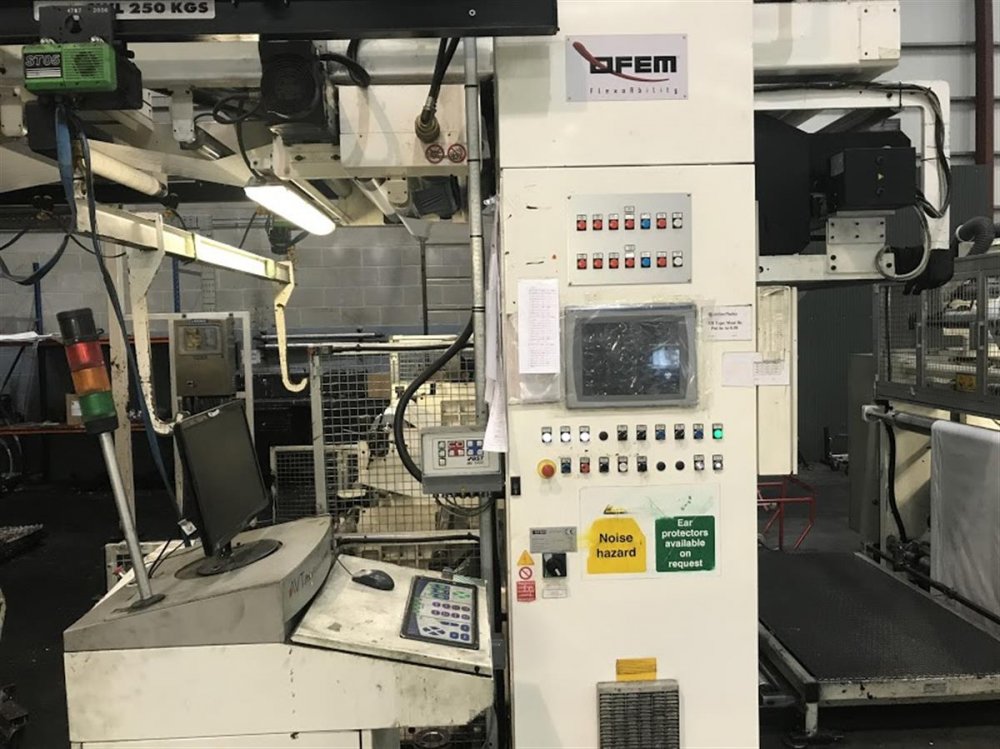

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- Unwind double positin with marriage rll drop splice
- Max reel diameter unwinder (mm)
- 800

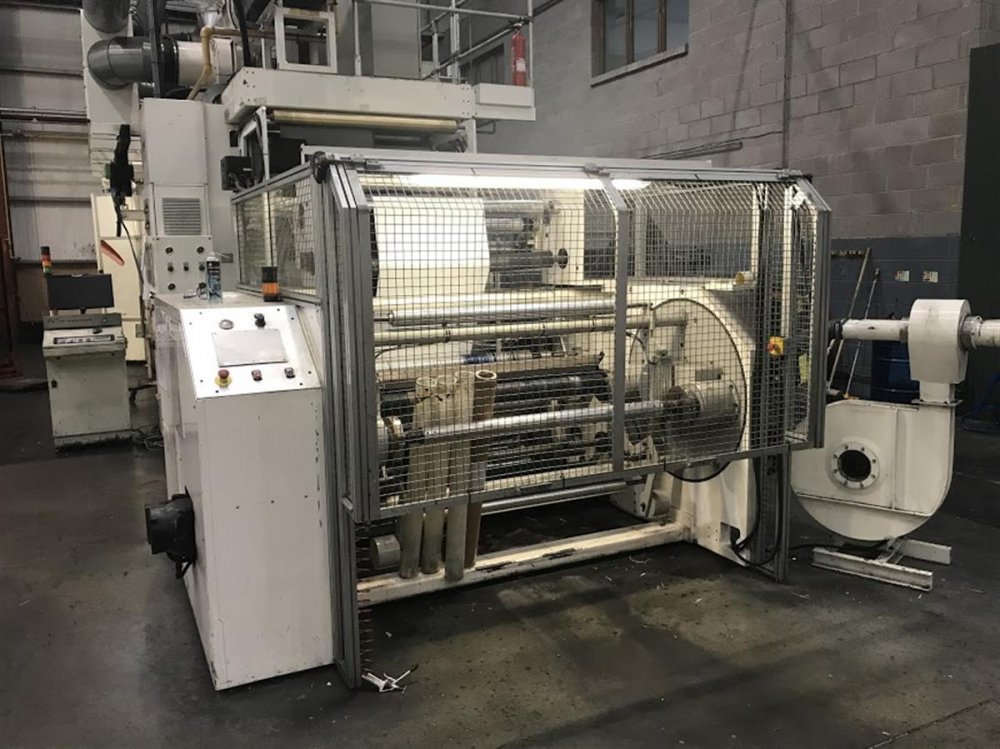

- Rewinder type
- Turret Automatic flying splice
- Max reel diameter rewinder (mm)
- 800

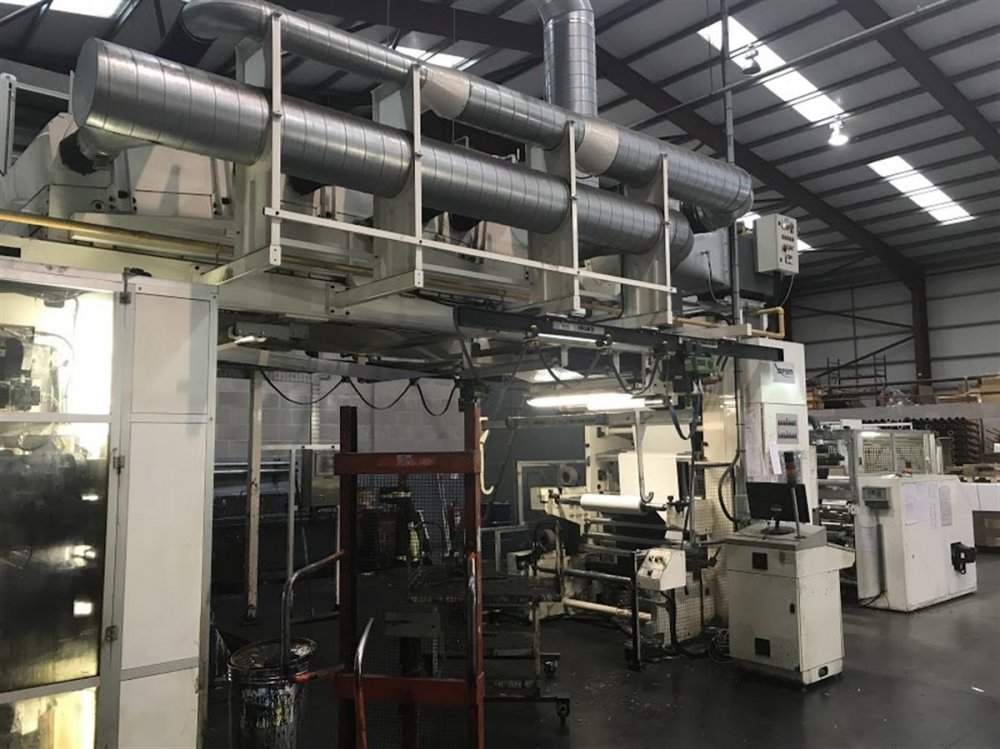

- Drying
- 2 zones , 4 fans , 2 gas burners
- Videocamera
- AVT Jupiter video inspection system
- Web guides
- BST edge guide
- Vyscosity control
- yes Norcross
- Washing system
- no
- Inking system
- Sealed chamber doctor blades
- Anilox
- 16 Ceramic anilox sleeves
- Print Sleeves
- 8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm
- Note
- Inline slitting Carbon fiber print mandrels Reprint register control
| Machine Code | FL866 |
| Manufacturer | OFEM |
| Modello | APPIA GL803 |
| Year | 2006 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Unwind double positin with marriage rll drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , 2 gas burners |
| Videocamera | AVT Jupiter video inspection system |
| Web guides | BST edge guide |
| Vyscosity control | yes Norcross |
| Washing system | no |
| Inking system | Sealed chamber doctor blades |
| Anilox | 16 Ceramic anilox sleeves |
| Print Sleeves | 8x360,380,400,410,440,460,480,500,500 ;540,550,615,660,680,700,745800,830,850; 8x 500 T. Lock ; 8x 515 T Lock ; 20x515 ; 16x580,760mm |
| Note | Inline slitting Carbon fiber print mandrels Reprint register control |
