- Maschinencode
- EC46
- Hersteller

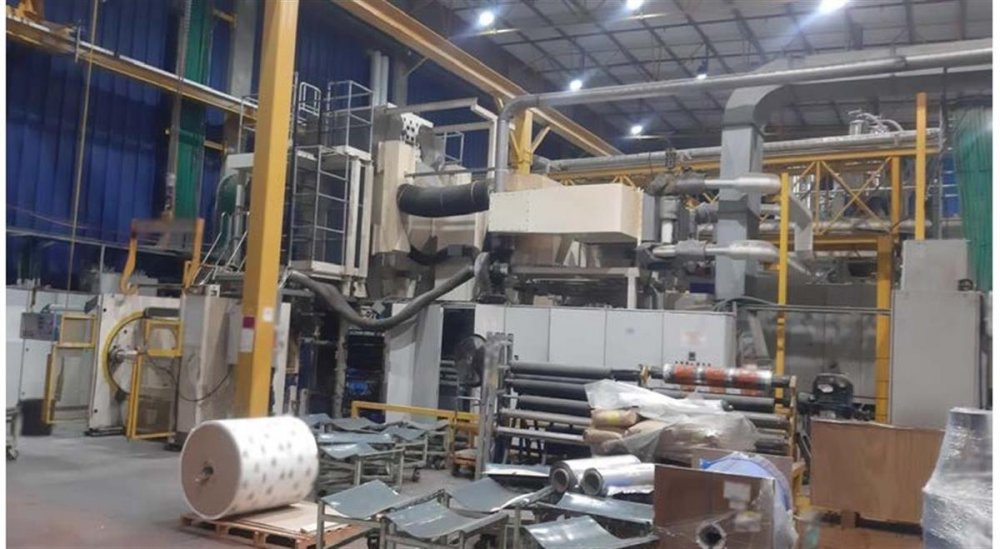

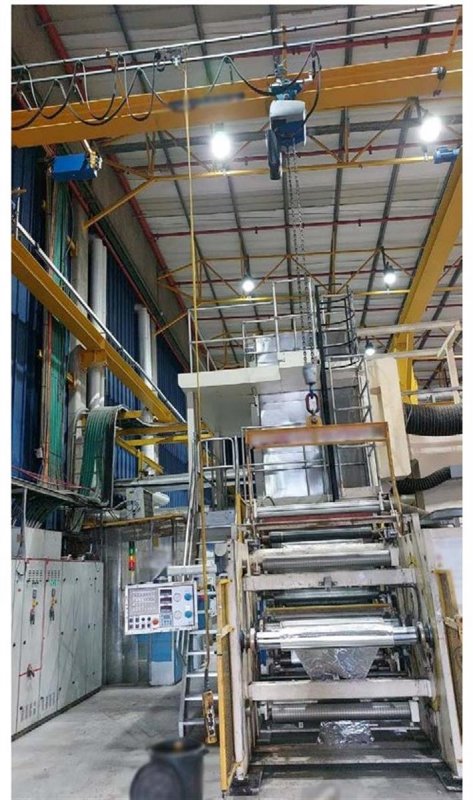

- DAVIS STANDARD - ERWEPA
- Baujahr
- 2012
- Width (mm)
- 1350
- Coating/lamination units
- 1 with coextrusion
- Coating/lamination unit 1 description
- T die + chill roll
- Treatment
- 1 corona + Primer coating station with drying
- Primary unwinder description
- Turret shafted max diameter 1000mm bidirectional. Max weight 1,5 tons
- Secondary unwinder description
- Turret shafted max diameter 1000mm bidirectional.
- Rewinder description
- Turret shafted bidirectional max diameter 1000mm
- Speed
- 300 m/min
- Product structure / Materials
- Paper:20 - 150 g/m2 Aluminium :6,35 - 25 µm PE:40 -120 µm BOPA: 15-50 µm BOPET: 9 -50 µm (smooth and metallised) BOPP: 15- 50 µm (smooth and metallised) Nonwoven PP: optional
- Note
- Typlcal substrates: Paper:20 - 150 g/m2 Aluminium :6,35 - 25 µm PE:40 -120 µm BOPA: 15-50 µm BOPET: 9 -50 µm (smooth and metallised) BOPP: 15- 50 µm (smooth and metallised) Nonwoven PP: optional Edge Trim Razor Blade Beta Thickness Gauge PROTAGON Edge Trim Shear Cut Centre Slit&Spreader Roller 3 extruders
| Maschinencode | EC46 |
| Hersteller | DAVIS STANDARD - ERWEPA |
| Baujahr | 2012 |
| Width (mm) | 1350 |
| Coating/lamination units | 1 with coextrusion |
| Coating/lamination unit 1 description | T die + chill roll |
| Treatment | 1 corona + Primer coating station with drying |
| Primary unwinder description | Turret shafted max diameter 1000mm bidirectional. Max weight 1,5 tons |
| Secondary unwinder description | Turret shafted max diameter 1000mm bidirectional. |
| Rewinder description | Turret shafted bidirectional max diameter 1000mm |
| Speed | 300 m/min |
| Product structure / Materials | Paper:20 - 150 g/m2 Aluminium :6,35 - 25 µm PE:40 -120 µm BOPA: 15-50 µm BOPET: 9 -50 µm (smooth and metallised) BOPP: 15- 50 µm (smooth and metallised) Nonwoven PP: optional |
| Note | Typlcal substrates: Paper:20 - 150 g/m2 Aluminium :6,35 - 25 µm PE:40 -120 µm BOPA: 15-50 µm BOPET: 9 -50 µm (smooth and metallised) BOPP: 15- 50 µm (smooth and metallised) Nonwoven PP: optional Edge Trim Razor Blade Beta Thickness Gauge PROTAGON Edge Trim Shear Cut Centre Slit&Spreader Roller 3 extruders |
