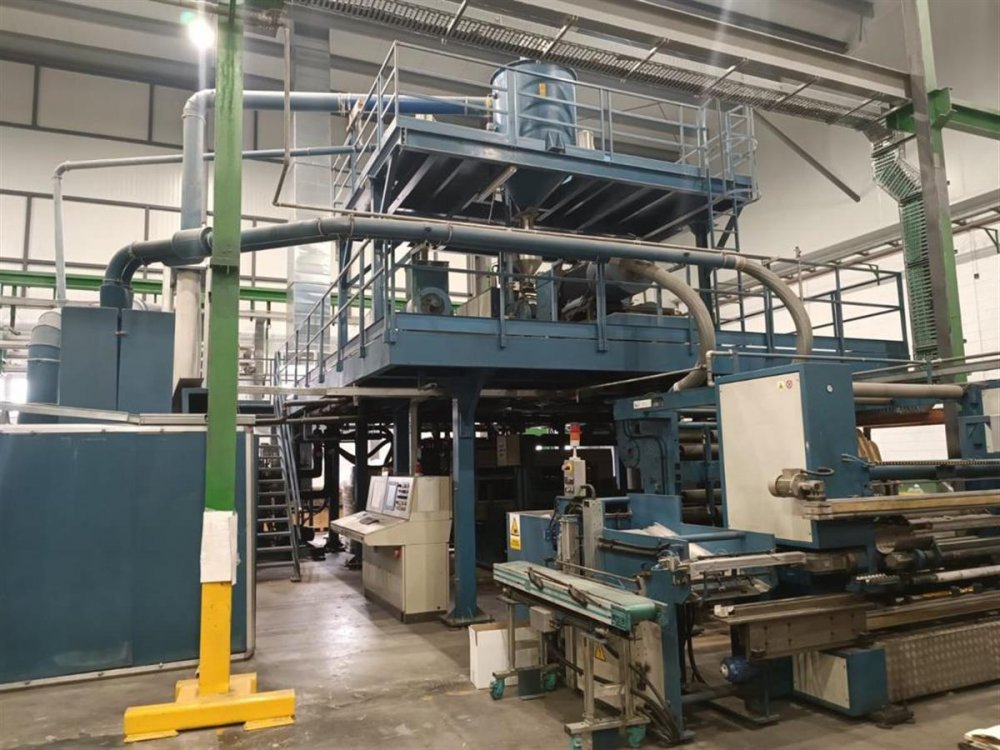

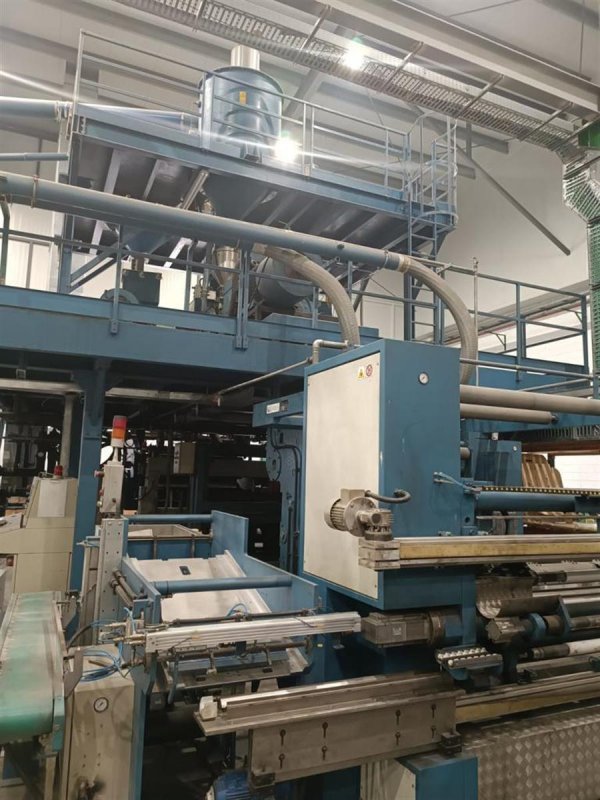

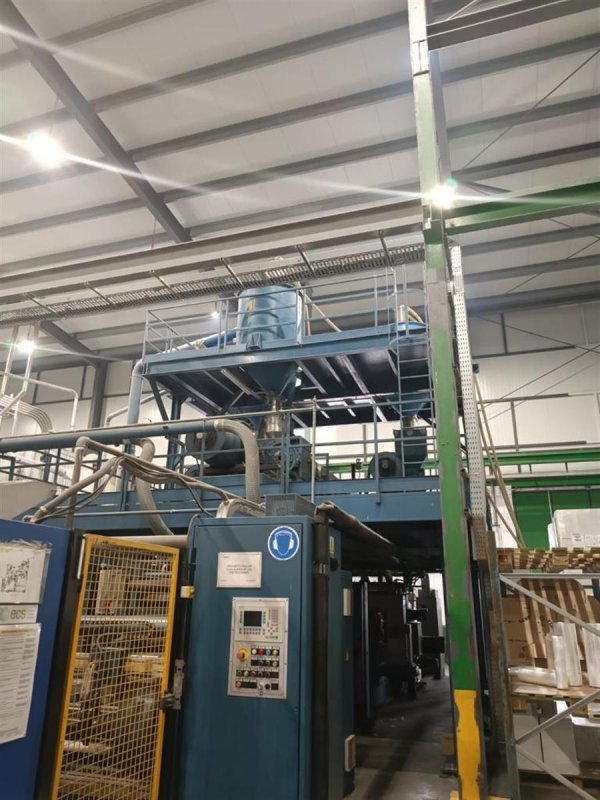

- Maschinencode
- CA206
- Hersteller
- ADTECH PROVERA
- Modello
- HR 1000/3
- Baujahr
- 2005
- Number of layers
- 3
- Film structure
- ABC
- Material
- STRETCH FILM LLDPE
- Film width (mm)
- 1000
- Speed (m/min)
- 600
- Output (Kg/h)
- 550
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 80mm
- Description 1
- L/D 30 AC motor
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120mm
- Description 2
- L/D 30 AC motor
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 80mm
- Description 3
- L/D 30 AC motor
- Head description
- Make Carraro, Dual chamber vacuum box
- Chill roll unit
- First chill roller 1000mm diam
- Thickness controll system
- Thickness gauge X rays
- Web guide
- Oscillating device
- Rewinder max reel diameter (mm)
- 150
- Rewinder description
- For machine reels. 4 shafts fast change
- Note
- in line edge reclaim system
| Maschinencode | CA206 |
| Hersteller | ADTECH PROVERA |
| Modello | HR 1000/3 |
| Baujahr | 2005 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | STRETCH FILM LLDPE |
| Film width (mm) | 1000 |
| Speed (m/min) | 600 |
| Output (Kg/h) | 550 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 80mm |
| Description 1 | L/D 30 AC motor |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120mm |
| Description 2 | L/D 30 AC motor |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 80mm |
| Description 3 | L/D 30 AC motor |
| Head description | Make Carraro, Dual chamber vacuum box |
| Chill roll unit | First chill roller 1000mm diam |
| Thickness controll system | Thickness gauge X rays |
| Web guide | Oscillating device |
| Rewinder max reel diameter (mm) | 150 |
| Rewinder description | For machine reels. 4 shafts fast change |
| Note | in line edge reclaim system |
