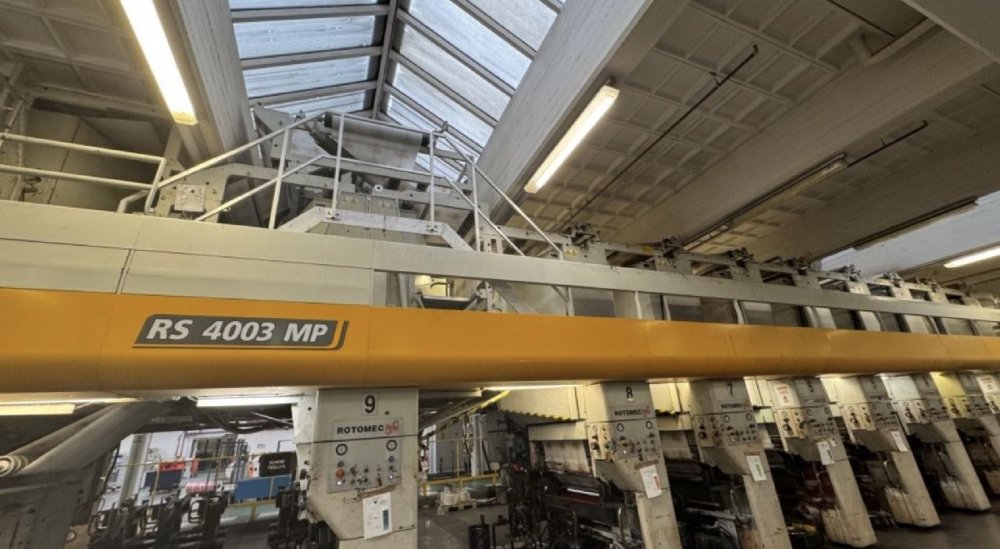

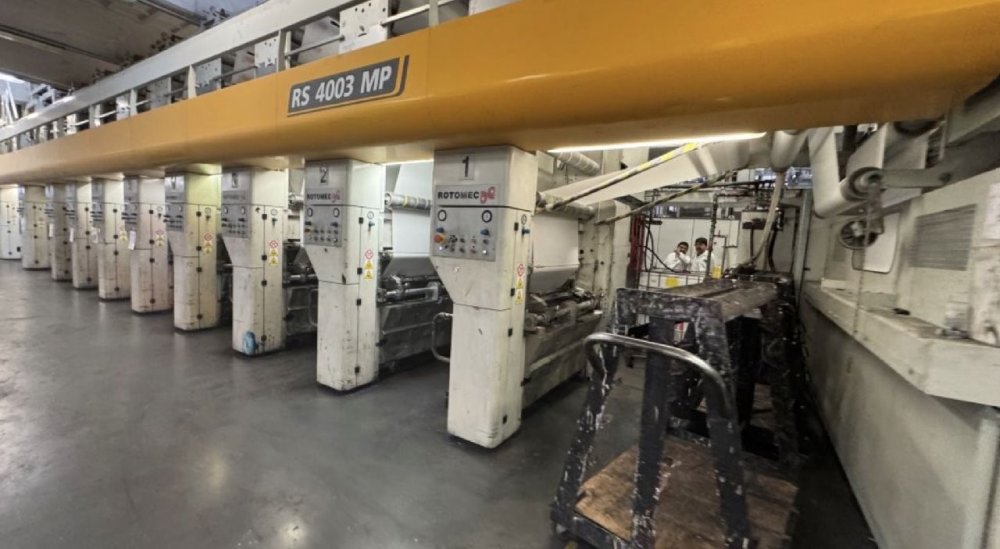

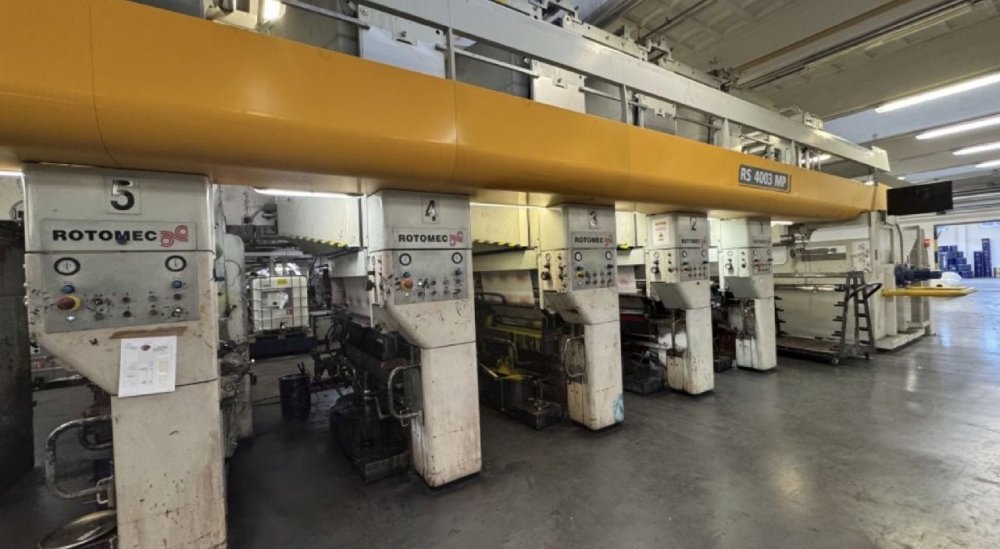

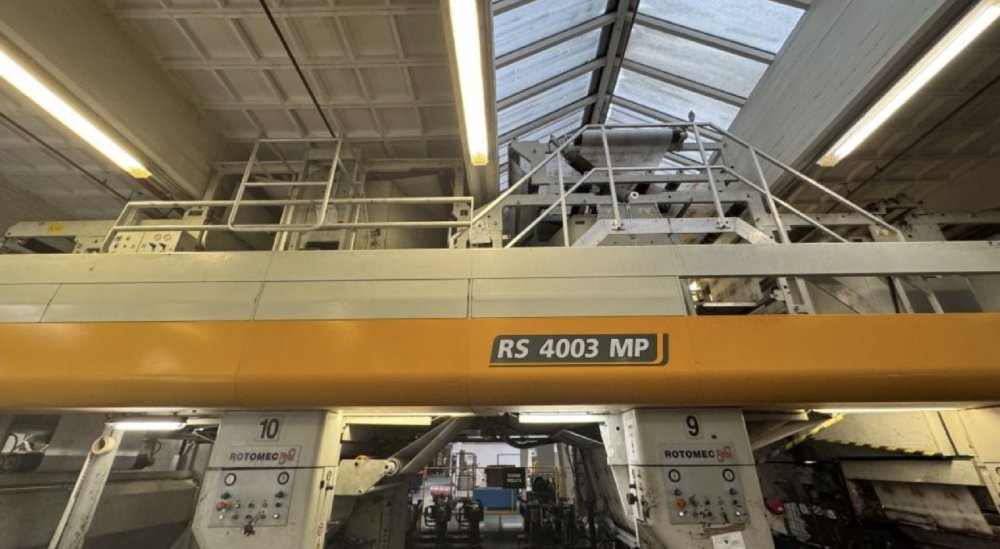

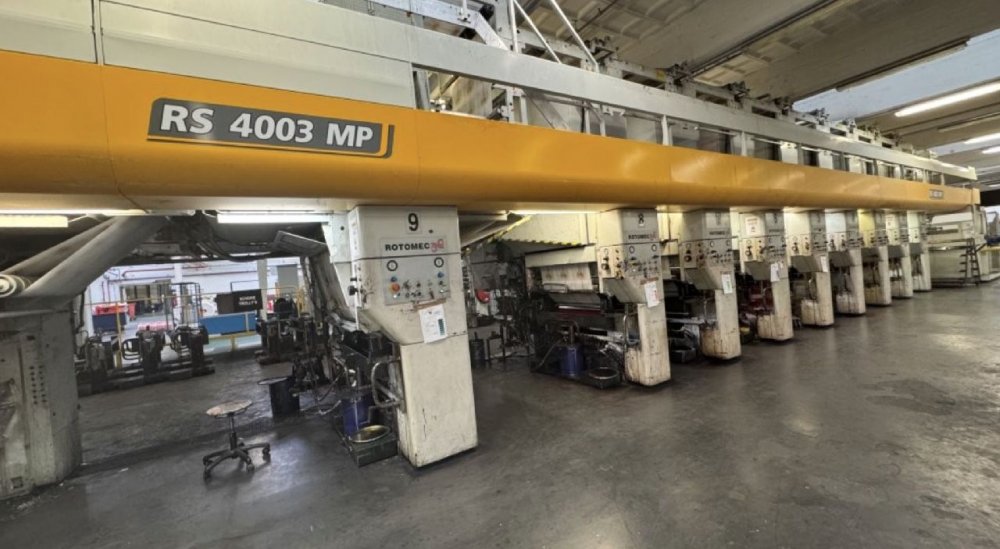

ROTOMEC RS4003 MP Tiefdruck maschine 10 farben

Maschinencode
RO262
Hersteller
ROTOMEC
Modello
RS4003 MP
Baujahr
2007
Number of colors
10
Print possibilities
10+0. 9+1
Drive
Electronic shaft
Trolley system
Yes
Web width (mm)
1100
Print width (mm)
1130
Print repeat range (mm)
400 - 850

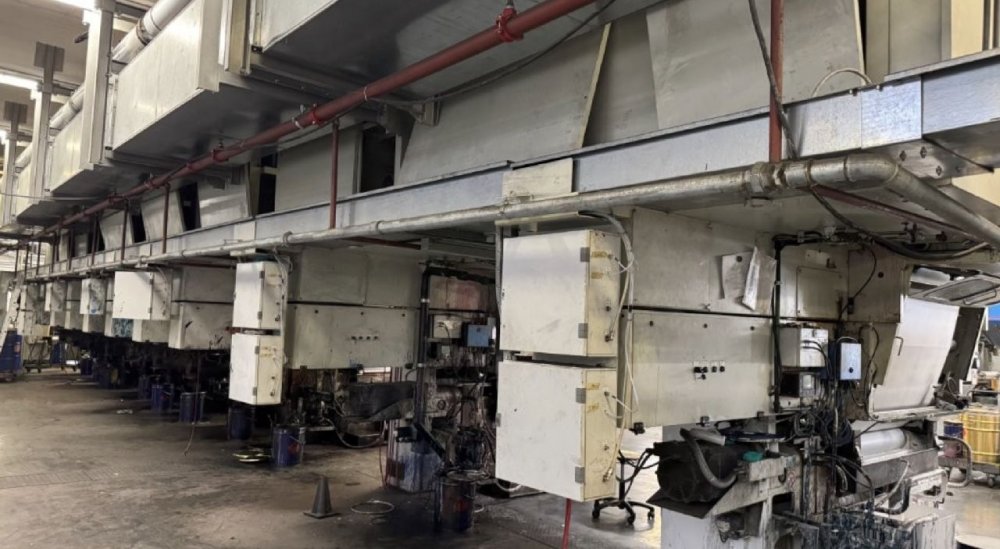

Drying specifications
UNITS 1- 8 One blowing fan, single drying hood 2,7 mt , Unit 9 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,2 mt Unit 10 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,5mt . Thermo oil heat exchangers Automatic air recirculation system with LEL control by Honeywell
Drying heat surce
tHERMO OIL HEAT EXCHANGERS

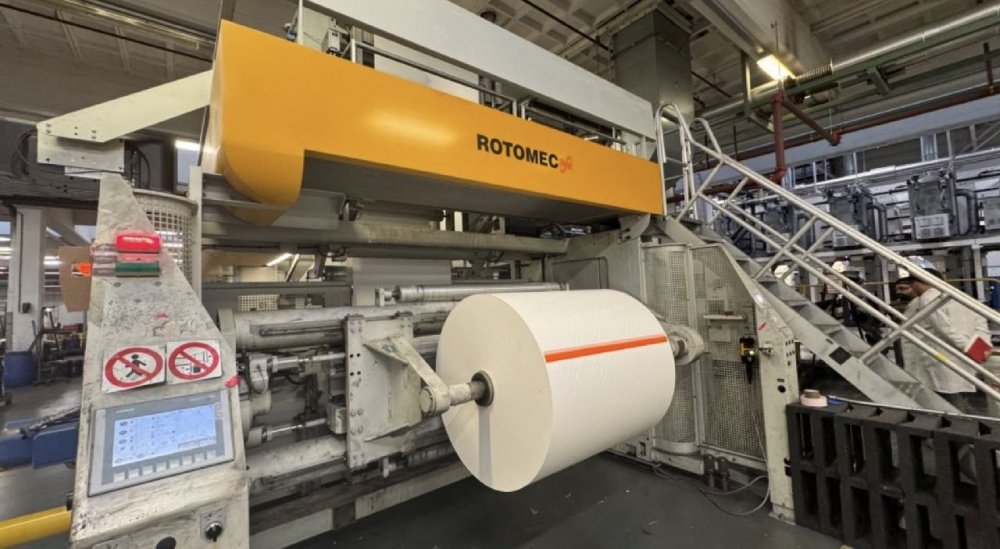

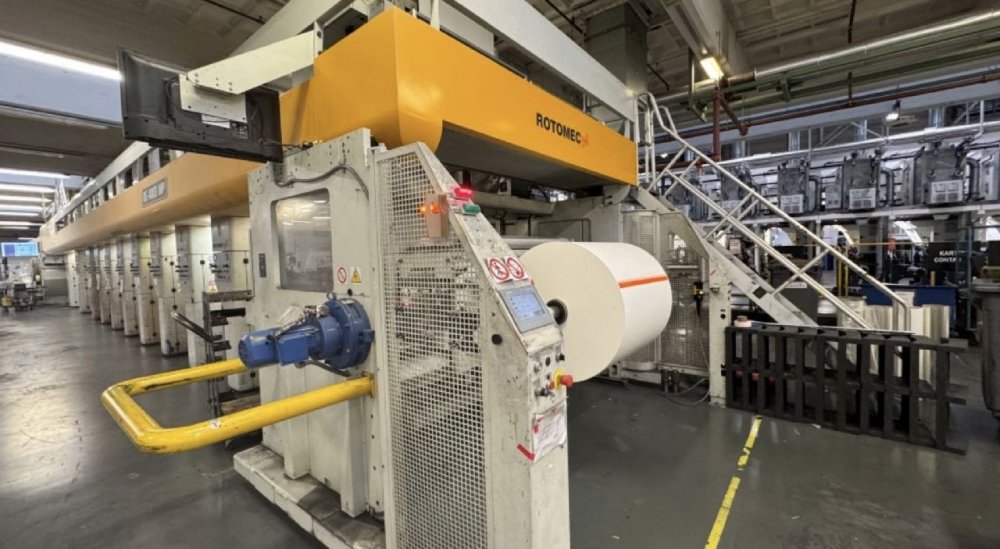

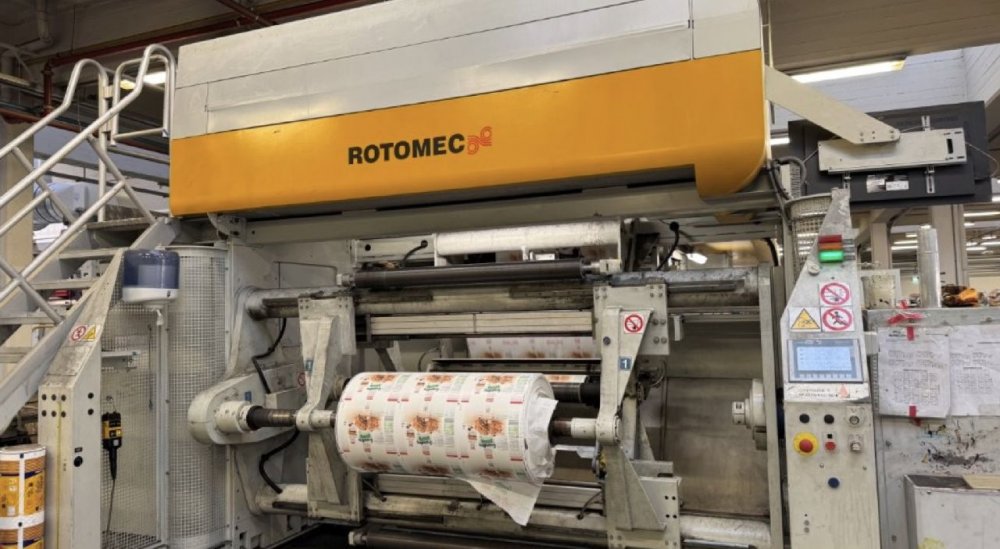

Unwinder type
Turret Automatic non stop 1000 mm
Max reel diameter unwinder (mm)
1000

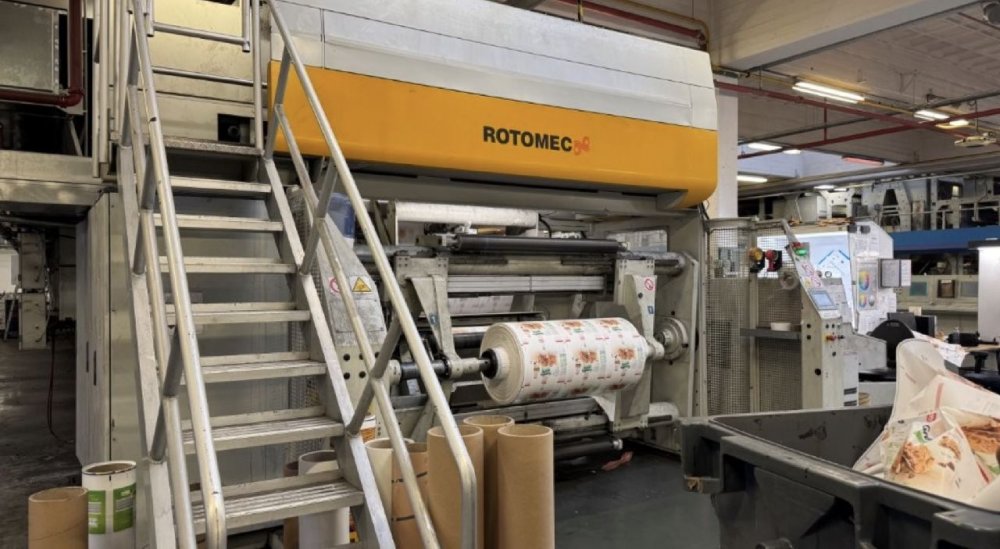

Rewinder type
Turret automatic non stop
Max reel diameter rewinder (mm)
1000
Videocamera
Yes 2 Video cameras by BST
Register controll
YES BOBST Registron
Vyscosity control
YES by NEW CELIO
Print cylinders
1100 cylinders
Maschinencode RO262
Hersteller ROTOMEC
Modello RS4003 MP
Baujahr 2007
Number of colors 10
Print possibilities 10+0. 9+1
Drive Electronic shaft
Trolley system Yes
Web width (mm) 1100
Print width (mm) 1130
Print repeat range (mm) 400 - 850
Drying specifications UNITS 1- 8 One blowing fan, single drying hood 2,7 mt , Unit 9 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,2 mt Unit 10 - 2 blowing fan , one exhaust fan Double drying hood 2x 3,5mt . Thermo oil heat exchangers Automatic air recirculation system with LEL control by Honeywell
Drying heat surce tHERMO OIL HEAT EXCHANGERS
Unwinder type Turret Automatic non stop 1000 mm
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic non stop
Max reel diameter rewinder (mm) 1000
Videocamera Yes 2 Video cameras by BST
Register controll YES BOBST Registron
Vyscosity control YES by NEW CELIO
Print cylinders 1100 cylinders
