- Machine code
- FL1122
- Manufacturer
- KBA FLEXOTECNICA

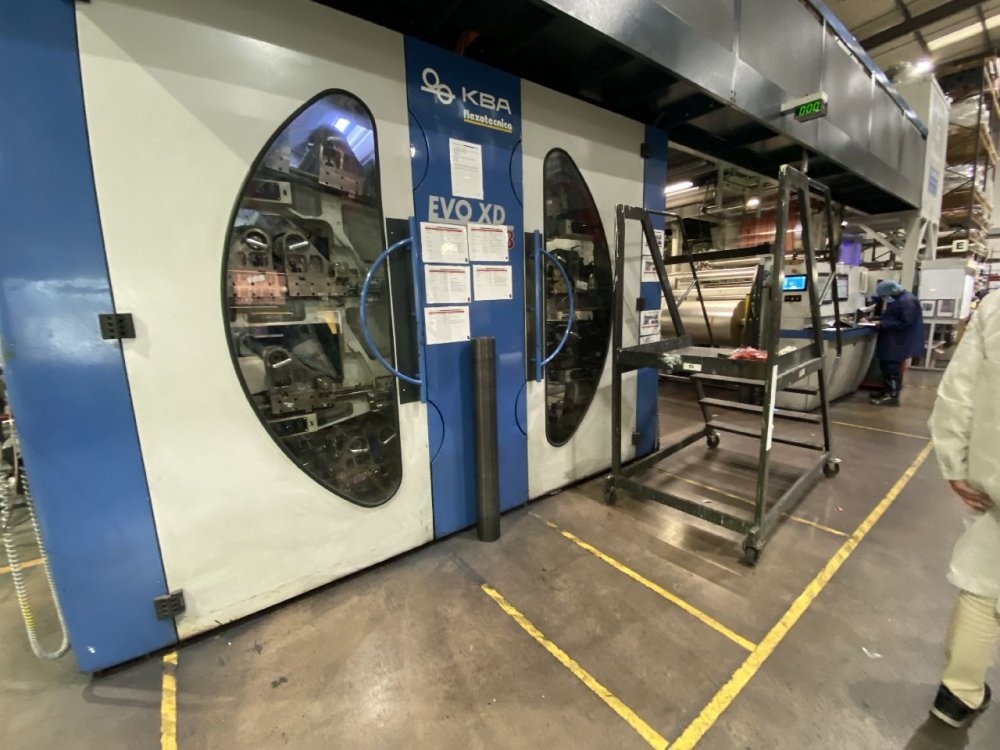

- Modello
- EVO XD
- Year
- 2017
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

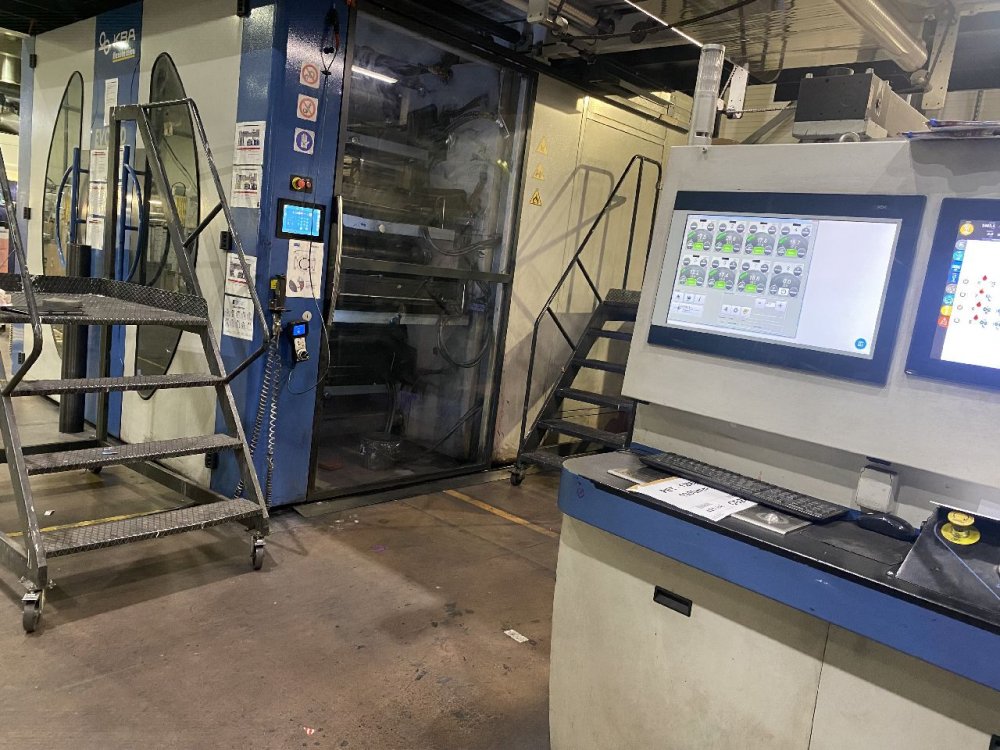

- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800

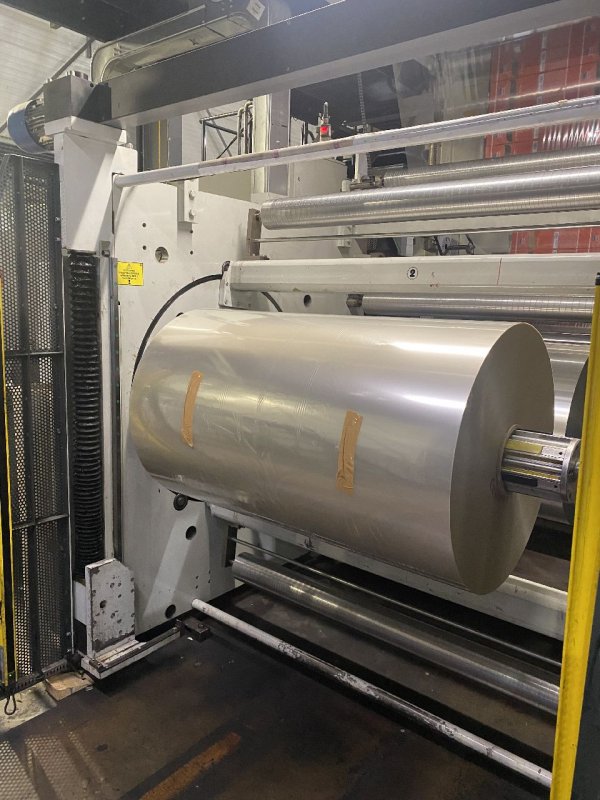

- Unwinder type
- Turret Automatic with roll loading system
- Rewinder type
- Turret Automatic with roll unloading system

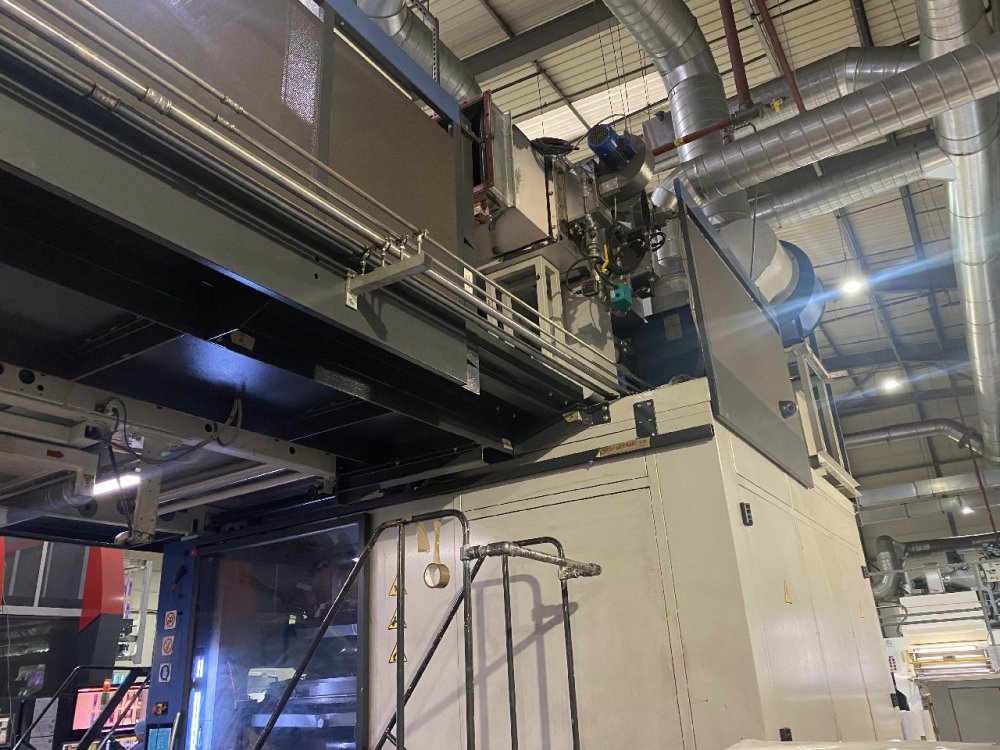

- Drying
- 2 zones , 4 fans , final tunnel 5 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger

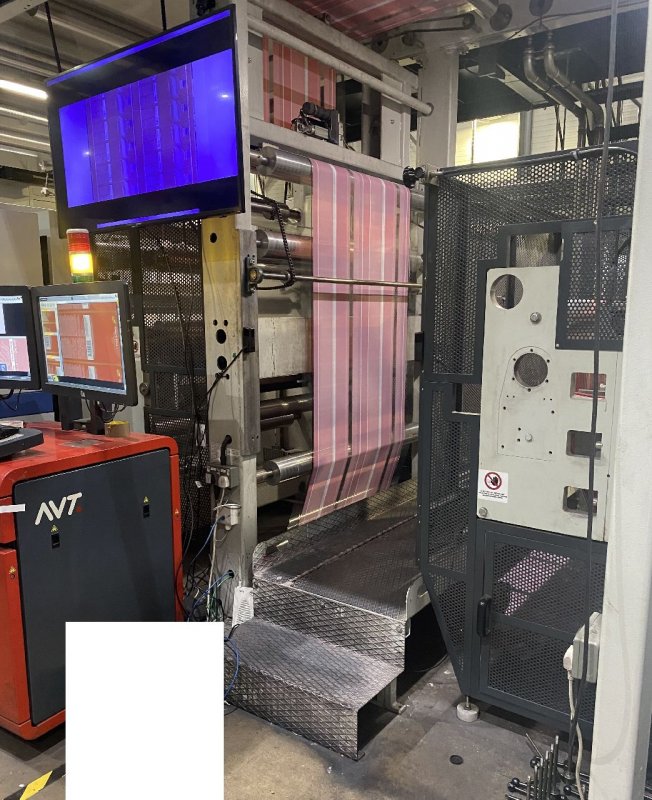

- Videocamera
- YES AVT 100% INSPECTION
- Web guides
- Yes in and out
- Vyscosity control
- yes GAMA
- Washing system
- Yes
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- approx 100
| Machine code | FL1122 |
| Manufacturer | KBA FLEXOTECNICA |
| Modello | EVO XD |
| Year | 2017 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic with roll loading system |
| Rewinder type | Turret Automatic with roll unloading system |
| Drying | 2 zones , 4 fans , final tunnel 5 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger |
| Videocamera | YES AVT 100% INSPECTION |
| Web guides | Yes in and out |
| Vyscosity control | yes GAMA |
| Washing system | Yes |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | approx 100 |
