- Codice Macchina
- UN-RE31
- Manufacturer
- LAEM SYSTEM
- Modello

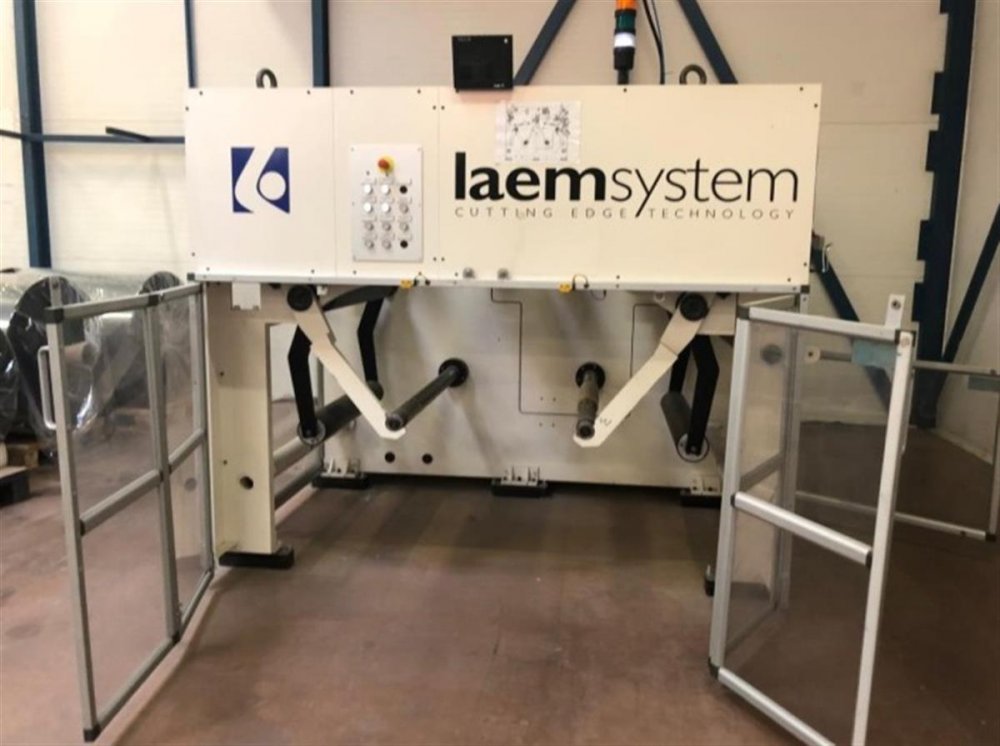

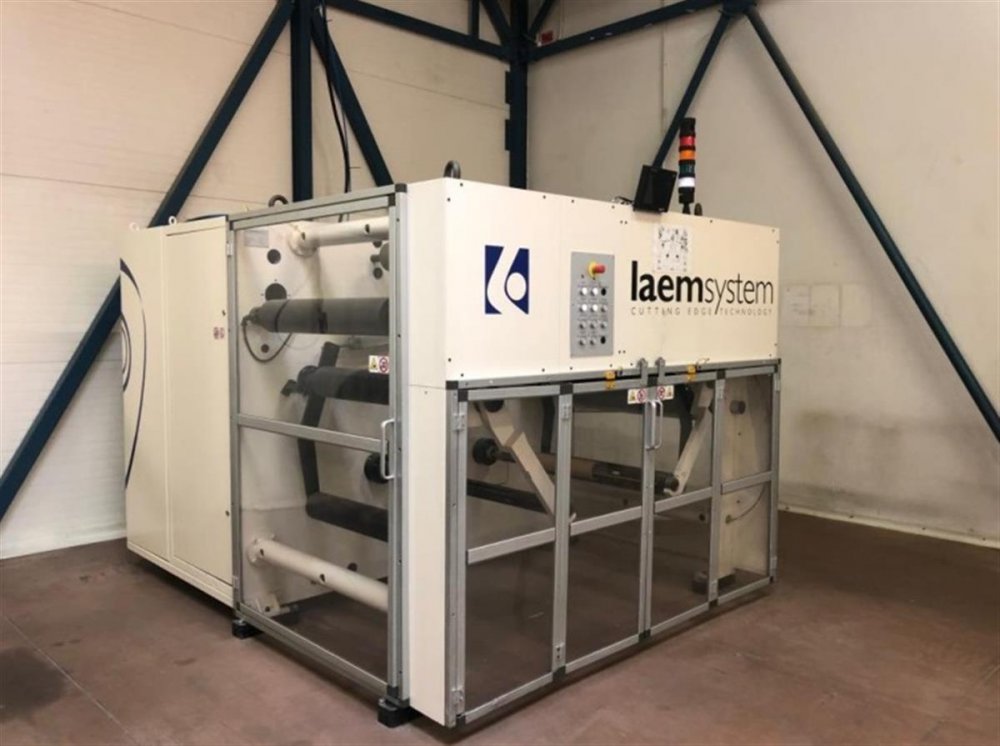

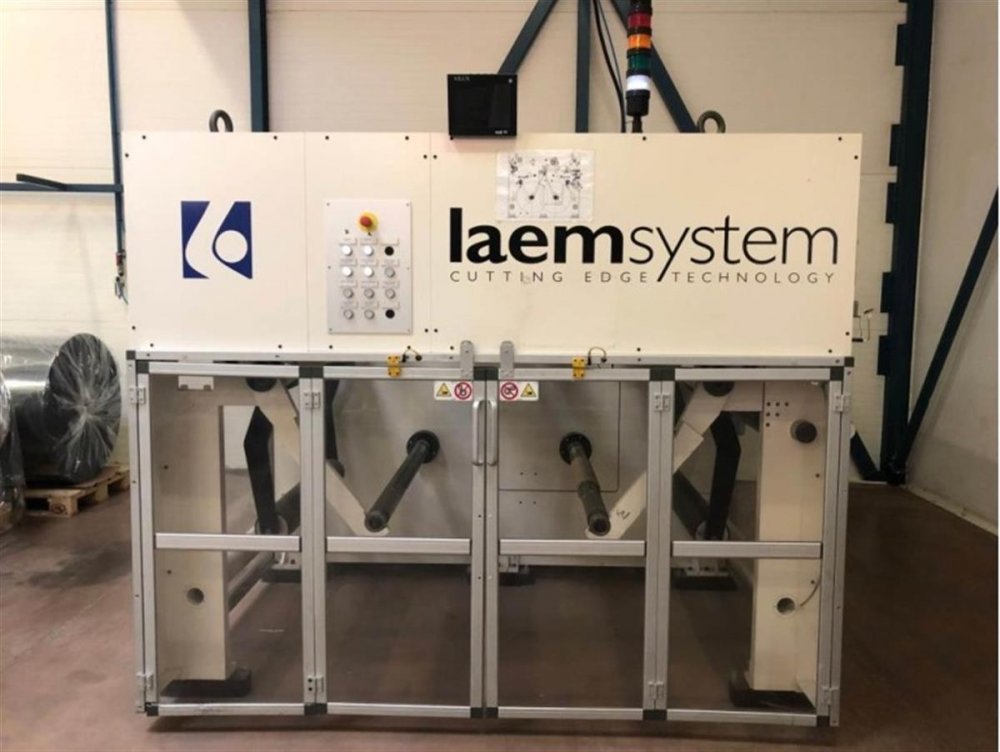

- Doctoring machine VIS100-800
- Year
- 2015
- Larghezza lavoro (mm)
- 800
- Ulteriori informazioni
- Maximum outer diameter unwinding/rewinding: 1000 mm Diameter cores unwinding/rewinding: 3” / 6” Maximum mechanical speed: 600 m/min Unwind & Rewind Tension range: 25-250 N Taper Tension: from 100% to 50% of the set tension Web direction: Bidirectional Electric power supply, drive: CA 400V – 50HZ Electronic power supply, service voltage: 12 kW Electronic components: Siemens Min. Pressure of compressed air supply: 6 bar Consumption of compressed air, humidity free: 70 l/hr Noise level Lp(A): < 80 Db(A) Safety standard: DM 2006/42 CE Maximum jumbo roll width: 800 mm Width of rollers / draw roller: 900 mm Maximum jumbo roll diameter: 1000 mm Unwinding and Rewinding Shafts: Two 3” + two 6” shafts Maximum jumbo roll weight: 800 kg Type of cores: Good quality cardboard Web guide stroke : ± 50 mm Rewinding method - Central drive, with rubberized lay-on roller across the full nominal width The machine is CE certified and meets the international safety standards
| Codice Macchina | UN-RE31 |
| Manufacturer | LAEM SYSTEM |
| Modello | Doctoring machine VIS100-800 |
| Year | 2015 |
| Larghezza lavoro (mm) | 800 |
| Ulteriori informazioni | Maximum outer diameter unwinding/rewinding: 1000 mm Diameter cores unwinding/rewinding: 3” / 6” Maximum mechanical speed: 600 m/min Unwind & Rewind Tension range: 25-250 N Taper Tension: from 100% to 50% of the set tension Web direction: Bidirectional Electric power supply, drive: CA 400V – 50HZ Electronic power supply, service voltage: 12 kW Electronic components: Siemens Min. Pressure of compressed air supply: 6 bar Consumption of compressed air, humidity free: 70 l/hr Noise level Lp(A): < 80 Db(A) Safety standard: DM 2006/42 CE Maximum jumbo roll width: 800 mm Width of rollers / draw roller: 900 mm Maximum jumbo roll diameter: 1000 mm Unwinding and Rewinding Shafts: Two 3” + two 6” shafts Maximum jumbo roll weight: 800 kg Type of cores: Good quality cardboard Web guide stroke : ± 50 mm Rewinding method - Central drive, with rubberized lay-on roller across the full nominal width The machine is CE certified and meets the international safety standards |
