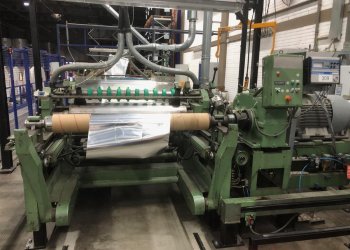

- Codice Macchina
- SR455
- Manufacturer
- KAMPF
- Modello
- Rasanta 8
- Year
- 1980
- Rinnovo
- Machine was completely renovated in 2013
- Larghezza lavoro (mm)
- 1200
- Materiali
- Paper and board and laminated up to 600 gsm
- Velocità
- 600 m/min
- Unwinder type
- SINGLE
- Diametro massimo bobina svolgitore
- 1800
- Rewinder type
- Single
- Diametro massimo bobina avvolgitore
- 1800
- Descrizione avvolgitore
- Machine with 2 rewinders, one for board: Rewind board Core 300 mm, reela diam 1800mm and one for transfer film reel diam 700
- Larghezza taglio minima
- 60 mm
- Coltelli
- Rotary
- Ulteriori informazioni
- FUNCTIONS: - Board and film slitting into smaller reels - Splitting board from transfer film Unwind Board/paper material: Max Diameter Reel in 1800 (mm) Core size 300 (mm) standard or 150 (mm) Max width 1270 (mm) Web guide: FIFE Slitting/cutting First slitting unit positioned at film -paper splitting unit, mainly for sides-mid: - 2 knives Tidland Cotta Rotary knive system - Dust removal system (vacuum clean), anti static bar Slitting/cutting (at rewind board): Multiple knives able to slit to small width reels min width 60 (mm) Rewind Transfer film, Core 150, Maximum diameter 700 (mm) Corona Treater (on board surface) Vetaphone Corona plus cp3 MKII 6 kW Rewind board, Core 300 (mm), Maximum diameter 1800 (mm)
| Codice Macchina | SR455 |
| Manufacturer | KAMPF |
| Modello | Rasanta 8 |
| Year | 1980 |
| Rinnovo | Machine was completely renovated in 2013 |
| Larghezza lavoro (mm) | 1200 |
| Materiali | Paper and board and laminated up to 600 gsm |
| Velocità | 600 m/min |
| Unwinder type | SINGLE |
| Diametro massimo bobina svolgitore | 1800 |
| Rewinder type | Single |
| Diametro massimo bobina avvolgitore | 1800 |
| Descrizione avvolgitore | Machine with 2 rewinders, one for board: Rewind board Core 300 mm, reela diam 1800mm and one for transfer film reel diam 700 |
| Larghezza taglio minima | 60 mm |
| Coltelli | Rotary |
| Ulteriori informazioni | FUNCTIONS: - Board and film slitting into smaller reels - Splitting board from transfer film Unwind Board/paper material: Max Diameter Reel in 1800 (mm) Core size 300 (mm) standard or 150 (mm) Max width 1270 (mm) Web guide: FIFE Slitting/cutting First slitting unit positioned at film -paper splitting unit, mainly for sides-mid: - 2 knives Tidland Cotta Rotary knive system - Dust removal system (vacuum clean), anti static bar Slitting/cutting (at rewind board): Multiple knives able to slit to small width reels min width 60 (mm) Rewind Transfer film, Core 150, Maximum diameter 700 (mm) Corona Treater (on board surface) Vetaphone Corona plus cp3 MKII 6 kW Rewind board, Core 300 (mm), Maximum diameter 1800 (mm) |
